2.5-6 UL

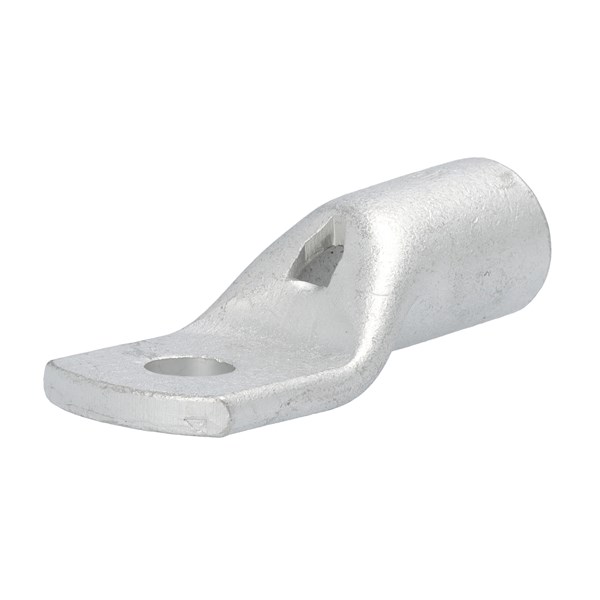

CABLE LUG KR 2.5mm2, M6, UL
2.5-6 UL
- Availability:
-
Yes
- Total: 1
Related items
KR - UL-approved - 0.75-6mm²
Meets the measure requirements according to DIN 46235. Copper tube lugs for stranded (class 5 and class 6) and solid wires (class 2).
Material: 99.9% pure copper
Surface: > 4µ Sn
Inscriptions on the lugs palm can for ie be: Cu 35-12
Cu = KRT UL // 35 = 35 wire // 12 = M12 stud size.
- Total: 1
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Insulated | No |
| Number of mounting holes | 1 . |
| Flange shape | Ring shape |
| Colour insulation | Other |
| Slender flange model | No |
| With sight-hole | Yes |
| Conductor category | Several |
| Max Temp | 150 °C |
| Surface protection | Tinned |
| Material | Copper |
| Connecting angle | 180° (horizontal) |
| Series | KR/KS (0.75-6mm2) |

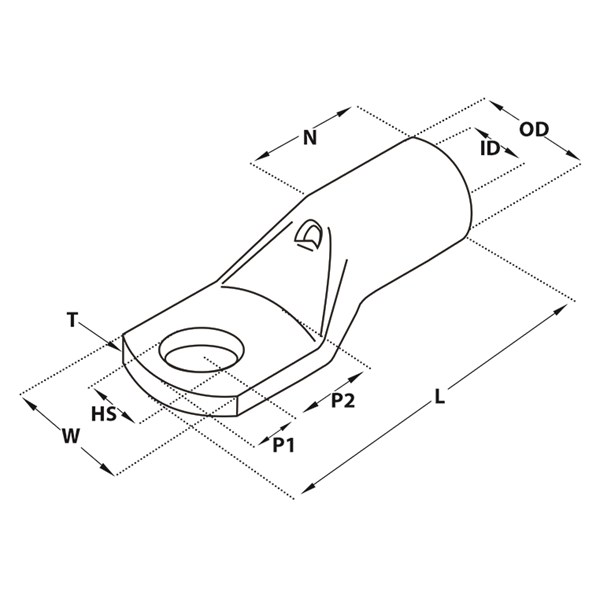

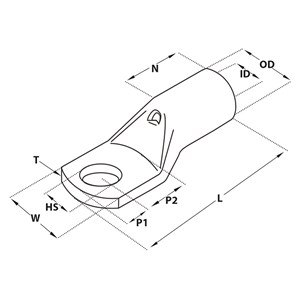

Dimensions
| HS | 6.4 mm |
|---|---|
| ID | 2.4 mm |
| P1 | 5 mm |
| P2 | 6 mm |
| L | 20 mm |
| W | 9 mm |
| MOQ | 100 . |
| Unit | pcs |
| Bolt dimension (metric) | 6 . |
| Nominal cross section | 2.5 mm² |
Logistics
| Barcode | 733117611960 |
|---|---|
| Country of origin | IT |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Stock code | 2.5-6 UL |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| With approval according to UL | Yes |
|---|
Other info
| ETIM-Class | EC001051 - Tube cable lug for copper conductors |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | Cembre |
| Product Group | Cable lugs |
| Alternative SKU | 2.5-6UL |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| PFOA | No PFOA |
| PFOS | No PFOS |
| POPs | No POPs |
| REACH | No SVHC (Latest. 27 June 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
Genererate statement of compliance:
