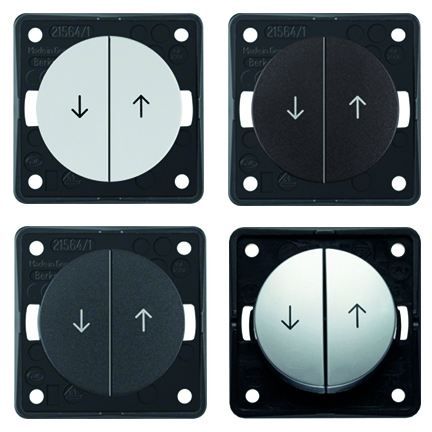

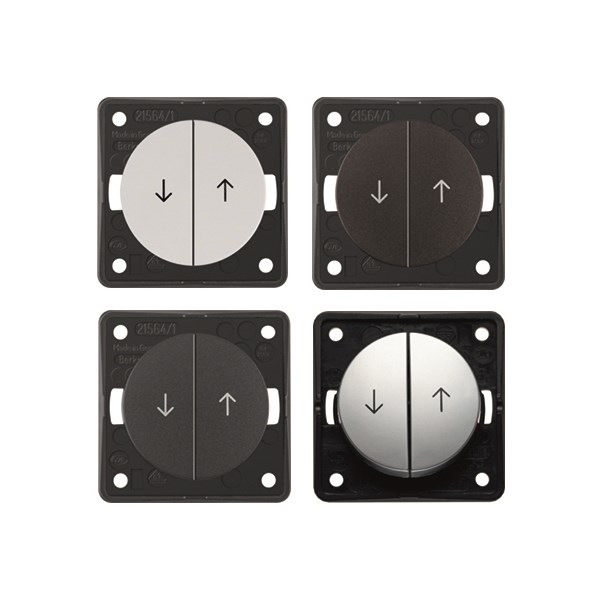

Twin push-button switch for blinds - INTEGRO Berker
Blind series push-button with imprinted symbol arrow
-e.g.for electrical blinds and awnings. Imprinted arrow symbol.
With electrical interlocking to prevent mutual activation.
10A, 250V
Size: 55.5 mm x 55.5 mm
Screw terminals
Technical properties
- For venetian blinds:
- Yes
- Number of buttons:
- 2 .
- With electrical locking:
- Yes
- Nominal voltage:
- 250 V
- Connection type:
- Screwed terminal
- Rated current:
- 10 A
- Mounting method:
- Built-in installation
- Anti-bacterial treatment:
- No
- Surface finishing:
- Matt, Glossy
- Compatible with Apple HomeKit:
- No
- Compatible with Google Assistant:
- No
- Compatible with Amazon Alexa:
- No
- IFTTT support available:
- No
- Assembly arrangement:
- Basic element with central cover plate
- Wiring system:
- Other
- Method of operation:
- Rocker/button, Rocker
- With mounting plate:
- No
- Illumination:
- No
- Feedback-signal contact:
- No
- Heating switch:
- No
- Washing machine switch:
- No
- Label space/information surface:
- No
- Model:
- 2-pole push button
- Type of fastening:
- Screw mounting
- RAL-number (similar):
- 8017 ., 7021 ., 9010 ., 9023 .
- Min. depth of built-in installation box:
- 16 mm
- Colour:
- Brown, Anthracite, White, Chrome
- Surface protection:
- Untreated
- Material:
- Plastic
- Type of product:
- Strömbrytare
- Variant:
- 250V
- Built-in depth:
- 15.5 mm
Show more
Item List
- Total: 4
- Total: 4
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 4
| Product Description | Built-in depth | Number of modules (module system) | Device width | Device height | Device depth | Number of rockers | Min. depth of built-in installation box | MOQ | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TWIN PUSH-BUTTON, 250V POLAR WHITE GLOSSY, ARROW UP/DOWN FLOW | 15.5 mm | 1 . | 55.5 mm | 55.5 mm | 25 mm | 2 . | 16 mm | 10 . | pcs | 250 V |
No
|
|
|
| TWIN PUSH-BUTTON, 250V BROWN MATT, ARROW UP/DOWN FLOW | 15.5 mm | 1 . | 55.5 mm | 55.5 mm | 25 mm | 2 . | 16 mm | 10 . | pcs | 250 V |
Yes
|
|
|
| TWIN PUSH-BUTTON, 250V ANTHRACITE MATT, ARROW UP/DOWN FLOW | 15.5 mm | 1 . | 55.5 mm | 55.5 mm | 25 mm | 2 . | 16 mm | 10 . | pcs | 250 V |
No
|
|
|
| TWIN PUSH-BUTTON, 250V CHROME MATT, ARROW UP/DOWN FLOW | 15.5 mm | 1 . | 55.5 mm | 55.5 mm | 25 mm | 2 . | 16 mm | 10 . | pcs | 250 V |
No
|
|
|
- Total: 4
Similar Options
Approvals
- Total: 4
- Total: 4
Technical Properties
- Total: 4
| Product Description | For venetian blinds | Number of buttons | With electrical locking | Nominal voltage | Connection type | Rated current | Mounting method | Anti-bacterial treatment | Surface finishing | Compatible with Apple HomeKit | Compatible with Google Assistant | Compatible with Amazon Alexa | IFTTT support available | Assembly arrangement | Wiring system | Method of operation | With mounting plate | Illumination | Feedback-signal contact | Heating switch | Washing machine switch | Label space/information surface | Model | Type of fastening | RAL-number (similar) | Min. depth of built-in installation box | Colour | Surface protection | Material | Type of product | Variant | Built-in depth | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TWIN PUSH-BUTTON, 250V POLAR WHITE GLOSSY, ARROW UP/DOWN FLOW | Yes | 2 . | Yes | 250 V | Screwed terminal | 10 A | Built-in installation | No | Glossy | No | No | No | No | Basic element with central cover plate | Other | Rocker | No | No | No | No | No | No | 2-pole push button | Screw mounting | 9010 . | 16 mm | White | Untreated | Plastic | Strömbrytare | 250V | 15.5 mm |
No
|
|
|
| TWIN PUSH-BUTTON, 250V BROWN MATT, ARROW UP/DOWN FLOW | Yes | 2 . | Yes | 250 V | Screwed terminal | 10 A | Built-in installation | No | Matt | No | No | No | No | Basic element with central cover plate | Other | Rocker/button | No | No | No | 2-pole push button | Screw mounting | 8017 . | 16 mm | Brown | Plastic | Strömbrytare | 250V | 15.5 mm |
Yes
|
|
|
||||
| TWIN PUSH-BUTTON, 250V ANTHRACITE MATT, ARROW UP/DOWN FLOW | Yes | 2 . | Yes | 250 V | Screwed terminal | 10 A | Built-in installation | No | Matt | No | No | No | No | Basic element with central cover plate | Other | Rocker | No | No | No | No | 2-pole push button | Screw mounting | 7021 . | 16 mm | Anthracite | Untreated | Plastic | Strömbrytare | 250V | 15.5 mm |
No
|
|
|
||
| TWIN PUSH-BUTTON, 250V CHROME MATT, ARROW UP/DOWN FLOW | Yes | 2 . | Yes | 250 V | Screwed terminal | 10 A | Built-in installation | No | Glossy | No | No | No | No | Basic element with central cover plate | Other | Rocker/button | No | No | No | 2-pole push button | Screw mounting | 9023 . | 16 mm | Chrome | Plastic | 15.5 mm |
No
|
|
|
- Total: 4
Other information
- Total: 4
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| TWIN PUSH-BUTTON, 250V POLAR WHITE GLOSSY, ARROW UP/DOWN FLOW | EC000044 - Window blind switch | 9.0 |
|
Installation switches | 936532509 | 171436532509 |
No
|
|
|
| TWIN PUSH-BUTTON, 250V BROWN MATT, ARROW UP/DOWN FLOW | EC000044 - Window blind switch | 9.0 |
|
Installation switches | 936532501 | 171436532501 |
Yes
|
|
|
| TWIN PUSH-BUTTON, 250V ANTHRACITE MATT, ARROW UP/DOWN FLOW | EC000044 - Window blind switch | 9.0 |
|
Installation switches | 936532505 | 171436532505 |
No
|
|
|
| TWIN PUSH-BUTTON, 250V CHROME MATT, ARROW UP/DOWN FLOW | EC000044 - Window blind switch | 9.0 |
|
Installation switches | 936532508 | 171436532508 |
No
|
|
|
- Total: 4
