Outlet 250 VAC - INTEGRO Berker
Socket outlet grounded Schuko with child protection 16A, 250 VAC IP21
Screwterminals fits wall boxes Ø45 mm and Ø49 mm
Standard IEC 60884-1
Technical properties
- Impact strength:
- IK05
- Nominal voltage:
- 250 V
- Connection type:
- Screwed terminal
- Mounting method:
- Flush-mounted
- Over voltage protection:
- No
- With built-in USB power supply:
- No
- With on/off switch:
- No
- Surface finishing:
- Matt
- Rotated central insert:
- No
- Compatible with Apple HomeKit:
- No
- Compatible with Google Assistant:
- No
- Compatible with Amazon Alexa:
- No
- IFTTT support available:
- No
- Imprint/indication:
- None
- With signal lamp:
- No
- Label space/information surface:
- No
- With hinged lid:
- No
- Special power supply:
- No special power supply
- Protective contact:
- Yes
- With enhanced contact protection:
- No
- Metallic colour:
- No
- Lockable:
- No
- Eject-mechanism:
- No
- Insulated mounting:
- No
- With function lighting:
- No
- With orientation lighting:
- No
- Fault current protection:
- No
- With miniature fuse:
- No
- With loop through function:
- No
- Model:
- Protective contact (SCHUKO)
- Nominal current:
- 16 A
- Transparent:
- No
- Type of fastening:
- Mounting with screw
- Min. depth of built-in installation box:
- 32 mm
- Colour:
- Brown, White, Black, Grey
- Surface protection:
- Untreated
- Material:
- Plastic
- Type of product:
- Uttag
- Variant:
- Schuko
- Number of phases:
- 1 .
Show more
Item List
- Total: 4
- Total: 4
Accessories
Related products
Spare Parts
Product video
Documents

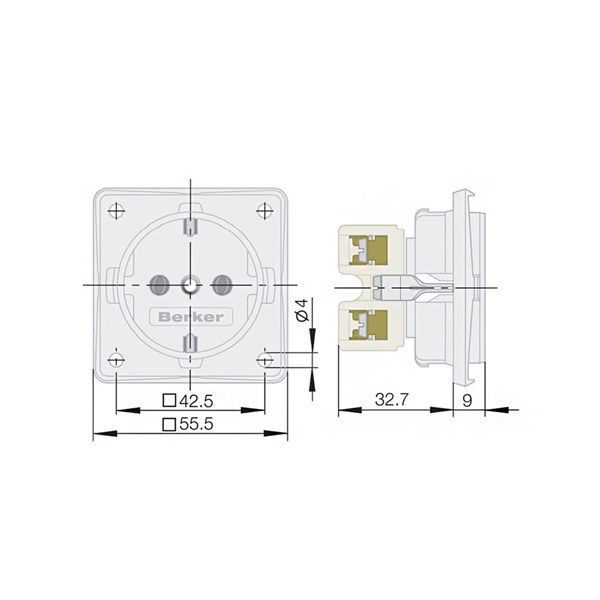

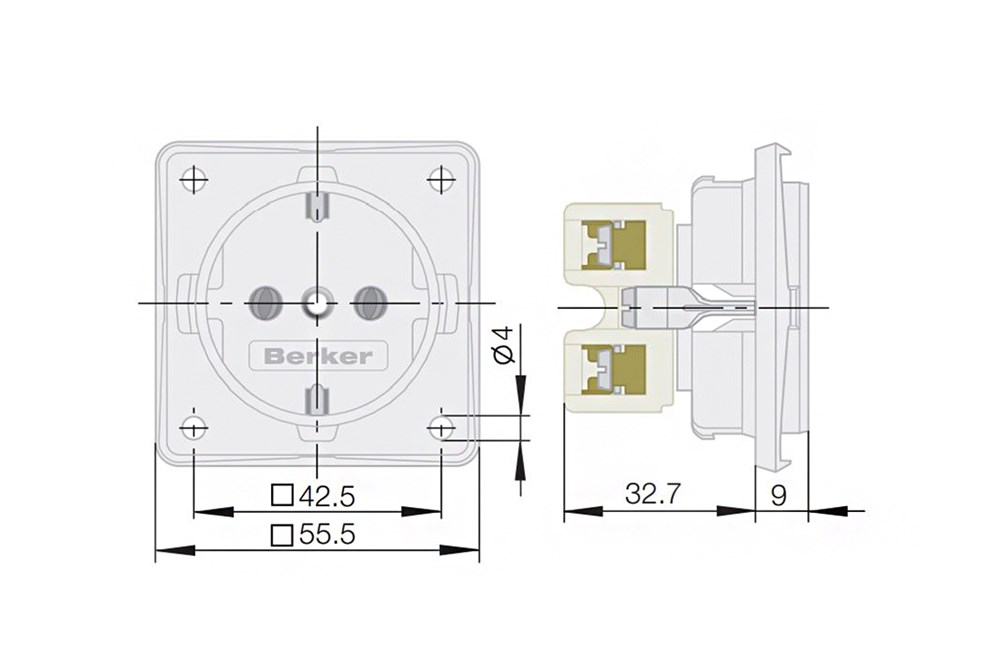

Dimensions
- Total: 4
| Product Description | Number of units | Device width | Device height | Device depth | Min. depth of built-in installation box | Number of phases | MOQ | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SOCKET OUTLET SCHUKO, 250V, 16A BROWN MATT, 2-P/J, INTEGRO | 1 . | 55.5 mm | 55.5 mm | 41.7 mm | 32 mm | 1 . | 10 . | pcs | 250 V |
Yes
|
|
|
| SOCKET OUTLET SCHUKO, 250V, 16A POLAR WHITE MATT, 2-P/J, INTEGRO | 1 . | 55.5 mm | 55.5 mm | 41.7 mm | 32 mm | 1 . | 10 . | pcs | 250 V |
Yes
|
|
|
| SOCKET OUTLET SCHUKO, 250V, 16A ANTHRACITE MATT, 2-P/J, INTEGRO | 10 . | pcs |
Yes
|
|
|
|||||||
| SOCKET OUTLET SCHUKO, 250V, 16A GREY MATT, 2-P/J, INTEGRO | 32 mm | 1 . | 10 . | pcs |
Yes
|
|
|
- Total: 4
Similar Options
Approvals
- Total: 4
| Product Description | Impact strength | Availability | ||
|---|---|---|---|---|
| SOCKET OUTLET SCHUKO, 250V, 16A BROWN MATT, 2-P/J, INTEGRO | IK05 |
Yes
|
|
|
| SOCKET OUTLET SCHUKO, 250V, 16A POLAR WHITE MATT, 2-P/J, INTEGRO | IK05 |
Yes
|
|
|
| SOCKET OUTLET SCHUKO, 250V, 16A ANTHRACITE MATT, 2-P/J, INTEGRO |
Yes
|
|
|
|
| SOCKET OUTLET SCHUKO, 250V, 16A GREY MATT, 2-P/J, INTEGRO | IK05 |
Yes
|
|
|
- Total: 4
Technical Properties
- Total: 4
| Product Description | Impact strength | Nominal voltage | Connection type | Mounting method | Over voltage protection | With built-in USB power supply | With on/off switch | Surface finishing | Rotated central insert | Compatible with Apple HomeKit | Compatible with Google Assistant | Compatible with Amazon Alexa | IFTTT support available | Imprint/indication | With signal lamp | Label space/information surface | With hinged lid | Special power supply | Protective contact | With enhanced contact protection | Metallic colour | Lockable | Eject-mechanism | Insulated mounting | With function lighting | With orientation lighting | Fault current protection | With miniature fuse | With loop through function | Model | Nominal current | Transparent | Type of fastening | Min. depth of built-in installation box | Colour | Surface protection | Material | Type of product | Variant | Number of phases | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SOCKET OUTLET SCHUKO, 250V, 16A BROWN MATT, 2-P/J, INTEGRO | IK05 | 250 V | Screwed terminal | Flush-mounted | No | No | No | Matt | No | No | No | No | No | None | No | No | No | No special power supply | Yes | No | No | No | No | No | No | No | No | No | No | Protective contact (SCHUKO) | 16 A | No | Mounting with screw | 32 mm | Brown | Untreated | Plastic | Uttag | Schuko | 1 . |
Yes
|
|
|
| SOCKET OUTLET SCHUKO, 250V, 16A POLAR WHITE MATT, 2-P/J, INTEGRO | IK05 | 250 V | Screwed terminal | Flush-mounted | No | No | No | Matt | No | No | No | No | No | None | No | No | No | No special power supply | Yes | No | No | No | No | No | No | No | No | No | No | Protective contact (SCHUKO) | 16 A | No | Mounting with screw | 32 mm | White | Untreated | Plastic | Uttag | Schuko | 1 . |
Yes
|
|
|
| SOCKET OUTLET SCHUKO, 250V, 16A ANTHRACITE MATT, 2-P/J, INTEGRO | Black | Uttag | Schuko |
Yes
|
|
|
|||||||||||||||||||||||||||||||||||||
| SOCKET OUTLET SCHUKO, 250V, 16A GREY MATT, 2-P/J, INTEGRO | IK05 | No | No | No | No | 32 mm | Grey | Uttag | Schuko | 1 . |
Yes
|
|
|
- Total: 4
Other information
- Total: 4
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SOCKET OUTLET SCHUKO, 250V, 16A BROWN MATT, 2-P/J, INTEGRO | EC000125 - Socket outlet | 9.0 |
|
Socket outlets | 941852501 | 171441852501 |
Yes
|
|
|
| SOCKET OUTLET SCHUKO, 250V, 16A POLAR WHITE MATT, 2-P/J, INTEGRO | EC000125 - Socket outlet | 9.0 |
|
Socket outlets | 941852502 | 171441852502 |
Yes
|
|
|
| SOCKET OUTLET SCHUKO, 250V, 16A ANTHRACITE MATT, 2-P/J, INTEGRO | EC000125 - Socket outlet | 9.0 |
|
Socket outlets | 841852505 | 171441852505 |
Yes
|
|
|
| SOCKET OUTLET SCHUKO, 250V, 16A GREY MATT, 2-P/J, INTEGRO | EC000125 - Socket outlet | 9.0 |
|
Socket outlets | 941852506 | 171441852506 |
Yes
|
|
|
- Total: 4
