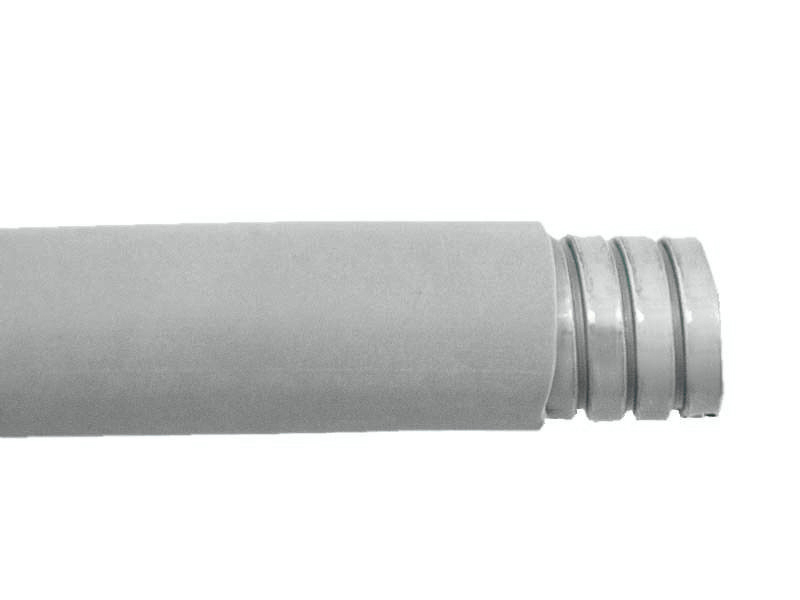

ZHC
Galvaniserad stålspiral med kopparband. Halogenfritt ytterhölje.
Flambeständig enligt UL360.
Temperaurområde: -45º C - +80º C
UL-file: E18917
Färg: Grå
Technical properties
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Other
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Grey
- Surface protection:
- Galvanised
- Operating temperature:
- -45-80 °C
- Material:
- Steel
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 2
| Product Description | Nominal diameter | Nominal size in inch | Weight | MOQ | Unit | Inner diameter | Outer diameter | Bending radius, static | Bending radius, dynamic | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CONDUIT WITH TPO-COVER, GREY 3/8", ID=12.6mm, YD=17.8mm | 16 mm | 3/8 inch | 0.3 kg/m | 30 . | m | 12.6 mm | 17.8 mm | 60 mm | 85 mm |
Yes
|
|
|
| CONDUIT WITH TPO-COVER, GREY 3/4", ID=21.0mm, YD=26.4mm | 25 mm | 3/4 inch | 0.6 kg/m | 30 . | m | 21 mm | 26.4 mm | 90 mm | 140 mm |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Approved according to BWB | Approved according to VDE-EMV/emc | Approved according to FI | Degree of protection (IP) | Approved according to CSA | With approval according to UL | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CONDUIT WITH TPO-COVER, GREY 3/8", ID=12.6mm, YD=17.8mm | No | No | No | IP67 | No |
|
Yes
|
|
|
| CONDUIT WITH TPO-COVER, GREY 3/4", ID=21.0mm, YD=26.4mm | No | No | No | IP67 | No |
|
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Compressive strength | Bending strength | Tensile strength | Sheathing material 1st coating | Sheathing material 2nd coating (exterior) | Sealing | Suitable for EX-applications | Degree of protection (IP) | Colour | Surface protection | Operating temperature | Material | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CONDUIT WITH TPO-COVER, GREY 3/8", ID=12.6mm, YD=17.8mm | 1250 N | Flexible | 1000 N | Other | Not sheathed | Special fibre sealing | No | IP67 | Grey | Galvanised | -45-80 °C | Steel |
Yes
|
|
|
| CONDUIT WITH TPO-COVER, GREY 3/4", ID=21.0mm, YD=26.4mm | 1250 N | Flexible | 1000 N | Other | Not sheathed | Special fibre sealing | No | IP67 | Grey | Galvanised | -45-80 °C | Steel |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CONDUIT WITH TPO-COVER, GREY 3/8", ID=12.6mm, YD=17.8mm | EC001179 - Protective metallic hose | 9.0 |
|
Metal conduit | ANACONDA | ZHC3/8 |
Yes
|
|
|
| CONDUIT WITH TPO-COVER, GREY 3/4", ID=21.0mm, YD=26.4mm | EC001179 - Protective metallic hose | 9.0 |
|
Metal conduit | ANACONDA | ZHC3/4 |
Yes
|
|
|
- Total: 2
