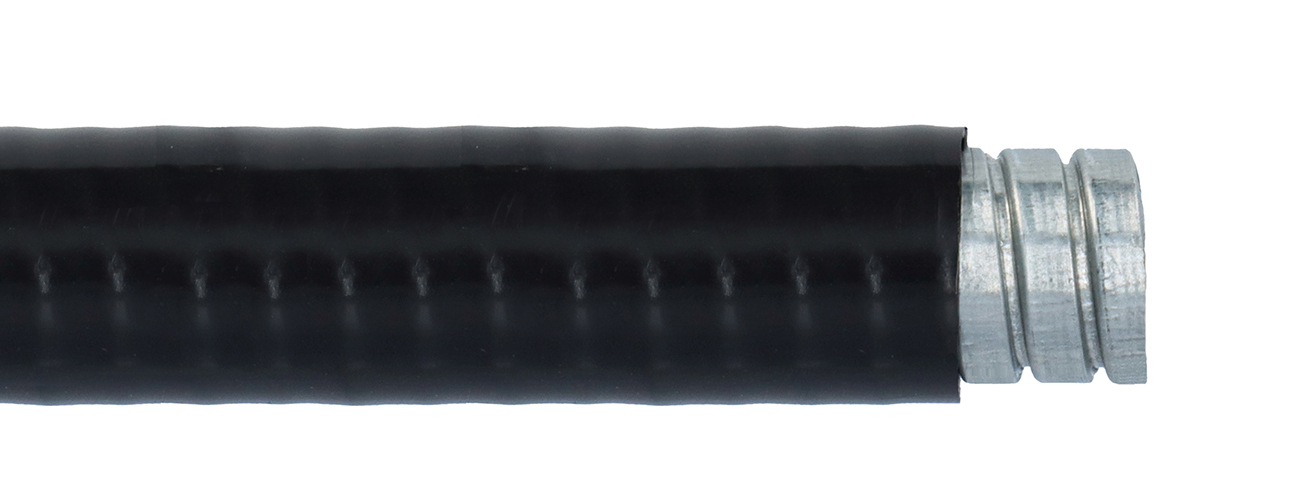

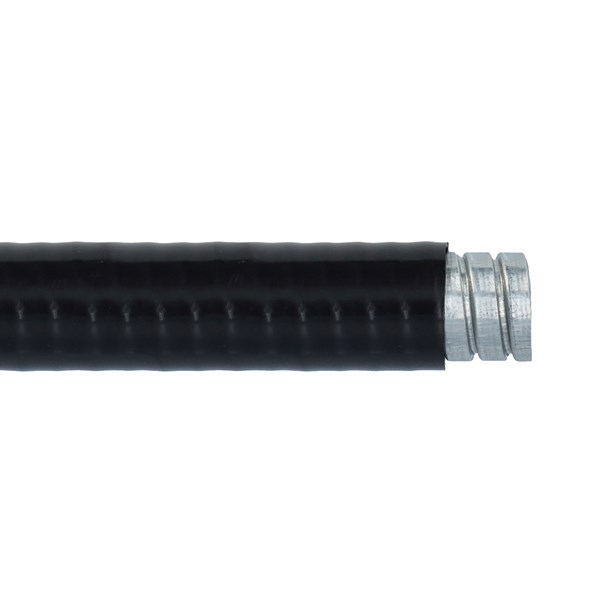

HTDL
HTDL har en integrerad koppartråd som gör att slangen kan användes för jordning. HTDL är UL och CSA godkänd.
Konstruktion: Galvaniserad stålspiral med integrerad kopparledare.
Termoplastisk PVC yttermantel
Temperatur: -40° C till +105° C, temporärt +120° C
Färg: Svart
Technical properties
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Polyvinyl chloride (PVC)
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Black
- Surface protection:
- Galvanised
- Operating temperature:
- -45-105 °C
- Material:
- Steel
Show more
Item List
- Total: 9
- Total: 9
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 9
| Product Description | Nominal diameter | Nominal size in inch | Weight | MOQ | Unit | Inner diameter | Outer diameter | Bending radius, static | Bending radius, dynamic | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CONDUIT WITH PVC -COVER, BLACK 3/8", ID=12.6mm, YD=17.8mm | 16 mm | 3/8 inch | 0.3 kg/m | 60 . | m | 12.6 mm | 17.8 mm | 70 mm | 85 mm |
Yes
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1/2"; ID=16.1mm, YD=21.1mm | 20 mm | 1/2 inch | 0.4 kg/m | 60 . | m | 16.1 mm | 21.1 mm | 90 mm | 110 mm |
No
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 3/4", ID=21.0mm, YD=26.4mm | 25 mm | 3/4 inch | 0.6 kg/m | 45 . | m | 21 mm | 26.4 mm | 115 mm | 140 mm |
Yes
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1", ID=26.5mm, YD=33.1mm | 32 mm | 1 inch | 0.8 kg/m | 30 . | m | 26.5 mm | 33.1 mm | 145 mm | 170 mm |
Yes
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1 1/4", ID=35.1mm, YD=41.8mm | 40 mm | 1 1/4 inch | 1.1 kg/m | 15 . | m | 35.1 mm | 41.8 mm | 175 mm | 215 mm |
No
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1 1/2", ID=40.3mm, YD=47.8mm | 50 mm | 1 1/2 inch | 1.5 kg/m | 15 . | m | 40.3 mm | 47.8 mm | 205 mm | 250 mm |
Yes
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 2", ID=51.6mm, YD=59.9mm | 63 mm | 2 inch | 2 kg/m | 15 . | m | 51.6 mm | 59.9 mm | 240 mm | 300 mm |
No
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1/2"; ID=16.1mm, YD=21.1mm, L=10m | 20 mm | 1/2 inch | 0.4 kg/m | 1 . | pck | 16.1 mm | 21.1 mm | 90 mm | 110 mm |
Yes
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1/2"; ID=16.1mm, YD=21.1mm | 20 mm | 1/2 inch | 0.4 kg/m | 150 . | m | 16.1 mm | 21.1 mm | 90 mm | 110 mm |
No
|
|
|
- Total: 9
Similar Options
Approvals
- Total: 9
| Product Description | Approved according to GOST-R | Approved according to BWB | Approved according to VDE-EMV/emc | Approved according to FI | Degree of protection (IP) | Approved according to CSA | With approval according to UL | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| CONDUIT WITH PVC -COVER, BLACK 3/8", ID=12.6mm, YD=17.8mm | Yes | No | No | No | IP67 |
|
|
Yes
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1/2"; ID=16.1mm, YD=21.1mm | Yes | No | No | No | IP67 |
|
|
No
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 3/4", ID=21.0mm, YD=26.4mm | Yes | No | No | No | IP67 |
|
|
Yes
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1", ID=26.5mm, YD=33.1mm | Yes | No | No | No | IP67 |
|
|
Yes
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1 1/4", ID=35.1mm, YD=41.8mm | Yes | No | No | No | IP67 |
|
|
No
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1 1/2", ID=40.3mm, YD=47.8mm | Yes | No | No | No | IP67 |
|
|
Yes
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 2", ID=51.6mm, YD=59.9mm | Yes | No | No | No | IP67 |
|
|
No
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1/2"; ID=16.1mm, YD=21.1mm, L=10m | Yes | No | No | No | IP67 |
|
|
Yes
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1/2"; ID=16.1mm, YD=21.1mm | Yes | No | No | No | IP67 |
|
|
No
|
|
|
- Total: 9
Technical Properties
- Total: 9
| Product Description | Compressive strength | Bending strength | Tensile strength | Sheathing material 1st coating | Sheathing material 2nd coating (exterior) | Sealing | Suitable for EX-applications | Degree of protection (IP) | Colour | Surface protection | Operating temperature | Material | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CONDUIT WITH PVC -COVER, BLACK 3/8", ID=12.6mm, YD=17.8mm | 1250 N | Flexible | 1000 N | Polyvinyl chloride (PVC) | Not sheathed | Special fibre sealing | No | IP67 | Black | Galvanised | -45-105 °C | Steel |
Yes
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1/2"; ID=16.1mm, YD=21.1mm | 1250 N | Flexible | 1000 N | Polyvinyl chloride (PVC) | Not sheathed | Special fibre sealing | No | IP67 | Black | Galvanised | -45-105 °C | Steel |
No
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 3/4", ID=21.0mm, YD=26.4mm | 1250 N | Flexible | 1000 N | Polyvinyl chloride (PVC) | Not sheathed | Special fibre sealing | No | IP67 | Black | Galvanised | -45-105 °C | Steel |
Yes
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1", ID=26.5mm, YD=33.1mm | 1250 N | Flexible | 1000 N | Polyvinyl chloride (PVC) | Not sheathed | Special fibre sealing | No | IP67 | Black | Galvanised | -45-105 °C | Steel |
Yes
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1 1/4", ID=35.1mm, YD=41.8mm | 1250 N | Flexible | 1000 N | Polyvinyl chloride (PVC) | Not sheathed | Special fibre sealing | No | IP67 | Black | Galvanised | -45-105 °C | Steel |
No
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1 1/2", ID=40.3mm, YD=47.8mm | 1250 N | Flexible | 1000 N | Polyvinyl chloride (PVC) | Not sheathed | Special fibre sealing | No | IP67 | Black | Galvanised | -45-105 °C | Steel |
Yes
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 2", ID=51.6mm, YD=59.9mm | 1250 N | Flexible | 1000 N | Polyvinyl chloride (PVC) | Not sheathed | Special fibre sealing | No | IP67 | Black | Galvanised | -45-105 °C | Steel |
No
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1/2"; ID=16.1mm, YD=21.1mm, L=10m | 1250 N | Flexible | 1000 N | Polyvinyl chloride (PVC) | Not sheathed | Special fibre sealing | No | IP67 | Black | Galvanised | -45-105 °C | Steel |
Yes
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1/2"; ID=16.1mm, YD=21.1mm | 1250 N | Flexible | 1000 N | Polyvinyl chloride (PVC) | Not sheathed | Special fibre sealing | No | IP67 | Black | Galvanised | -45-105 °C | Steel |
No
|
|
|
- Total: 9
Other information
- Total: 9
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CONDUIT WITH PVC -COVER, BLACK 3/8", ID=12.6mm, YD=17.8mm | EC001179 - Protective metallic hose | 9.0 |
|
Metal conduit | ANACONDA | HTDL3/8 |
Yes
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1/2"; ID=16.1mm, YD=21.1mm | EC001179 - Protective metallic hose | 9.0 |
|
Metal conduit | ANACONDA | HTDL1/2 |
No
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 3/4", ID=21.0mm, YD=26.4mm | EC001179 - Protective metallic hose | 9.0 |
|
Metal conduit | ANACONDA | HTDL3/4 |
Yes
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1", ID=26.5mm, YD=33.1mm | EC001179 - Protective metallic hose | 9.0 |
|
Metal conduit | ANACONDA | HTDL1 |
Yes
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1 1/4", ID=35.1mm, YD=41.8mm | EC001179 - Protective metallic hose | 9.0 |
|
Metal conduit | ANACONDA | HTDL11/4 |
No
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1 1/2", ID=40.3mm, YD=47.8mm | EC001179 - Protective metallic hose | 9.0 |
|
Metal conduit | ANACONDA | HTDL11/2 |
Yes
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 2", ID=51.6mm, YD=59.9mm | EC001179 - Protective metallic hose | 9.0 |
|
Metal conduit | ANACONDA | HTDL2 |
No
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1/2"; ID=16.1mm, YD=21.1mm, L=10m | EC001179 - Protective metallic hose | 9.0 |
|
Metal conduit | ANACONDA | HTDL1/2-10S |
Yes
|
|
|
| CONDUIT WITH PVC -COVER, BLACK 1/2"; ID=16.1mm, YD=21.1mm | EC001179 - Protective metallic hose | 9.0 |
|
Metal conduit | ANACONDA | HTDL1/2TR |
No
|
|
|
- Total: 9
