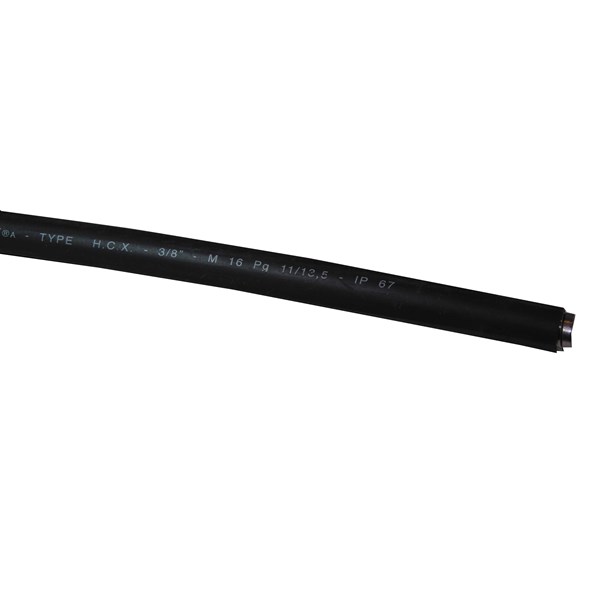

HCXI
Används vid extrem kyla eller värme, Håller full flexibillitet även vid låga temperaturer och den rostfria stålspiralen gör HCXI extra korrosionsmotståndig.
Konstruktion: Rostfritt stål (AISI-304) spiral med bomullspackning.
Yttermantel av termoplastisk elast (plast)
Temperatur: -55° C till +145° C, tillfälligt +160° C
Färg: Svart
Technical properties
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Other
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suited for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Black
- Surface protection:
- Untreated
- Operating temperature:
- -55-145 °C
- Material:
- Stainless steel
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 4
| Product Description | Nominal diameter | Nominal size in inch | Weight | MOQ | Unit | Inner diameter | Outer diameter | Bending radius, static | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| STAINLESS STEEL CONDUIT WITH TPU-COVER, BLACK 1"; ID=26.5mm, YD=33.1.1mm | 30 . | m |
No
|
|
|
||||||
| STAINLESS STEEL CONDUIT WITH TPU -COVER, BLACK 1/2"; ID=16.0mm, YD=21.1mm | 20 mm | 1/2 inch | 0.4 kg/m | 30 . | m | 16 mm | 21.1 mm | 75 mm |
Yes
|
|
|
| STAINLESS STEEL CONDUIT WITH TPU -COVER, BLACK 3/8", ID=12.6mm, YD=17.8mm | 16 mm | 3/8 inch | 0.3 kg/m | 30 . | m | 12.6 mm | 17.8 mm | 60 mm |
No
|
|
|
| STAINLESS STEEL CONDUIT WITH TPU -COVER, BLACK 3/4"; ID=21.0mm, YD=26.4mm | 25 mm | 3/4 inch | 0.6 kg/m | 30 . | m | 21 mm | 26.4 mm | 90 mm |
No
|
|
|
- Total: 4
Similar Options
Approvals
- Total: 4
| Product Description | Approved according to BWB | Approved according to VDE-EMV/emc | Approved according to FI | Degree of protection (IP) | Approved according to CSA | With approval according to UL | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| STAINLESS STEEL CONDUIT WITH TPU-COVER, BLACK 1"; ID=26.5mm, YD=33.1.1mm |
No
|
|
|
||||||
| STAINLESS STEEL CONDUIT WITH TPU -COVER, BLACK 1/2"; ID=16.0mm, YD=21.1mm | No | No | No | IP67 | No | No |
Yes
|
|
|
| STAINLESS STEEL CONDUIT WITH TPU -COVER, BLACK 3/8", ID=12.6mm, YD=17.8mm | No | No | No | IP67 | No | No |
No
|
|
|
| STAINLESS STEEL CONDUIT WITH TPU -COVER, BLACK 3/4"; ID=21.0mm, YD=26.4mm | No | No | No | IP67 | No | No |
No
|
|
|
- Total: 4
Technical Properties
- Total: 4
| Product Description | Compressive strength | Bending strength | Tensile strength | Sheathing material 1st coating | Sheathing material 2nd coating (exterior) | Sealing | Suited for EX-applications | Degree of protection (IP) | Colour | Surface protection | Operating temperature | Material | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STAINLESS STEEL CONDUIT WITH TPU-COVER, BLACK 1"; ID=26.5mm, YD=33.1.1mm |
No
|
|
|
||||||||||||
| STAINLESS STEEL CONDUIT WITH TPU -COVER, BLACK 1/2"; ID=16.0mm, YD=21.1mm | 1250 N | Flexible | 1000 N | Other | Not sheathed | Special fibre sealing | No | IP67 | Black | Untreated | -55-145 °C | Stainless steel |
Yes
|
|
|
| STAINLESS STEEL CONDUIT WITH TPU -COVER, BLACK 3/8", ID=12.6mm, YD=17.8mm | 1250 N | Flexible | 1000 N | Other | Not sheathed | Special fibre sealing | No | IP67 | Black | Untreated | -55-145 °C | Stainless steel |
No
|
|
|
| STAINLESS STEEL CONDUIT WITH TPU -COVER, BLACK 3/4"; ID=21.0mm, YD=26.4mm | 1250 N | Flexible | 1000 N | Other | Not sheathed | Special fibre sealing | No | IP67 | Black | Untreated | -55-145 °C | Stainless steel |
No
|
|
|
- Total: 4
Other information
- Total: 4
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| STAINLESS STEEL CONDUIT WITH TPU-COVER, BLACK 1"; ID=26.5mm, YD=33.1.1mm | EC001179 - Protective metallic hose | 7.0 |
|
Metal conduit | ANACONDA | HCXI1 |
No
|
|
|
| STAINLESS STEEL CONDUIT WITH TPU -COVER, BLACK 1/2"; ID=16.0mm, YD=21.1mm | EC001179 - Protective metallic hose | 7.0 |
|
Metal conduit | ANACONDA | HCXI1/2 |
Yes
|
|
|
| STAINLESS STEEL CONDUIT WITH TPU -COVER, BLACK 3/8", ID=12.6mm, YD=17.8mm | EC001179 - Protective metallic hose | 7.0 |
|
Metal conduit | ANACONDA | HCXI3/8 |
No
|
|
|
| STAINLESS STEEL CONDUIT WITH TPU -COVER, BLACK 3/4"; ID=21.0mm, YD=26.4mm | EC001179 - Protective metallic hose | 7.0 |
|
Metal conduit | ANACONDA | HCXI3/4 |
No
|
|
|
- Total: 4
