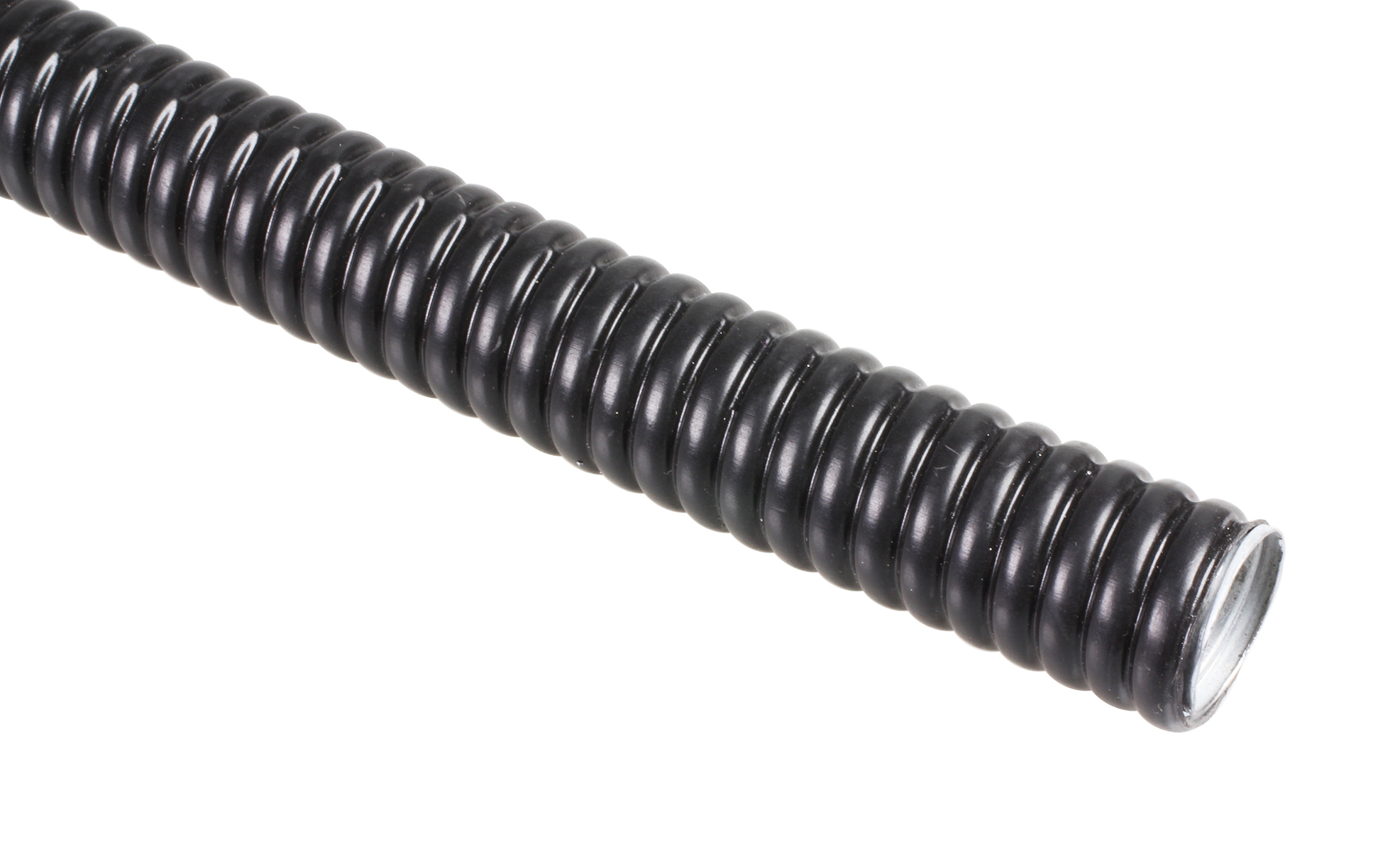

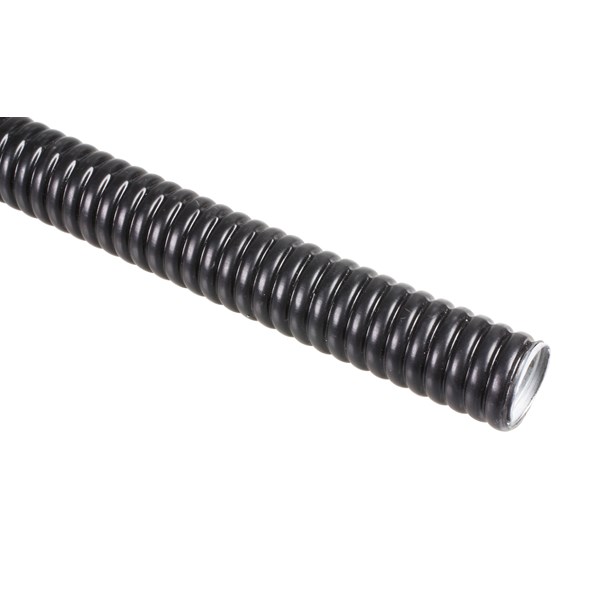

FCD, Galvanized Steel conduit with PVC cover
Type FCD is a thin-wall galvanized steel core conduit with a PVC cover for universal use.
FCD is used in various applications, including the building industry, connection of control panels, and protection against rodents. FCD is applied for quick and easy installation and provides light to medium mechanical protection.
Technical properties
- Compressive strength:
- 750 N
- Bending strength:
- Flexible
- Tensile strength:
- 500 N
- Sheathing material 1st coating:
- Polyvinyl chloride (PVC)
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- No sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Black
- Surface protection:
- Galvanised
- Operating temperature:
- -20-80 °C
- Material:
- Steel
Show more
Item List
- Total: 6
- Total: 6
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Tillbehör för Installation av solceller
Dimensions
- Total: 6
| Product Description | Nominal diameter | Weight | MOQ | Unit | Inner diameter | Outer diameter | Bending radius, static | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN12, ID=10mm, YD=14mm | 12 mm | 0.14 kg/m | 50 . | m | 10 mm | 14 mm | 37 mm |
No
|
|
|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN16, ID=13mm, YD=17mm | 16 mm | 0.17 kg/m | 50 . | m | 13 mm | 17 mm | 45 mm |
No
|
|
|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN18, ID=15mm, YD=19mm | 18 mm | 0.19 kg/m | 50 . | m | 15 mm | 19 mm | 50 mm |
No
|
|
|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN20, ID=17mm; YD=21.5mm | 20 mm | 0.23 kg/m | 50 . | m | 17 mm | 21.5 mm | 55 mm |
No
|
|
|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN25, ID=21.2mm, YD=26mm | 25 mm | 0.31 kg/m | 50 . | m | 21.2 mm | 26 mm | 70 mm |
No
|
|
|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN10, ID=7mm, YD=10mm | 10 mm | 0.08 kg/m | 50 . | m | 28.1 mm | 10 mm | 30 mm |
No
|
|
|
- Total: 6
Similar Options
Approvals
- Total: 6
| Product Description | Approved according to BWB | Approved according to VDE-EMV/emc | Approved according to FI | Degree of protection (IP) | Approved according to CSA | With approval according to UL | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN12, ID=10mm, YD=14mm | No | No | No | IP67 | No | No |
No
|
|
|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN16, ID=13mm, YD=17mm | No | No | No | IP67 | No | No |
No
|
|
|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN18, ID=15mm, YD=19mm | No | No | No | IP67 | No | No |
No
|
|
|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN20, ID=17mm; YD=21.5mm | No | No | No | IP67 | No | No |
No
|
|
|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN25, ID=21.2mm, YD=26mm | No | No | No | IP67 | No | No |
No
|
|
|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN10, ID=7mm, YD=10mm | No | No | No | IP67 | No | No |
No
|
|
|
- Total: 6
Technical Properties
- Total: 6
| Product Description | Compressive strength | Bending strength | Tensile strength | Sheathing material 1st coating | Sheathing material 2nd coating (exterior) | Sealing | Suitable for EX-applications | Degree of protection (IP) | Colour | Surface protection | Operating temperature | Material | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN12, ID=10mm, YD=14mm | 750 N | Flexible | 500 N | Polyvinyl chloride (PVC) | Not sheathed | No sealing | No | IP67 | Black | Galvanised | -20-80 °C | Steel |
No
|
|
|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN16, ID=13mm, YD=17mm | 750 N | Flexible | 500 N | Polyvinyl chloride (PVC) | Not sheathed | No sealing | No | IP67 | Black | Galvanised | -20-80 °C | Steel |
No
|
|
|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN18, ID=15mm, YD=19mm | 750 N | Flexible | 500 N | Polyvinyl chloride (PVC) | Not sheathed | No sealing | No | IP67 | Black | Galvanised | -20-80 °C | Steel |
No
|
|
|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN20, ID=17mm; YD=21.5mm | 750 N | Flexible | 500 N | Polyvinyl chloride (PVC) | Not sheathed | No sealing | No | IP67 | Black | Galvanised | -20-80 °C | Steel |
No
|
|
|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN25, ID=21.2mm, YD=26mm | 750 N | Flexible | 500 N | Polyvinyl chloride (PVC) | Not sheathed | No sealing | No | IP67 | Black | Galvanised | -20-80 °C | Steel |
No
|
|
|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN10, ID=7mm, YD=10mm | 750 N | Flexible | 500 N | Polyvinyl chloride (PVC) | Not sheathed | No sealing | No | IP67 | Black | Galvanised | -20-80 °C | Steel |
No
|
|
|
- Total: 6
Other information
- Total: 6
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN12, ID=10mm, YD=14mm | EC001179 - Protective metallic hose | 9.0 |
|
Metal conduit | 360.012.5 | FCD10 |
No
|
|
|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN16, ID=13mm, YD=17mm | EC001179 - Protective metallic hose | 9.0 |
|
Metal conduit | 360.016.5 | FCD13 |
No
|
|
|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN18, ID=15mm, YD=19mm | EC001179 - Protective metallic hose | 9.0 |
|
Metal conduit | 360.018.5 SCK2023 | FCD15 |
No
|
|
|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN20, ID=17mm; YD=21.5mm | EC001179 - Protective metallic hose | 9.0 |
|
Metal conduit | 360.020.5 SCK2023 | FCD17 |
No
|
|
|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN25, ID=21.2mm, YD=26mm | EC001179 - Protective metallic hose | 9.0 |
|
Metal conduit | 360.025.5 SCK2023 | FCD21 |
No
|
|
|
| SKYDDSSLANG MED PVC-YTTERMANTEL, SVART, DN10, ID=7mm, YD=10mm | EC001179 - Protective metallic hose | 9.0 |
|
Metal conduit | 360.010.5 | FCD7 |
No
|
|
|
- Total: 6
