NY-SF48-BKPG48

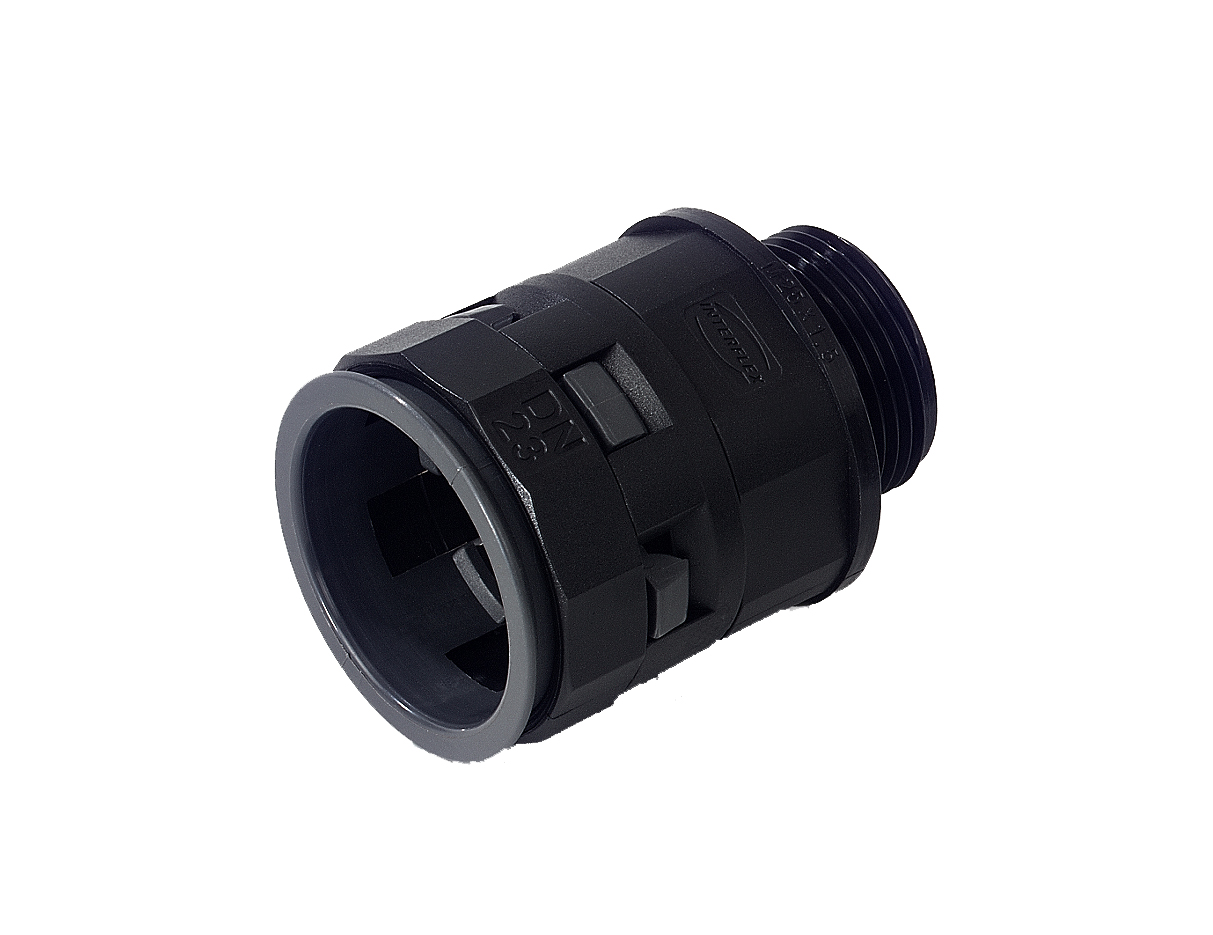

CONDUIT FITTING STRAIGHT BLACK, PG48, CONDUIT NW48

Sku

NY-SF48-BKPG48

Availability:
Yes
  • Total: 1
Product Description
Förskruvning NY-SF
  • Total: 1
  • Total: 1

Related items

Förskruvning NY-SF

  • Total: 1
Revolving thread No
Thread material Polyamide (PA)
Degree of protection (IP) IP66
Model Straight
Type of connection Snap connection
Thread type Other
Construction type External thread
Colour Black
Operating temperature -30-100 °C
Material Polyamide (PA)
Nominal diameter 48 mm
Thread connection size PG48
Lowest inner diameter hose 50 mm
MOQ 10 .
Unit pcs
Total length 56 mm
Thread length 14 mm
Barcode
Country of origin GB
Item status Non Stock Item, can be on stock but is not a regular stock item.
MOQ 10 .
Stock code NY-SF48-BKPG48
Taric code 85369010
Unit pcs
Approved in combination with protective conduit CSA No
Approved in combination with protective conduit UR Yes
Approved in combination with protective conduit VD TÜV/GGVS No
Approved in combination with protective conduit DIN EN 61386-23 No
Approved in combination with protective conduit Lloyd's Register No
Degree of protection (IP) IP66
ETIM-Class EC001176 - Screw connection for corrugated plastic hose
ETIM-Release 7.0
Trademark Thomas & Betts
Product Group Fittings for plastic conduit
Alternative SKU NY-SF48-BKPG48

Genererate statement of compliance:

  • Total: 4
  • CORRUGATED CONDUIT, PA6, BLACK NW48, ID=46.5mm, OD=54.5mm

    Yes

  • CORRUGATED CONDUIT, PA12, BLACK NW48, ID=46.2mm, OD=54.3mm

    No

  • CORRUGATED CONDUIT, PA6, BLACK NW48, ID=47.5mm, OD=54.5mm

    Yes

  • CORRUGATED CONDUIT, PA6, BLACK NW48, ID=46.5mm, OD=54.5mm

    Yes

  • Total: 4
