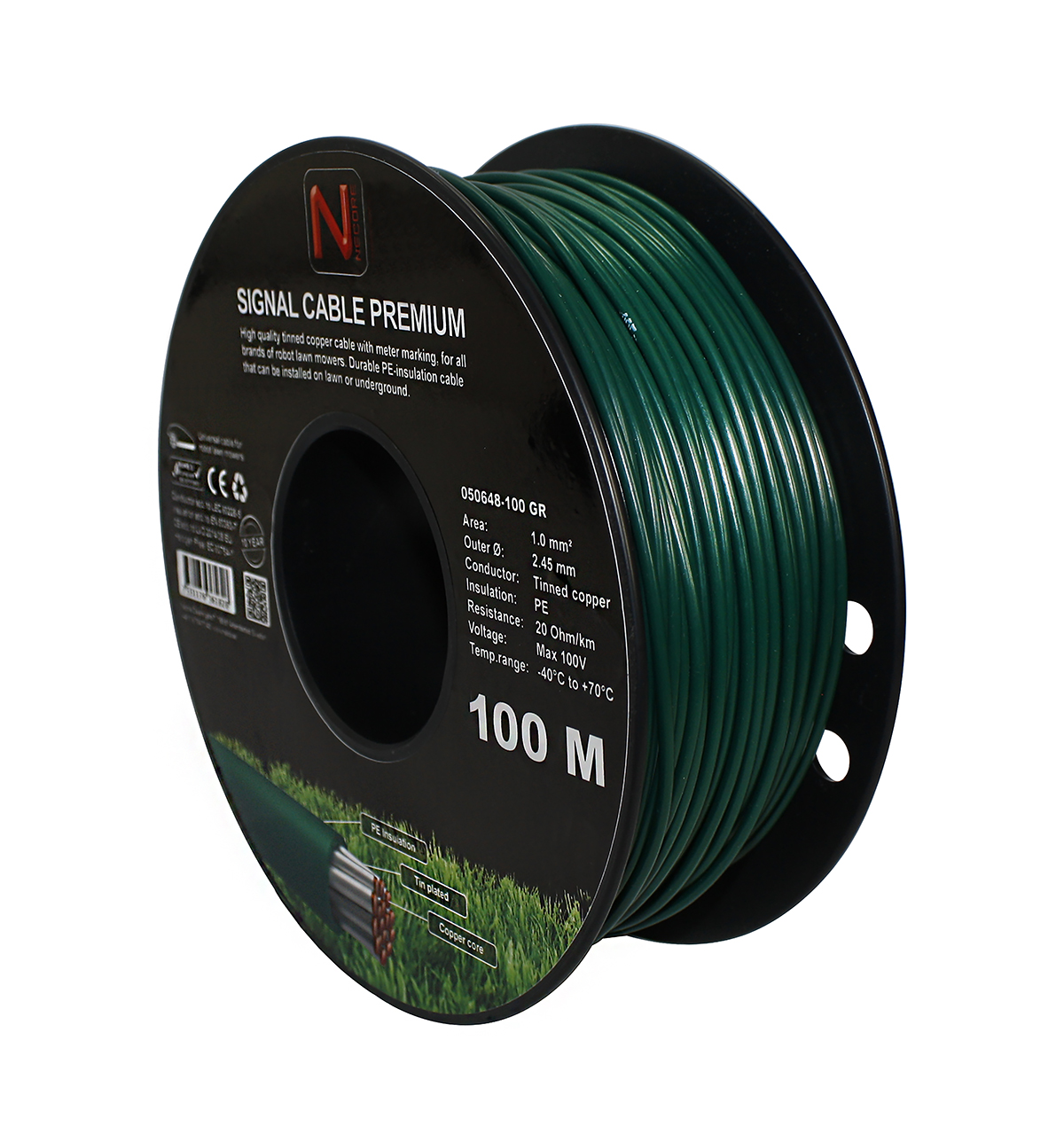

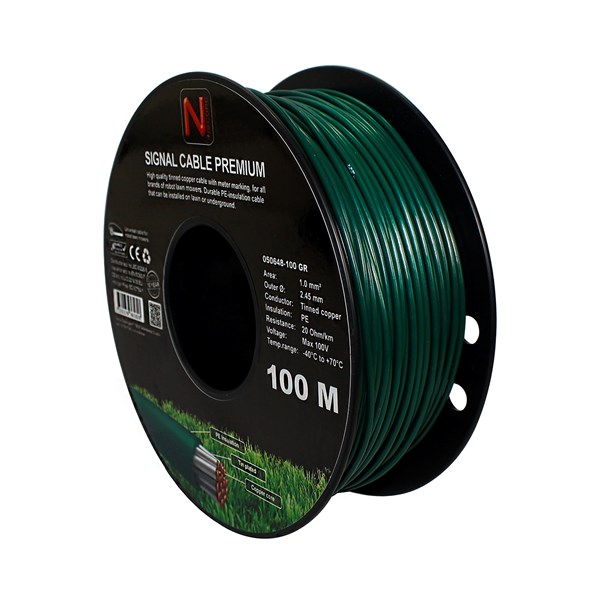

050648-100 GR
Area: 1.0mm2, OD: 2.5mm, RLUB, GREEN SPOOL B3, 100V, PE, FT, 70C
050648-100 GR
- Availability:
-
Yes
- Total: 1
Related items
Boundary wire for robotic lawn mowers
High quality signal cable for robot lawn mowers of all brands. Resistant and durable PE-insulation cable that can be buried in moist soil or gravel. It has tinned copper conductors for best conductivity and it does not risk corroding at joints.
Cable can be nailed down on lawn or buried underground. Make sure that the grass is cut when using staples. Regardless of the method, the cable will not be visible after a few weeks as it will sink into the lawn.

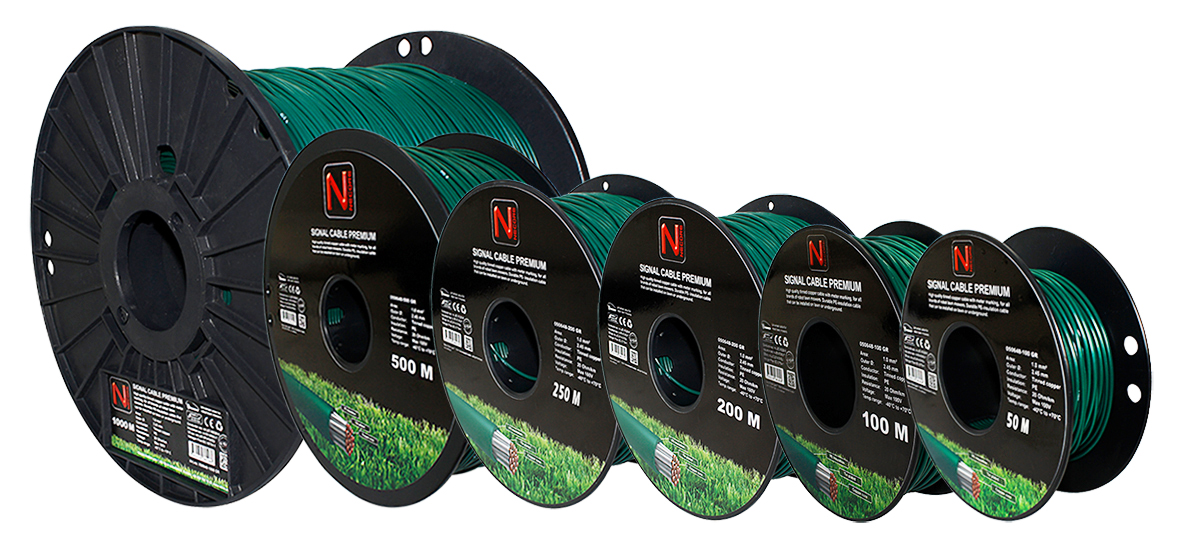

Length: 50m, 100m, 250m, 500m, 1000m.
Area: See below.
Sheath: PE (Polyethylene)
Outer diameter: 2.5mm
Color: Green
Marking: Meter marked
- Total: 1
Product Properties
| Number of cores | 1 . |
|---|---|
| Material core insulation | Other |
| Specification core insulation | Polyethylene (PE) |
| Core identification | None |
| Protective conductor | No |
| Material outer sheath | None |
| Specification material outer sheath | Other |
| Colour outer sheath | Green |
| Permitted cable outer temperature after assembling without vibration | -40-70 °C |
| Conductor material | Copper |
| Twisted cores | No |
| Max. conductor temperature | 70 °C |
| Screen | No |
| Protective barrier | N/A |
| Armouring/reinforcement | None |
| Insulation integrity | N/A |
| Drain wire | No |
| Halogen free | Yes |
| Conductor category | Class 5 = flexible |
| Core colour | Green |
| Conductor surface | Tinned |
| Min. permitted bending radius, stationary application/permanent installation | 8.4 mm |
Dimensions
| Nominal cross section conductor | 1 mm² |
|---|---|
| MOQ | 100 . |
| Outer diameter approx. | 2.1 mm |
| Min. permitted bending radius, stationary application/permanent installation | 8.4 mm |
| Diameter conductor | 1 mm |
| Unit | m |
Logistics
| Barcode | 733117636182 |
|---|---|
| Country of origin | CN |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Stock code | 050648-100 GR |
| Taric code | 85444991 |
| Unit | m |
Approvals
| Reaction-to-fire according to EN 13501-6: Class | N/A |
|---|---|
| Reaction-to-fire according to EN 13501-6: Smoke production | N/A |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | N/A |
| Reaction-to-fire according to EN 13501-6: Acidity | N/A |
| Halogen free | Yes |
| Low smoke (according to EN 61034-2) | No |
| Low temperature resistant (according to EN 60811-504+505+506) | No |
| Oil resistant according to EN IEC 60811-404 | No |
| Approved according to CE | Yes |
Other info
| ETIM-Class | EC003248 - Power cable < 1 kV, for permanent installation |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NECORE |
| Product Group | Boundary wire |
| Search Description | GRÄSKLIPPARK BEGRÄNSNINGSK SIGNALK GKK2023 |
| Alternative SKU | 050648-100GR |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Extended Minerals | N/A, contains no extended minerals |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
