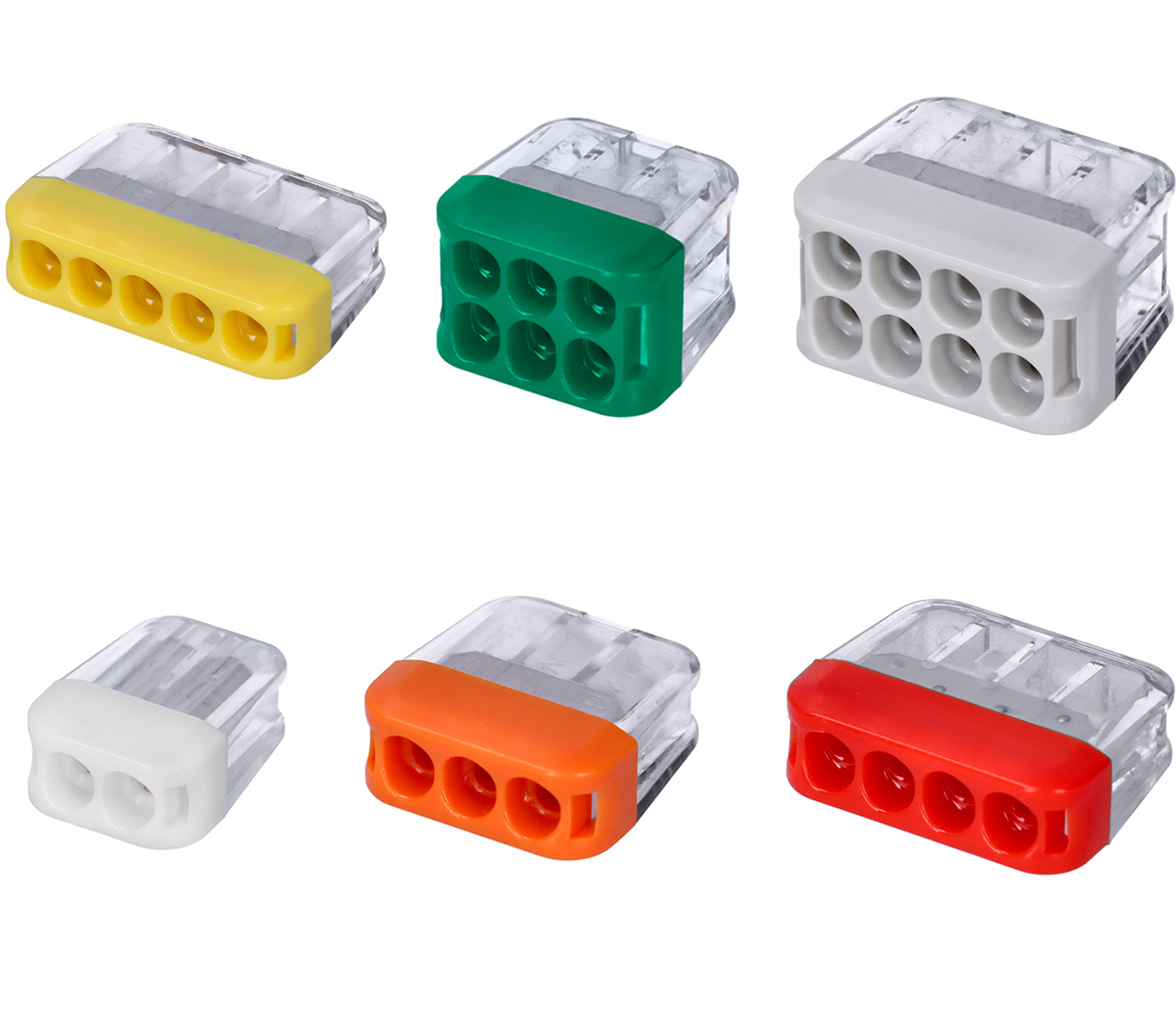

Splicing Connectors, push-in
Splicing connector for 2 to 8 conductors for both solid and stranded cable.
Transparent cover for easy inspection of connector. No tool needed.
Voltage: 450 V
Stripping range: 10 mm
Solid cable 0.5-2.5 mm²
Fåtrådig kabel 0.75-2.5 mm²
Stranded cable with cord end sleeve: 0.5-1.5 mm2
Technical properties
- Nominal voltage:
- 450 V
- Nominal current:
- 24 A
- Transparent:
- Yes
- Number of clamp positions:
- 2 ., 3 ., 4 ., 5 ., 6 ., 8 .
- With operation lever:
- No
- Suitable for solid core:
- Yes
- Suitable for flexible core:
- Yes
- Suitable for multi-wire core:
- Yes, No
- Colour:
- White, Orange, Red, Yellow, Grey
- Operating temperature:
- -40-105 °C
- Connector type:
- Terminal Block
- Inflammability class of insulation material according to with UL94:
- V2
Show more
Item List
- Total: 6
- Total: 6
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 6
| Product Description | Cable diameter | Conductor cross section flexible (fine-strand) with cable end sleeve | Conductor cross section solid (solid, stranded) | MOQ | Unit | Nominal cross section | AWG-range | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PUSH-IN CONNECTORS, 2-POLE, 0.5-2.5mm2 SINGLE ROW | 1-4 mm | 0.5-1.5 mm² | 0.5-2.5 mm² | 100 . | pcs | 0.5-2.5 mm² | 20-13 . | 450 V |
No
|
|
|
| PUSH-IN CONNECTORS, 3-POLE, 0.5-2.5mm2 SINGLE ROW | 1-4 mm | 0.5-1.5 mm² | 0.5-2.5 mm² | 100 . | pcs | 0.5-2.5 mm² | 20-13 . | 450 V |
No
|
|
|
| PUSH-IN CONNECTORS, 4-POLE, 0.5-2.5mm2 SINGLE ROW | 1-4 mm | 0.5-1.5 mm² | 0.5-2.5 mm² | 100 . | pcs | 0.5-2.5 mm² | 20-13 . | 450 V |
No
|
|
|
| PUSH-IN CONNECTORS, 5-POLE, 0.5-2.5mm2 SINGLE ROW | 1-4 mm | 0.5-1.5 mm² | 0.5-2.5 mm² | 50 . | pcs | 0.5-2.5 mm² | 20-13 . | 450 V |
No
|
|
|
| PUSH-IN CONNECTORS, 6-POLE, 0.5-2.5mm2 DOUBLE ROW | 1-4 mm | 0.5-1.5 mm² | 0.5-2.5 mm² | 50 . | pcs | 0.5-2.5 mm² | 20-13 . | 450 V |
No
|
|
|
| PUSH-IN CONNECTORS, 8-POLE, 0.5-2.5mm2 DOUBLE ROW | 1-4 mm | 0.5-1.5 mm² | 0.5-2.5 mm² | 50 . | pcs | 0.5-2.5 mm² | 20-13 . | 450 V |
No
|
|
|
- Total: 6
Similar Options
Approvals
- Total: 6
| Product Description | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|
| PUSH-IN CONNECTORS, 2-POLE, 0.5-2.5mm2 SINGLE ROW |
|
No
|
|
|
| PUSH-IN CONNECTORS, 3-POLE, 0.5-2.5mm2 SINGLE ROW |
|
No
|
|
|
| PUSH-IN CONNECTORS, 4-POLE, 0.5-2.5mm2 SINGLE ROW |
|
No
|
|
|
| PUSH-IN CONNECTORS, 5-POLE, 0.5-2.5mm2 SINGLE ROW |
|
No
|
|
|
| PUSH-IN CONNECTORS, 6-POLE, 0.5-2.5mm2 DOUBLE ROW |
|
No
|
|
|
| PUSH-IN CONNECTORS, 8-POLE, 0.5-2.5mm2 DOUBLE ROW |
|
No
|
|
|
- Total: 6
Technical Properties
- Total: 6
| Product Description | Nominal voltage | Nominal current | Transparent | Number of clamp positions | With operation lever | Suitable for solid core | Suitable for flexible core | Suitable for multi-wire core | Colour | Operating temperature | Connector type | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PUSH-IN CONNECTORS, 2-POLE, 0.5-2.5mm2 SINGLE ROW | 450 V | 24 A | Yes | 2 . | No | Yes | Yes | Yes, No | White | -40-105 °C | Terminal Block |
|
No
|
|
|
| PUSH-IN CONNECTORS, 3-POLE, 0.5-2.5mm2 SINGLE ROW | 450 V | 24 A | Yes | 3 . | No | Yes | Yes | Yes, No | Orange | -40-105 °C | Terminal Block |
|
No
|
|
|
| PUSH-IN CONNECTORS, 4-POLE, 0.5-2.5mm2 SINGLE ROW | 450 V | 24 A | Yes | 4 . | No | Yes | Yes | Yes, No | Red | -40-105 °C | Terminal Block |
|
No
|
|
|
| PUSH-IN CONNECTORS, 5-POLE, 0.5-2.5mm2 SINGLE ROW | 450 V | 24 A | Yes | 5 . | No | Yes | Yes | Yes, No | Yellow | -40-105 °C | Terminal Block |
|
No
|
|
|
| PUSH-IN CONNECTORS, 6-POLE, 0.5-2.5mm2 DOUBLE ROW | 450 V | 24 A | Yes | 6 . | No | Yes | Yes | Yes, No | Red | -40-105 °C | Terminal Block |
|
No
|
|
|
| PUSH-IN CONNECTORS, 8-POLE, 0.5-2.5mm2 DOUBLE ROW | 450 V | 24 A | Yes | 8 . | No | Yes | Yes | Yes, No | Grey | -40-105 °C | Terminal Block |
|
No
|
|
|
- Total: 6
Other information
- Total: 6
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | E-no | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| PUSH-IN CONNECTORS, 2-POLE, 0.5-2.5mm2 SINGLE ROW | EC000446 - Screwless terminal | 9.0 |
|
Terminal Blocks | SKV2025EJ1 | PIC-20525 | E1441350 |
No
|
|
|
| PUSH-IN CONNECTORS, 3-POLE, 0.5-2.5mm2 SINGLE ROW | EC000446 - Screwless terminal | 9.0 |
|
Terminal Blocks | SKV2025EJ1 | PIC-30525 | E1441351 |
No
|
|
|
| PUSH-IN CONNECTORS, 4-POLE, 0.5-2.5mm2 SINGLE ROW | EC000446 - Screwless terminal | 9.0 |
|
Terminal Blocks | SKV2025EJ1 | PIC-40525 | E1441353 |
No
|
|
|
| PUSH-IN CONNECTORS, 5-POLE, 0.5-2.5mm2 SINGLE ROW | EC000446 - Screwless terminal | 9.0 |
|
Terminal Blocks | SKV2025EJ1 | PIC-50525 | E1441355 |
No
|
|
|
| PUSH-IN CONNECTORS, 6-POLE, 0.5-2.5mm2 DOUBLE ROW | EC000446 - Screwless terminal | 9.0 |
|
Terminal Blocks | SKV2025EJ | PIC-60525 | E1441357 |
No
|
|
|
| PUSH-IN CONNECTORS, 8-POLE, 0.5-2.5mm2 DOUBLE ROW | EC000446 - Screwless terminal | 9.0 |
|
Terminal Blocks | SKV2025EJ1 | PIC-80525 | E1441358 |
No
|
|
|
- Total: 6
