N 558

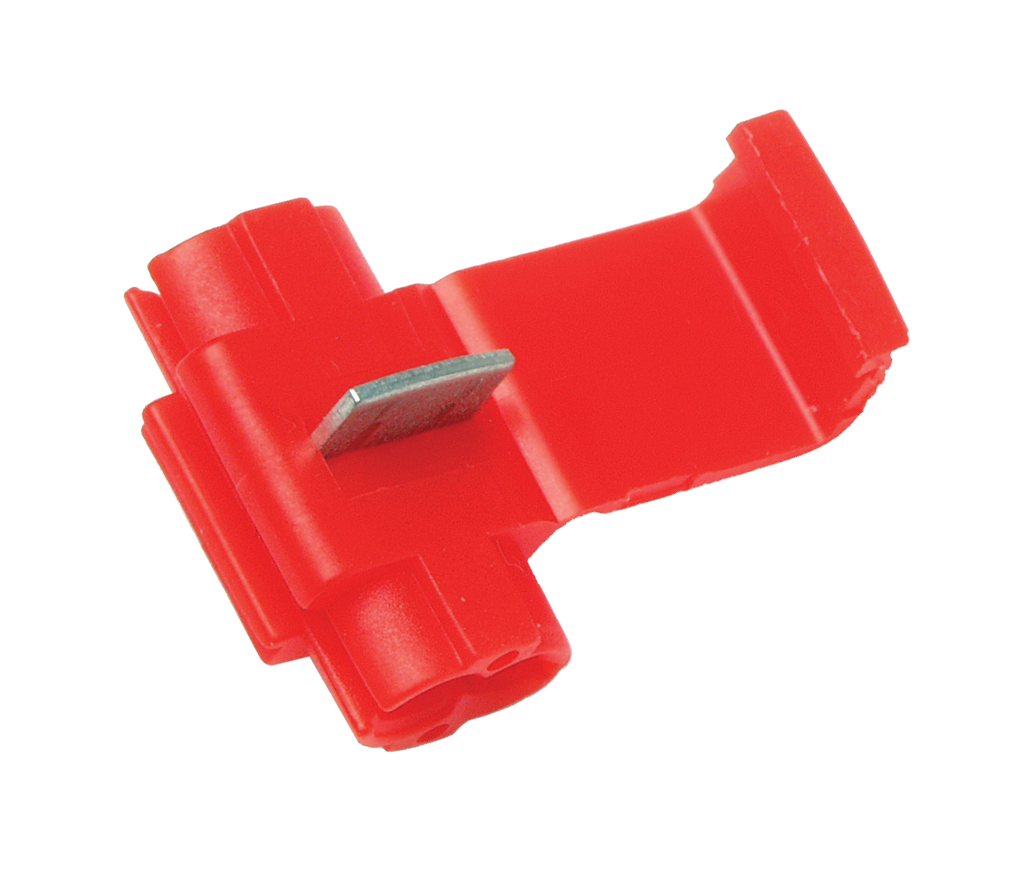

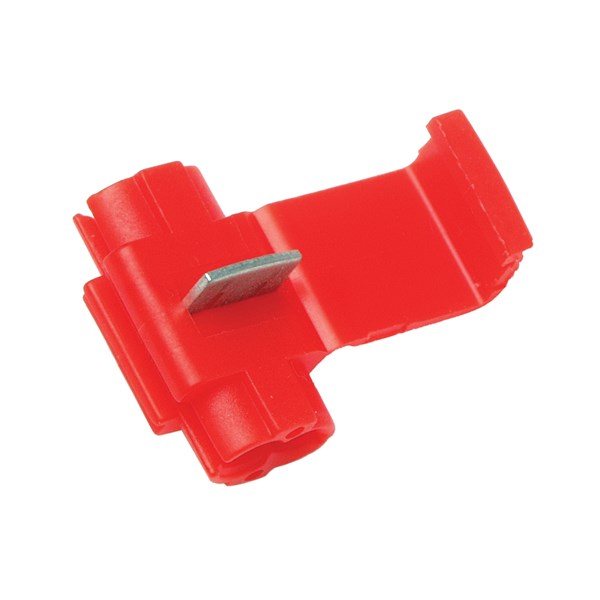

TAP CONNECTOR, SELF STRIPPING RED, 0.5-1.0mm2 (AWG 20-18)
N 558
- Availability:
-
Yes
- Total: 1
Related items
Self stripping tap connectors
Japanese quality tap connectors.
Electrically connects a (tap) wire end to a through (run) wire and insulates the connection. Designed for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems, automotive/boat/RV wiring. Only for copper wires.
Maximum Recommended Voltage Rating: 600 V
Temperature range: Up to 90º C (194º F)
- Total: 1
Product Properties
Model | Branch |
---|---|
Colour insulation | Red |
Grease filling against corrosion | No |
Max. number of cores | 2 . |
Temperature | -40-105 °C |
Interrupt free shifting | Yes |
Colour | Red |
Material insulation | Polypropylene (PP) |
Connector type | Spliceing connector |
Packaging | Loose piece |
Dimensions
Core diameter | 0.65-1 mm |
---|---|
Max. outer diameter | 3.1 mm |
MOQ | 100 . |
Unit | pcs |
Nominal cross section | 0.5-1 mm² |
Logistics
Barcode | 733117615823 |
---|---|
Country of origin | JP |
Item status | Stock item, normally in stock with reservation for in between sales. |
MOQ | 100 . |
Packaging | Loose piece |
Stock code | N 558 |
Taric code | 85369010 |
Unit | pcs |
Approvals
UL-File No. | E44245 |
---|---|
With approval according to UL | Yes |
Inflammability class of insulation material according to with UL94 | V2 |
Other info
ETIM-Class | EC000306 - Low current connector |
---|---|
ETIM-Release | 9.0 |
Trademark | NEMIQ |
Product Group | Self stripping tap connectors |
Search Description | NICHIFU, PTV-09 |
Alternative SKU | N558 |
Compliance
Conflict Minerals | Yes, see report under tab "Documents" |
---|---|
Iron and Steel Sanction | Compliance |
REACH | No SVHC (240 Subs. 23 Jan 2024) |
RoHS | RoHS 3 (2015/863) |
SCIP | Not Applicable |
US TSCA | No (5 PBT Subs, Feb 2021) |
