SolderSleeve Wire Splices CWT 900X

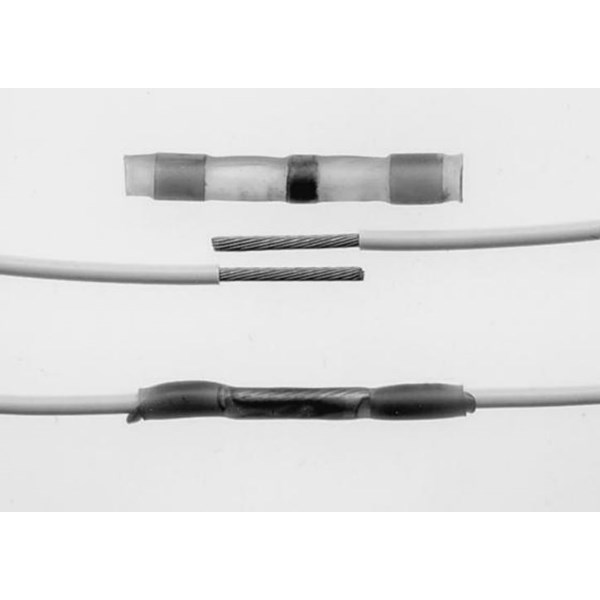

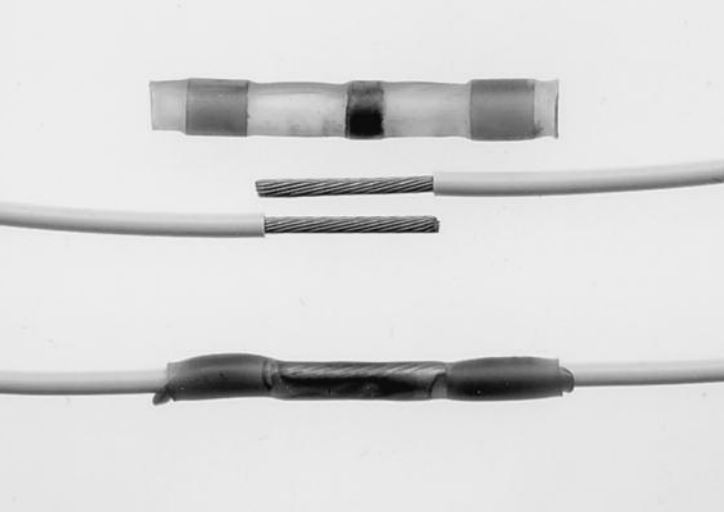

Soldersleeve wire splices from TE. Provides
encapsulation, inspectability, strain relief and insulation.
Splashproof.
Technical properties
- Colour:
- Transparent, Red, Blue, Yellow, Grey
- Operating temperature:
- -55-125 °C
- Voltage max:
- 600V
- Halogen free:
- Yes
- Connector type:
- Lödskarvhylsa med lim
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 5

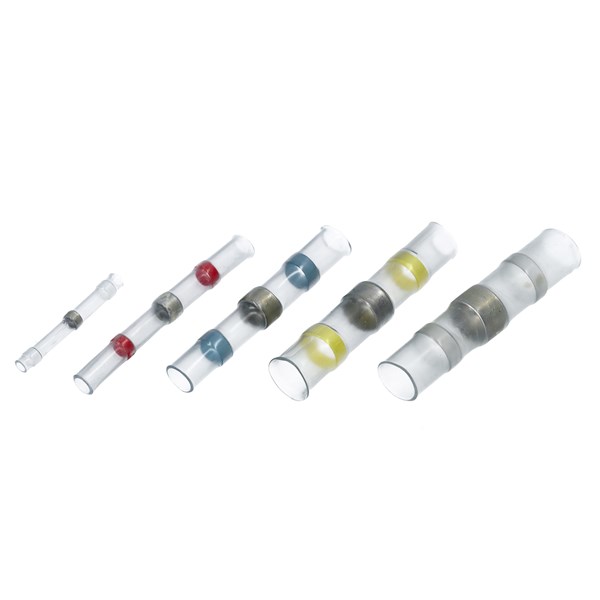

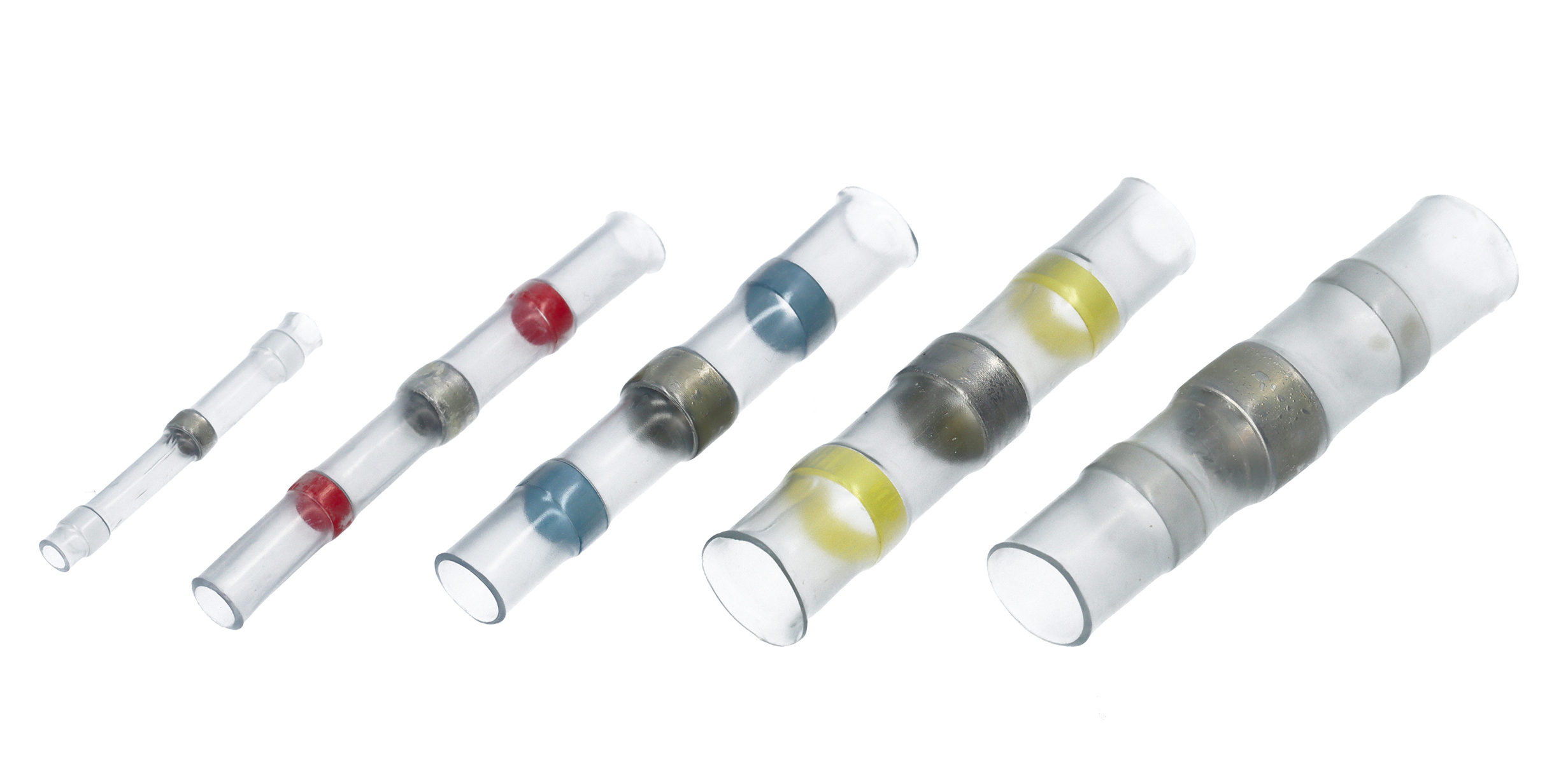

| Product Description | MOQ | Unit | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|
| SOLDERSLEEVE WIRE SPLICE TRANSPARENT, OD MAX=1.5mm, 0.2-0.75mm2 | 100 . | pcs | 0.2-0.75 mm² |
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE RED, OD MAX=2.8mm, 0.6-2.0mm2 | 100 . | pcs | 0.6-2 mm² |
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE BLUE, OD MAX=4.4mm, 1.8-2.5mm2 | 100 . | pcs | 1.8-2.5 mm² |
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE YELLOW, OD MAX=5.8mm, 2.4-4.5mm2 | 100 . | pcs | 2.4-4.5 mm² |
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE GREY, OD MAX=7.0mm, 4.2-8.1mm2 | 100 . | pcs | 4.2-8.1 mm² |
Yes
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
| Product Description | With approval according to UL | Availability | ||
|---|---|---|---|---|
| SOLDERSLEEVE WIRE SPLICE TRANSPARENT, OD MAX=1.5mm, 0.2-0.75mm2 |
|
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE RED, OD MAX=2.8mm, 0.6-2.0mm2 |
|
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE BLUE, OD MAX=4.4mm, 1.8-2.5mm2 |
|
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE YELLOW, OD MAX=5.8mm, 2.4-4.5mm2 |
|
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE GREY, OD MAX=7.0mm, 4.2-8.1mm2 |
Yes
|
|
|
- Total: 5
Technical Properties
- Total: 5
| Product Description | Colour | Operating temperature | Voltage max | Halogen free | Connector type | Availability | ||
|---|---|---|---|---|---|---|---|---|
| SOLDERSLEEVE WIRE SPLICE TRANSPARENT, OD MAX=1.5mm, 0.2-0.75mm2 | Transparent | -55-125 °C | 600V | Yes | Lödskarvhylsa med lim |
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE RED, OD MAX=2.8mm, 0.6-2.0mm2 | Red | -55-125 °C | 600V | Yes | Lödskarvhylsa med lim |
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE BLUE, OD MAX=4.4mm, 1.8-2.5mm2 | Blue | -55-125 °C | 600V | Yes | Lödskarvhylsa med lim |
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE YELLOW, OD MAX=5.8mm, 2.4-4.5mm2 | Yellow | -55-125 °C | 600V | Yes | Lödskarvhylsa med lim |
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE GREY, OD MAX=7.0mm, 4.2-8.1mm2 | Grey | -55-125 °C | 600V | Yes | Lödskarvhylsa med lim |
Yes
|
|
|
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | E-no | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| SOLDERSLEEVE WIRE SPLICE TRANSPARENT, OD MAX=1.5mm, 0.2-0.75mm2 | EC000466 - Heat-shrink crimp connection | 9.0 |
|
Soldersleeve wire splices | 054955-000, CWT-9001 | CWT9001 | E0870984 |
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE RED, OD MAX=2.8mm, 0.6-2.0mm2 | EC000466 - Heat-shrink crimp connection | 9.0 |
|
Soldersleeve wire splices | 470037-000, CWT-9002 | CWT9002 | E0870985 |
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE BLUE, OD MAX=4.4mm, 1.8-2.5mm2 | EC000466 - Heat-shrink crimp connection | 9.0 |
|
Soldersleeve wire splices | 114163-000, CWT-9003 | CWT9003 | E0870986 |
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE YELLOW, OD MAX=5.8mm, 2.4-4.5mm2 | EC000466 - Heat-shrink crimp connection | 9.0 |
|
Soldersleeve wire splices | 691091-000, CWT-9004 | CWT9004 | E0870987 |
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE GREY, OD MAX=7.0mm, 4.2-8.1mm2 | EC000466 - Heat-shrink crimp connection | 9.0 |
|
Soldersleeve wire splices | 084483-000, CWT-9005 | CWT9005 | E0870988 |
Yes
|
|
|
- Total: 5
