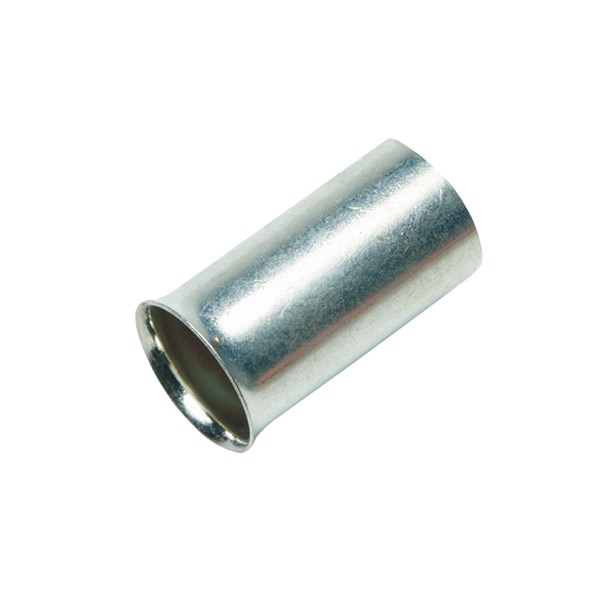

Uninsulated cord end-sleeves, T-series - silver plating
Temperature range: Up to 110º C (230º F)
Easy entry
DIN 46228-4:2020-03
Technical properties
- Insulated:
- No
- Reel/roll packaging:
- No
- Construction type:
- Single-sleeves
- Colour:
- None
- Surface protection:
- Silver-plated
- Material:
- Copper
- Colour code:
- CN (N/A)
- Halogen free:
- Yes
Show more
Item List
- Total: 13
- Total: 13
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
End sleeve Pull of requirements

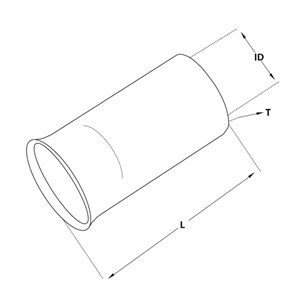

Dimensions
- Total: 13
| Product Description | ID | T | L | MOQ | Unit | Sleeve Length | AWG size | Total length | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED END-SLEEVE, 0.25mm2-5 SILVER PLATED | 0.8 mm | 0.15 mm | 5 mm | 100 . | pcs | 5 mm | 24 | 5 mm | 0.25 mm² |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 0.34mm2-5 SILVER PLATED | 0.9 mm | 0.15 mm | 5 mm | 100 . | pcs | 5 mm | 22 | 5 mm | 0.34 mm² |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 0.5mm2-6 SILVER PLATED | 1 mm | 0.15 mm | 6 mm | 100 . | pcs | 6 mm | 20 | 6 mm | 0.5 mm² |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 0.75mm2-6 SILVER PLATED | 1.2 mm | 0.15 mm | 6 mm | 100 . | pcs | 6 mm | 20 | 6 mm | 0.75 mm² |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 0.75mm2-8 SILVER PLATED | 1.2 mm | 0.15 mm | 8 mm | 100 . | pcs | 8 mm | 20 | 8 mm | 0.75 mm² |
No
|
|
|
| UNINSULATED END-SLEEVE, 1.0mm2-6 SILVER PLATED | 1.4 mm | 0.15 mm | 6 mm | 100 . | pcs | 6 mm | 18 | 6 mm | 1 mm² |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 1.5mm2-7 SILVER PLATED | 1.7 mm | 0.15 mm | 7 mm | 100 . | pcs | 7 mm | 16 | 7 mm | 1.5 mm² |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 2.5mm2-7 SILVER PLATED | 2.2 mm | 0.15 mm | 7 mm | 100 . | pcs | 7 mm | 14 | 7 mm | 2.5 mm² |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 4.0mm2-9 SILVER PLATED | 2.8 mm | 0.2 mm | 9 mm | 100 . | pcs | 9 mm | 12 | 9 mm | 4 mm² |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 6.0mm2-12 SILVER PLATED | 3.5 mm | 0.2 mm | 12 mm | 100 . | pcs | 12 mm | 10 | 12 mm | 6 mm² |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 6.0mm2-15 SILVER PLATED | 3.5 mm | 0.2 mm | 15 mm | 100 . | pcs | 15 mm | 10 | 15 mm | 6 mm² |
No
|
|
|
| UNINSULATED END-SLEEVE, 10mm2-12 SILVER PLATED | 4.5 mm | 0.2 mm | 12 mm | 100 . | pcs | 12 mm | 8 | 12 mm | 10 mm² |
No
|
|
|
| UNINSULATED END-SLEEVE, 16mm2-12 SILVER PLATED | 5.8 mm | 0.2 mm | 12 mm | 100 . | pcs | 12 mm | 6 | 12 mm | 16 mm² |
Yes
|
|
|
- Total: 13
Similar Options
Approvals
- Total: 13
- Total: 13
Technical Properties
- Total: 13
| Product Description | Insulated | Reel/roll packaging | Construction type | Colour | Surface protection | Material | Colour code | Halogen free | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED END-SLEEVE, 0.25mm2-5 SILVER PLATED | No | No | Single-sleeves | None | Silver-plated | Copper | CN (N/A) | Yes |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 0.34mm2-5 SILVER PLATED | No | No | Single-sleeves | None | Silver-plated | Copper | CN (N/A) | Yes |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 0.5mm2-6 SILVER PLATED | No | No | Single-sleeves | None | Silver-plated | Copper | CN (N/A) | Yes |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 0.75mm2-6 SILVER PLATED | No | No | Single-sleeves | None | Silver-plated | Copper | CN (N/A) | Yes |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 0.75mm2-8 SILVER PLATED | No | No | Single-sleeves | None | Silver-plated | Copper | CN (N/A) | Yes |
No
|
|
|
| UNINSULATED END-SLEEVE, 1.0mm2-6 SILVER PLATED | No | No | Single-sleeves | None | Silver-plated | Copper | CN (N/A) | Yes |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 1.5mm2-7 SILVER PLATED | No | No | Single-sleeves | None | Silver-plated | Copper | CN (N/A) | Yes |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 2.5mm2-7 SILVER PLATED | No | No | Single-sleeves | None | Silver-plated | Copper | CN (N/A) | Yes |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 4.0mm2-9 SILVER PLATED | No | No | Single-sleeves | None | Silver-plated | Copper | CN (N/A) | Yes |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 6.0mm2-12 SILVER PLATED | No | No | Single-sleeves | None | Silver-plated | Copper | CN (N/A) | Yes |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 6.0mm2-15 SILVER PLATED | No | No | Single-sleeves | None | Silver-plated | Copper | CN (N/A) | Yes |
No
|
|
|
| UNINSULATED END-SLEEVE, 10mm2-12 SILVER PLATED | No | No | Single-sleeves | None | Silver-plated | Copper | CN (N/A) | Yes |
No
|
|
|
| UNINSULATED END-SLEEVE, 16mm2-12 SILVER PLATED | No | No | Single-sleeves | None | Silver-plated | Copper | CN (N/A) | Yes |
Yes
|
|
|
- Total: 13
Other information
- Total: 13
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| UNINSULATED END-SLEEVE, 0.25mm2-5 SILVER PLATED | EC000005 - Cable end sleeve | 9.0 |
|
Uninsulated end-sleeves | T0205S |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 0.34mm2-5 SILVER PLATED | EC000005 - Cable end sleeve | 9.0 |
|
Uninsulated end-sleeves | T0305S |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 0.5mm2-6 SILVER PLATED | EC000005 - Cable end sleeve | 9.0 |
|
Uninsulated end-sleeves | T0506S |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 0.75mm2-6 SILVER PLATED | EC000005 - Cable end sleeve | 9.0 |
|
Uninsulated end-sleeves | T0706S |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 0.75mm2-8 SILVER PLATED | EC000005 - Cable end sleeve | 9.0 |
|
Uninsulated end-sleeves | T0708S |
No
|
|
|
| UNINSULATED END-SLEEVE, 1.0mm2-6 SILVER PLATED | EC000005 - Cable end sleeve | 9.0 |
|
Uninsulated end-sleeves | T1006S |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 1.5mm2-7 SILVER PLATED | EC000005 - Cable end sleeve | 9.0 |
|
Uninsulated end-sleeves | T1507S |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 2.5mm2-7 SILVER PLATED | EC000005 - Cable end sleeve | 9.0 |
|
Uninsulated end-sleeves | T2507S |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 4.0mm2-9 SILVER PLATED | EC000005 - Cable end sleeve | 9.0 |
|
Uninsulated end-sleeves | T4009S |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 6.0mm2-12 SILVER PLATED | EC000005 - Cable end sleeve | 9.0 |
|
Uninsulated end-sleeves | T6012S |
Yes
|
|
|
| UNINSULATED END-SLEEVE, 6.0mm2-15 SILVER PLATED | EC000005 - Cable end sleeve | 9.0 |
|
Uninsulated end-sleeves | T6015S |
No
|
|
|
| UNINSULATED END-SLEEVE, 10mm2-12 SILVER PLATED | EC000005 - Cable end sleeve | 9.0 |
|
Uninsulated end-sleeves | T0012S |
No
|
|
|
| UNINSULATED END-SLEEVE, 16mm2-12 SILVER PLATED | EC000005 - Cable end sleeve | 9.0 |
|
Uninsulated end-sleeves | T1612S |
Yes
|
|
|
- Total: 13
