Flexible male tabs

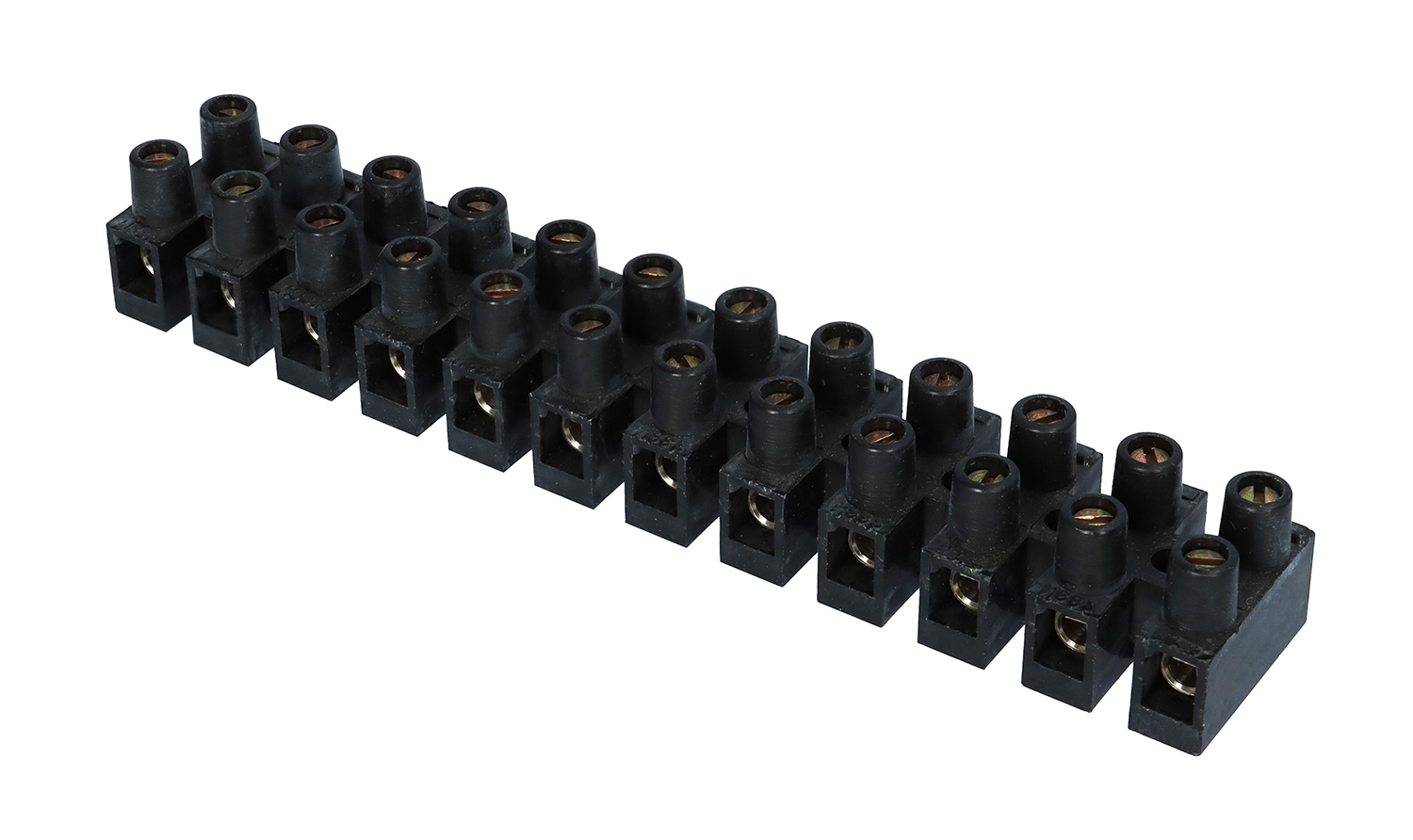

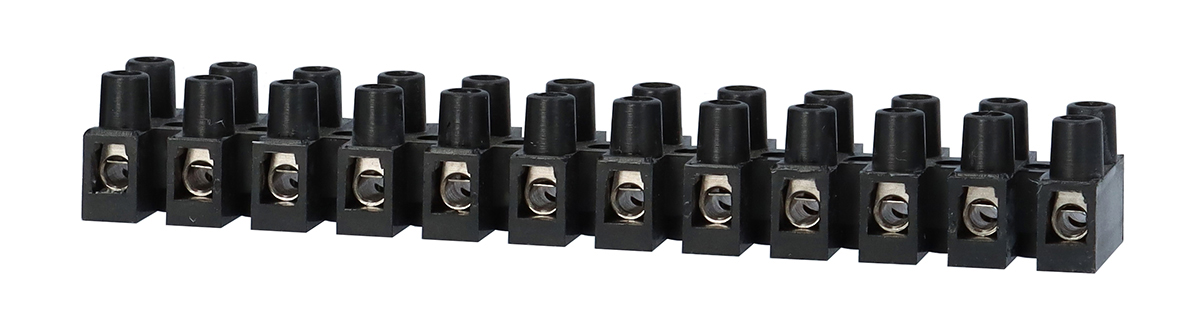

OK 430 PLP-serien Kopplingsplintar/ sockerbitar med skruvkontakt i Polypropylene. Med trådskydd.
Poltal: 12
Spänning: 450 V
Temperatur: +85° C
Färg: Svart
Material: PLP 85
Denna artikel är butiksförpackad i påse med streckkod.
Technical properties
- Number of poles:
- 12 .
- Type of electrical connection 1:
- Screw connection
- Type of electrical connection 2:
- Screw connection
- Mounting method:
- Surface mounted
- Material insulation body:
- Thermoplastic
- Transparent:
- No
- Colour:
- Black
Show more
Item List
- Total: 5
- Total: 5
Accessories
Related products
Spare Parts
Product video
Documents

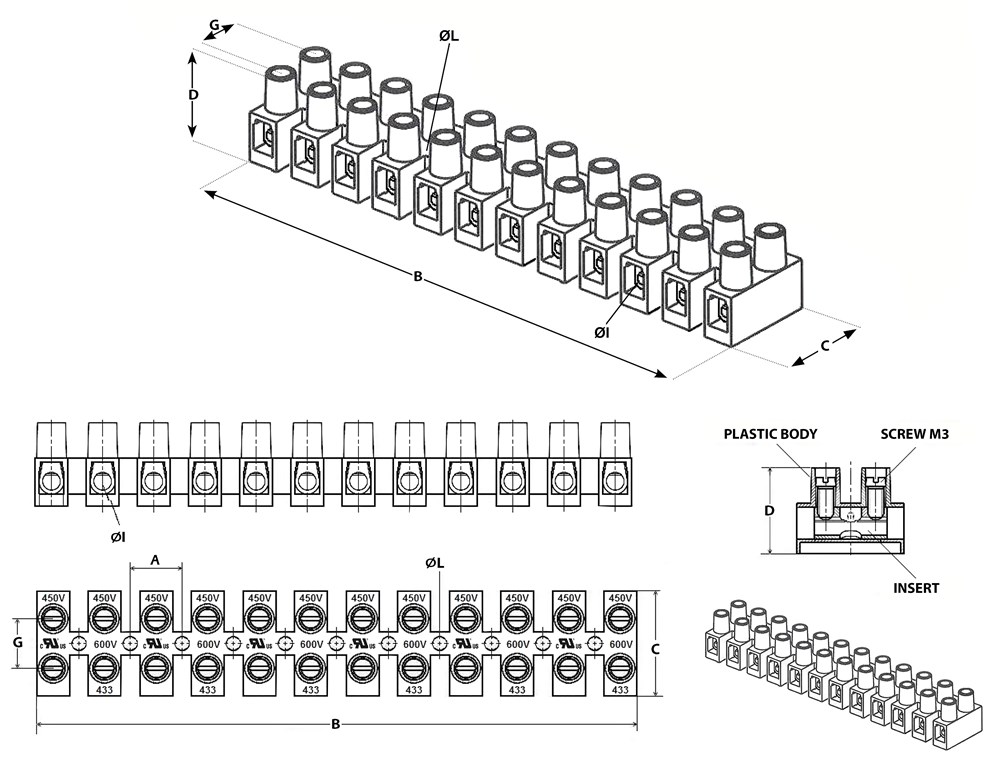

Dimensions
- Total: 5
| Product Description | A | L | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|---|---|
| KOPPLINGSPLINT, 12-POL, SVART, 0.75-1.5mm2, TRÅDSKYDD | 8 mm | 2.6 mm | 10 . | pck |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, SVART, 1.5-2.5mm2, TRÅDSKYDD, | 10 mm | 3.1 mm | 10 . | pck |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, SVART, 2.5-4.0mm2, TRÅDSKYDD | 10 mm | 3.2 mm | 10 . | pck |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, SVART, 4.0-6.0mm2, TRÅDSKYDD | 12 mm | 3.2 mm | 10 . | pck |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, SVART, 6.0-10.0mm2, TRÅDSKYDD | 14.5 mm | 4.1 mm | 10 . | pck |
No
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
- Total: 5
Technical Properties
- Total: 5
| Product Description | Number of poles | Type of electrical connection 1 | Type of electrical connection 2 | Mounting method | Material insulation body | Transparent | Colour | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| KOPPLINGSPLINT, 12-POL, SVART, 0.75-1.5mm2, TRÅDSKYDD | 12 . | Screw connection | Screw connection | Surface mounted | Thermoplastic | No | Black |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, SVART, 1.5-2.5mm2, TRÅDSKYDD, | 12 . | Screw connection | Screw connection | Surface mounted | Thermoplastic | No | Black |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, SVART, 2.5-4.0mm2, TRÅDSKYDD | 12 . | Screw connection | Screw connection | Surface mounted | Thermoplastic | No | Black |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, SVART, 4.0-6.0mm2, TRÅDSKYDD | 12 . | Screw connection | Screw connection | Surface mounted | Thermoplastic | No | Black |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, SVART, 6.0-10.0mm2, TRÅDSKYDD | 12 . | Screw connection | Screw connection | Surface mounted | Thermoplastic | No | Black |
No
|
|
|
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| KOPPLINGSPLINT, 12-POL, SVART, 0.75-1.5mm2, TRÅDSKYDD | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Strip - Screw connection | KOPPLINGSLIST SOCKERBIT | OK431PLPLP-PP1 |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, SVART, 1.5-2.5mm2, TRÅDSKYDD, | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Strip - Screw connection | KOPPLINGSLIST SOCKERBIT | OK432PLPLP-PP1 |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, SVART, 2.5-4.0mm2, TRÅDSKYDD | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Strip - Screw connection | KOPPLINGSLIST SOCKERBIT | OK433PLPLP-PP1 |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, SVART, 4.0-6.0mm2, TRÅDSKYDD | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Strip - Screw connection | KOPPLINGSLIST SOCKERBIT | OK434PLPLP-PP1 |
No
|
|
|
| KOPPLINGSPLINT, 12-POL, SVART, 6.0-10.0mm2, TRÅDSKYDD | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Strip - Screw connection | KOPPLINGSLIST SOCKERBIT | OK435PLPLP-PP1 |
No
|
|
|
- Total: 5
