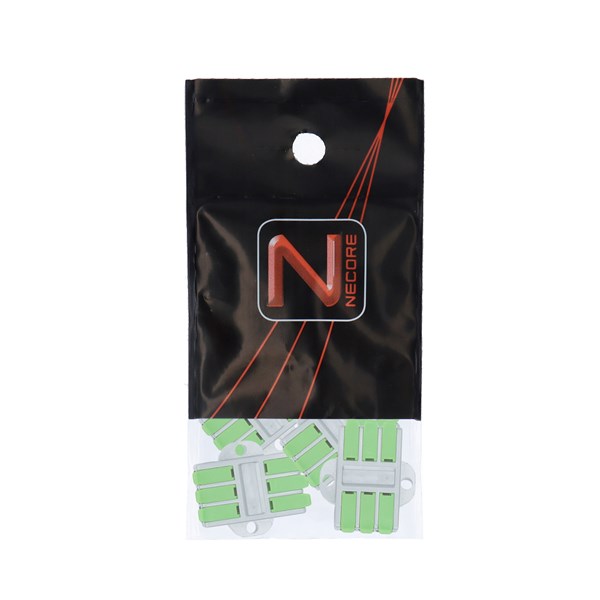

Terminal block, screw mount, with lever - Consumer pack
Terminal block for both solid and stranded cable.
No tool needed. Solid conductors can be connected when closed.
Stripping range: 10-14 mm
Contact resistance: ≤0. 015 Ω
Insulation resistance: ≥1000 MΩ
Material
Contact: Copper
Plastic parts: PC (Polycarbonate)
Spring: Stainless steel
Technical properties
- Number of poles:
- 2 ., 3 ., 4 ., 5 ., 6 ., 8 ., 10 ., 12 .
- Rated voltage:
- 600 V
- Explosion-tested version 'Ex e':
- No
- Rated current In:
- 40 A
- Type of electrical connection 1:
- Plug-in connection
- Type of electrical connection 2:
- Plug-in connection
- Number of clamp positions per pole:
- 2 .
- Mounting method:
- Surface mounted
- Material insulation body:
- Thermoplastic
- Closing plate required:
- No
- Operating temperature:
- -40-105 °C
- Transparent:
- No
- Colour:
- Green
- Halogen free:
- Yes
Show more
Item List
- Total: 8
- Total: 8
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 8
| Product Description | MOQ | Unit | Rated voltage | Drill hole distance centrically | Connectable conductor cross section fine-strand without cable end sleeve | Connectable conductor cross section fine-strand with cable end sleeve | Connectable conductor cross section solid-core | Connectable conductor cross section multi-wired | Rated current In | Width/grid dimension | Height at lowest possible mounting height | Length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 2-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 6PCS/PACK | 10 . | pck | 600 V | 21.5 mm | 0.5-4 mm² | 0.5-4 mm² | 0.5-6 mm² | 0.5-4 mm² | 40 A | 27.6 mm | 13.3 mm | 36 mm |
No
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 3-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 6PCS/PACK | 10 . | pck | 600 V | 28 mm | 0.5-4 mm² | 0.5-4 mm² | 0.5-6 mm² | 0.5-4 mm² | 40 A | 34.1 mm | 13.3 mm | 36 mm |
Yes
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 4-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 4PCS/PACK | 10 . | pck | 600 V | 34.5 mm | 0.5-4 mm² | 0.5-4 mm² | 0.5-6 mm² | 0.5-4 mm² | 40 A | 40.6 mm | 13.3 mm | 36 mm |
No
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 5-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 2PCS/PACK | 10 . | pck | 600 V | 41 mm | 0.5-4 mm² | 0.5-4 mm² | 0.5-6 mm² | 0.5-4 mm² | 40 A | 47.1 mm | 13.3 mm | 36 mm |
Yes
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 6-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 2PCS/PACK | 10 . | pck | 600 V | 47.5 mm | 0.5-4 mm² | 0.5-4 mm² | 0.5-6 mm² | 0.5-4 mm² | 40 A | 53.6 mm | 13.3 mm | 36 mm |
No
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 8-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 1PC/PACK | 10 . | pck | 600 V | 60.5 mm | 0.5-4 mm² | 0.5-4 mm² | 0.5-6 mm² | 0.5-4 mm² | 40 A | 66.6 mm | 13.3 mm | 36 mm |
Yes
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 10-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 1PC/PACK | 10 . | pck | 600 V | 73.5 mm | 0.5-4 mm² | 0.5-4 mm² | 0.5-6 mm² | 0.5-4 mm² | 40 A | 79.6 mm | 13.3 mm | 36 mm |
No
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 12-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-12, 1PC/PACK | 10 . | pck | 600 V | 86.5 mm | 0.5-4 mm² | 0.5-4 mm² | 0.5-6 mm² | 0.5-4 mm² | 40 A | 92.6 mm | 13.3 mm | 36 mm |
No
|
|
|
- Total: 8
Similar Options
Approvals
- Total: 8
| Product Description | Approved according to CE | Approved according to UKCA | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 2-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 6PCS/PACK |
|
|
|
No
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 3-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 6PCS/PACK |
|
|
|
Yes
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 4-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 4PCS/PACK |
|
|
|
No
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 5-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 2PCS/PACK |
|
|
|
Yes
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 6-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 2PCS/PACK |
|
|
|
No
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 8-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 1PC/PACK |
|
|
|
Yes
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 10-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 1PC/PACK |
|
|
|
No
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 12-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-12, 1PC/PACK |
|
|
|
No
|
|
|
- Total: 8
Technical Properties
- Total: 8
| Product Description | Number of poles | Rated voltage | Explosion-tested version 'Ex e' | Rated current In | Type of electrical connection 1 | Type of electrical connection 2 | Number of clamp positions per pole | Mounting method | Material insulation body | Closing plate required | Operating temperature | Transparent | Colour | Halogen free | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 2-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 6PCS/PACK | 2 . | 600 V | No | 40 A | Plug-in connection | Plug-in connection | 2 . | Surface mounted | Thermoplastic | No | -40-105 °C | No | Green | Yes |
No
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 3-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 6PCS/PACK | 3 . | 600 V | No | 40 A | Plug-in connection | Plug-in connection | 2 . | Surface mounted | Thermoplastic | No | -40-105 °C | No | Green | Yes |
Yes
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 4-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 4PCS/PACK | 4 . | 600 V | No | 40 A | Plug-in connection | Plug-in connection | 2 . | Surface mounted | Thermoplastic | No | -40-105 °C | No | Green | Yes |
No
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 5-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 2PCS/PACK | 5 . | 600 V | No | 40 A | Plug-in connection | Plug-in connection | 2 . | Surface mounted | Thermoplastic | No | -40-105 °C | No | Green | Yes |
Yes
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 6-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 2PCS/PACK | 6 . | 600 V | No | 40 A | Plug-in connection | Plug-in connection | 2 . | Surface mounted | Thermoplastic | No | -40-105 °C | No | Green | Yes |
No
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 8-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 1PC/PACK | 8 . | 600 V | No | 40 A | Plug-in connection | Plug-in connection | 2 . | Surface mounted | Thermoplastic | No | -40-105 °C | No | Green | Yes |
Yes
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 10-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 1PC/PACK | 10 . | 600 V | No | 40 A | Plug-in connection | Plug-in connection | 2 . | Surface mounted | Thermoplastic | No | -40-105 °C | No | Green | Yes |
No
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 12-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-12, 1PC/PACK | 12 . | 600 V | No | 40 A | Plug-in connection | Plug-in connection | 2 . | Surface mounted | Thermoplastic | No | -40-105 °C | No | Green | Yes |
No
|
|
|
- Total: 8
Other information
- Total: 8
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 2-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 6PCS/PACK | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Block - Push-in | SKH2023ERIK1 | TB-020560-PP6 |
No
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 3-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 6PCS/PACK | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Block - Push-in | SKH2023ERIK1 ENR2023V | TB-030560-PP6 |
Yes
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 4-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 4PCS/PACK | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Block - Push-in | SKH2023ERIK1 | TB-040560-PP4 |
No
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 5-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 2PCS/PACK | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Block - Push-in | SKH2023ERIK1 ENR2023V | TB-050560-PP2 |
Yes
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 6-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 2PCS/PACK | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Block - Push-in | SKH2023ERIK1 | TB-060560-PP2 |
No
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 8-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 1PC/PACK | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Block - Push-in | SKH2023ERIK1 ENR2023V | TB-080560-PP1 |
Yes
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 10-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-10, 1PC/PACK | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Block - Push-in | SKH2023ERIK1 | TB-100560-PP1 |
No
|
|
|
| TERMINAL BLOCK, SCREW MOUNT, WITH LEVER, 12-POL 0.5-4.0mm2(6mm2 Solid), AWG 28-12, 1PC/PACK | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Block - Push-in | SKH2023ERIK1 | TB-120560-PP1 |
No
|
|
|
- Total: 8
