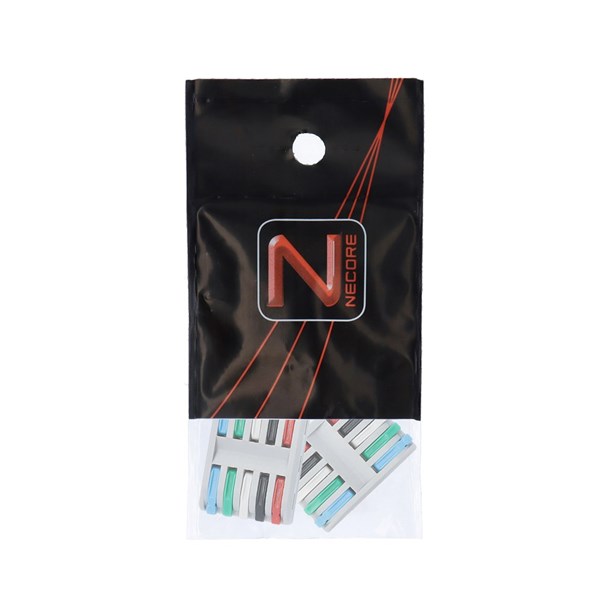

Lighting connector, with lever - Consumer pack
Lighting connector for both solid and stranded cable.
No tool needed.
Stripping length: 11 mm
Contact resistance: ≤0. 015 Ω
Insulation resistance: ≥1000 MΩ
Material
Contact: Copper
Plastic parts: PC (Polycarbonate)
Spring: Stainless steel
Technical properties
- Nominal voltage:
- 600 V
- Nominal current:
- 32 A
- Transparent:
- No
- Number of clamp positions:
- 10 .
- With operation lever:
- Yes
- Suitable for solid core:
- Yes
- Suitable for flexible core:
- Yes
- Suitable for multi-wire core:
- Yes
- Colour:
- Multi-coloured
- Operating temperature:
- -40-105 °C
- Packaging:
- Bag
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | Cable diameter | Conductor cross section flexible (fine-strand) with cable end sleeve | Conductor cross section solid (solid, stranded) | MOQ | Unit | Nominal cross section | AWG-range | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| LIGHTING CONNECTOR 5-POL, 0.2-2.5mm2, WITH LEVER, 2PCS/PACK | 1-4 mm | 0.08-2.5 mm² | 0.08-4 mm² | 10 . | pck | 0.2-4 mm² | 28-12 . | 600 V |
No
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Availability | ||
|---|---|---|---|
| LIGHTING CONNECTOR 5-POL, 0.2-2.5mm2, WITH LEVER, 2PCS/PACK |
No
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Nominal voltage | Nominal current | Transparent | Number of clamp positions | With operation lever | Suitable for solid core | Suitable for flexible core | Suitable for multi-wire core | Colour | Operating temperature | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LIGHTING CONNECTOR 5-POL, 0.2-2.5mm2, WITH LEVER, 2PCS/PACK | 600 V | 32 A | No | 10 . | Yes | Yes | Yes | Yes | Multi-coloured | -40-105 °C | Bag |
No
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| LIGHTING CONNECTOR 5-POL, 0.2-2.5mm2, WITH LEVER, 2PCS/PACK | EC000446 - Screwless terminal | 9.0 |
|
Lightning connectors | SKH2023ERIK1 RGBW | LC-50225-PP2 |
No
|
|
|
