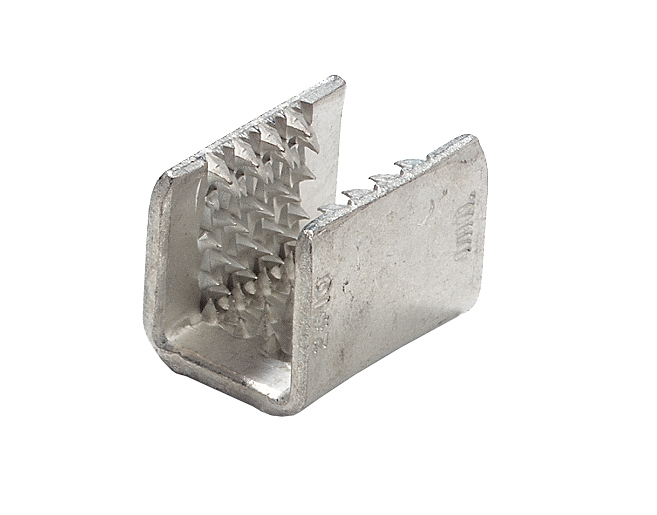

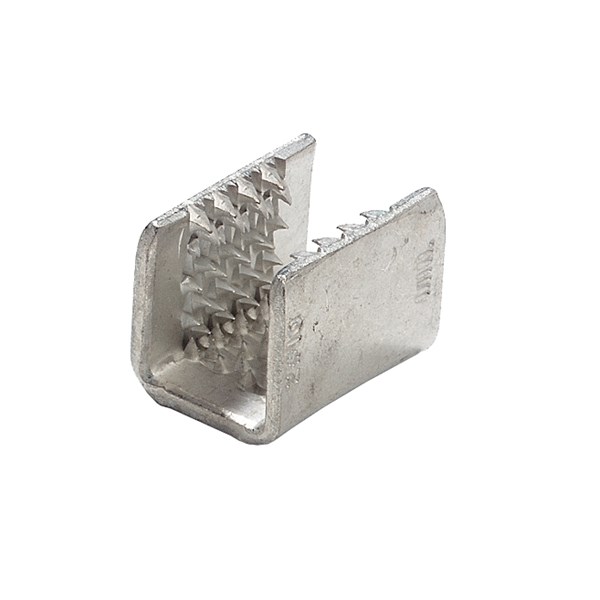

Kontaktelement för lackade ledare - Dragon Teeth
Skarvhylsa
Technical properties
- Model:
- Standard version
- Number of branches:
- 0 N/A
- Insulation:
- None
- Colour insulation:
- N/A
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- No
- Suitable for fine strand conductors:
- No
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- Yes
- Suitable for round conductors:
- No
- Suitable for flat conductors:
- Yes
- For pull protected connections:
- No
- Voltage level:
- Up to 35 kV
- Type of connection:
- Other
- Oil stop/centre bar:
- No
- Surface protection:
- Tinned
- Operating temperature:
- 110 °C
- Material:
- Copper
- Packaging:
- Loose piece
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents

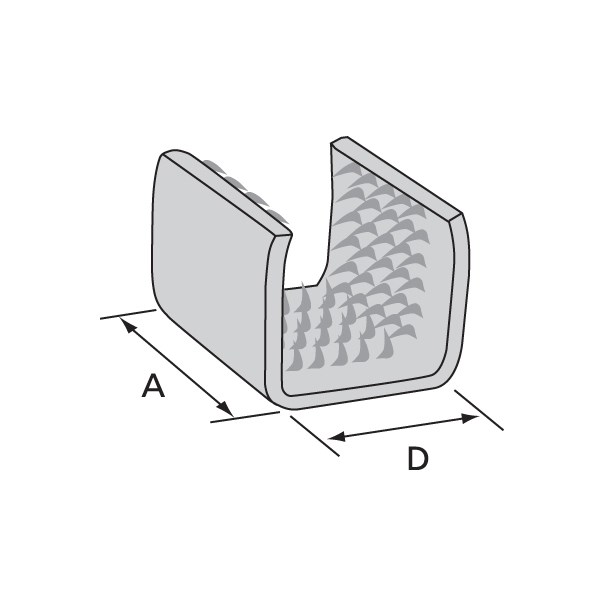

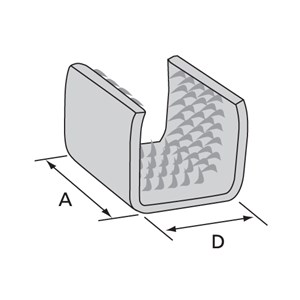

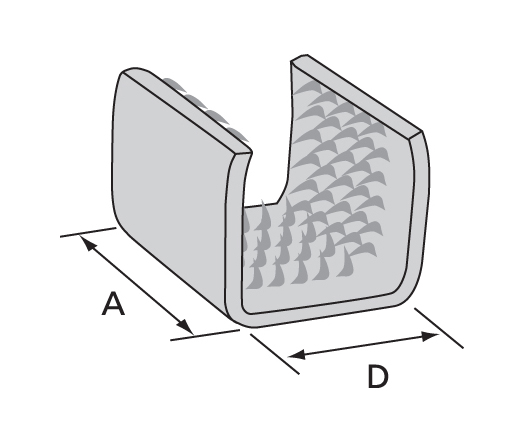

Dimensions
- Total: 2
| Product Description | A | D | E | MOQ | Unit | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED BUTT SPLICE, DRAGON TEETH ROUND: 1.63-2.58mm2, RECTANGULAR: 2.0-2.30mm2 | 15.9 mm | 9.5 mm | 4.3 mm | 250 . | pcs | 1.63-2.58 mm² |
Yes
|
|
|
| UNINSULATED BUTT SPLICE, DRAGON TEETH ROUND: 2.05-6.54mm2, RECTANGULAR: 2.50-4.10mm2 | 17.5 mm | 13.5 mm | 6.3 mm | 100 . | pcs | 2.05-6.54 mm² |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | With approval according to UL | Availability | ||
|---|---|---|---|---|
| UNINSULATED BUTT SPLICE, DRAGON TEETH ROUND: 1.63-2.58mm2, RECTANGULAR: 2.0-2.30mm2 |
|
Yes
|
|
|
| UNINSULATED BUTT SPLICE, DRAGON TEETH ROUND: 2.05-6.54mm2, RECTANGULAR: 2.50-4.10mm2 |
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Model | Number of branches | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | For pull protected connections | Voltage level | Type of connection | Oil stop/centre bar | Surface protection | Operating temperature | Material | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED BUTT SPLICE, DRAGON TEETH ROUND: 1.63-2.58mm2, RECTANGULAR: 2.0-2.30mm2 | Standard version | 0 N/A | None | N/A | Short | No | No | No | No | Yes | No | Yes | No | Up to 35 kV | Other | No | Tinned | 110 °C | Copper | Loose piece |
Yes
|
|
|
| UNINSULATED BUTT SPLICE, DRAGON TEETH ROUND: 2.05-6.54mm2, RECTANGULAR: 2.50-4.10mm2 | Standard version | 0 N/A | None | N/A | Short | No | No | No | No | Yes | No | Yes | No | Up to 35 kV | Other | No | Tinned | 110 °C | Copper | Loose piece |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED BUTT SPLICE, DRAGON TEETH ROUND: 1.63-2.58mm2, RECTANGULAR: 2.0-2.30mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Uninsulated Butt splices - Magnet wire splice | 210214S, 7TAI029010R0007 | 210214S |
Yes
|
|
|
| UNINSULATED BUTT SPLICE, DRAGON TEETH ROUND: 2.05-6.54mm2, RECTANGULAR: 2.50-4.10mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Uninsulated Butt splices - Magnet wire splice | 204210S, 7TAI029010R0002 | 204210S |
Yes
|
|
|
- Total: 2
