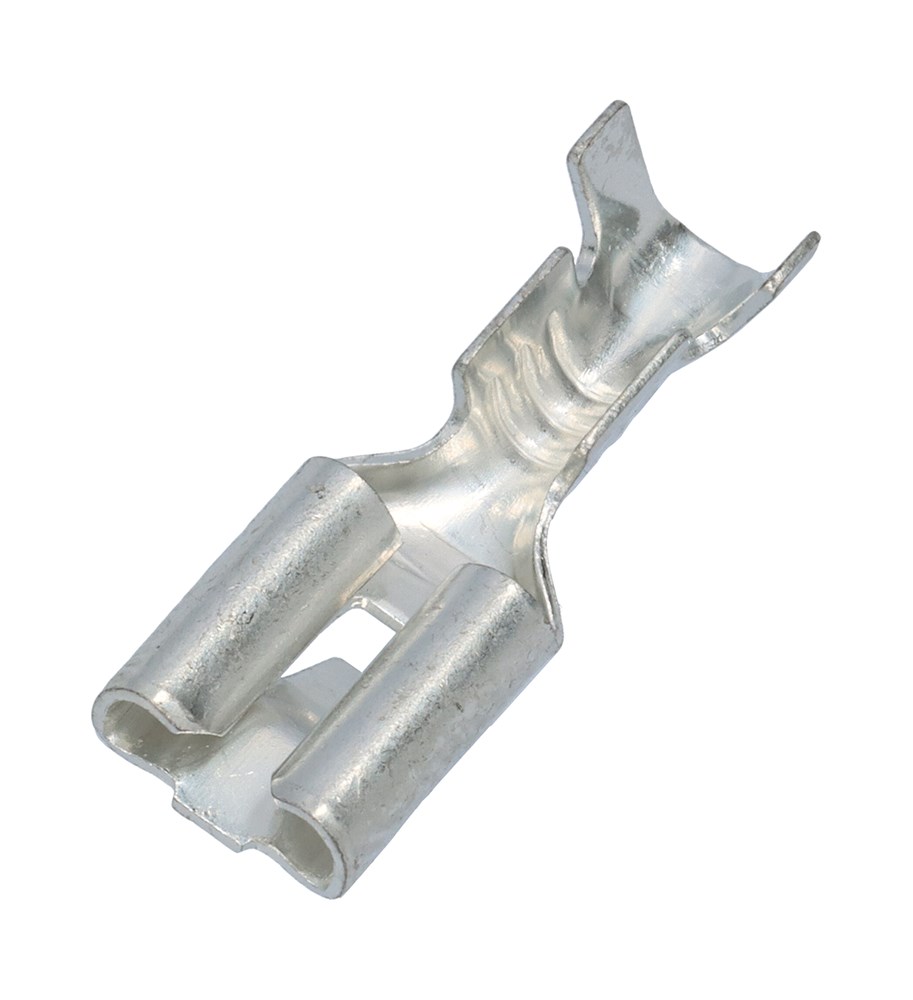

Flatstiftshylsor med nabb, för-rullade ben
B-serien
Material: Mässing
Ytbehandling: > 4µ Sn
Temperaturområde: -10 - 110°C
Rullpressning (open barrel)
Technical properties
- Model:
- Bushing
- Max. current (Imax):
- 10 A, 15 A, 8 A, 24 A
- Insulation:
- Not isolated
- Colour insulation:
- Other
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Other
- Operating temperature:
- -10-110 °C
- Material:
- Bronze, Brass
- Neck type:
- Open barrel crimp
Show more
Item List
- Total: 5
- Total: 5
Accessories
Related products
Spare Parts
Product video
Downloads
Compliance statement
CE Declaration of Conformity - Cable lugs
RMI_CMRT_6.5 - Nelco Conflict Minerals Report

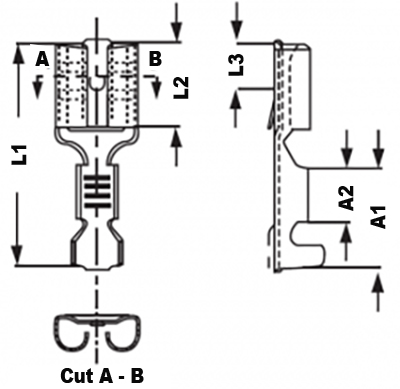

Dimensions
- Total: 5
| Product Description | MOQ | Unit | Nominal cross section | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|
| UNINSULATED RECEPTACLE + LOCKING LIP 0.5-1.0mm2, 2.8x0.8mm, PRE-ROLLED LEG | 100 . | pcs | 0.5-1 mm² | Flat 2.8x0.8 mm |
Yes
|
|
|
| UNINSULATED RECEPTACLE + LOCKING LIP 0.5-1.5mm2, 6.3x0.8mm, PRE-ROLLED LEG | 100 . | pcs | 0.5-1.5 mm² | Flat 6.3x0.8 mm |
Yes
|
|
|
| UNINSULATED RECEPTACLE + LOCKING LIP 1.0-2.5mm2, 6.3x0.8mm, PRE-ROLLED LEG | 100 . | pcs | 1-2.5 mm² | Flat 6.3x0.8 mm |
Yes
|
|
|
| UNINSULATED RECEPTACLE + LOCKING LIP 1.0-2.5mm2, 6.3x0.8mm, BRONZE, PRE-ROLLED LEG | 100 . | pcs | 1-2.5 mm² | Flat 6.3x0.8 mm |
Yes
|
|
|
| UNINSULATED RECEPTACLE + LOCKING LIP 2.5-6.0mm2, 6.3x0.8mm, PRE-ROLLED LEG | 100 . | pcs | 4-6 mm² | Flat 6.3x0.8 mm |
Yes
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
- Total: 5
Technical Properties
- Total: 5
| Product Description | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Operating temperature | Material | Neck type | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED RECEPTACLE + LOCKING LIP 0.5-1.0mm2, 2.8x0.8mm, PRE-ROLLED LEG | Bushing | 8 A | Not isolated | Other | No | No | Other | Brass | Open barrel crimp |
Yes
|
|
|
|
| UNINSULATED RECEPTACLE + LOCKING LIP 0.5-1.5mm2, 6.3x0.8mm, PRE-ROLLED LEG | Bushing | 10 A | Not isolated | Other | No | No | Other | -10-110 °C | Brass | Open barrel crimp |
Yes
|
|
|
| UNINSULATED RECEPTACLE + LOCKING LIP 1.0-2.5mm2, 6.3x0.8mm, PRE-ROLLED LEG | Bushing | 15 A | Not isolated | Other | No | No | Other | -10-110 °C | Brass | Open barrel crimp |
Yes
|
|
|
| UNINSULATED RECEPTACLE + LOCKING LIP 1.0-2.5mm2, 6.3x0.8mm, BRONZE, PRE-ROLLED LEG | Bushing | 15 A | Not isolated | Other | No | No | Other | -10-110 °C | Bronze | Open barrel crimp |
Yes
|
|
|
| UNINSULATED RECEPTACLE + LOCKING LIP 2.5-6.0mm2, 6.3x0.8mm, PRE-ROLLED LEG | Bushing | 24 A | Not isolated | Other | No | No | Other | Brass |
Yes
|
|
|
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED RECEPTACLE + LOCKING LIP 0.5-1.0mm2, 2.8x0.8mm, PRE-ROLLED LEG | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Receptacle - for snap on housing | B0503FLN-8 |
Yes
|
|
|
|
| UNINSULATED RECEPTACLE + LOCKING LIP 0.5-1.5mm2, 6.3x0.8mm, PRE-ROLLED LEG | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Receptacle - for snap on housing | OISOLERAD FLATSTIFTSHYLSA + NABB | B409FLESPA |
Yes
|
|
|
| UNINSULATED RECEPTACLE + LOCKING LIP 1.0-2.5mm2, 6.3x0.8mm, PRE-ROLLED LEG | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Receptacle - for snap on housing | B410FLESPA |
Yes
|
|
|
|
| UNINSULATED RECEPTACLE + LOCKING LIP 1.0-2.5mm2, 6.3x0.8mm, BRONZE, PRE-ROLLED LEG | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Receptacle - for snap on housing | B410FLBRONS |
Yes
|
|
|
|
| UNINSULATED RECEPTACLE + LOCKING LIP 2.5-6.0mm2, 6.3x0.8mm, PRE-ROLLED LEG | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Receptacle - Loose Pieces | B411FLESPA |
Yes
|
|
|
- Total: 5
