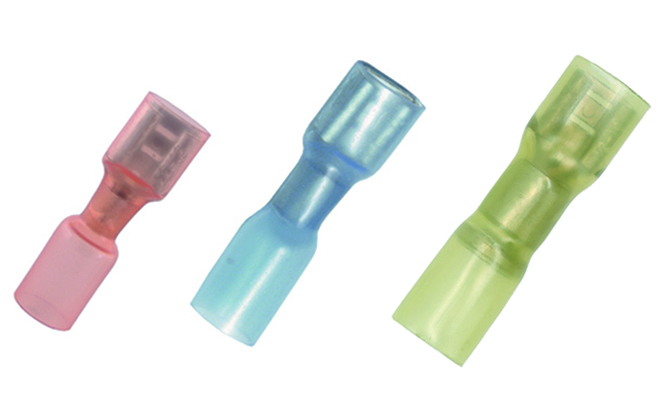

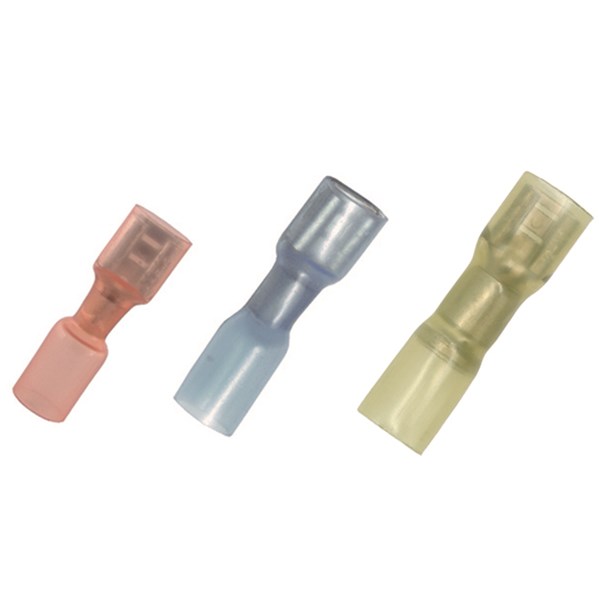

Fully heat-shrink insulated Receptacle TS-series
Krymphylsor TS-serien
Material: Förtent mässing
Isolering: Polyamid (PA) nylon med invändigt lim
Krymptemperatur: 180° C
Temperaturområde: -55° C till +125° C
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10 A, 15 A, 24 A
- Insulation:
- Fully isolated
- Colour insulation:
- Red, Blue, Yellow
- With cam clamp:
- No
- With tap spreader:
- No
- Colour:
- Blue, Yellow
- Material insulation:
- Polyethylene (PE)
- Operating temperature:
- -55-125 °C
- Material:
- Brass
- Voltage max:
- 300V
- Packaging:
- Loose piece
Show more
Item List
- Total: 3
- Total: 3
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_TS-Series
Conflict Minerals Reporting Template Version 6.31_Approved

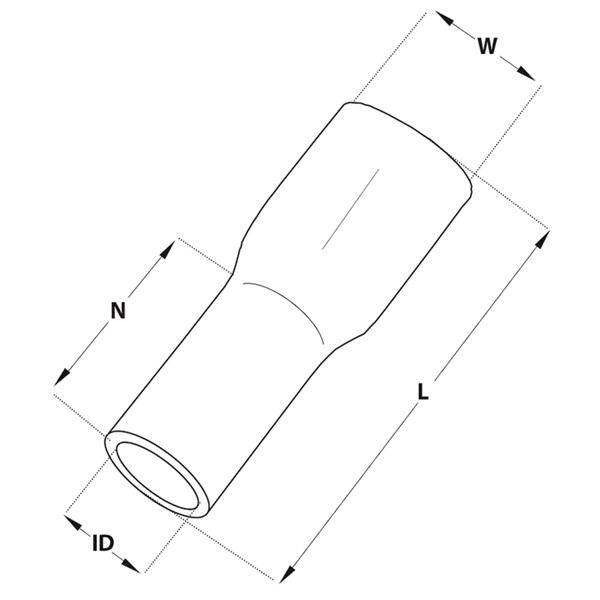

Dimensions
- Total: 3
| Product Description | ID | L | W | MOQ | Unit | Nominal cross section | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| FULLY SHRINK INSULATED RECEPTACLE YELLOW, 6.3x0.8mm | 100 . | pcs | 4-6 mm² | Flat 6.3x0.8 mm |
Yes
|
|
|
|||
| FULLY SHRINK INSULATED RECEPTACLE RED, 6.3x0.8mm | 4 mm | 21.5 mm | 6.3 mm | 100 . | pcs | 0.5-1.5 mm² | Flat 6.3x0.8 mm |
Yes
|
|
|
| FULLY SHRINK INSULATED RECEPTACLE BLUE, 6.3x08mm | 4.5 mm | 21.5 mm | 6.3 mm | 100 . | pcs | 1.5-2.5 mm² | Flat 6.3x0.8 mm |
Yes
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | Approved according to CE | With approval according to UL | Availability | ||
|---|---|---|---|---|---|
| FULLY SHRINK INSULATED RECEPTACLE YELLOW, 6.3x0.8mm |
|
|
Yes
|
|
|
| FULLY SHRINK INSULATED RECEPTACLE RED, 6.3x0.8mm |
|
|
Yes
|
|
|
| FULLY SHRINK INSULATED RECEPTACLE BLUE, 6.3x08mm |
|
|
Yes
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Colour | Material insulation | Operating temperature | Material | Voltage max | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FULLY SHRINK INSULATED RECEPTACLE YELLOW, 6.3x0.8mm | Yes | Yes | Bushing | 24 A | Fully isolated | Yellow | No | No | Yellow | Polyethylene (PE) | -55-125 °C | Brass | 300V | Loose piece |
Yes
|
|
|
| FULLY SHRINK INSULATED RECEPTACLE RED, 6.3x0.8mm | Yes | Yes | Bushing | 10 A | Fully isolated | Red | No | No | Polyethylene (PE) | -55-125 °C | Brass | 300V | Loose piece |
Yes
|
|
|
|
| FULLY SHRINK INSULATED RECEPTACLE BLUE, 6.3x08mm | Yes | Yes | Bushing | 15 A | Fully isolated | Blue | No | No | Blue | Polyethylene (PE) | -55-125 °C | Brass | 300V | Loose piece |
Yes
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| FULLY SHRINK INSULATED RECEPTACLE YELLOW, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Fully heat-shrink insulated Receptacle | TS4607FLF |
Yes
|
|
|
|
| FULLY SHRINK INSULATED RECEPTACLE RED, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Fully heat-shrink insulated Receptacle | TS1507FLF |
Yes
|
|
|
|
| FULLY SHRINK INSULATED RECEPTACLE BLUE, 6.3x08mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Fully heat-shrink insulated Receptacle | HELISOLERAD LIMFLATSTIFTSHYLSA | TS2507FLF |
Yes
|
|
|
- Total: 3
