TS 1507 FLF

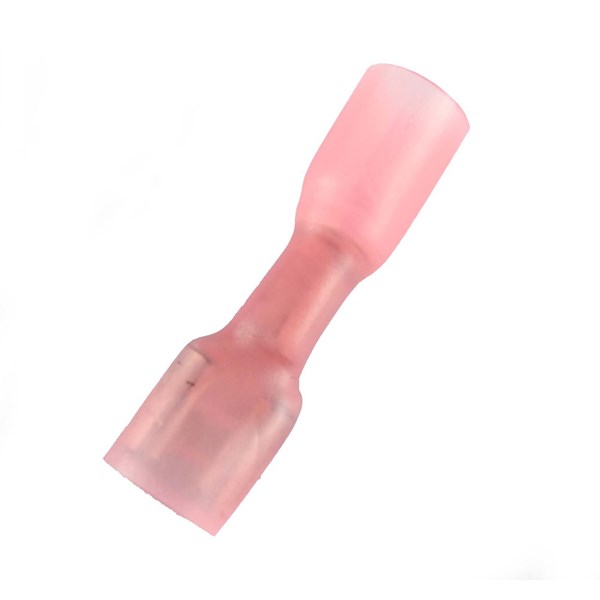

FULLY SHRINK INSULATED RECEPTACLE RED, 6.3x0.8mm
TS 1507 FLF
- Availability:
-
Yes
- Total: 1
Related items
Helisolerade flatstiftshylsor
Krymphylsor TS-serien
Material: Förtent mässing
Isolering: Polyamid (PA) nylon med invändigt lim
Krymptemperatur: 180° C
Temperaturområde: -55° C till +125° C
- Total: 1
Product Properties
| Model | Bushing |
|---|---|
| Max. current (Imax) | 10 A |
| Insulation | Fully isolated |
| Colour insulation | Red |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Polyethylene (PE) |
| Operating temperature | -55-125 °C |
| Material | Brass |
| Voltage max | 300V |
| Packaging | Loose piece |
Dimensions
| ID | 4 mm |
|---|---|
| L | 21.5 mm |
| W | 6.3 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 0.5-1.5 mm² |
| Plug dimensions | Flat 6.3x0.8 mm |
Logistics
| Barcode | 733117610987 |
|---|---|
| Country of origin | CN |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Packaging | Loose piece |
| Stock code | TS 1507 FLF |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|---|
| With approval according to UL | Yes |
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Fully heat-shrink insulated Receptacle |
| Alternative SKU | TS1507FLF |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| PFAS | No PFAS |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
Genererate statement of compliance:
Accessories
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_TS-Series
Conflict Minerals Reporting Template Version 6.31_Approved
Generate Datasheet:
