TS 1543 G

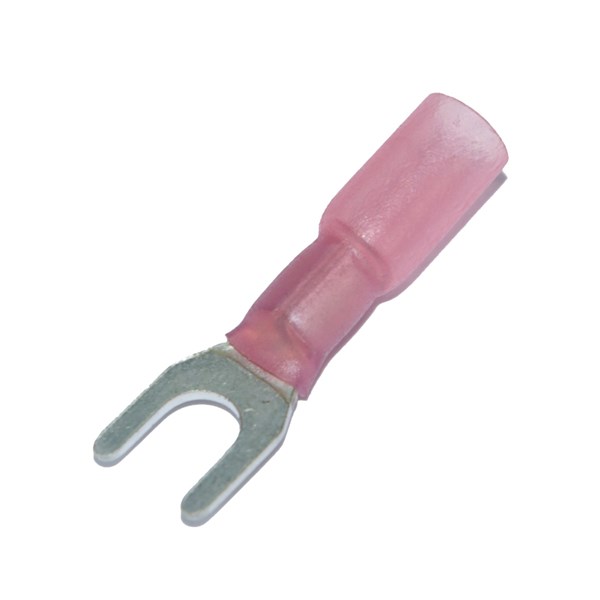

SHRINK INSULATED SPADE TERMINAL RED, M4
TS 1543 G
- Availability:
-
Yes
- Total: 1
Related items
Heat-shrink insulated Spade terminals TS-series
Krymphylsor TS-serien "Lågpris"
Material: Förtent mässing
Isolering: Polyamid (PA) nylon med invändigt lim
Krymptemperatur: 180º C
Temperaturområde: -55° C till +125° C
- Total: 1
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Reel/roll packaging | No |
| Max. current (Imax) | 19 A |
| Flange shape | Fork shape |
| According to DIN | No |
| Insulation | Polyamide (PA) |
| Colour insulation | Red |
| Sleeve form | Short |
| Suitable for solid cores | No |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | No |
| Suitable for round conductors | Yes |
| Suitable for flat conductors | No |
| Surface protection | Tinned |
| Operating temperature | -55-125 °C |
| Material | Copper |
| Voltage max | 600V |
Dimensions
| HS | 4.3 mm |
|---|---|
| ID | 4 mm |
| L | 26 mm |
| W | 6.8 mm |
| MOQ | 100 . |
| Unit | pcs |
| Bolt dimension (metric) | 4 . |
| Nominal cross section | 0.5-1.5 mm² |
Logistics
| Barcode | 733117610997 |
|---|---|
| Country of origin | TW |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Stock code | TS 1543 G |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|---|
| With approval according to UL | Yes |
Other info
| ETIM-Class | EC001052 - Solderless copper terminals for copper conductors |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Heat-shrink insulated Spade termina |
| Alternative SKU | TS1543G |
Compliance
| Conflict Minerals | The company's general statement declares compliance with conflict mineral regulations. |
|---|---|
| REACH | No SVHC (233 Subs. 17 Jan 2023) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
