SP 2519 SR-9

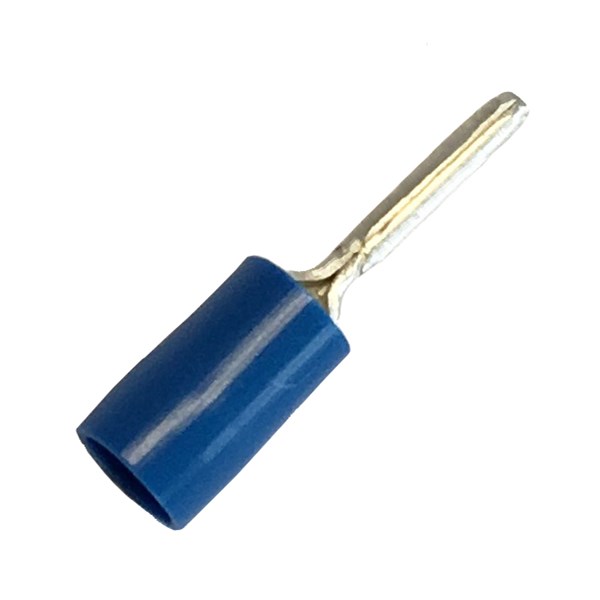

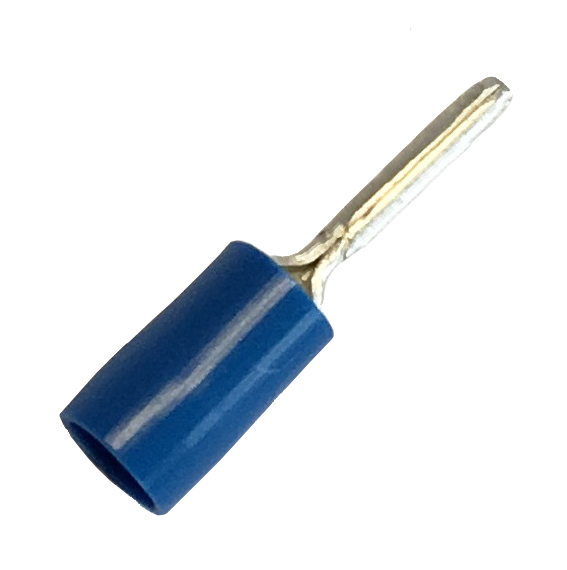

INSULATED PIN TERMINAL BLUE, 9x1.9mm
SP 2519 SR-9
- Availability:
-
Yes
Product Properties
| Reel/roll packaging | No |
|---|---|
| Max. current (Imax) | 27 A |
| Flange shape | Pin shape |
| According to DIN | No |
| Insulation | Polyvinyl chloride (PVC) |
| Colour insulation | Blue |
| Sleeve form | Long |
| Suitable for solid cores | No |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | No |
| Suitable for round conductors | Yes |
| Suitable for flat conductors | No |
| Surface protection | Tinned |
| Operating temperature | -25-75 °C |
| Material | Copper |
| Voltage max | 600V |
| Halogen free | Yes |
Dimensions
| D | 1.9 mm |
|---|---|
| ID | 5 mm |
| L | 19 mm |
| N | 9.5 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 1.04-2.63 mm² |
Logistics
| Barcode | 733117610298 |
|---|---|
| Country of origin | JP |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Stock code | SP 2519 SR-9 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| UL-File No. | E42024 |
|---|---|
| Approved according to CE | Yes |
| Approved according to CSA | Yes |
| With approval according to UL | Yes |
| Inflammability class of insulation material according to with UL94 | V2 |
Other info
| ETIM-Class | EC001052 - Solderless copper terminals for copper conductors |
|---|---|
| ETIM-Release | 7.0 |
| Trademark | JST |
| Product Group | Pin Terminals - Polyamide |
| Search Description | 19412400 , FVDPC-2 F-9 |
| Alternative SKU | SP2519SR-9 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| PFAS | No PFAS |
| REACH | No SVHC (235 Subs. 14 June 2023) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| ECCN Primary Classification | N/A |
| ECCN Export Control Code Number | EAR99 |
