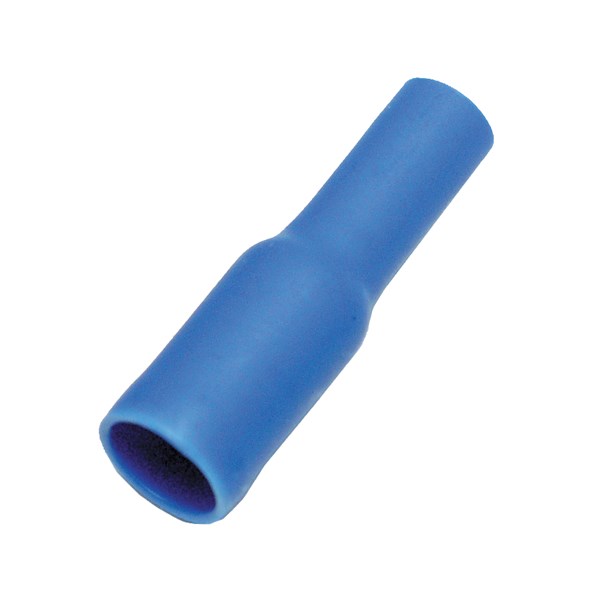

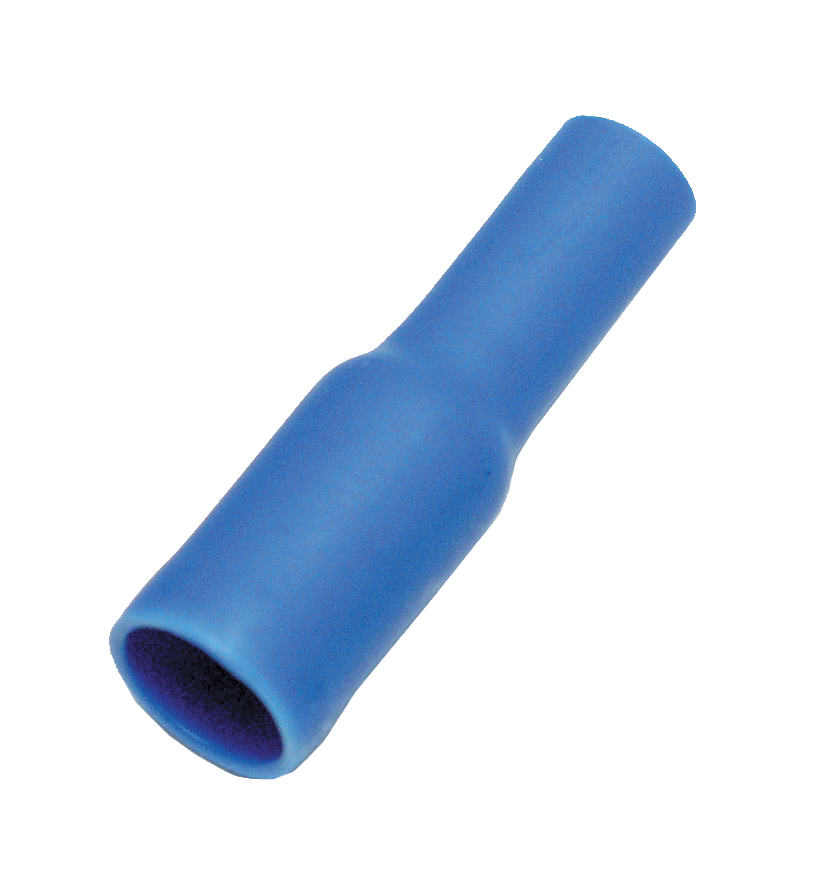

Bullet female terminals A-series
Long copper sleeve
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10 A, 15 A
- Insulation:
- Fully isolated
- Colour insulation:
- Red, Blue
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -25-75 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- No
- Packaging:
- Loose piece
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_A-Series
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 3
| Product Description | ID | E | L | N | W | MOQ | Unit | Nominal cross section | AWG-range | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED BULLET FEMALE RED, 4mm | 2.7 mm | 8.5 mm | 24 mm | 10 mm | 3.96 mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Round 4 mm |
Yes
|
|
|
| INSULATED BULLET FEMALE BLUE, 4mm | 4.4 mm | 13.2 mm | 25.5 mm | 10 mm | 6.7 mm | 100 . | pcs | 1.04-2.63 mm² | 16-14 . | Round 4 mm |
Yes
|
|
|
| INSULATED BULLET FEMALE BLUE, 5mm | 3.2 mm | 8.5 mm | 25 mm | 11 mm | 4.95 mm | 100 . | pcs | 1.04-2.63 mm² | 16-14 . | Round 5 mm |
Yes
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | UL-File No. | Approved according to CE | Approved according to CSA | With approval according to UL | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|---|---|
| INSULATED BULLET FEMALE RED, 4mm | E42024 |
|
|
|
|
Yes
|
|
|
| INSULATED BULLET FEMALE BLUE, 4mm | E42024 |
|
|
|
|
Yes
|
|
|
| INSULATED BULLET FEMALE BLUE, 5mm | E42024 |
|
|
|
|
Yes
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Fire classification | Operating temperature | Material | Voltage max | Halogen free | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED BULLET FEMALE RED, 4mm | Yes | Yes | Bushing | 10 A | Fully isolated | Red | No | No | Polyvinyl chloride (PVC) | According to UL94V2 | -25-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
| INSULATED BULLET FEMALE BLUE, 4mm | Yes | Yes | Bushing | 15 A | Fully isolated | Blue | No | No | Polyvinyl chloride (PVC) | According to UL94V2 | -25-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
| INSULATED BULLET FEMALE BLUE, 5mm | Yes | Yes | Bushing | 15 A | Fully isolated | Blue | No | No | Polyvinyl chloride (PVC) | According to UL94V2 | -25-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| INSULATED BULLET FEMALE RED, 4mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Bullet Female - PVC | JST, 19950900 , CVDGF1.25-5 (LF) | A1504HO |
Yes
|
|
|
| INSULATED BULLET FEMALE BLUE, 4mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Bullet Female - PVC | JST, 19951600 , CVDGF2-5 | A2504HO |
Yes
|
|
|
| INSULATED BULLET FEMALE BLUE, 5mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Bullet Female - PVC | JST, 19952630 (NO BRAND) , CVDGF2-7 NB NO BRAND | A2505HO |
Yes
|
|
|
- Total: 3
