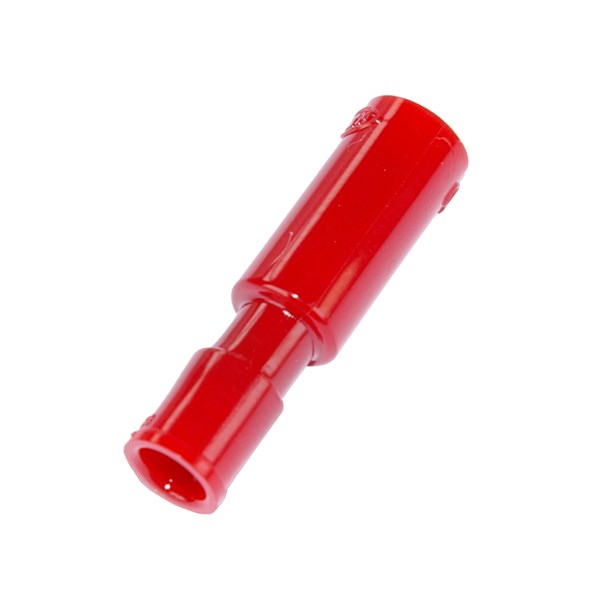

Bullet female terminals N-series
Long copper sleeve
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10 A
- Insulation:
- Fully isolated
- Colour insulation:
- Grey
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-105 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- Yes
- Inflammability class of insulation material according to with UL94:
- V2
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_N-Series
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 1
| Product Description | ID | E | L | N | W | MOQ | Unit | Nominal cross section | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED BULLET FEMALE CLEAR, 2mm, 0.5-0.75mm2 | 3.1 mm | 13 mm | 24.5 mm | 11.5 mm | 4.6 mm | 100 . | pcs | 0.5-0.75 mm² | Round 2 mm |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | UL-File No. | Approved according to CE | Approved according to CSA | With approval according to UL | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|---|---|
| INSULATED BULLET FEMALE CLEAR, 2mm, 0.5-0.75mm2 | E44245 |
|
|
|
|
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Fire classification | Operating temperature | Material | Voltage max | Halogen free | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED BULLET FEMALE CLEAR, 2mm, 0.5-0.75mm2 | Yes | Yes | Bushing | 10 A | Fully isolated | Grey | No | No | Polyamide (PA) | According to UL94V2 | -40-105 °C | Brass | 300V | Yes |
|
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| INSULATED BULLET FEMALE CLEAR, 2mm, 0.5-0.75mm2 | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Bullet Female - Polyamide | NICHIFU, PC 2005-F | N0802HO |
Yes
|
|
|
- Total: 1
