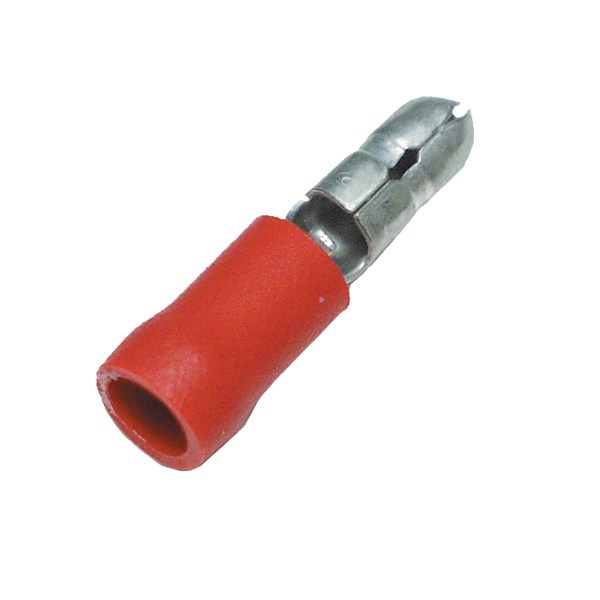

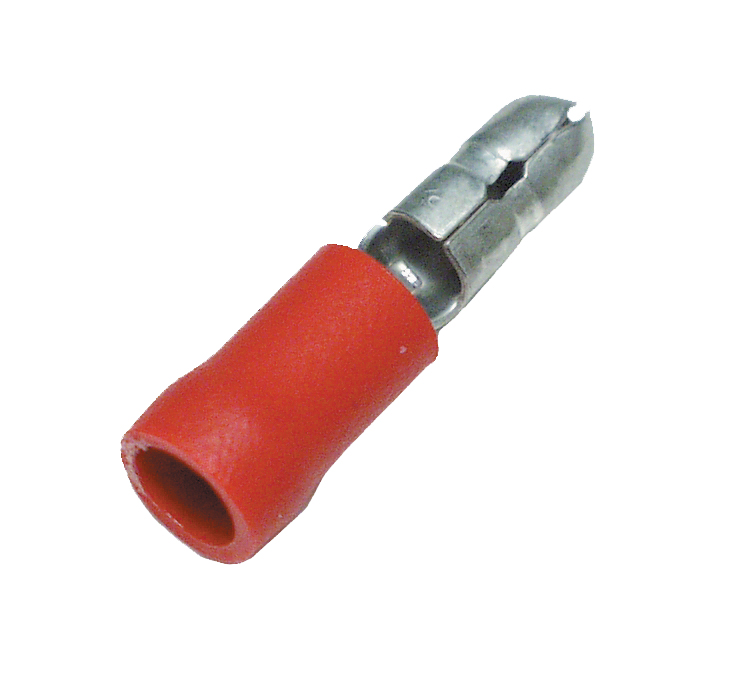

Bullet male terminals A PL-series
Long copper sleeve
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Plug
- Max. current (Imax):
- 10 A, 15 A, 24 A
- Insulation:
- Partially isolated
- Colour insulation:
- Red, Blue, Yellow
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -40-75 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- No
- Packaging:
- Loose piece
Show more
Item List
- Total: 4
- Total: 4
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_A PL-Series
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 4
| Product Description | ID | L | N | W | MOQ | Unit | Nominal cross section | AWG-range | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED BULLET MALE RED, 4mm | 4.3 mm | 20.5 mm | 9.7 mm | 4 mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Round 4 mm |
Yes
|
|
|
| INSULATED BULLET MALE BLUE, 4mm | 4.8 mm | 21 mm | 9.7 mm | 4 mm | 100 . | pcs | 1.04-2.63 mm² | 16-14 . | Round 4 mm |
Yes
|
|
|
| INSULATED BULLET MALE BLUE, 5mm | 4.8 mm | 21 mm | 9.7 mm | 5 mm | 100 . | pcs | 1.04-2.63 mm² | 16-14 . | Round 5 mm |
Yes
|
|
|
| INSULATED BULLET MALE YELLOW, 5mm | 6.5 mm | 21.5 mm | 11.7 mm | 5 mm | 100 . | pcs | 2.63-6.64 mm² | 12-10 . | Round 5 mm |
Yes
|
|
|
- Total: 4
Similar Options
Approvals
- Total: 4
| Product Description | Approved according to CE | With approval according to UL | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|
| INSULATED BULLET MALE RED, 4mm |
|
|
|
Yes
|
|
|
| INSULATED BULLET MALE BLUE, 4mm |
|
|
|
Yes
|
|
|
| INSULATED BULLET MALE BLUE, 5mm |
|
|
|
Yes
|
|
|
| INSULATED BULLET MALE YELLOW, 5mm |
|
|
|
Yes
|
|
|
- Total: 4
Technical Properties
- Total: 4
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Fire classification | Operating temperature | Material | Voltage max | Halogen free | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED BULLET MALE RED, 4mm | Yes | Yes | Plug | 10 A | Partially isolated | Red | No | No | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
| INSULATED BULLET MALE BLUE, 4mm | Yes | Yes | Plug | 15 A | Partially isolated | Blue | No | No | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
| INSULATED BULLET MALE BLUE, 5mm | Yes | Yes | Plug | 15 A | Partially isolated | Blue | No | No | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
| INSULATED BULLET MALE YELLOW, 5mm | Yes | Yes | Plug | 24 A | Partially isolated | Yellow | No | No | Polyvinyl chloride (PVC) | According to UL94V0 | -40-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
- Total: 4
Other information
- Total: 4
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| INSULATED BULLET MALE RED, 4mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Bullet Male - PVC | A1504HAPL |
Yes
|
|
|
| INSULATED BULLET MALE BLUE, 4mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Bullet Male - PVC | A2504HAPL |
Yes
|
|
|
| INSULATED BULLET MALE BLUE, 5mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Bullet Male - PVC | A2505HAPL |
Yes
|
|
|
| INSULATED BULLET MALE YELLOW, 5mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Bullet Male - PVC | A4605HAPL |
Yes
|
|
|
- Total: 4
