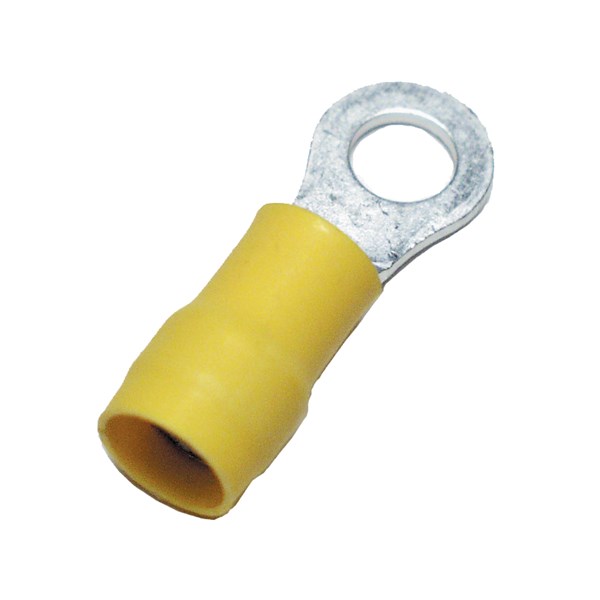

Ring terminals SP-series
Extra Long copper sleeve
Brazed seam
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19 A, 27 A, 48 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Red, Blue, Yellow
- Sleeve form:
- Long
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -25-75 °C
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- No
Show more
Item List
- Total: 18
- Total: 18
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_SP-Series
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 18
| Product Description | HS | ID | L | N | W | MOQ | Unit | Bolt dimension (metric) | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED RING TERMINAL RED, M3 | 3.2 mm | 4 mm | 16.3 mm | 9.6 mm | 5.5 mm | 100 . | pcs | 3 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M3.5 | 3.7 mm | 4 mm | 19.2 mm | 9.6 mm | 6.6 mm | 100 . | pcs | 3.5 . | 0.5-1.65 mm² |
No
|
|
|
| INSULATED RING TERMINAL RED, M4 | 4.3 mm | 4 mm | 19.2 mm | 9.6 mm | 6.6 mm | 100 . | pcs | 4 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M5 | 5.3 mm | 4 mm | 20.6 mm | 9.6 mm | 8 mm | 100 . | pcs | 5 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M6 | 6.4 mm | 4 mm | 26.5 mm | 9.6 mm | 11.6 mm | 100 . | pcs | 6 . | 0.5-1.65 mm² |
No
|
|
|
| INSULATED RING TERMINAL RED, M10 | 10.5 mm | 4 mm | 30.3 mm | 9.6 mm | 13.6 mm | 100 . | pcs | 10 . | 0.5-1.65 mm² |
No
|
|
|
| INSULATED RING TERMINAL BLUE, M3.5 | 3.7 mm | 4.7 mm | 19.2 mm | 9.6 mm | 6.6 mm | 100 . | pcs | 3.5 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M4 | 4.3 mm | 4.7 mm | 21.6 mm | 9.6 mm | 8.5 mm | 100 . | pcs | 4 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M5 | 5.3 mm | 4.7 mm | 21.6 mm | 9.6 mm | 9.5 mm | 100 . | pcs | 5 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M5, SLIM | 5.3 mm | 4.7 mm | 21 mm | 9.6 mm | 8.5 mm | 100 . | pcs | 5 . | 1.04-2.63 mm² |
No
|
|
|
| INSULATED RING TERMINAL BLUE, M6 | 6.4 mm | 4.7 mm | 26.6 mm | 9.6 mm | 12 mm | 100 . | pcs | 6 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M8 | 8.4 mm | 4.7 mm | 26.6 mm | 9.6 mm | 12 mm | 100 . | pcs | 8 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M12 | 13 mm | 4.7 mm | 36 mm | 9.6 mm | 18.8 mm | 100 . | pcs | 12 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M4 | 4.3 mm | 6.5 mm | 27 mm | 14 mm | 9.5 mm | 100 . | pcs | 4 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M5 | 5.3 mm | 6.5 mm | 27 mm | 14 mm | 9.5 mm | 100 . | pcs | 5 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M6, WIDE | 6.4 mm | 6.5 mm | 29.1 mm | 14 mm | 13.2 mm | 100 . | pcs | 6 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M8 | 8.4 mm | 6.5 mm | 35.2 mm | 14 mm | 15 mm | 100 . | pcs | 8 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M10 | 10.5 mm | 6.5 mm | 35.2 mm | 14 mm | 15 mm | 100 . | pcs | 10 . | 2.63-6.64 mm² |
Yes
|
|
|
- Total: 18
Similar Options
Approvals
- Total: 18
- Total: 18
Technical Properties
- Total: 18
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Reel/roll packaging | Max. current (Imax) | Flange shape | According to DIN | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | Surface protection | Material insulation | Fire classification | Operating temperature | Material | Voltage max | Halogen free | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED RING TERMINAL RED, M3 | Yes | Yes | No | 19 A | Ring shape | No | Partially isolated | Red | Long | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M3.5 | Yes | Yes | No | 19 A | Ring shape | No | Partially isolated | Red | Long | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -25-75 °C | Copper | 600V | No |
No
|
|
|
| INSULATED RING TERMINAL RED, M4 | Yes | Yes | No | 19 A | Ring shape | No | Partially isolated | Red | Long | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M5 | Yes | Yes | No | 19 A | Ring shape | No | Partially isolated | Red | Long | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M6 | Yes | Yes | No | 19 A | Ring shape | No | Partially isolated | Red | Long | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -25-75 °C | Copper | 600V | No |
No
|
|
|
| INSULATED RING TERMINAL RED, M10 | Yes | Yes | No | 19 A | Ring shape | No | Partially isolated | Red | Long | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -25-75 °C | Copper | 600V | No |
No
|
|
|
| INSULATED RING TERMINAL BLUE, M3.5 | Yes | Yes | No | 27 A | Ring shape | No | Partially isolated | Blue | Long | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M4 | Yes | Yes | No | 27 A | Ring shape | No | Partially isolated | Blue | Long | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M5 | Yes | Yes | No | 27 A | Ring shape | No | Partially isolated | Blue | Long | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M5, SLIM | Yes | Yes | No | 27 A | Ring shape | No | Partially isolated | Blue | Long | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -25-75 °C | Copper | 600V | No |
No
|
|
|
| INSULATED RING TERMINAL BLUE, M6 | Yes | Yes | No | 27 A | Ring shape | No | Partially isolated | Blue | Long | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M8 | Yes | Yes | No | 27 A | Ring shape | No | Partially isolated | Blue | Long | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M12 | Yes | Yes | No | 27 A | Ring shape | No | Partially isolated | Blue | Long | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M4 | Yes | Yes | No | 48 A | Ring shape | No | Partially isolated | Yellow | Long | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M5 | Yes | Yes | No | 48 A | Ring shape | No | Partially isolated | Yellow | Long | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M6, WIDE | Yes | Yes | No | 48 A | Ring shape | No | Partially isolated | Yellow | Long | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M8 | Yes | Yes | No | 48 A | Ring shape | No | Partially isolated | Yellow | Long | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M10 | Yes | Yes | No | 48 A | Ring shape | No | Partially isolated | Yellow | Long | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
- Total: 18
Other information
- Total: 18
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| INSULATED RING TERMINAL RED, M3 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | JST, 19022400 , FVD1.25-3 | SP1532R |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M3.5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | JST, 19022400 , FVD1.25-M3 | SP1537R |
No
|
|
|
| INSULATED RING TERMINAL RED, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | JST, 19032400 , FVD1.25-M4 | SP1543R |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | JST, 19033400 , FVD1.25-5 (LF) | SP1553R |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | JST, 19035400 , FVD1.25-6 | SP1565R |
No
|
|
|
| INSULATED RING TERMINAL RED, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | JST, 19037400 , FVD1.25-10 | SP1510R |
No
|
|
|
| INSULATED RING TERMINAL BLUE, M3.5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | JST, 19115400 , FVD2-M3 | SP2537R |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | JST, 19122400 , FVD2-4 | SP2543R |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | JST, 19125400 , FVD2-5 | SP2553R |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M5, SLIM | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | JST, 19127400 , FVD2-M5 | SP2553RS |
No
|
|
|
| INSULATED RING TERMINAL BLUE, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | JST, 19128400 , FVD2-6 | SP2565R |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | JST, 19129400 , FVD2-8 | SP2585R |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M12 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | JST, 19133400 , FVD2-12 | SP2512R |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | JST, 19222600 , FVD5.5-4 | SP4643R |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | JST, 19224600 , FVD5.5-5 (LF) | SP4653R |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M6, WIDE | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | JST, 19227600 , FVD5.5-S6 | SP4665RB |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | JST, 19228600 , FVD5.5-8 | SP4685R |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | JST, 19230600 , FVD5.5-10 | SP4610R |
Yes
|
|
|
- Total: 18
