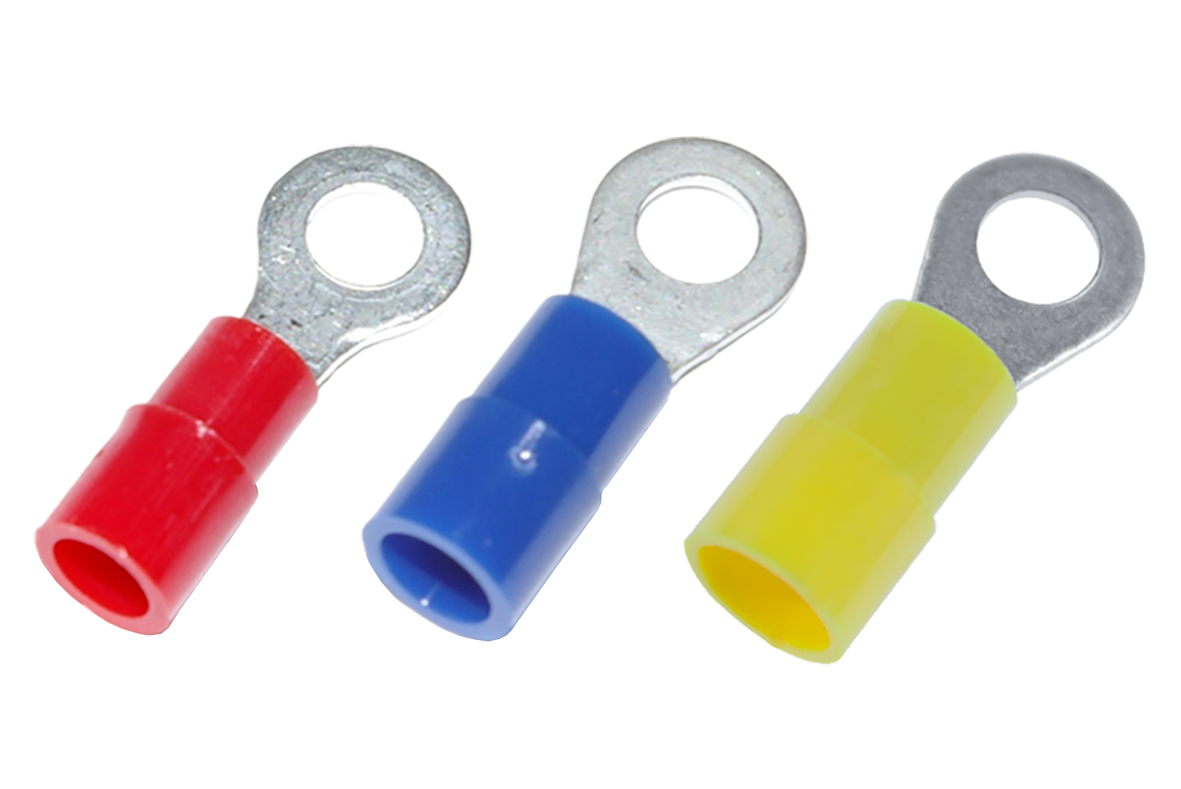

Ringkabelskor N PL-Serien

Easy Entry

Show item list

Technical properties

Suitable for Class 2 conductor:: Yes
Suitable for Class 5 conductor:: Yes
Reel/roll packaging:: No
Max. current (Imax):: 19 A, 27 A, 48 A
Flange shape:: Ring shape
According to DIN:: No
Insulation:: Partially isolated
Colour insulation:: Red, Blue, Yellow
Sleeve form:: Short
Suitable for solid cores:: No
Suitable for stranded conductors:: Yes
Suitable for fine strand conductors:: Yes
Suitable for high temperatures (to 650 °C):: No
Suitable for insulated varnish:: No
Suitable for round conductors:: Yes
Suitable for flat conductors:: No
Surface protection:: Tinned
Material insulation:: Polyamide (PA)
Fire classification:: According to UL94V0
Operating temperature:: -40-105 °C
Material:: Copper
Voltage max:: 600V
Halogen free:: Yes

Item List

Page size:

Total: 22

N 1532 R PL

ISOLERAD RINGKABELSKO, RÖD, M3

Availability:: Yes
Delivery date:: 11/21/2024

N 1537 R PL

ISOLERAD RINGKABELSKO, RÖD, M3.5

Availability:: Yes
Delivery date:: 11/21/2024

N 1543 R PL

ISOLERAD RINGKABELSKO, RÖD, M4

Availability:: Yes
Delivery date:: 11/21/2024

N 1553 R PL

ISOLERAD RINGKABELSKO, RÖD, M5

Availability:: Yes
Delivery date:: 11/21/2024

N 1565 R PL

ISOLERAD RINGKABELSKO, RÖD, M6

Availability:: Yes
Delivery date:: 11/21/2024

N 1585 R PL

ISOLERAD RINGKABELSKO, RÖD, M8

Availability:: Yes
Delivery date:: 11/21/2024

N 1510 R PL

ISOLERAD RINGKABELSKO, RÖD, M10

Availability:: Yes
Delivery date:: 11/21/2024

N 2532 R PL

ISOLERAD RINGKABELSKO, BLÅ, M3

Availability:: Yes
Delivery date:: 11/21/2024

N 2537 R PL

ISOLERAD RINGKABELSKO, BLÅ, M3.5

Availability:: Yes
Delivery date:: 11/21/2024

N 2543 R PL

ISOLERAD RINGKABELSKO, BLÅ, M4

Availability:: Yes
Delivery date:: 11/21/2024

N 2553 R PL

ISOLERAD RINGKABELSKO, BLÅ, M5

Availability:: Yes
Delivery date:: 11/21/2024

N 2565 R PL

ISOLERAD RINGKABELSKO, BLÅ, M6

Availability:: Yes
Delivery date:: 11/21/2024

N 2585 R PL

ISOLERAD RINGKABELSKO, BLÅ, M8

Availability:: No
Delivery date:: 11/29/2024

N 2510 R PL

ISOLERAD RINGKABELSKO, BLÅ, M10

Availability:: Yes
Delivery date:: 11/21/2024

N 4632 R PL

ISOLERAD RINGKABELSKO, GUL, M3

Availability:: Yes
Delivery date:: 11/21/2024

N 4637 R PL

ISOLERAD RINGKABELSKO, GUL, M3.5

Availability:: Yes
Delivery date:: 11/21/2024

N 4643 R PL

ISOLERAD RINGKABELSKO, GUL, M4

Availability:: No
Delivery date:: 11/29/2024

N 4653 R PL

ISOLERAD RINGKABELSKO, GUL, M5

Availability:: Yes
Delivery date:: 11/21/2024

N 4665 R PL

ISOLERAD RINGKABELSKO, GUL, M6, 4.0-6.0mm2

Availability:: Yes
Delivery date:: 11/21/2024

N 4685 R PL

ISOLERAD RINGKABELSKO, GUL, M8

Availability:: Yes
Delivery date:: 11/21/2024

N 4610 R PL

ISOLERAD RINGKABELSKO, GUL, M10

Availability:: Yes
Delivery date:: 11/21/2024

N 4613 R PL

ISOLERAD RINGKABELSKO, GUL, M12

Availability:: Yes
Delivery date:: 11/21/2024

Total: 22

Accessories

Spare Parts

Product video

Documents

Manuals, Datasheets, Sketches & Drawings

Dimensions

Page size:

Total: 22

Product Description	Stock code	HS	ID	L	N	W	MOQ	Unit	Bolt dimension (metric)	Nominal cross section	Availability
INSULATED RING TERMINAL RED, M3	N 1532 R PL	3.2 mm	4.1 mm	17.5 mm	10.5 mm	5.5 mm	100 .	pcs	3 .	0.5-1.65 mm²	Yes
INSULATED RING TERMINAL RED, M3.5	N 1537 R PL	3.7 mm	4.1 mm	20.4 mm	10.5 mm	6.6 mm	100 .	pcs	3.5 .	0.5-1.65 mm²	Yes
INSULATED RING TERMINAL RED, M4	N 1543 R PL	4.3 mm	4.1 mm	21.7 mm	10.5 mm	8 mm	100 .	pcs	4 .	0.5-1.65 mm²	Yes
INSULATED RING TERMINAL RED, M5	N 1553 R PL	5.3 mm	4.1 mm	21.8 mm	10.5 mm	8 mm	100 .	pcs	5 .	0.5-1.65 mm²	Yes
INSULATED RING TERMINAL RED, M6	N 1565 R PL	6.4 mm	4.1 mm	27.5 mm	10.5 mm	11.6 mm	100 .	pcs	6 .	0.5-1.65 mm²	Yes
INSULATED RING TERMINAL RED, M8	N 1585 R PL	8.4 mm	4.1 mm	27.5 mm	10.5 mm	11.6 mm	100 .	pcs	8 .	0.5-1.65 mm²	Yes
INSULATED RING TERMINAL RED, M10	N 1510 R PL	10.5 mm	4.1 mm	31.5 mm	10.5 mm	13.7 mm	100 .	pcs	10 .	0.5-1.65 mm²	Yes
INSULATED RING TERMINAL BLUE, M3	N 2532 R PL	3.2 mm	4.5 mm	20.6 mm	11 mm	6.6 mm	100 .	pcs	3 .	1.04-2.63 mm²	Yes
INSULATED RING TERMINAL BLUE, M3.5	N 2537 R PL	3.7 mm	4.5 mm	20.6 mm	11 mm	6.6 mm	100 .	pcs	3.5 .	1.04-2.63 mm²	Yes
INSULATED RING TERMINAL BLUE, M4	N 2543 R PL	4.3 mm	4.5 mm	23 mm	11 mm	8.5 mm	100 .	pcs	4 .	1.04-2.63 mm²	Yes
INSULATED RING TERMINAL BLUE, M5	N 2553 R PL	5.3 mm	4.5 mm	23 mm	11 mm	9.5 mm	100 .	pcs	5 .	1.04-2.63 mm²	Yes
INSULATED RING TERMINAL BLUE, M6	N 2565 R PL	6.4 mm	4.5 mm	28 mm	11 mm	12 mm	100 .	pcs	6 .	1.04-2.63 mm²	Yes
INSULATED RING TERMINAL BLUE, M8	N 2585 R PL	8.4 mm	4.5 mm	28 mm	11 mm	12 mm	100 .	pcs	8 .	1.04-2.63 mm²	No
INSULATED RING TERMINAL BLUE, M10	N 2510 R PL	10.5 mm	4.5 mm	31.7 mm	11 mm	13.6 mm	100 .	pcs	10 .	1.04-2.63 mm²	Yes
INSULATED RING TERMINAL YELLOW, M3	N 4632 R PL	3.2 mm	6.6 mm	26.7 mm	14 mm	9.5 mm	100 .	pcs	3 .	2.63-6.64 mm²	Yes
INSULATED RING TERMINAL YELLOW, M3.5	N 4637 R PL	3.7 mm	6.6 mm	26.7 mm	14 mm	9.5 mm	100 .	pcs	3.5 .	2.63-6.64 mm²	Yes
INSULATED RING TERMINAL YELLOW, M4	N 4643 R PL	4.3 mm	6.6 mm	26.7 mm	14 mm	9.5 mm	100 .	pcs	4 .	2.63-6.64 mm²	No
INSULATED RING TERMINAL YELLOW, M5	N 4653 R PL	5.3 mm	6.6 mm	26.7 mm	14 mm	9.5 mm	100 .	pcs	5 .	2.63-6.64 mm²	Yes
INSULATED RING TERMINAL YELLOW, M6, 4.0-6.0mm2	N 4665 R PL	6.7 mm	6.6 mm	32.7 mm	14 mm	12 mm	100 .	pcs	6 .	2.63-6.64 mm²	Yes
INSULATED RING TERMINAL YELLOW, M8	N 4685 R PL	8.4 mm	6.6 mm	34.9 mm	14 mm	15 mm	100 .	pcs	8 .	2.63-6.64 mm²	Yes
INSULATED RING TERMINAL YELLOW, M10	N 4610 R PL	10.5 mm	6.6 mm	35.4 mm	14 mm	15 mm	100 .	pcs	10 .	2.63-6.64 mm²	Yes
INSULATED RING TERMINAL YELLOW, M12	N 4613 R PL	13 mm	6.6 mm	39.6 mm	14 mm	19.2 mm	100 .	pcs	12 .	2.63-6.64 mm²	Yes

Total: 22

Similar Options

Approvals

Page size:

Total: 22

Product Description	Stock code	Availability
INSULATED RING TERMINAL RED, M3	N 1532 R PL	Yes
INSULATED RING TERMINAL RED, M3.5	N 1537 R PL	Yes
INSULATED RING TERMINAL RED, M4	N 1543 R PL	Yes
INSULATED RING TERMINAL RED, M5	N 1553 R PL	Yes
INSULATED RING TERMINAL RED, M6	N 1565 R PL	Yes
INSULATED RING TERMINAL RED, M8	N 1585 R PL	Yes
INSULATED RING TERMINAL RED, M10	N 1510 R PL	Yes
INSULATED RING TERMINAL BLUE, M3	N 2532 R PL	Yes
INSULATED RING TERMINAL BLUE, M3.5	N 2537 R PL	Yes
INSULATED RING TERMINAL BLUE, M4	N 2543 R PL	Yes
INSULATED RING TERMINAL BLUE, M5	N 2553 R PL	Yes
INSULATED RING TERMINAL BLUE, M6	N 2565 R PL	Yes
INSULATED RING TERMINAL BLUE, M8	N 2585 R PL	No
INSULATED RING TERMINAL BLUE, M10	N 2510 R PL	Yes
INSULATED RING TERMINAL YELLOW, M3	N 4632 R PL	Yes
INSULATED RING TERMINAL YELLOW, M3.5	N 4637 R PL	Yes
INSULATED RING TERMINAL YELLOW, M4	N 4643 R PL	No
INSULATED RING TERMINAL YELLOW, M5	N 4653 R PL	Yes
INSULATED RING TERMINAL YELLOW, M6, 4.0-6.0mm2	N 4665 R PL	Yes
INSULATED RING TERMINAL YELLOW, M8	N 4685 R PL	Yes
INSULATED RING TERMINAL YELLOW, M10	N 4610 R PL	Yes
INSULATED RING TERMINAL YELLOW, M12	N 4613 R PL	Yes

Total: 22

Technical Properties

Page size:

Total: 22

Product Description	Stock code	Suitable for Class 2 conductor	Suitable for Class 5 conductor	Reel/roll packaging	Max. current (Imax)	Flange shape	According to DIN	Insulation	Colour insulation	Sleeve form	Suitable for solid cores	Suitable for stranded conductors	Suitable for fine strand conductors	Suitable for high temperatures (to 650 °C)	Suitable for insulated varnish	Suitable for round conductors	Suitable for flat conductors	Surface protection	Material insulation	Fire classification	Operating temperature	Material	Voltage max	Halogen free	Availability
INSULATED RING TERMINAL RED, M3	N 1532 R PL	Yes	Yes	No	19 A	Ring shape	No	Partially isolated	Red	Short	No	Yes	Yes	No	No	Yes	No	Tinned	Polyamide (PA)	According to UL94V0	-40-105 °C	Copper	600V	Yes	Yes
INSULATED RING TERMINAL RED, M3.5	N 1537 R PL	Yes	Yes	No	19 A	Ring shape	No	Partially isolated	Red	Short	No	Yes	Yes	No	No	Yes	No	Tinned	Polyamide (PA)	According to UL94V0	-40-105 °C	Copper	600V	Yes	Yes
INSULATED RING TERMINAL RED, M4	N 1543 R PL	Yes	Yes	No	19 A	Ring shape	No	Partially isolated	Red	Short	No	Yes	Yes	No	No	Yes	No	Tinned	Polyamide (PA)	According to UL94V0	-40-105 °C	Copper	600V	Yes	Yes
INSULATED RING TERMINAL RED, M5	N 1553 R PL	Yes	Yes	No	19 A	Ring shape	No	Partially isolated	Red	Short	No	Yes	Yes	No	No	Yes	No	Tinned	Polyamide (PA)	According to UL94V0	-40-105 °C	Copper	600V	Yes	Yes
INSULATED RING TERMINAL RED, M6	N 1565 R PL	Yes	Yes	No	19 A	Ring shape	No	Partially isolated	Red	Short	No	Yes	Yes	No	No	Yes	No	Tinned	Polyamide (PA)	According to UL94V0	-40-105 °C	Copper	600V	Yes	Yes
INSULATED RING TERMINAL RED, M8	N 1585 R PL	Yes	Yes	No	19 A	Ring shape	No	Partially isolated	Red	Short	No	Yes	Yes	No	No	Yes	No	Tinned	Polyamide (PA)	According to UL94V0	-40-105 °C	Copper	600V	Yes	Yes
INSULATED RING TERMINAL RED, M10	N 1510 R PL	Yes	Yes	No	19 A	Ring shape	No	Partially isolated	Red	Short	No	Yes	Yes	No	No	Yes	No	Tinned	Polyamide (PA)	According to UL94V0	-40-105 °C	Copper	600V	Yes	Yes
INSULATED RING TERMINAL BLUE, M3	N 2532 R PL	Yes	Yes	No	27 A	Ring shape	No	Partially isolated	Blue	Short	No	Yes	Yes	No	No	Yes	No	Tinned	Polyamide (PA)	According to UL94V0	-40-105 °C	Copper	600V	Yes	Yes
INSULATED RING TERMINAL BLUE, M3.5	N 2537 R PL	Yes	Yes	No	27 A	Ring shape	No	Partially isolated	Blue	Short	No	Yes	Yes	No	No	Yes	No	Tinned	Polyamide (PA)	According to UL94V0	-40-105 °C	Copper	600V	Yes	Yes
INSULATED RING TERMINAL BLUE, M4	N 2543 R PL	Yes	Yes	No	27 A	Ring shape	No	Partially isolated	Blue	Short	No	Yes	Yes	No	No	Yes	No	Tinned	Polyamide (PA)	According to UL94V0	-40-105 °C	Copper	600V	Yes	Yes
INSULATED RING TERMINAL BLUE, M5	N 2553 R PL	Yes	Yes	No	27 A	Ring shape	No	Partially isolated	Blue	Short	No	Yes	Yes	No	No	Yes	No	Tinned	Polyamide (PA)	According to UL94V0	-40-105 °C	Copper	600V	Yes	Yes
INSULATED RING TERMINAL BLUE, M6	N 2565 R PL	Yes	Yes	No	27 A	Ring shape	No	Partially isolated	Blue	Short	No	Yes	Yes	No	No	Yes	No	Tinned	Polyamide (PA)	According to UL94V0	-40-105 °C	Copper	600V	Yes	Yes
INSULATED RING TERMINAL BLUE, M8	N 2585 R PL	Yes	Yes	No	27 A	Ring shape	No	Partially isolated	Blue	Short	No	Yes	Yes	No	No	Yes	No	Tinned	Polyamide (PA)	According to UL94V0	-40-105 °C	Copper	600V	Yes	No
INSULATED RING TERMINAL BLUE, M10	N 2510 R PL	Yes	Yes	No	27 A	Ring shape	No	Partially isolated	Blue	Short	No	Yes	Yes	No	No	Yes	No	Tinned	Polyamide (PA)	According to UL94V0	-40-105 °C	Copper	600V	Yes	Yes
INSULATED RING TERMINAL YELLOW, M3	N 4632 R PL	Yes	Yes	No	48 A	Ring shape	No	Partially isolated	Yellow	Short	No	Yes	Yes	No	No	Yes	No	Tinned	Polyamide (PA)	According to UL94V0	-40-105 °C	Copper	600V	Yes	Yes
INSULATED RING TERMINAL YELLOW, M3.5	N 4637 R PL	Yes	Yes	No	48 A	Ring shape	No	Partially isolated	Yellow	Short	No	Yes	Yes	No	No	Yes	No	Tinned	Polyamide (PA)	According to UL94V0	-40-105 °C	Copper	600V	Yes	Yes
INSULATED RING TERMINAL YELLOW, M4	N 4643 R PL	Yes	Yes	No	48 A	Ring shape	No	Partially isolated	Yellow	Short	No	Yes	Yes	No	No	Yes	No	Tinned	Polyamide (PA)	According to UL94V0	-40-105 °C	Copper	600V	Yes	No
INSULATED RING TERMINAL YELLOW, M5	N 4653 R PL	Yes	Yes	No	48 A	Ring shape	No	Partially isolated	Yellow	Short	No	Yes	Yes	No	No	Yes	No	Tinned	Polyamide (PA)	According to UL94V0	-40-105 °C	Copper	600V	Yes	Yes
INSULATED RING TERMINAL YELLOW, M6, 4.0-6.0mm2	N 4665 R PL	Yes	Yes	No	48 A	Ring shape	No	Partially isolated	Yellow	Short	No	Yes	Yes	No	No	Yes	No	Tinned	Polyamide (PA)	According to UL94V0	-40-105 °C	Copper	600V	Yes	Yes
INSULATED RING TERMINAL YELLOW, M8	N 4685 R PL	Yes	Yes	No	48 A	Ring shape	No	Partially isolated	Yellow	Short	No	Yes	Yes	No	No	Yes	No	Tinned	Polyamide (PA)	According to UL94V0	-40-105 °C	Copper	600V	Yes	Yes
INSULATED RING TERMINAL YELLOW, M10	N 4610 R PL	Yes	Yes	No	48 A	Ring shape	No	Partially isolated	Yellow	Short	No	Yes	Yes	No	No	Yes	No	Tinned	Polyamide (PA)	According to UL94V0	-40-105 °C	Copper	600V	Yes	Yes
INSULATED RING TERMINAL YELLOW, M12	N 4613 R PL	Yes	Yes	No	48 A	Ring shape	No	Partially isolated	Yellow	Short	No	Yes	Yes	No	No	Yes	No	Tinned	Polyamide (PA)	According to UL94V0	-40-105 °C	Copper	600V	Yes	Yes

Total: 22
