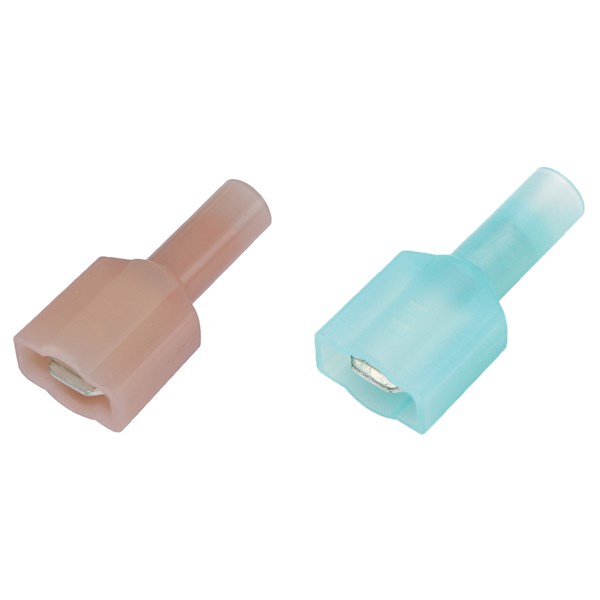

Fully Insulated Tab male disconnects 3M-series
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Plug
- Max. current (Imax):
- 24 A, 10 A
- Insulation:
- Fully isolated
- Colour insulation:
- Blue, Red
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -60-105 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- Yes
- Packaging:
- Loose piece
Show more
Item List
Accessories
- Total: 2
-
Self stripping tap connectors
Tap connectors with male tab connection. Industrial quality from 3M. Electrically connects a through (run) wire and a male tab. Only for copper wires. Maximum Recommended Voltage Rating: 600 V
-
Self stripping tap connectors
Tap connectors with male tab connection. Industrial quality from 3M. Electrically connects a through (run) wire and a male tab. Only for copper wires. Maximum Recommended Voltage Rating: 600 V
- Total: 2
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 2
| Product Description | ID | L | N | W | MOQ | Unit | Nominal cross section | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| FULLY INSULATED TAB RED, 6.3x0.8mm | 4.5 mm | 25 mm | 11 mm | 6.3 mm | 50 . | pcs | 0.3-0.8 mm² | Flat 6.3x0.8 mm |
Yes
|
|
|
| FULLY INSULATED TAB BLUE, 6.3x0.8 | 4.5 mm | 25 mm | 11 mm | 6.3 mm | 100 . | pcs | 1.5-2.5 mm² | Flat 6.3x0.8 mm |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|
| FULLY INSULATED TAB RED, 6.3x0.8mm |
|
Yes
|
|
|
| FULLY INSULATED TAB BLUE, 6.3x0.8 |
|
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Fire classification | Operating temperature | Material | Voltage max | Halogen free | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FULLY INSULATED TAB RED, 6.3x0.8mm | Yes | Yes | Plug | 10 A | Fully isolated | Red | No | No | Polyamide (PA) | According to UL94V0 | -60-105 °C | Brass | 300V | Yes | Loose piece |
Yes
|
|
|
| FULLY INSULATED TAB BLUE, 6.3x0.8 | Yes | Yes | Plug | 24 A | Fully isolated | Blue | No | No | Polyamide (PA) | According to UL94V0 | -60-105 °C | Brass | 300V | Yes | Loose piece |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| FULLY INSULATED TAB RED, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Fully Insulated Tab - Polyamide | HELISOLERAD FLATSTIFT | 2289 |
Yes
|
|
|
| FULLY INSULATED TAB BLUE, 6.3x0.8 | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Fully Insulated Tab - Polyamide | HELISOLERAD FLATSTIFT | 06152 |
Yes
|
|
|
- Total: 2
