AE 1507 FLS

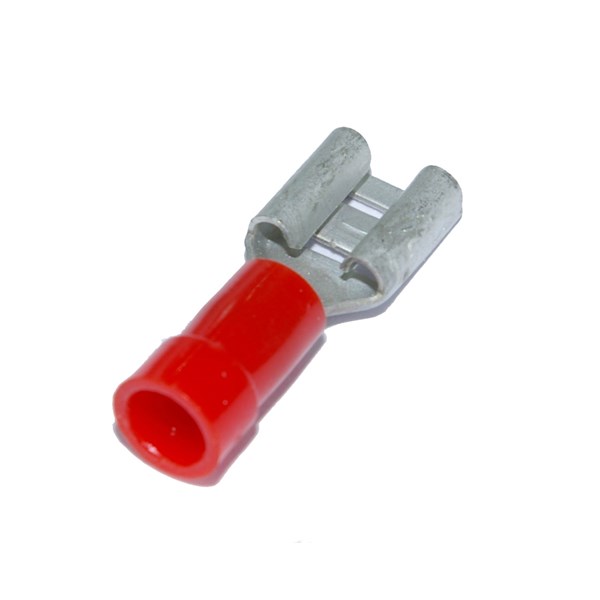

INSULATED RECEPTACLE RED, 6.3x0.8mm
AE 1507 FLS
- Availability:
-
Yes
E0822300.
Product Properties
| Model | Bushing |
|---|---|
| Max. current (Imax) | 10 A |
| Insulation | Partially isolated |
| Colour insulation | Red |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Polycarbonate (PC) |
| Operating temperature | -150-105 °C |
| Material | Brass |
| Voltage max | 300V |
| Packaging | Loose piece |

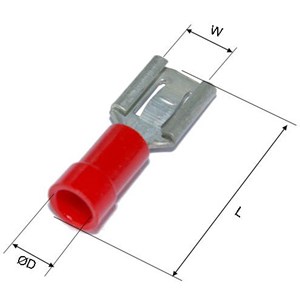

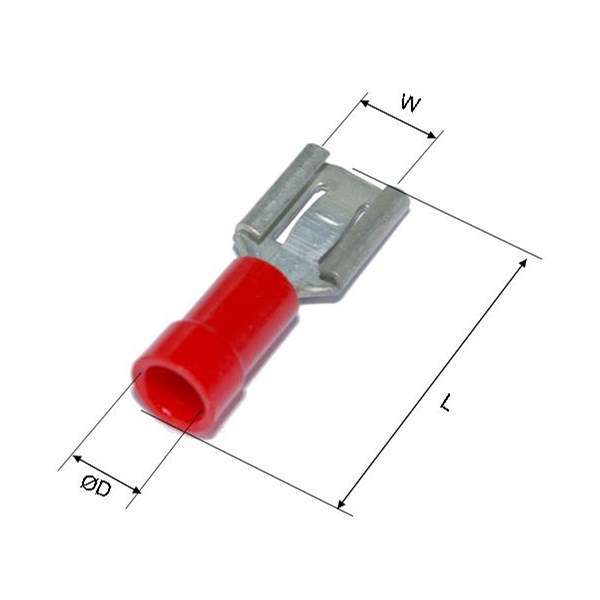

Dimensions
| MOQ | 100 . |
|---|---|
| Unit | pcs |
| Nominal cross section | 0.5-1.5 mm² |
| Plug dimensions | Flat 6.3x0.8 mm |
Logistics
| Barcode | 739348700501 |
|---|---|
| Country of origin | SE |
| E-no | E0822300. |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Packaging | Loose piece |
| Stock code | AE 1507 FLS |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | Elpress |
| Product Group | Receptacle - Polycarbonate |
| Alternative SKU | AE1507FLS |
Compliance
| REACH | No SVHC (235 Subs. 14 June 2023) |
|---|---|
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
