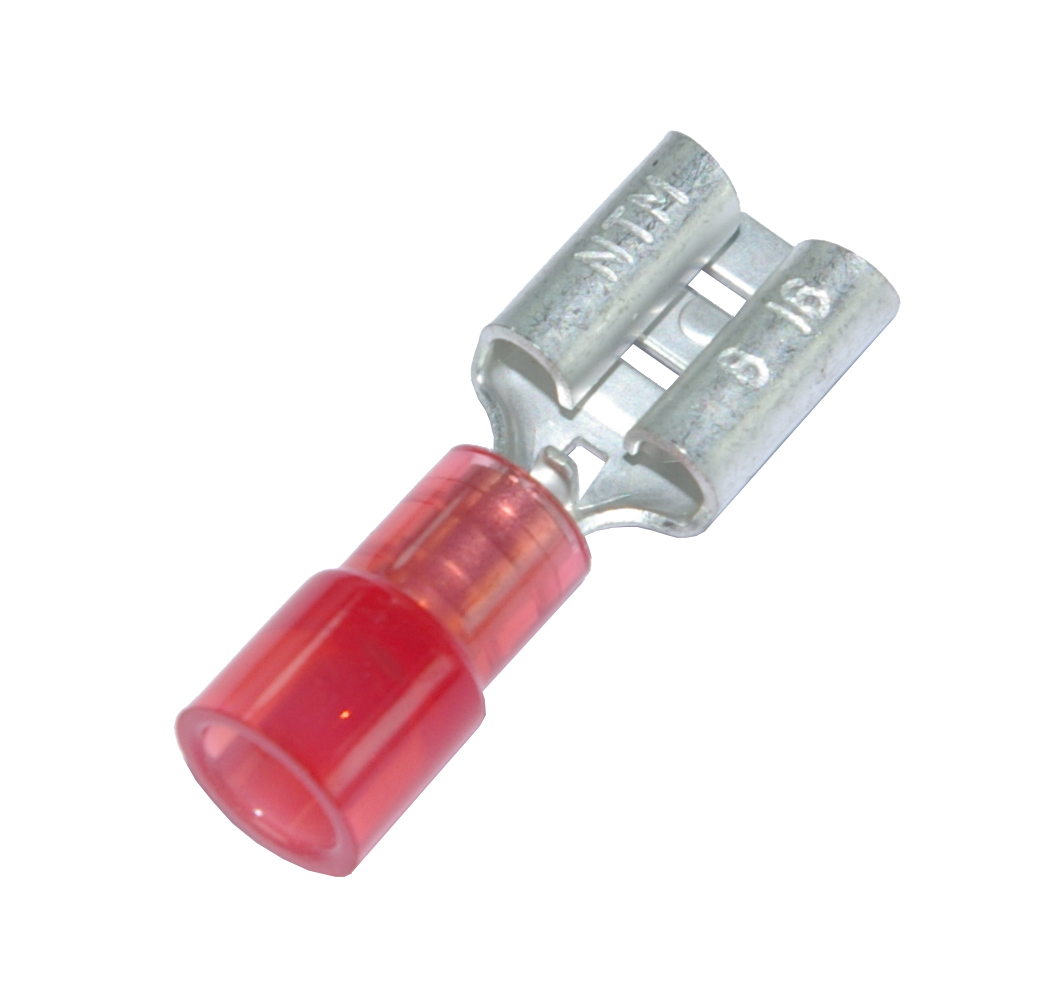

Tab female disconnects NA-series
Short copper sleeve
Easy Entry
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10 A, 15 A
- Insulation:
- Partially isolated
- Colour insulation:
- Red, Blue
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-105 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- Yes
- Packaging:
- Loose piece
Show more
Item List
- Total: 6
- Total: 6
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_NA-Series
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 6
| Product Description | ID | L | N | W | MOQ | Unit | Nominal cross section | AWG-range | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED RECEPTACLE RED, 2.8x0.5mm | 4.1 mm | 19.5 mm | 10 mm | 2.8 mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Flat 2.8x0.5 mm |
Yes
|
|
|
| INSULATED RECEPTACLE RED, 2.8x0.8mm | 4.1 mm | 19.5 mm | 10 mm | 2.8 mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Flat 2.8x0.8 mm |
Yes
|
|
|
| INSULATED RECEPTACLE RED, 4.8x0.5mm | 4.1 mm | 19.5 mm | 10 mm | 4.8 mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Flat 4.8x0.5 mm |
No
|
|
|
| INSULATED RECEPTACLE RED, 4.8x0.8mm | 4.1 mm | 19.5 mm | 10 mm | 4.8 mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Flat 4.8x0.8 mm |
No
|
|
|
| INSULATED RECEPTACLE RED, 6.3x0.8mm | 4.1 mm | 21 mm | 10 mm | 6.3 mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Flat 6.3x0.8 mm |
No
|
|
|
| INSULATED RECEPTACLE BLUE, 8.0x0.8mm | 4.1 mm | 23.2 mm | 10 mm | 7.9 mm | 100 . | pcs | 1.04-2.63 mm² | 16-14 . | Flat 8.0x0.8 mm |
Yes
|
|
|
- Total: 6
Similar Options
Approvals
- Total: 6
| Product Description | UL-File No. | Approved according to CE | With approval according to UL | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|---|
| INSULATED RECEPTACLE RED, 2.8x0.5mm | E44245 |
|
|
|
Yes
|
|
|
| INSULATED RECEPTACLE RED, 2.8x0.8mm | E44245 |
|
|
|
Yes
|
|
|
| INSULATED RECEPTACLE RED, 4.8x0.5mm | E78965 |
|
|
|
No
|
|
|
| INSULATED RECEPTACLE RED, 4.8x0.8mm | E78965 |
|
|
|
No
|
|
|
| INSULATED RECEPTACLE RED, 6.3x0.8mm |
|
|
|
No
|
|
|
|
| INSULATED RECEPTACLE BLUE, 8.0x0.8mm | E78965 |
|
|
|
Yes
|
|
|
- Total: 6
Technical Properties
- Total: 6
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Fire classification | Operating temperature | Material | Voltage max | Halogen free | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED RECEPTACLE RED, 2.8x0.5mm | Yes | Yes | Bushing | 10 A | Partially isolated | Red | No | No | Polyamide (PA) | According to UL94V2 | -40-105 °C | Brass | 300V | Yes | Loose piece |
Yes
|
|
|
| INSULATED RECEPTACLE RED, 2.8x0.8mm | Yes | Yes | Bushing | 10 A | Partially isolated | Red | No | No | Polyamide (PA) | According to UL94V2 | -40-105 °C | Brass | 300V | Yes | Loose piece |
Yes
|
|
|
| INSULATED RECEPTACLE RED, 4.8x0.5mm | Yes | Yes | Bushing | 15 A | Partially isolated | Red | No | No | Polyamide (PA) | According to UL94V2 | -40-105 °C | Brass | 300V | Yes | Loose piece |
No
|
|
|
| INSULATED RECEPTACLE RED, 4.8x0.8mm | Yes | Yes | Bushing | 15 A | Partially isolated | Red | No | No | Polyamide (PA) | According to UL94V2 | -40-105 °C | Brass | 300V | Yes | Loose piece |
No
|
|
|
| INSULATED RECEPTACLE RED, 6.3x0.8mm | Yes | Yes | Bushing | 10 A | Partially isolated | Red | No | No | Polyamide (PA) | According to UL94V2 | -40-105 °C | Brass | 300V | Yes | Loose piece |
No
|
|
|
| INSULATED RECEPTACLE BLUE, 8.0x0.8mm | Yes | Yes | Bushing | 15 A | Partially isolated | Blue | No | No | Polyamide (PA) | According to UL94V2 | -40-105 °C | Brass | 300V | Yes | Loose piece |
Yes
|
|
|
- Total: 6
Other information
- Total: 6
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| INSULATED RECEPTACLE RED, 2.8x0.5mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Receptacle - Polyamide | NICHIFU, TMDEN 280509F | NA0503FL-5 |
Yes
|
|
|
| INSULATED RECEPTACLE RED, 2.8x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Receptacle - Polyamide | NICHIFU, TMDEN 280809F | NA0503FL-8 |
Yes
|
|
|
| INSULATED RECEPTACLE RED, 4.8x0.5mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Receptacle - Polyamide | NICHIFU, TMEDN 480509F | NA1504FL-5 |
No
|
|
|
| INSULATED RECEPTACLE RED, 4.8x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Receptacle - Polyamide | NICHIFU, TMEDN 480809F | NA1504FL-8 |
No
|
|
|
| INSULATED RECEPTACLE RED, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Receptacle - Polyamide | NA1507FL |
No
|
|
|
|
| INSULATED RECEPTACLE BLUE, 8.0x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Receptacle - Polyamide | NICHIFU, TMEDN 790820F | NA2508FL |
Yes
|
|
|
- Total: 6
