A 1507 FLH

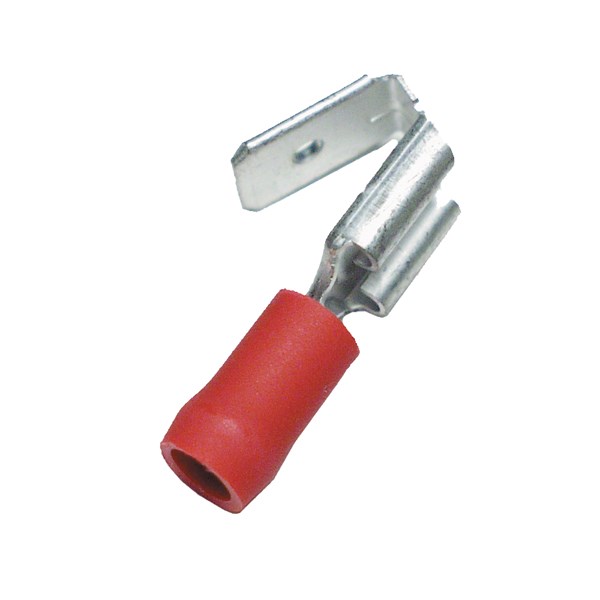

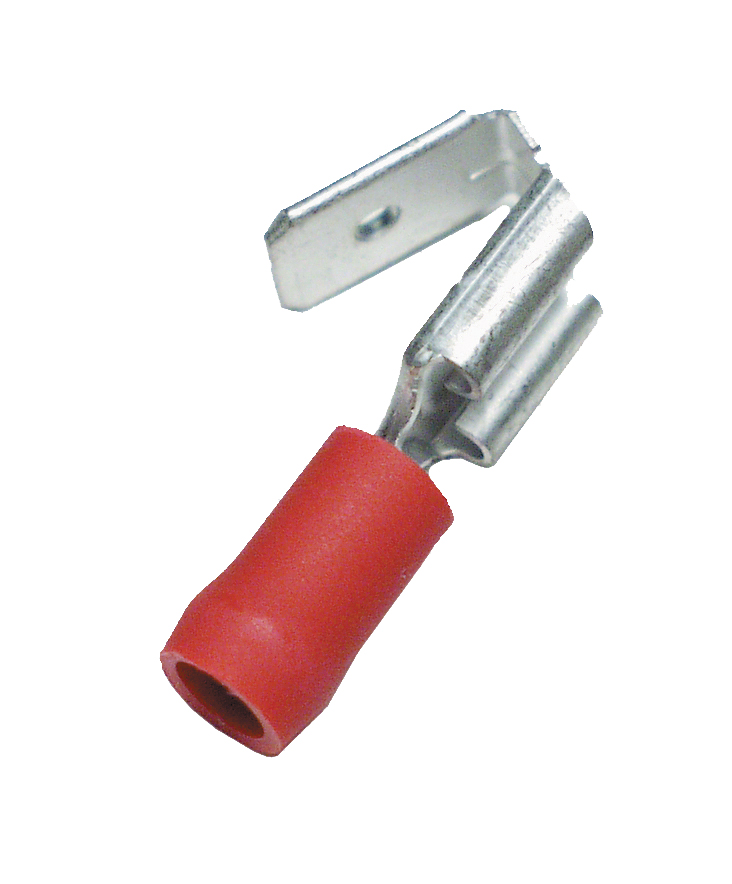

INSULATED PIGGYBACK DISCONNECTS RED, 6.3x0.8mm
A 1507 FLH
- Availability:
-
Yes
- Total: 1
Related items
Piggyback disconnects A-series
Long copper sleeve
Receptacles with suffix “BR” are made
in bronze, not brass.
- Total: 1
E0842340
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Model | Bushing |
| Max. current (Imax) | 10 A |
| Insulation | Partially isolated |
| Colour insulation | Red |
| With cam clamp | No |
| With tap spreader | Yes |
| Material insulation | Polyvinyl chloride (PVC) |
| Fire classification | According to UL94V0 |
| Operating temperature | -40-75 °C |
| Material | Brass |
| Voltage max | 300V |
| Halogen free | No |
| Inflammability class of insulation material according to with UL94 | V0 |
Product video
Dimensions
| ID | 3.5 mm |
|---|---|
| E1 | 7.8 mm |
| E2 | 8 mm |
| L | 22.2 mm |
| N | 9.5 mm |
| W | 6.3 mm |
| W2 | 6.3 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 0.5-1.65 mm² |
| AWG-range | 22-16 . |
| Plug dimensions | Flat 6.3x0.8 mm |
Suitable Tools
Accessories
Product family
Spare Parts
Other Packaging Options
Possible replacement products
Logistics
| Barcode | 733117610027 |
|---|---|
| Country of origin | JP |
| E-no | E0842340 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Stock code | A 1507 FLH |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| UL-File No. | E70188 |
|---|---|
| Approved according to CE | Yes |
| Approved according to CSA | Yes |
| With approval according to UL | Yes |
| Inflammability class of insulation material according to with UL94 | V0 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Iron and Steel Sanction | Contain no Iron or Steel |
| PFAS | No PFAS |
| POPs | Compliant |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
| ECCN (EU) | No CLASS |
| ECCN (US) | EAR99 |
Genererate statement of compliance:
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_A-Series
Conflict Minerals Reporting Template Version 6.31_Approved
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Tab Female + Male - PVC |
| Search Description | JST, 19939030 , FVDDFM1.25-250A (LF) |
| Alternative SKU | A1507FLH |
| E-no | E0842340 |
