360 view

A 4607 FLH PL

INSULATED PIGGYBACK DISCONNECTS YELLOW, 6.3x0.8mm

Sku

A 4607 FLH PL

Availability:: Yes

Page size:

Total: 1

	Product Description	Stock code
	Piggyback disconnects A PL-series	66101			.

Total: 1

Page size:

Total: 1

Related items

Piggyback disconnects A PL-series

66101

Long copper sleeve

Total: 1

Product Properties:

Suitable for Class 2 conductor	Yes
Suitable for Class 5 conductor	Yes
Model	Bushing
Max. current (Imax)	24 A
Insulation	Partially isolated
Colour insulation	Yellow
With cam clamp	No
With tap spreader	Yes
Material insulation	Polyvinyl chloride (PVC)
Fire classification	According to UL94V0
Operating temperature	-40-75 °C
Material	Brass
Voltage max	300V
Halogen free	No
Packaging	Loose piece

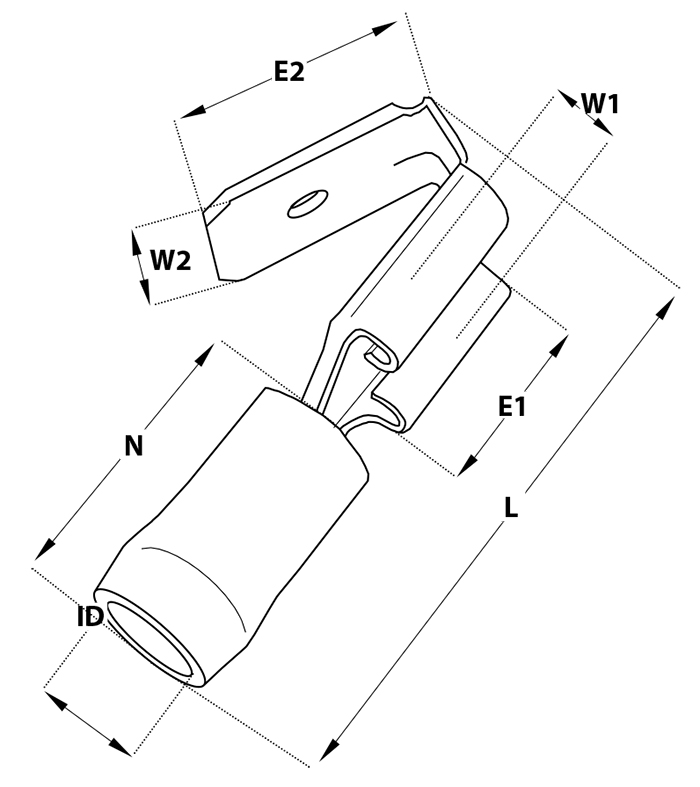

Dimensions:

ID	6.5 mm
E1	7.5 mm
E2	8 mm
L	26.3 mm
N	9.5 mm
W	6.3 mm
W2	6.3 mm
MOQ	100 .
Unit	pcs
Nominal cross section	2.63-6.64 mm²
AWG-range	12-10 .
Plug dimensions	Flat 6.3x0.8 mm

Approvals:

Approved according to CE	Yes
With approval according to UL	Yes
Inflammability class of insulation material according to with UL94	V0

Logistic information:

Barcode	733117610631
Country of origin	CN
Item status	Stock item, normally in stock with reservation for in between sales.
MOQ	100 .
Packaging	Loose piece
Stock code	A 4607 FLH PL
Taric code	85369010
Unit	pcs

Other information:

ETIM-Class	EC000516 - Round or flat plug/receptacle
ETIM-Release	9.0
Trademark	NEMIQ
Product Group	Tab Female + Male - PVC
Alternative SKU	A4607FLHPL

Compliance:

CA Proposition 65	Yes. CAS 7439-92-1
Conflict Minerals	Yes, see report under tab "Documents"
PFAS	No PFAS
REACH	No SVHC (242 Subs. 07 Nov 2024)
RoHS	RoHS 3 (2015/863)
SCIP	Not Applicable
US TSCA	No (5 PBT Subs, Feb 2021)

Genererate statement of compliance:

Product Properties

Suitable for Class 2 conductor	Yes
Suitable for Class 5 conductor	Yes
Model	Bushing
Max. current (Imax)	24 A
Insulation	Partially isolated
Colour insulation	Yellow
With cam clamp	No
With tap spreader	Yes
Material insulation	Polyvinyl chloride (PVC)
Fire classification	According to UL94V0
Operating temperature	-40-75 °C
Material	Brass
Voltage max	300V
Halogen free	No
Packaging	Loose piece

Dimensions

ID	6.5 mm
E1	7.5 mm
E2	8 mm
L	26.3 mm
N	9.5 mm
W	6.3 mm
W2	6.3 mm
MOQ	100 .
Unit	pcs
Nominal cross section	2.63-6.64 mm²
AWG-range	12-10 .
Plug dimensions	Flat 6.3x0.8 mm

Logistics

Barcode	733117610631
Country of origin	CN
Item status	Stock item, normally in stock with reservation for in between sales.
MOQ	100 .
Packaging	Loose piece
Stock code	A 4607 FLH PL
Taric code	85369010
Unit	pcs

Approvals

Approved according to CE	Yes
With approval according to UL	Yes
Inflammability class of insulation material according to with UL94	V0

Other info

ETIM-Class	EC000516 - Round or flat plug/receptacle
ETIM-Release	9.0
Trademark	NEMIQ
Product Group	Tab Female + Male - PVC
Alternative SKU	A4607FLHPL

Compliance

CA Proposition 65	Yes. CAS 7439-92-1
Conflict Minerals	Yes, see report under tab "Documents"
PFAS	No PFAS
REACH	No SVHC (242 Subs. 07 Nov 2024)
RoHS	RoHS 3 (2015/863)
SCIP	Not Applicable
US TSCA	No (5 PBT Subs, Feb 2021)

Genererate statement of compliance:
