A 1507 H

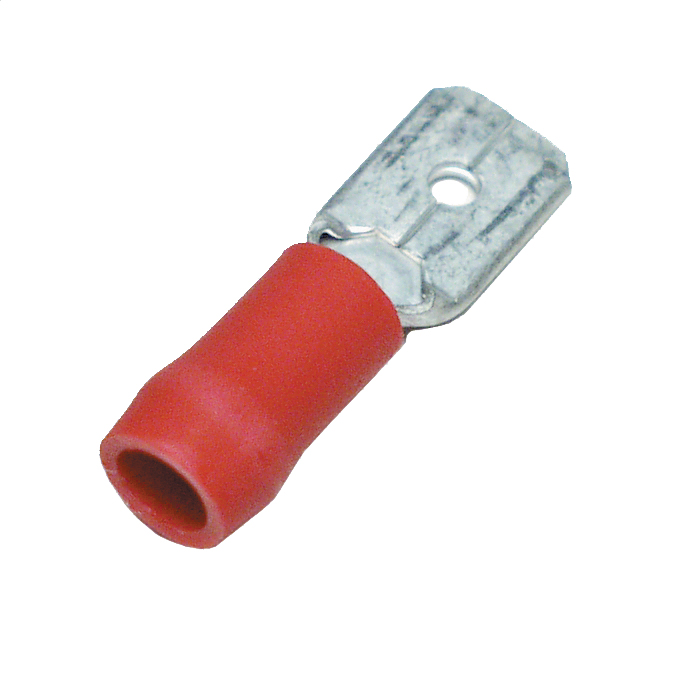

INSULATED TAB RED, 6.3x0.8mm
A 1507 H
- Availability:
-
Yes
E0842370
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Model | Plug |
| Max. current (Imax) | 10 A |
| Insulation | Partially isolated |
| Colour insulation | Red |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Polyvinyl chloride (PVC) |
| Fire classification | According to UL94V2 |
| Operating temperature | -25-75 °C |
| Material | Brass |
| Voltage max | 300V |
| Halogen free | No |
| Packaging | Loose piece |
Dimensions
| ID | 3.5 mm |
|---|---|
| L | 20.5 mm |
| N | 9.5 mm |
| W | 6.3 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 0.5-1.65 mm² |
| AWG-range | 22-16 . |
| Plug dimensions | Flat 6.3x0.8 mm |
Logistics
| Barcode | 733117610030 |
|---|---|
| Country of origin | JP |
| E-no | E0842370 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Packaging | Loose piece |
| Stock code | A 1507 H |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| UL-File No. | E70188 |
|---|---|
| Approved according to CE | Yes |
| Approved according to CSA | Yes |
| With approval according to UL | Yes |
| Inflammability class of insulation material according to with UL94 | V2 |
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Tab - PVC |
| Search Description | JST, 19931530 , FVDDM1.25-250 (LF) |
| Alternative SKU | A1507H |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| PFAS | No PFAS |
| POPs | Compliance |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
| ECCN Primary Classification | N/A |
| ECCN Export Control Code Number | EAR99 |
