A 2504 FLBX-8

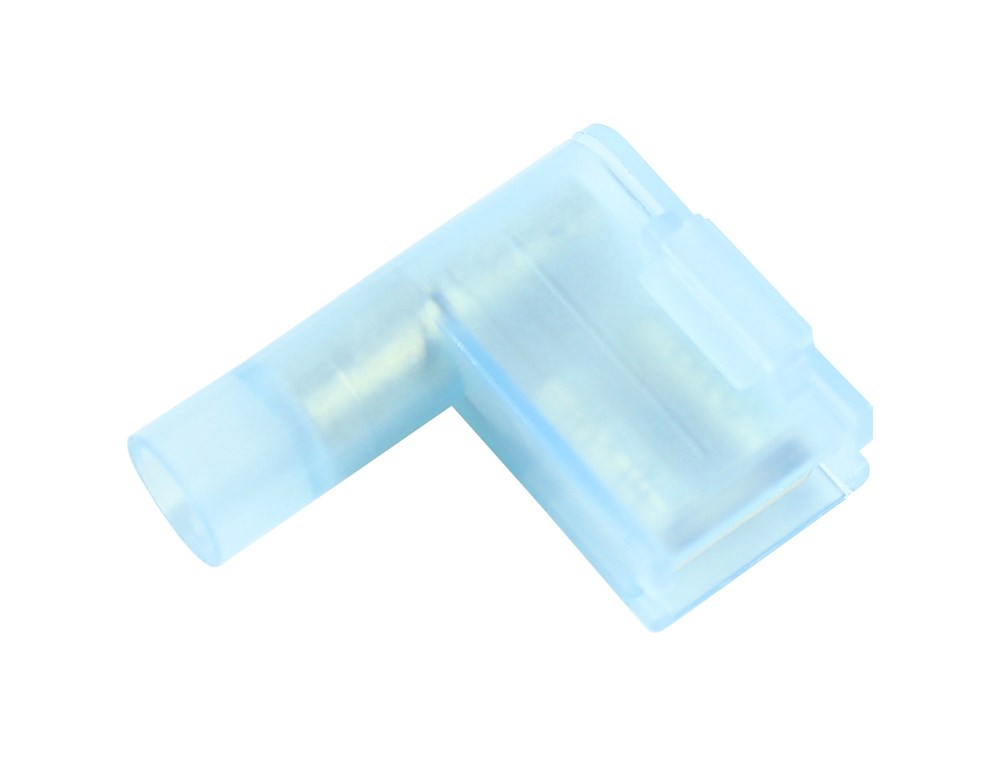

INSULATED FLAG TERMINAL BLUE, 4.8x0.8mm
A 2504 FLBX-8
- Availability:
-
Yes
- Total: 1
Related items

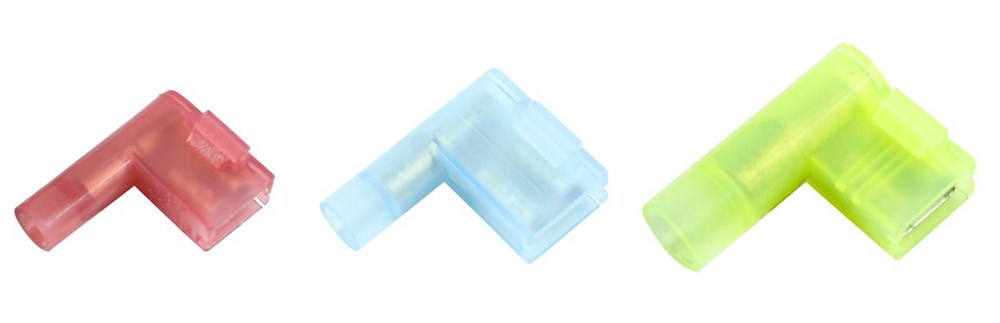

Flag terminals FLBX-series
FLBX-series has a extra long copper sleeve, which makes it possible to use a standard crimping tool for insulated terminals.
- Total: 1
Product Properties
| Model | Bushing |
|---|---|
| Max. current (Imax) | 15 A |
| Insulation | Partially isolated |
| Colour insulation | Blue |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Polyamide (PA) |
| Operating temperature | -60-105 °C |
| Material | Brass |
| Voltage max | 300V |
| Halogen free | Yes |
| Packaging | Loose piece |
Dimensions
| ID | 4.8 mm |
|---|---|
| L1 | 19 mm |
| L2 | 8 mm |
| N | 11 mm |
| W | 4.8 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 1.04-2.63 mm² |
| AWG-range | 16-14 . |
| Plug dimensions | Flat 4.8x0.8 mm |
Logistics
| Barcode | 733117610571 |
|---|---|
| Country of origin | TW |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Packaging | Loose piece |
| Stock code | A 2504 FLBX-8 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|---|
| Approved according to CSA | Yes |
| With approval according to UL | Yes |
| Inflammability class of insulation material according to with UL94 | V2 |
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Flag Female Disconnectors - Polyamide |
| Alternative SKU | A2504FLBX-8 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| REACH | No SVHC (Latest. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
| ECCN Primary Classification | N/A |
| ECCN Export Control Code Number | EAR99 |
