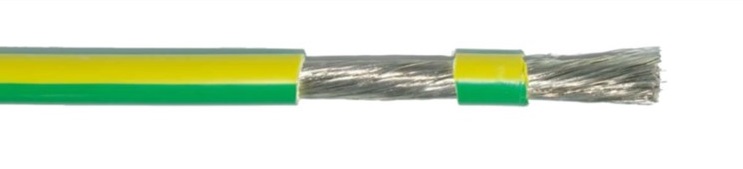

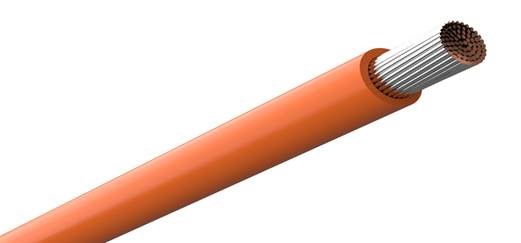

Texiline

Flexible connection cable for internal cabling in lamps, heating devices, electrical machines, control and control cabinets and in the construction industry. Ideal for installation inside pipes and for surface installation.
Very good electrical and mechanical properties. Wide temperature range and high resistance to oils, ozone, hydrolysis and mechanical impact. The coupling wire is difficult to ignite, in case of fire develops minimally with smoke and no corrosive gases are emitted.

Conductor: Tinned copper
DNV-approved from 1.0mm²
Conductor temperature: + 90ºC
Voltage Rating U0 / U (Um): 0.6 / 1 (1.2) kV

Standards:
Conductor: IEC 60228.5
Construction: IEC 60092-350IEC 60092-353IEC 60092-360
Halogen free: IEC 60754-1
Fire resistant: IEC 60332-1
Smoke density: IEC 61034-1 / 2

Approved by: DNV

Show item list

Technical properties

Number of cores:: 1 .
Material core insulation:: Polyolefin
Specification core insulation:: Other
Core identification:: None
Protective conductor:: No
Material outer sheath:: None
Specification material outer sheath:: Other
Colour outer sheath:: Blue, Brown, Grey, Red, Black, Other
Flame retardant:: According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:: -30-90 °C
Conductor material:: Copper
Twisted cores:: No
Max. conductor temperature:: 90 °C
Screen:: No
Protective barrier:: N/A
Armouring/reinforcement:: None
Insulation integrity:: N/A
Drain wire:: No
Halogen free:: Yes
Conductor category:: Class 5 = flexible
Single insulated/Double insulated:: Single insulated
Core colour:: Blue, Brown, Grey, Green/yellow, Red, Black
Conductor surface:: Tinned
Min. permitted bending radius, stationary application/permanent installation:: 6 mm, 7.98 mm, 8.58 mm, 9.6 mm, 10.8 mm, 12 mm, 14.7 mm

Item List

Page size:

Total: 33

050100 TX

TEXILINE, 0.5mm2, SVART, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050101-2 TX

TEXILINE, 0.5mm2, LJUSBLÅ, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050105 TX

TEXILINE, 0.5mm2, GRÅ, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050107 TX

TEXILINE, 0.5mm2, RÖD, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050150 TX

TEXILINE, 0.75mm2, SVART, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050151-2 TX

TEXILINE, 0.75mm2, LJUSBLÅ, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050153 TX

TEXILINE, 0.75mm2, GRÖN/GUL, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050155 TX

TEXILINE, 0.75mm2, GRÅ, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050157 TX

TEXILINE, 0.75mm2, RÖD, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050200 TX

TEXILINE, 1.0mm2, SVART, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050201-2 TX

TEXILINE, 1.0mm2, LJUSBLÅ, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050202 TX

TEXILINE, 1.0mm2, BRUN, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050203 TX

TEXILINE, 1.0mm2, GRÖN/GUL, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050207 TX

TEXILINE, 1.0mm2, RÖD, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050102 TX

TEXILINE, 0.5mm2, BRUN, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050250 TX

TEXILINE, 1.5mm2, SVART, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050251-2 TX

TEXILINE, 1.5mm2, LJUSBLÅ, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050252 TX

TEXILINE, 1.5mm2, BRUN, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050253 TX

TEXILINE, 1.5mm2, GRÖN/GUL, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050257 TX-25

TEXILINE, 1.5mm2, RÖD, 25m/B3 BOBIN, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: No

050257 TX

TEXILINE, 1.5mm2, RÖD, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050301-2 TX

TEXILINE, 2.5mm2, LJUSBLÅ, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050302 TX

TEXILINE, 2.5mm2, BRUN, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050303 TX

TEXILINE, 2.5mm2, GRÖN/GUL, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050307 TX-25

TEXILINE, 2.5mm2, RÖD, 25m/B3 BOBIN, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: No

050307 TX

TEXILINE, 2.5mm2, RÖD, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050351-2 TX

TEXILINE, 4.0mm2, LJUSBLÅ, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050352 TX

TEXILINE, 4.0mm2, BRUN, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050353 TX

TEXILINE, 4.0mm2, GRÖN/GUL, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050357 TX

TEXILINE, 4.0mm2, RÖD, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050371-2 TX

TEXILINE, 6.0mm2, LJUSBLÅ, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050372 TX

TEXILINE, 6.0mm2, BRUN, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

050375 TX

TEXILINE, 6.0mm2, GRÅ, BOBIN B5, 600V, XLPE/XHFFR , HF, FT, 90C

Availability:: Yes

Total: 33

Accessories

Spare Parts

Product video

Documents

Dimensions

Page size:

Total: 33

Product Description	Stock code	Nominal cross section conductor	MOQ	Outer diameter approx.	Min. permitted bending radius, stationary application/permanent installation	Diameter conductor	Unit	Availability
TEXILINE, 0.5mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050100 TX	0.5 mm²	200 .	2 mm	6 mm	0.5 mm	m	Yes
TEXILINE, 0.5mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050101-2 TX	0.5 mm²	200 .	2 mm	6 mm	0.5 mm	m	Yes
TEXILINE, 0.5mm2, GREY SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050105 TX	0.5 mm²	500 .	2 mm	6 mm	0.5 mm	m	Yes
TEXILINE, 0.5mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050107 TX	0.5 mm²	200 .	2 mm	6 mm	0.5 mm	m	Yes
TEXILINE, 0.75mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050150 TX	0.75 mm²	500 .	2.66 mm	7.98 mm	0.75 mm	m	Yes
TEXILINE, 0.75mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050151-2 TX	0.75 mm²	500 .	2.66 mm	7.98 mm	0.75 mm	m	Yes
TEXILINE, 0.75mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050153 TX	0.75 mm²	500 .	2.66 mm	7.98 mm	0.75 mm	m	Yes
TEXILINE, 0.75mm2, GREY SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050155 TX	0.75 mm²	500 .	2.66 mm	7.98 mm	0.75 mm	m	Yes
TEXILINE, 0.75mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050157 TX	0.75 mm²	200 .	2.66 mm	7.98 mm	0.75 mm	m	Yes
TEXILINE, 1.0mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050200 TX	1 mm²	200 .	2.86 mm	8.58 mm	1 mm	m	Yes
TEXILINE, 1.0mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050201-2 TX	1 mm²	200 .	2.86 mm	8.58 mm	1 mm	m	Yes
TEXILINE, 1.0mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050202 TX	1 mm²	200 .	2.86 mm	8.58 mm	1 mm	m	Yes
TEXILINE, 1.0mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050203 TX	1 mm²	200 .	2.86 mm	8.58 mm	1 mm	m	Yes
TEXILINE, 1.0mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050207 TX	1 mm²	200 .	2.86 mm	8.58 mm	1 mm	m	Yes
TEXILINE, 0.5mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050102 TX	0.5 mm²	200 .	2 mm	6 mm	0.5 mm	m	Yes
TEXILINE, 1.5mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050250 TX	1.5 mm²	150 .	3.2 mm	9.6 mm	1.5 mm	m	Yes
TEXILINE, 1.5mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050251-2 TX	1.5 mm²	150 .	3.2 mm	9.6 mm	1.5 mm	m	Yes
TEXILINE, 1.5mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050252 TX	1.5 mm²	150 .	3.2 mm	9.6 mm	1.5 mm	m	Yes
TEXILINE, 1.5mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050253 TX	1.5 mm²	150 .	3.2 mm	9.6 mm	1.5 mm	m	Yes
TEXILINE, 1.5mm2, RED 25m/B3 SPOOL, 600V, XLPE/XHFFR , HF, FT, 90C	050257 TX-25	1.5 mm²	25 .	3.2 mm	9.6 mm	1.5 mm	m	No
TEXILINE, 1.5mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050257 TX	1.5 mm²	150 .	3.2 mm	9.6 mm	1.5 mm	m	Yes
TEXILINE, 2.5mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050301-2 TX	2.5 mm²	150 .	3.6 mm	10.8 mm	2.5 mm	m	Yes
TEXILINE, 2.5mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050302 TX	2.5 mm²	150 .	3.6 mm	10.8 mm	2.5 mm	m	Yes
TEXILINE, 2.5mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050303 TX	2.5 mm²	150 .	3.6 mm	10.8 mm	2.5 mm	m	Yes
TEXILINE, 2.5mm2, RED 25m/B3 SPOOL, 600V, XLPE/XHFFR , HF, FT, 90C	050307 TX-25	2.5 mm²	25 .	3.6 mm	10.8 mm	2.5 mm	m	No
TEXILINE, 2.5mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050307 TX	2.5 mm²	150 .	3.6 mm	10.8 mm	2.5 mm	m	Yes
TEXILINE, 4.0mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050351-2 TX	4 mm²	100 .	4 mm	12 mm	4 mm	m	Yes
TEXILINE, 4.0mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050352 TX	4 mm²	100 .	4 mm	12 mm	4 mm	m	Yes
TEXILINE, 4.0mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050353 TX	4 mm²	100 .	4 mm	12 mm	4 mm	m	Yes
TEXILINE, 4.0mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050357 TX	4 mm²	100 .	4 mm	12 mm	4 mm	m	Yes
TEXILINE, 6.0mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050371-2 TX	6 mm²	100 .	4.9 mm	14.7 mm	6 mm	m	Yes
TEXILINE, 6.0mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050372 TX	6 mm²	100 .	4.9 mm	14.7 mm	6 mm	m	Yes
TEXILINE, 6.0mm2, GREY SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050375 TX	6 mm²	100 .	4.9 mm	14.7 mm	6 mm	m	Yes

Total: 33

Similar Options

Approvals

Page size:

Total: 33

Product Description	Stock code	Reaction-to-fire class according to EN 13501-6	Smoke development class according to EN 13501-6	Euro class flaming droplets/particles according to EN 13501-6	Euro class acidity according to EN 13501-6	Halogen free	Low smoke (according to EN 61034-2)	Low temperature resistant (according to EN 60811-504+505+506)	Oil resistant (according to EN 60811-404)	Flame retardant	Availability
TEXILINE, 0.5mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050100 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 0.5mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050101-2 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 0.5mm2, GREY SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050105 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 0.5mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050107 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 0.75mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050150 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 0.75mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050151-2 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 0.75mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050153 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 0.75mm2, GREY SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050155 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 0.75mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050157 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 1.0mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050200 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 1.0mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050201-2 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 1.0mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050202 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 1.0mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050203 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 1.0mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050207 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 0.5mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050102 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 1.5mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050250 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 1.5mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050251-2 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 1.5mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050252 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 1.5mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050253 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 1.5mm2, RED 25m/B3 SPOOL, 600V, XLPE/XHFFR , HF, FT, 90C	050257 TX-25	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	No
TEXILINE, 1.5mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050257 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 2.5mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050301-2 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 2.5mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050302 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 2.5mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050303 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 2.5mm2, RED 25m/B3 SPOOL, 600V, XLPE/XHFFR , HF, FT, 90C	050307 TX-25	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	No
TEXILINE, 2.5mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050307 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 4.0mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050351-2 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 4.0mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050352 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 4.0mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050353 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 4.0mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050357 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 6.0mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050371-2 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 6.0mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050372 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TEXILINE, 6.0mm2, GREY SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050375 TX	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes

Total: 33

Technical Properties

Page size:

Total: 33

Product Description	Stock code	Number of cores	Material core insulation	Specification core insulation	Core identification	Protective conductor	Material outer sheath	Specification material outer sheath	Colour outer sheath	Flame retardant	Permitted cable outer temperature after assembling without vibration	Conductor material	Twisted cores	Max. conductor temperature	Screen	Protective barrier	Armouring/reinforcement	Insulation integrity	Drain wire	Halogen free	Conductor category	Single insulated/Double insulated	Core colour	Conductor surface	Min. permitted bending radius, stationary application/permanent installation	Availability
TEXILINE, 0.5mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050100 TX	1 .	Polyolefin	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Black	Tinned	6 mm	Yes
TEXILINE, 0.5mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050101-2 TX	1 .	Polyolefin	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Blue	Tinned	6 mm	Yes
TEXILINE, 0.5mm2, GREY SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050105 TX	1 .	Polyolefin	Other	None	No	None	Other	Grey	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Grey	Tinned	6 mm	Yes
TEXILINE, 0.5mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050107 TX	1 .	Polyolefin	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Red	Tinned	6 mm	Yes
TEXILINE, 0.75mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050150 TX	1 .	Polyolefin	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Black	Tinned	7.98 mm	Yes
TEXILINE, 0.75mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050151-2 TX	1 .	Polyolefin	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Blue	Tinned	7.98 mm	Yes
TEXILINE, 0.75mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050153 TX	1 .	Polyolefin	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Green/yellow	Tinned	7.98 mm	Yes
TEXILINE, 0.75mm2, GREY SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050155 TX	1 .	Polyolefin	Other	None	No	None	Other	Grey	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Grey	Tinned	7.98 mm	Yes
TEXILINE, 0.75mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050157 TX	1 .	Polyolefin	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Red	Tinned	7.98 mm	Yes
TEXILINE, 1.0mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050200 TX	1 .	Polyolefin	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Black	Tinned	8.58 mm	Yes
TEXILINE, 1.0mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050201-2 TX	1 .	Polyolefin	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Blue	Tinned	8.58 mm	Yes
TEXILINE, 1.0mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050202 TX	1 .	Polyolefin	Other	None	No	None	Other	Brown	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Brown	Tinned	8.58 mm	Yes
TEXILINE, 1.0mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050203 TX	1 .	Polyolefin	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Green/yellow	Tinned	8.58 mm	Yes
TEXILINE, 1.0mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050207 TX	1 .	Polyolefin	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Red	Tinned	8.58 mm	Yes
TEXILINE, 0.5mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050102 TX	1 .	Polyolefin	Other	None	No	None	Other	Brown	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Brown	Tinned	6 mm	Yes
TEXILINE, 1.5mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050250 TX	1 .	Polyolefin	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Black	Tinned	9.6 mm	Yes
TEXILINE, 1.5mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050251-2 TX	1 .	Polyolefin	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Blue	Tinned	9.6 mm	Yes
TEXILINE, 1.5mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050252 TX	1 .	Polyolefin	Other	None	No	None	Other	Brown	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Brown	Tinned	9.6 mm	Yes
TEXILINE, 1.5mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050253 TX	1 .	Polyolefin	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Green/yellow	Tinned	9.6 mm	Yes
TEXILINE, 1.5mm2, RED 25m/B3 SPOOL, 600V, XLPE/XHFFR , HF, FT, 90C	050257 TX-25	1 .	Polyolefin	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible		Red	Tinned	9.6 mm	No
TEXILINE, 1.5mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050257 TX	1 .	Polyolefin	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Red	Tinned	9.6 mm	Yes
TEXILINE, 2.5mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050301-2 TX	1 .	Polyolefin	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Blue	Tinned	10.8 mm	Yes
TEXILINE, 2.5mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050302 TX	1 .	Polyolefin	Other	None	No	None	Other	Brown	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Brown	Tinned	10.8 mm	Yes
TEXILINE, 2.5mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050303 TX	1 .	Polyolefin	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Green/yellow	Tinned	10.8 mm	Yes
TEXILINE, 2.5mm2, RED 25m/B3 SPOOL, 600V, XLPE/XHFFR , HF, FT, 90C	050307 TX-25	1 .	Polyolefin	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible		Red	Tinned	10.8 mm	No
TEXILINE, 2.5mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050307 TX	1 .	Polyolefin	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Red	Tinned	10.8 mm	Yes
TEXILINE, 4.0mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050351-2 TX	1 .	Polyolefin	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Blue	Tinned	12 mm	Yes
TEXILINE, 4.0mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050352 TX	1 .	Polyolefin	Other	None	No	None	Other	Brown	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Brown	Tinned	12 mm	Yes
TEXILINE, 4.0mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050353 TX	1 .	Polyolefin	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Green/yellow	Tinned	12 mm	Yes
TEXILINE, 4.0mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050357 TX	1 .	Polyolefin	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Red	Tinned	12 mm	Yes
TEXILINE, 6.0mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050371-2 TX	1 .	Polyolefin	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Blue	Tinned	14.7 mm	Yes
TEXILINE, 6.0mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050372 TX	1 .	Polyolefin	Other	None	No	None	Other	Brown	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Brown	Tinned	14.7 mm	Yes
TEXILINE, 6.0mm2, GREY SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050375 TX	1 .	Polyolefin	Other	None	No	None	Other	Grey	According to IEC/EN 60332-1-2	-30-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	Yes	Class 5 = flexible	Single insulated	Grey	Tinned	14.7 mm	Yes

Total: 33

Other information

Page size:

Total: 33

Product Description	Stock code	ETIM-Class	ETIM-Release	Product Group	Alternative SKU	Availability
TEXILINE, 0.5mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050100 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050100TX	Yes
TEXILINE, 0.5mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050101-2 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050101-2TX	Yes
TEXILINE, 0.5mm2, GREY SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050105 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050105TX	Yes
TEXILINE, 0.5mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050107 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050107TX	Yes
TEXILINE, 0.75mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050150 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050150TX	Yes
TEXILINE, 0.75mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050151-2 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050151-2TX	Yes
TEXILINE, 0.75mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050153 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050153TX	Yes
TEXILINE, 0.75mm2, GREY SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050155 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050155TX	Yes
TEXILINE, 0.75mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050157 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050157TX	Yes
TEXILINE, 1.0mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050200 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050200TX	Yes
TEXILINE, 1.0mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050201-2 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050201-2TX	Yes
TEXILINE, 1.0mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050202 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050202TX	Yes
TEXILINE, 1.0mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050203 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050203TX	Yes
TEXILINE, 1.0mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050207 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050207TX	Yes
TEXILINE, 0.5mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050102 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050102TX	Yes
TEXILINE, 1.5mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050250 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050250TX	Yes
TEXILINE, 1.5mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050251-2 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050251-2TX	Yes
TEXILINE, 1.5mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050252 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050252TX	Yes
TEXILINE, 1.5mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050253 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050253TX	Yes
TEXILINE, 1.5mm2, RED 25m/B3 SPOOL, 600V, XLPE/XHFFR , HF, FT, 90C	050257 TX-25	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050257TX-25	No
TEXILINE, 1.5mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050257 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050257TX	Yes
TEXILINE, 2.5mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050301-2 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050301-2TX	Yes
TEXILINE, 2.5mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050302 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050302TX	Yes
TEXILINE, 2.5mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050303 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050303TX	Yes
TEXILINE, 2.5mm2, RED 25m/B3 SPOOL, 600V, XLPE/XHFFR , HF, FT, 90C	050307 TX-25	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050307TX-25	No
TEXILINE, 2.5mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050307 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050307TX	Yes
TEXILINE, 4.0mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050351-2 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050351-2TX	Yes
TEXILINE, 4.0mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050352 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050352TX	Yes
TEXILINE, 4.0mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050353 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050353TX	Yes
TEXILINE, 4.0mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050357 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050357TX	Yes
TEXILINE, 6.0mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050371-2 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050371-2TX	Yes
TEXILINE, 6.0mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050372 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050372TX	Yes
TEXILINE, 6.0mm2, GREY SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050375 TX	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - Texiline, Single conductor, Tinned	050375TX	Yes

Total: 33

Accessories

Spare Parts

Product video

Documents

Dimensions

Page size:

Total: 33

Product Description	Stock code	Nominal cross section conductor	MOQ	Outer diameter approx.	Min. permitted bending radius, stationary application/permanent installation	Diameter conductor	Unit	Availability
TEXILINE, 0.5mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050100 TX	0.5 mm²	200 .	2 mm	6 mm	0.5 mm	m	Yes
TEXILINE, 0.5mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050101-2 TX	0.5 mm²	200 .	2 mm	6 mm	0.5 mm	m	Yes
TEXILINE, 0.5mm2, GREY SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050105 TX	0.5 mm²	500 .	2 mm	6 mm	0.5 mm	m	Yes
TEXILINE, 0.5mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050107 TX	0.5 mm²	200 .	2 mm	6 mm	0.5 mm	m	Yes
TEXILINE, 0.75mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050150 TX	0.75 mm²	500 .	2.66 mm	7.98 mm	0.75 mm	m	Yes
TEXILINE, 0.75mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050151-2 TX	0.75 mm²	500 .	2.66 mm	7.98 mm	0.75 mm	m	Yes
TEXILINE, 0.75mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050153 TX	0.75 mm²	500 .	2.66 mm	7.98 mm	0.75 mm	m	Yes
TEXILINE, 0.75mm2, GREY SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050155 TX	0.75 mm²	500 .	2.66 mm	7.98 mm	0.75 mm	m	Yes
TEXILINE, 0.75mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050157 TX	0.75 mm²	200 .	2.66 mm	7.98 mm	0.75 mm	m	Yes
TEXILINE, 1.0mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050200 TX	1 mm²	200 .	2.86 mm	8.58 mm	1 mm	m	Yes
TEXILINE, 1.0mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050201-2 TX	1 mm²	200 .	2.86 mm	8.58 mm	1 mm	m	Yes
TEXILINE, 1.0mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050202 TX	1 mm²	200 .	2.86 mm	8.58 mm	1 mm	m	Yes
TEXILINE, 1.0mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050203 TX	1 mm²	200 .	2.86 mm	8.58 mm	1 mm	m	Yes
TEXILINE, 1.0mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050207 TX	1 mm²	200 .	2.86 mm	8.58 mm	1 mm	m	Yes
TEXILINE, 0.5mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050102 TX	0.5 mm²	200 .	2 mm	6 mm	0.5 mm	m	Yes
TEXILINE, 1.5mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050250 TX	1.5 mm²	150 .	3.2 mm	9.6 mm	1.5 mm	m	Yes
TEXILINE, 1.5mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050251-2 TX	1.5 mm²	150 .	3.2 mm	9.6 mm	1.5 mm	m	Yes
TEXILINE, 1.5mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050252 TX	1.5 mm²	150 .	3.2 mm	9.6 mm	1.5 mm	m	Yes
TEXILINE, 1.5mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050253 TX	1.5 mm²	150 .	3.2 mm	9.6 mm	1.5 mm	m	Yes
TEXILINE, 1.5mm2, RED 25m/B3 SPOOL, 600V, XLPE/XHFFR , HF, FT, 90C	050257 TX-25	1.5 mm²	25 .	3.2 mm	9.6 mm	1.5 mm	m	No
TEXILINE, 1.5mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050257 TX	1.5 mm²	150 .	3.2 mm	9.6 mm	1.5 mm	m	Yes
TEXILINE, 2.5mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050301-2 TX	2.5 mm²	150 .	3.6 mm	10.8 mm	2.5 mm	m	Yes
TEXILINE, 2.5mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050302 TX	2.5 mm²	150 .	3.6 mm	10.8 mm	2.5 mm	m	Yes
TEXILINE, 2.5mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050303 TX	2.5 mm²	150 .	3.6 mm	10.8 mm	2.5 mm	m	Yes
TEXILINE, 2.5mm2, RED 25m/B3 SPOOL, 600V, XLPE/XHFFR , HF, FT, 90C	050307 TX-25	2.5 mm²	25 .	3.6 mm	10.8 mm	2.5 mm	m	No
TEXILINE, 2.5mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050307 TX	2.5 mm²	150 .	3.6 mm	10.8 mm	2.5 mm	m	Yes
TEXILINE, 4.0mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050351-2 TX	4 mm²	100 .	4 mm	12 mm	4 mm	m	Yes
TEXILINE, 4.0mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050352 TX	4 mm²	100 .	4 mm	12 mm	4 mm	m	Yes
TEXILINE, 4.0mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050353 TX	4 mm²	100 .	4 mm	12 mm	4 mm	m	Yes
TEXILINE, 4.0mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050357 TX	4 mm²	100 .	4 mm	12 mm	4 mm	m	Yes
TEXILINE, 6.0mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050371-2 TX	6 mm²	100 .	4.9 mm	14.7 mm	6 mm	m	Yes
TEXILINE, 6.0mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050372 TX	6 mm²	100 .	4.9 mm	14.7 mm	6 mm	m	Yes
TEXILINE, 6.0mm2, GREY SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C	050375 TX	6 mm²	100 .	4.9 mm	14.7 mm	6 mm	m	Yes

Total: 33

Similar Options

Page size:

Total: 33

TEXILINE, 0.5mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050100 TX

Availability:
Yes
TEXILINE, 0.5mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050101-2 TX

Availability:
Yes
TEXILINE, 0.5mm2, GREY SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050105 TX

Availability:
Yes
TEXILINE, 0.5mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050107 TX

Availability:
Yes
TEXILINE, 0.75mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050150 TX

Availability:
Yes
TEXILINE, 0.75mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050151-2 TX

Availability:
Yes
TEXILINE, 0.75mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050153 TX

Availability:
Yes
TEXILINE, 0.75mm2, GREY SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050155 TX

Availability:
Yes
TEXILINE, 0.75mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050157 TX

Availability:
Yes
TEXILINE, 1.0mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050200 TX

Availability:
Yes
TEXILINE, 1.0mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050201-2 TX

Availability:
Yes
TEXILINE, 1.0mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050202 TX

Availability:
Yes
TEXILINE, 1.0mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050203 TX

Availability:
Yes
TEXILINE, 1.0mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050207 TX

Availability:
Yes
TEXILINE, 0.5mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050102 TX

Availability:
Yes
TEXILINE, 1.5mm2, BLACK SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050250 TX

Availability:
Yes
TEXILINE, 1.5mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050251-2 TX

Availability:
Yes
TEXILINE, 1.5mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050252 TX

Availability:
Yes
TEXILINE, 1.5mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050253 TX

Availability:
Yes
TEXILINE, 1.5mm2, RED 25m/B3 SPOOL, 600V, XLPE/XHFFR , HF, FT, 90C

050257 TX-25

Availability:
No
TEXILINE, 1.5mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050257 TX

Availability:
Yes
TEXILINE, 2.5mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050301-2 TX

Availability:
Yes
TEXILINE, 2.5mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050302 TX

Availability:
Yes
TEXILINE, 2.5mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050303 TX

Availability:
Yes
TEXILINE, 2.5mm2, RED 25m/B3 SPOOL, 600V, XLPE/XHFFR , HF, FT, 90C

050307 TX-25

Availability:
No
TEXILINE, 2.5mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050307 TX

Availability:
Yes
TEXILINE, 4.0mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050351-2 TX

Availability:
Yes
TEXILINE, 4.0mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050352 TX

Availability:
Yes
TEXILINE, 4.0mm2, GREEN/YELLOW SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050353 TX

Availability:
Yes
TEXILINE, 4.0mm2, RED SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050357 TX

Availability:
Yes
TEXILINE, 6.0mm2, LIGHTBLUE SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050371-2 TX

Availability:
Yes
TEXILINE, 6.0mm2, BROWN SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050372 TX

Availability:
Yes
TEXILINE, 6.0mm2, GREY SPOOL B5, 600V, XLPE/XHFFR , HF, FT, 90C

050375 TX

Availability:
Yes

Total: 33

Back to top

Do you need help finding the right product or other advice contact us.

Your Account

Texiline

Technical properties

Item List

Refined by

Accessories

Related products

Spare Parts

Product video

Documents

Dimensions

Refined by

Similar Options

Approvals

Refined by

Technical Properties

Refined by

Other information

Accessories

Related products

Spare Parts

Product video

Documents

Dimensions

Refined by

Similar Options

Back to top

Product Categories

About Nelco

Contact

News

Social
