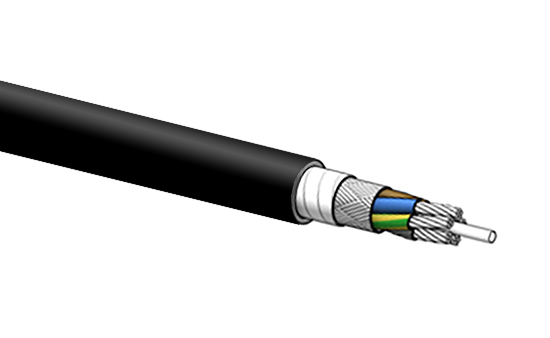

RADOX 125B S2, 2x0.75mm2, BLACK EMC, 1000V, HF, FT, 125C
12537573
- Availability:
-
Yes
- Total: 1
Related items
RADOX 125B Multi conductor screened
Halogenfri kabel lämpligt både för fast förläggning eller som anslutningskabel i torra, fuktiga och våta utrymmen både inom- och utomhus.
Med hänsyn av de goda mekaniska egenskaper samt den höga kemikaliebeständigheten, är RADOX 125 speciellt lämplig inom industrin i krävande miljöer, t.ex för maskiner och industriutrustningar. Kabeln har flätad kopparskärm med hög täckningsgrad, därför är den mycket lämplig i miljöer med hög störningsnivå (enligt EMC-direktivet).
- Total: 1
E0522510
Product Properties
| Number of cores | 2 . |
|---|---|
| Protective conductor | No |
| Material outer sheath | None |
| Colour outer sheath | Black |
| Flame retardant | According to IEC/EN 60332-1-2 |
| Conductor material | Copper |
| Screen | Yes |
| Drain wire | No |
| Nominal voltage | 1000 V |
| Halogen free | Yes |
| Conductor category | Class 5 = flexible |
| Colour | Black |
| Material insulation | Polyolefin (POE) |
| Operating temperature | -40-125 °C |
| Conductor surface | Tinned |
Dimensions
| Nominal cross section conductor | 0.75 mm² |
|---|---|
| Weight | 74 kg/km |
| MOQ | 2000 . |
| Cable width approx. | 7 mm |
| Cable height approx. | 7 mm |
| Unit | m |
| Nominal voltage | 1000 V |
Logistics
| Barcode | 761183200308 |
|---|---|
| Country of origin | CH |
| E-no | E0522510 |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 2000 . |
| Stock code | 12537573 |
| Taric code | 85444991 |
| Unit | m |
Approvals
| Approved according to IEC 60332-3, cat A,B,C, (F4) | Yes |
|---|---|
| Approved according to IEC 60754-2 | Yes |
| Reaction-to-fire according to EN 13501-6: Class | Eca |
| Reaction-to-fire according to EN 13501-6: Smoke production | N/A |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | N/A |
| Reaction-to-fire according to EN 13501-6: Acidity | N/A |
| Halogen free | Yes |
| Low smoke (according to EN 61034-2) | Yes |
| Flame retardant | According to IEC/EN 60332-1-2 |
Other info
| ETIM-Class | EC003251 - Power cable >= 1 kV, for permanent installation |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | Huber+Suhner |
| Product Group | Cable - RXL 125B |
| Search Description | RXL 125B |
| Alternative SKU | 12537573 |
Compliance
| CA Proposition 65 | No CA Prop65 |
|---|---|
| Conflict Minerals | Yes, see report under tab "Documents" |
| General compliance statement from manufacturer | https://www.nelco.se/Image/GetDocument/1184 |
| PFAS | No PFAS |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
