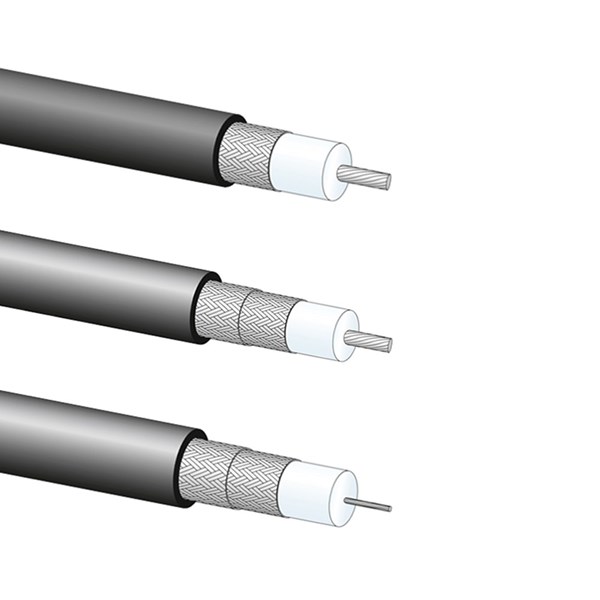

RADOX RF

RG KABEL OCH HALOGENFRI ALTERNATIV - Halogenfri kabel för järnvägsindustrin

Show item list

Technical properties

Number of cores:: 1 .
Colour outer sheath:: Black
Nominal voltage:: 1500 V, 2500 V, 1050 V, 3000 V
Colour:: Black
Material insulation:: Polyvinyl chloride (PVC), Polyurethane (PUR), Polyolefin (POE), LSFH
Operating temperature:: -25-85 °C
Conductor surface:: Bare
Halogen free:: No, Yes

Item List

Page size:

Total: 17

22510112

G_02232_D, 50Ω, 6GHZ, 0.49mm2, SVART, COAX, 1500V, PVC, 85C, ø3.1mm

Availability:: No

22510119

G_03130_HT, 75Ω, 1GHZ, 0.5mm2, SVART, COAX, 2500V, PVC, 85C ø5 mm, LOW NOISE

Availability:: No

22510134

G_03232_D-01, 50Ω, 6GHZ, 0.9mm2, SVART, COAX, 2500V, PVC, 85C, ø5.35mm, HÖG FLEXIBEL

Availability:: No

22510135

G_03233, 75Ω, 1GHZ, 0.49mm2, SVART, COAX, 2500V, PVC, 85C, ø5mm

Availability:: No

22510954

G_03213_D, 75Ω, 2GHZ, 0.49mm2, SVART, COAX, 2500V, PUR, HF, 85C, ø5.35mm

Availability:: No

22511592

RADOX GX_03272_D-06, 50Ω, 6GHZ, 0.88mm2, SVART, COAX, 2500V, HF, 105C, ø5.4 mm

Availability:: No

22511767

S_07262_BD, 50Ω, 3GHZ, 2.82mm2, SVART, COAX, 1050V, LSFH, 85C, ø10.8mm

Availability:: No

22511867

G_04263-03, 75Ω, 1GHZ, 0.58mm2,SVART, COAX,3000V,HF, 85C, ø6.1mm

Availability:: No

22511782

G_03262_D-01, 50Ω, 6GHZ, 2.95mm2, SVART, COAX,2500V, LSFH, 85C, ø5.4mm

Availability:: No

22512183

RADOX G_04273_D-02, 75Ω, 2GHZ, 0.64mm2, SVART, COAX, 3000V, HF, 85C, ø6.7 mm, FLEXIBEL

Availability:: No

22512309

RADOX GX_03272-04, 50Ω, 3GHZ, 0.9mm2, SVART, COAX, 2500V, HF, 105C, ø4.95 mm

Availability:: No

22610095

G 03212-01, 50Ω, 1GHZ, 0.902mm2, SVART, COAX, 2500V, PUR, HF, 85C, ø4.95mm

Availability:: No

22512305

G 03212 D-01, 50Ω, 6GHZ, 0.90mm2, SVART, COAX,2500V,PUR, HF, 85C, ø5.4 mm, DUBBEL SKÄRM

Availability:: No

85023726

RADOX_RF_58,50Ω, 3GHZ, 2.95mm2, SVART, COAX, 5000V, LSFH, 105C, ø5.1mm

Availability:: No

85023730

RADOX_RF_213, 50Ω, 2GHZ, 2.25mm2, SVART, COAX, 5000V, LSFH, 105C, ø10.6mm

Availability:: No

85023719

RADOX_RF_316_D 50Ω 8 GHz,2.44mm2, SVART, COAX,3000V,UL300V,LSFH, 105°C, ø3.2 mm

Availability:: No

85023720

RADOX_RF_400, 50Ω 6 GHz,4.2mm2, SVART, COAX,5000V,LSFH, 105°C, ø5.34 mm

Availability:: No

Total: 17

Accessories

Spare Parts

Product video

Documents

Manuals, Datasheets, Sketches & Drawings

Conflict Minerals Reporting Template Version 6.31_Approved

Dimensions

Page size:

Total: 17

Product Description	Stock code	Nominal cross section conductor	MOQ	Unit	Nominal voltage	Availability
G_02232_D, 50Ω, 6GHZ, 0.49mm2, BLACK COAX, 1500V, PVC, 85C, ø3.1mm	22510112	0.49 mm²	100 .	m	1500 V	No
G_03130_HT, 75Ω, 1GHZ, 0.5mm2, BLACK COAX, 2500V, PVC, 85C ø5 mm, LOW NOISE	22510119	0.5 mm²	100 .	m	2500 V	No
G_03232_D-01, 50Ω, 6GHZ, 0.9mm2, BLACK COAX, 2500V, PVC, 85C, ø5.35mm, HIGH FLEXIBLE	22510134	0.9 mm²	100 .	m	2500 V	No
G_03233, 75Ω, 1GHZ, 0.49mm2, BLACK COAX, 2500V, PVC, 85C, ø5mm	22510135	0.49 mm²	100 .	m	2500 V	No
G_03213_D, 75Ω, 2GHZ, 0.49mm2, BLACK COAX, 2500V, PUR, HF, 85C, ø5.35mm	22510954	0.49 mm²	1000 .	m	2500 V	No
RADOX GX_03272_D-06, 50Ω, 6GHZ, 0.88mm2, BLACK COAX, 2500V, HF, 105C, ø5.4 mm	22511592	0.88 mm²	100 .	m	2500 V	No
S_07262_BD, 50Ω, 3GHZ, 2.82mm2, BLACK COAX, 1050V, LSFH, 85C, ø10.8mm	22511767	2.82 mm²	100 .	m	1050 V	No
G_04263-03, 75Ω, 1GHZ, 0.58mm2, BLACK COAX,3000V,HF, 85C, ø6.1mm	22511867	0.58 mm²	1000 .	m		No
G_03262_D-01, 50Ω, 6GHZ, 2.95mm2, BLACK COAX,2500V, LSFH, 85C, ø5.4mm	22511782		1000 .	m		No
RADOX G_04273_D-02, 75Ω, 2GHZ, 0.64mm2, BLACK COAX, 3000V, HF, 85C, ø6.7 mm, FLEXIBLE	22512183	0.64 mm²	1000 .	m	3000 V	No
RADOX GX_03272-04, 50Ω, 3GHZ, 0.9mm2, BLACK COAX, 2500V, HF, 105C, ø4.95 mm	22512309	0.9 mm²	1000 .	m	2500 V	No
G 03212-01, 50Ω, 1GHZ, 0.902mm2, BLACK COAX, 2500V, PUR, HF, 85C, ø4.95mm	22610095	0.902 mm²	100 .	m	2500 V	No
G 03212 D-01, 50Ω, 6GHZ, 0.90mm2, BLACK COAX,2500V,PUR, HF, 85C, ø5.4 mm, DOUBLE SCREEN	22512305	0.9 mm²	100 .	m		No
RADOX_RF_58,50Ω, 3GHZ, 2.95mm2, SVART, COAX, 5000V, LSFH, 105C, ø5.1mm	85023726		100 .	m		No
RADOX_RF_213, 50Ω, 2GHZ, 2.25mm2 COAX, 5000V, LSFH, 105C, ø10.6mm	85023730		100 .	m		No
RADOX_RF_316_D 50Ω 8 GHz,2.44mm2, SVART, COAX,3000V,UL300V,LSFH, 105°C, ø3.2 mm	85023719		100 .	m		No
RADOX_RF_400, 50Ω 6 GHz,4.2mm2, SVART, COAX,5000V,LSFH, 105°C, ø5.34 mm	85023720		100 .	m		No

Total: 17

Similar Options

Approvals

Page size:

Total: 17

Product Description	Stock code	Availability
G_02232_D, 50Ω, 6GHZ, 0.49mm2, BLACK COAX, 1500V, PVC, 85C, ø3.1mm	22510112	No
G_03130_HT, 75Ω, 1GHZ, 0.5mm2, BLACK COAX, 2500V, PVC, 85C ø5 mm, LOW NOISE	22510119	No
G_03232_D-01, 50Ω, 6GHZ, 0.9mm2, BLACK COAX, 2500V, PVC, 85C, ø5.35mm, HIGH FLEXIBLE	22510134	No
G_03233, 75Ω, 1GHZ, 0.49mm2, BLACK COAX, 2500V, PVC, 85C, ø5mm	22510135	No
G_03213_D, 75Ω, 2GHZ, 0.49mm2, BLACK COAX, 2500V, PUR, HF, 85C, ø5.35mm	22510954	No
RADOX GX_03272_D-06, 50Ω, 6GHZ, 0.88mm2, BLACK COAX, 2500V, HF, 105C, ø5.4 mm	22511592	No
S_07262_BD, 50Ω, 3GHZ, 2.82mm2, BLACK COAX, 1050V, LSFH, 85C, ø10.8mm	22511767	No
G_04263-03, 75Ω, 1GHZ, 0.58mm2, BLACK COAX,3000V,HF, 85C, ø6.1mm	22511867	No
G_03262_D-01, 50Ω, 6GHZ, 2.95mm2, BLACK COAX,2500V, LSFH, 85C, ø5.4mm	22511782	No
RADOX G_04273_D-02, 75Ω, 2GHZ, 0.64mm2, BLACK COAX, 3000V, HF, 85C, ø6.7 mm, FLEXIBLE	22512183	No
RADOX GX_03272-04, 50Ω, 3GHZ, 0.9mm2, BLACK COAX, 2500V, HF, 105C, ø4.95 mm	22512309	No
G 03212-01, 50Ω, 1GHZ, 0.902mm2, BLACK COAX, 2500V, PUR, HF, 85C, ø4.95mm	22610095	No
G 03212 D-01, 50Ω, 6GHZ, 0.90mm2, BLACK COAX,2500V,PUR, HF, 85C, ø5.4 mm, DOUBLE SCREEN	22512305	No
RADOX_RF_58,50Ω, 3GHZ, 2.95mm2, SVART, COAX, 5000V, LSFH, 105C, ø5.1mm	85023726	No
RADOX_RF_213, 50Ω, 2GHZ, 2.25mm2 COAX, 5000V, LSFH, 105C, ø10.6mm	85023730	No
RADOX_RF_316_D 50Ω 8 GHz,2.44mm2, SVART, COAX,3000V,UL300V,LSFH, 105°C, ø3.2 mm	85023719	No
RADOX_RF_400, 50Ω 6 GHz,4.2mm2, SVART, COAX,5000V,LSFH, 105°C, ø5.34 mm	85023720	No

Total: 17

Technical Properties

Page size:

Total: 17

Product Description	Stock code	Number of cores	Colour outer sheath	Nominal voltage	Colour	Material insulation	Operating temperature	Conductor surface	Halogen free	Availability
G_02232_D, 50Ω, 6GHZ, 0.49mm2, BLACK COAX, 1500V, PVC, 85C, ø3.1mm	22510112	1 .	Black	1500 V	Black	Polyvinyl chloride (PVC), Polyolefin (POE)	-25-85 °C	Bare	No	No
G_03130_HT, 75Ω, 1GHZ, 0.5mm2, BLACK COAX, 2500V, PVC, 85C ø5 mm, LOW NOISE	22510119	1 .	Black	2500 V	Black	Polyvinyl chloride (PVC), Polyolefin (POE)	-25-85 °C	Bare	No	No
G_03232_D-01, 50Ω, 6GHZ, 0.9mm2, BLACK COAX, 2500V, PVC, 85C, ø5.35mm, HIGH FLEXIBLE	22510134	1 .	Black	2500 V	Black	Polyvinyl chloride (PVC), Polyolefin (POE)	-25-85 °C	Bare	No	No
G_03233, 75Ω, 1GHZ, 0.49mm2, BLACK COAX, 2500V, PVC, 85C, ø5mm	22510135	1 .	Black	2500 V	Black	Polyvinyl chloride (PVC), Polyolefin (POE)	-25-85 °C	Bare	No	No
G_03213_D, 75Ω, 2GHZ, 0.49mm2, BLACK COAX, 2500V, PUR, HF, 85C, ø5.35mm	22510954	1 .	Black	2500 V	Black	Polyurethane (PUR), Polyolefin (POE)	-40-85 °C	Bare	Yes	No
RADOX GX_03272_D-06, 50Ω, 6GHZ, 0.88mm2, BLACK COAX, 2500V, HF, 105C, ø5.4 mm	22511592	1 .	Black	2500 V	Black	Polyolefin (POE)	-40-105 °C	Bare	Yes	No
S_07262_BD, 50Ω, 3GHZ, 2.82mm2, BLACK COAX, 1050V, LSFH, 85C, ø10.8mm	22511767	1 .	Black	1050 V	Black	Polyolefin (POE), LSFH	-40-85 °C	Bare	No	No
G_04263-03, 75Ω, 1GHZ, 0.58mm2, BLACK COAX,3000V,HF, 85C, ø6.1mm	22511867	1 .	Black		Black				Yes	No
G_03262_D-01, 50Ω, 6GHZ, 2.95mm2, BLACK COAX,2500V, LSFH, 85C, ø5.4mm	22511782		Black		Black				Yes	No
RADOX G_04273_D-02, 75Ω, 2GHZ, 0.64mm2, BLACK COAX, 3000V, HF, 85C, ø6.7 mm, FLEXIBLE	22512183	1 .	Black	3000 V	Black	Polyolefin (POE)	-40-85 °C	Bare	Yes	No
RADOX GX_03272-04, 50Ω, 3GHZ, 0.9mm2, BLACK COAX, 2500V, HF, 105C, ø4.95 mm	22512309	1 .	Black	2500 V	Black	Polyolefin (POE)	-40-105 °C	Bare	Yes	No
G 03212-01, 50Ω, 1GHZ, 0.902mm2, BLACK COAX, 2500V, PUR, HF, 85C, ø4.95mm	22610095	1 .	Black	2500 V	Black	Polyurethane (PUR), Polyolefin (POE)	-40-85 °C	Bare	Yes	No
G 03212 D-01, 50Ω, 6GHZ, 0.90mm2, BLACK COAX,2500V,PUR, HF, 85C, ø5.4 mm, DOUBLE SCREEN	22512305	1 .	Black		Black				Yes	No
RADOX_RF_58,50Ω, 3GHZ, 2.95mm2, SVART, COAX, 5000V, LSFH, 105C, ø5.1mm	85023726									No
RADOX_RF_213, 50Ω, 2GHZ, 2.25mm2 COAX, 5000V, LSFH, 105C, ø10.6mm	85023730								Yes	No
RADOX_RF_316_D 50Ω 8 GHz,2.44mm2, SVART, COAX,3000V,UL300V,LSFH, 105°C, ø3.2 mm	85023719									No
RADOX_RF_400, 50Ω 6 GHz,4.2mm2, SVART, COAX,5000V,LSFH, 105°C, ø5.34 mm	85023720									No

Total: 17

Other information

Page size:

Total: 17

Product Description	Stock code	ETIM-Class	ETIM-Release	Product Group	Search Description	Alternative SKU	Availability
G_02232_D, 50Ω, 6GHZ, 0.49mm2, BLACK COAX, 1500V, PVC, 85C, ø3.1mm	22510112	EC003251 - Power cable >= 1 kV, for permanent installation	7.0	Cable - Coaxial	G_02232_D	22510112	No
G_03130_HT, 75Ω, 1GHZ, 0.5mm2, BLACK COAX, 2500V, PVC, 85C ø5 mm, LOW NOISE	22510119	EC003251 - Power cable >= 1 kV, for permanent installation	7.0	Cable - Coaxial	G_03130_HT	22510119	No
G_03232_D-01, 50Ω, 6GHZ, 0.9mm2, BLACK COAX, 2500V, PVC, 85C, ø5.35mm, HIGH FLEXIBLE	22510134	EC003251 - Power cable >= 1 kV, for permanent installation	7.0	Cable - Coaxial	G_03232_D-01	22510134	No
G_03233, 75Ω, 1GHZ, 0.49mm2, BLACK COAX, 2500V, PVC, 85C, ø5mm	22510135	EC003251 - Power cable >= 1 kV, for permanent installation	7.0	Cable - Coaxial	G_03233	22510135	No
G_03213_D, 75Ω, 2GHZ, 0.49mm2, BLACK COAX, 2500V, PUR, HF, 85C, ø5.35mm	22510954	EC003251 - Power cable >= 1 kV, for permanent installation	7.0	Cable - Coaxial	G_03213_D	22510954	No
RADOX GX_03272_D-06, 50Ω, 6GHZ, 0.88mm2, BLACK COAX, 2500V, HF, 105C, ø5.4 mm	22511592	EC003251 - Power cable >= 1 kV, for permanent installation	7.0	Cable - Coaxial	GX_03272_D-06	22511592	No
S_07262_BD, 50Ω, 3GHZ, 2.82mm2, BLACK COAX, 1050V, LSFH, 85C, ø10.8mm	22511767	EC003251 - Power cable >= 1 kV, for permanent installation	7.0	Cable - Coaxial	S_07262_BD	22511767	No
G_04263-03, 75Ω, 1GHZ, 0.58mm2, BLACK COAX,3000V,HF, 85C, ø6.1mm	22511867	EC003251 - Power cable >= 1 kV, for permanent installation	7.0	Cable - Coaxial	G_04263-03	22511867	No
G_03262_D-01, 50Ω, 6GHZ, 2.95mm2, BLACK COAX,2500V, LSFH, 85C, ø5.4mm	22511782	EC003251 - Power cable >= 1 kV, for permanent installation	7.0	Cable - Coaxial	RG223	22511782	No
RADOX G_04273_D-02, 75Ω, 2GHZ, 0.64mm2, BLACK COAX, 3000V, HF, 85C, ø6.7 mm, FLEXIBLE	22512183	EC003251 - Power cable >= 1 kV, for permanent installation	7.0	Cable - Coaxial	G_04273_D-02	22512183	No
RADOX GX_03272-04, 50Ω, 3GHZ, 0.9mm2, BLACK COAX, 2500V, HF, 105C, ø4.95 mm	22512309	EC003251 - Power cable >= 1 kV, for permanent installation	7.0	Cable - Coaxial	GX_03272-04	22512309	No
G 03212-01, 50Ω, 1GHZ, 0.902mm2, BLACK COAX, 2500V, PUR, HF, 85C, ø4.95mm	22610095	EC003251 - Power cable >= 1 kV, for permanent installation	7.0	Cable - Coaxial	G_03212-01	22610095	No
G 03212 D-01, 50Ω, 6GHZ, 0.90mm2, BLACK COAX,2500V,PUR, HF, 85C, ø5.4 mm, DOUBLE SCREEN	22512305	EC003251 - Power cable >= 1 kV, for permanent installation	7.0	Cable - Coaxial	G_03212_D-01	22512305	No
RADOX_RF_58,50Ω, 3GHZ, 2.95mm2, SVART, COAX, 5000V, LSFH, 105C, ø5.1mm	85023726	EC003251 - Power cable >= 1 kV, for permanent installation		Cable - Coaxial	RADOX_RF_58,50Ω, 3GHZ, 2.95MM2, SVART	85023726	No
RADOX_RF_213, 50Ω, 2GHZ, 2.25mm2 COAX, 5000V, LSFH, 105C, ø10.6mm	85023730	EC003251 - Power cable >= 1 kV, for permanent installation	7.0	Cable - Coaxial	RF 213 LSFH, 50 OHM, 2 GHZ, 105°C, Ø10.6 MM, RADOX	85023730	No
RADOX_RF_316_D 50Ω 8 GHz,2.44mm2, SVART, COAX,3000V,UL300V,LSFH, 105°C, ø3.2 mm	85023719	EC003251 - Power cable >= 1 kV, for permanent installation		Cable - Coaxial	RADOX_RF_316_D 50Ω 8 GHZ,2.44MM2, SVART	85023719	No
RADOX_RF_400, 50Ω 6 GHz,4.2mm2, SVART, COAX,5000V,LSFH, 105°C, ø5.34 mm	85023720	EC003251 - Power cable >= 1 kV, for permanent installation		Cable - Coaxial	RADOX_RF_400, 50Ω 6 GHZ,4.2MM2, SVART	85023720	No

Total: 17

Accessories

Spare Parts

Product video

Documents

Manuals, Datasheets, Sketches & Drawings

Conflict Minerals Reporting Template Version 6.31_Approved

Dimensions

Page size:

Total: 17

Product Description	Stock code	Nominal cross section conductor	MOQ	Unit	Nominal voltage	Availability
G_02232_D, 50Ω, 6GHZ, 0.49mm2, BLACK COAX, 1500V, PVC, 85C, ø3.1mm	22510112	0.49 mm²	100 .	m	1500 V	No
G_03130_HT, 75Ω, 1GHZ, 0.5mm2, BLACK COAX, 2500V, PVC, 85C ø5 mm, LOW NOISE	22510119	0.5 mm²	100 .	m	2500 V	No
G_03232_D-01, 50Ω, 6GHZ, 0.9mm2, BLACK COAX, 2500V, PVC, 85C, ø5.35mm, HIGH FLEXIBLE	22510134	0.9 mm²	100 .	m	2500 V	No
G_03233, 75Ω, 1GHZ, 0.49mm2, BLACK COAX, 2500V, PVC, 85C, ø5mm	22510135	0.49 mm²	100 .	m	2500 V	No
G_03213_D, 75Ω, 2GHZ, 0.49mm2, BLACK COAX, 2500V, PUR, HF, 85C, ø5.35mm	22510954	0.49 mm²	1000 .	m	2500 V	No
RADOX GX_03272_D-06, 50Ω, 6GHZ, 0.88mm2, BLACK COAX, 2500V, HF, 105C, ø5.4 mm	22511592	0.88 mm²	100 .	m	2500 V	No
S_07262_BD, 50Ω, 3GHZ, 2.82mm2, BLACK COAX, 1050V, LSFH, 85C, ø10.8mm	22511767	2.82 mm²	100 .	m	1050 V	No
G_04263-03, 75Ω, 1GHZ, 0.58mm2, BLACK COAX,3000V,HF, 85C, ø6.1mm	22511867	0.58 mm²	1000 .	m		No
G_03262_D-01, 50Ω, 6GHZ, 2.95mm2, BLACK COAX,2500V, LSFH, 85C, ø5.4mm	22511782		1000 .	m		No
RADOX G_04273_D-02, 75Ω, 2GHZ, 0.64mm2, BLACK COAX, 3000V, HF, 85C, ø6.7 mm, FLEXIBLE	22512183	0.64 mm²	1000 .	m	3000 V	No
RADOX GX_03272-04, 50Ω, 3GHZ, 0.9mm2, BLACK COAX, 2500V, HF, 105C, ø4.95 mm	22512309	0.9 mm²	1000 .	m	2500 V	No
G 03212-01, 50Ω, 1GHZ, 0.902mm2, BLACK COAX, 2500V, PUR, HF, 85C, ø4.95mm	22610095	0.902 mm²	100 .	m	2500 V	No
G 03212 D-01, 50Ω, 6GHZ, 0.90mm2, BLACK COAX,2500V,PUR, HF, 85C, ø5.4 mm, DOUBLE SCREEN	22512305	0.9 mm²	100 .	m		No
RADOX_RF_58,50Ω, 3GHZ, 2.95mm2, SVART, COAX, 5000V, LSFH, 105C, ø5.1mm	85023726		100 .	m		No
RADOX_RF_213, 50Ω, 2GHZ, 2.25mm2 COAX, 5000V, LSFH, 105C, ø10.6mm	85023730		100 .	m		No
RADOX_RF_316_D 50Ω 8 GHz,2.44mm2, SVART, COAX,3000V,UL300V,LSFH, 105°C, ø3.2 mm	85023719		100 .	m		No
RADOX_RF_400, 50Ω 6 GHz,4.2mm2, SVART, COAX,5000V,LSFH, 105°C, ø5.34 mm	85023720		100 .	m		No
