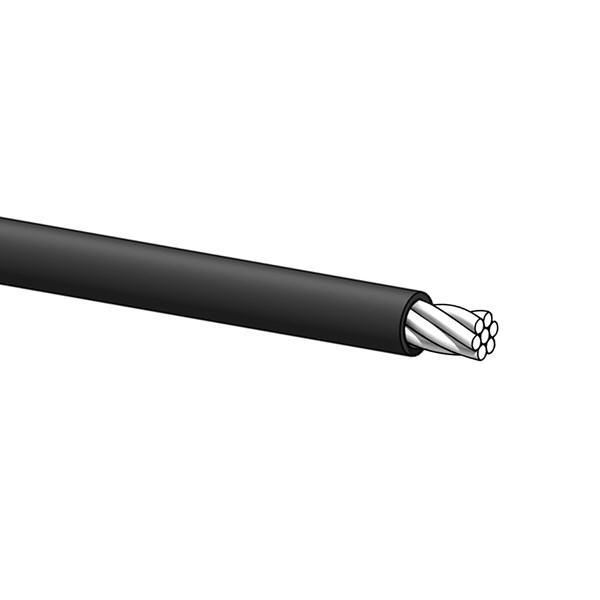

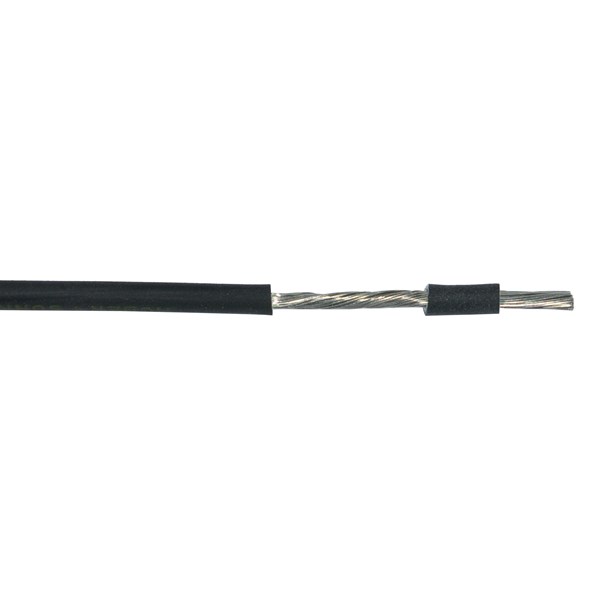

RADOX 125 - Bobiner

Halogen free flexible connector cable for the internal wiring in lamps, heaters, electrical equipment, command and control cabinets, and in the construction industry. Ideal for the installation inside the tubes as well as for external installation.

Very good electrical and mechanical properties. Wide temperature range and high resistance to oils, ozone, hydrolysis and mechanical stress. Connection wire is flame retardant, at fire it develops minimum of smoke and no corrosive gases are released.

Show item list

Technical properties

Number of cores:: 1 .
Material core insulation:: Polyolefin
Specification core insulation:: Other
Core identification:: None
Protective conductor:: No
Material outer sheath:: None
Specification material outer sheath:: Other
Colour outer sheath:: Blue, Brown, Yellow, Grey, Green, Orange, Red, Black, White, Other
Flame retardant:: According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:: -55-145 °C
Conductor material:: Copper
Twisted cores:: No
Max. conductor temperature:: 125 °C
Screen:: No
Protective barrier:: N/A
Armouring/reinforcement:: None
Insulation integrity:: N/A
Drain wire:: No
Nominal voltage:: 600 V
Halogen free:: Yes, Yes
Conductor category:: Class 5 = flexible
Single insulated/Double insulated:: Single insulated
Colour:: White, Brown, Blue, Green/yellow, Red, Yellow, Purple, Orange, Grey, Green, Black
Material insulation:: Polyolefin (POE)
Operating temperature:: -40-125 °C
Core colour:: Blue, Brown, Yellow, Grey, Green, Green/yellow, Purple, Orange, Red, Black, White
Conductor surface:: Tinned
Packaging:: Spool HS150, Spool HS151, Spool HS200
Min. permitted bending radius, stationary application/permanent installation:: 6.75 mm, 6 mm, 4.35 mm, 8.55 mm, 11.85 mm, 10.05 mm, 13.95 mm, 16.8 mm, 20.25 mm

Item List

Page size:

Total: 88

12521082-100

RADOX 125, 0.25mm2, BLÅ, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12519497-100

RADOX 125, 0.25mm2, BRUN, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12518105-100

RADOX 125, 0.25mm2, GRÅ, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12521066-100

RADOX 125, 0.25mm2, GRÖN, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12521088-100

RADOX 125, 0.25mm2, GRÖN/GUL, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12519498-100

RADOX 125, 0.25mm2, GUL, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12521081-100

RADOX 125, 0.25mm2, ORANGE, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12521067-100

RADOX 125, 0.25mm2, RÖD, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12519496-100

RADOX 125, 0.25mm2, SVART, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12516141-100

RADOX 125, 0.25mm2, VIOLETT, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12516294-100

RADOX 125, 0.25mm2, VIT, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12521075-100

RADOX 125, 0.5mm2, BLÅ, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12515803-100

RADOX 125, 0.5mm2, BRUN, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12516086-100

RADOX 125, 0.5mm2, GRÖN, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12516087-100

RADOX 125, 0.5mm2, GRÅ, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12516091-100

RADOX 125, 0.5mm2, GRÖN/GUL, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12521076-100

RADOX 125, 0.5mm2, GUL, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12521074-100

RADOX 125, 0.5mm2, ORANGE, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12516089-100

RADOX 125, 0.5mm2, RÖD, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12516088-100

RADOX 125, 0.5mm2, SVART, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12521069-100

RADOX 125, 0.5mm2, VIOLETT, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12516080-100

RADOX 125, 0.5mm2, VIT, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12530433-100

RADOX 125, 0.75mm2, BLÅ, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12530432-100

RADOX 125, 0.75mm2, BRUN, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12515493-100

RADOX 125, 0.75mm2, GRÅ, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12515492-100

RADOX 125, 0.75mm2, GRÖN, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12530434-100

RADOX 125, 0.75mm2, GRÖN/GUL, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12515491-100

RADOX 125, 0.75mm2, GUL, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12552231-100

RADOX 125, 0.75mm2, ORANGE, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12515490-100

RADOX 125, 0.75mm2, RÖD, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12530436-100

RADOX 125, 0.75mm2, SVART, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12536734-100

RADOX 125, 0.75mm2, VIOLETT, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12535952-100

RADOX 125, 0.75mm2, VIT, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12012060-100

RADOX 125, 1.0mm2, BLÅ, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12012050-100

RADOX 125, 1.0mm2, BRUN, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12505624-100

RADOX 125, 1.0mm2, GRÅ, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12536735-100

RADOX 125, 1.0mm2, GRÖN, BOBIN HS150, 600V, HF, FT, 125C

Availability:: No

12012070-100

RADOX 125, 1.0mm2, GRÖN/GUL, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12012090-100

RADOX 125, 1.0mm2, GUL, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12505622-100

RADOX 125, 1.0mm2, ORANGE, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12012080-100

RADOX 125, 1.0mm2, RÖD, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12534452-100

RADOX 125, 1.0mm2, SVART, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12505621-100

RADOX 125, 1.0mm2, VIOLETT, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12012040-100

RADOX 125, 1.0mm2, VIT, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12534453-100

RADOX 125, 1.5mm2, BLÅ, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12534455-100

RADOX 125, 1.5mm2, BRUN, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12534454-100

RADOX 125, 1.5mm2, GRÅ, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12536738-100

RADOX 125, 1.5mm2, GRÖN, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12536737-100

RADOX 125, 1.5mm2, GRÖN/GUL, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12536736-100

RADOX 125, 1.5mm2, GUL, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12538161-100

RADOX 125, 1.5mm2, ORANGE, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12535703-100

RADOX 125, 1.5mm2, RÖD, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12536739-100

RADOX 125, 1.5mm2, VIOLETT, BOBIN HS150, 600V, HF, FT, 125C

Availability:: No

12528958-100

RADOX 125, 1.5mm2, VIT, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12535840-100

RADOX 125, 1.5mm2, SVART, BOBIN HS150, 600V, HF, FT, 125C

Availability:: Yes

12535682-100

RADOX 125, 2.5mm2, BLÅ, BOBIN HS151, 600V, HF, FT, 125C

Availability:: Yes

12535684-100

RADOX 125, 2.5mm2, BRUN, BOBIN HS151, 600V, HF, FT, 125C

Availability:: Yes

12535843-100

RADOX 125, 2.5mm2, GRÅ, BOBIN HS151, 600V, HF, FT, 125C

Availability:: Yes

12536740-100

RADOX 125, 2.5mm2, GRÖN, BOBIN HS151, 600V, HF, FT, 125C

Availability:: No

12535683-100

RADOX 125, 2.5mm2, GRÖN/GUL, BOBIN HS151, 600V, HF, FT, 125C

Availability:: Yes

12535714-100

RADOX 125, 2.5mm2, GUL, BOBIN HS151, 600V, HF, FT, 125C

Availability:: Yes

12535521-100

RADOX 125, 2.5mm2, RÖD, BOBIN HS151, 600V, HF, FT, 125C

Availability:: Yes

12534456-100

RADOX 125, 2.5mm2, SVART, BOBIN HS151, 600V, HF, FT, 125C

Availability:: Yes

12535681-100

RADOX 125, 2.5mm2, VIT, BOBIN HS151, 600V, HF, FT, 125C

Availability:: Yes

12536742-100

RADOX 125, 4.0mm2, BLÅ, BOBIN HS151, 600V, HF, FT, 125C

Availability:: No

12536741-100

RADOX 125, 4.0mm2, BRUN, BOBIN HS151, 600V, HF, FT, 125C

Availability:: Yes

12536745-100

RADOX 125, 4.0mm2, GRÅ, BOBIN HS151, 600V, HF, FT, 125C

Availability:: Yes

12535912-100

RADOX 125, 4.0mm2, GRÖN, BOBIN HS151, 600V, HF, FT, 125C

Availability:: No

12536744-100

RADOX 125, 4.0mm2, GUL, BOBIN HS151, 600V, HF, FT, 125C

Availability:: Yes

12528959-100

RADOX 125, 4.0mm2, GRÖN/GUL, BOBIN HS151, 600V, HF, FT, 125C

Availability:: Yes

12536743-100

RADOX 125, 4.0mm2, RÖD, BOBIN HS151, 600V, HF, FT, 125C

Availability:: Yes

12534457-100

RADOX 125, 4.0mm2, SVART, BOBIN HS151, 600V, HF, FT, 125C

Availability:: Yes

12535911-100

RADOX 125, 4.0mm2, VIT, BOBIN HS151, 600V, HF, FT, 125C

Availability:: Yes

12560230-100

RADOX 125, 6.0mm2, BLÅ, BOBIN HS200, 600V, HF, FT, 125C

Availability:: Yes

12560231-100

RADOX 125, 6.0mm2, BRUN, BOBIN HS200, 600V, HF, FT, 125C

Availability:: Yes

12586519-100

RADOX 125, 6.0mm2, GRÅ, BOBIN HS200, 600V, HF, FT, 125C

Availability:: Yes

12560233-100

RADOX 125, 6.0mm2, GRÖN/GUL, BOBIN HS200, 600V, HF, FT, 125C

Availability:: Yes

12560234-100

RADOX 125, 6.0mm2, RÖD, BOBIN HS200, 600V, HF, FT, 125C

Availability:: Yes

12560235-100

RADOX 125, 6.0mm2, SVART, BOBIN HS200, 600V, HF, FT, 125C

Availability:: Yes

12560236-100

RADOX 125, 6.0mm2, VIT, BOBIN HS200, 600V, HF, FT, 125C

Availability:: Yes

12560238-100

RADOX 125, 10mm2, BLÅ, 600V, HF, FT, 125C

Availability:: No

12582444-100

RADOX 125, 10mm2, BRUN, 600V, HF, FT, 125C

Availability:: Yes

12560240-100

RADOX 125, 10mm2, GRÖN/GUL, 600V, HF, FT, 125C

Availability:: No

12560241-100

RADOX 125, 10mm2, RÖD, 600V, HF, FT, 125C

Availability:: Yes

12560242-100

RADOX 125, 10mm2, SVART, 600V, HF, FT, 125C

Availability:: No

12560243-100

RADOX 125, 10mm2, VIT, 600V, HF, FT, 125C

Availability:: Yes

12560244-100

RADOX 125, 16mm2, BLÅ, 600V, HF, FT, 125C

Availability:: Yes

12560249-100

RADOX 125, 16mm2, SVART, 600V, HF, FT, 125C

Availability:: Yes

Total: 88

Accessories

Spare Parts

Product video

Documents

Manuals, Datasheets, Sketches & Drawings

RADOX 125_Eng

Dimensions

Page size:

Total: 88

Product Description	Stock code	Nominal cross section conductor	MOQ	Outer diameter approx.	Min. permitted bending radius, stationary application/permanent installation	Unit	Nominal voltage	Availability
RADOX 125, 0.25mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12521082-100	0.25 mm²	100 .	1.45 mm	4.35 mm	m	600 V	Yes
RADOX 125, 0.25mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12519497-100	0.25 mm²	100 .	1.45 mm	4.35 mm	m	600 V	Yes
RADOX 125, 0.25mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12518105-100	0.25 mm²	100 .	1.45 mm	4.35 mm	m	600 V	Yes
RADOX 125, 0.25mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12521066-100	0.25 mm²	100 .	1.45 mm	4.35 mm	m	600 V	Yes
RADOX 125, 0.25mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12521088-100	0.25 mm²	100 .	1.45 mm	4.35 mm	m	600 V	Yes
RADOX 125, 0.25mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12519498-100	0.25 mm²	100 .	1.45 mm	4.35 mm	m	600 V	Yes
RADOX 125, 0.25mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12521081-100	0.25 mm²	100 .	1.45 mm	4.35 mm	m	600 V	Yes
RADOX 125, 0.25mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12521067-100	0.25 mm²	100 .	1.45 mm	4.35 mm	m	600 V	Yes
RADOX 125, 0.25mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12519496-100	0.25 mm²	100 .	1.45 mm	4.35 mm	m	600 V	Yes
RADOX 125, 0.25mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12516141-100	0.25 mm²	100 .	1.45 mm	4.35 mm	m	600 V	Yes
RADOX 125, 0.25mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12516294-100	0.25 mm²	100 .	1.45 mm	4.35 mm	m	600 V	Yes
RADOX 125, 0.5mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12521075-100	0.5 mm²	100 .	2 mm	6 mm	m	600 V	Yes
RADOX 125, 0.5mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12515803-100	0.5 mm²	100 .	2 mm	6 mm	m	600 V	Yes
RADOX 125, 0.5mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12516086-100	0.5 mm²	100 .	2 mm	6 mm	m	600 V	Yes
RADOX 125, 0.5mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12516087-100	0.5 mm²	100 .	2 mm	6 mm	m	600 V	Yes
RADOX 125, 0.5mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12516091-100	0.5 mm²	100 .	2 mm	6 mm	m	600 V	Yes
RADOX 125, 0.5mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12521076-100	0.5 mm²	100 .	2 mm	6 mm	m	600 V	Yes
RADOX 125, 0.5mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12521074-100	0.5 mm²	100 .	2 mm	6 mm	m	600 V	Yes
RADOX 125, 0.5mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12516089-100	0.5 mm²	100 .	2 mm	6 mm	m	600 V	Yes
RADOX 125, 0.5mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12516088-100	0.5 mm²	100 .	2 mm	6 mm	m	600 V	Yes
RADOX 125, 0.5mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12521069-100	0.5 mm²	100 .	2 mm	6 mm	m	600 V	Yes
RADOX 125, 0.5mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12516080-100	0.5 mm²	100 .	2 mm	6 mm	m	600 V	Yes
RADOX 125, 0.75mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12530433-100	0.75 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 0.75mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12530432-100	0.75 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 0.75mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12515493-100	0.75 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 0.75mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12515492-100	0.75 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 0.75mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12530434-100	0.75 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 0.75mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12515491-100	0.75 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 0.75mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12552231-100	0.75 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 0.75mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12515490-100	0.75 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 0.75mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12530436-100	0.75 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 0.75mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12536734-100	0.75 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 0.75mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12535952-100	0.75 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 1.0mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12012060-100	1 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 1.0mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12012050-100	1 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 1.0mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12505624-100	1 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 1.0mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12536735-100	1 mm²	5000 .	2.25 mm	6.75 mm	m	600 V	No
RADOX 125, 1.0mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12012070-100	1 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 1.0mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12012090-100	1 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 1.0mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12505622-100	1 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 1.0mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12012080-100	1 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 1.0mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12534452-100	1 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 1.0mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12505621-100	1 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 1.0mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12012040-100	1 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 1.5mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12534453-100	1.5 mm²	100 .	2.85 mm	8.55 mm	m	600 V	Yes
RADOX 125, 1.5mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12534455-100	1.5 mm²	100 .	2.85 mm	8.55 mm	m	600 V	Yes
RADOX 125, 1.5mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12534454-100	1.5 mm²	100 .	2.85 mm	8.55 mm	m	600 V	Yes
RADOX 125, 1.5mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12536738-100	1.5 mm²	100 .	2.85 mm	8.55 mm	m	600 V	Yes
RADOX 125, 1.5mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12536737-100	1.5 mm²	100 .	2.85 mm	8.55 mm	m	600 V	Yes
RADOX 125, 1.5mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12536736-100	1.5 mm²	100 .	2.85 mm	8.55 mm	m	600 V	Yes
RADOX 125, 1.5mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12538161-100	1.5 mm²	100 .	2.85 mm	8.55 mm	m	600 V	Yes
RADOX 125, 1.5mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12535703-100	1.5 mm²	100 .	2.85 mm	8.55 mm	m	600 V	Yes
RADOX 125, 1.5mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12536739-100	1.5 mm²	100 .	2.85 mm	8.55 mm	m	600 V	No
RADOX 125, 1.5mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12528958-100	1.5 mm²	100 .	2.85 mm	8.55 mm	m	600 V	Yes
RADOX 125, 1.5mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12535840-100	1.5 mm²	100 .	2.85 mm	8.55 mm	m	600 V	Yes
RADOX 125, 2.5mm2, BLUE SPOOL HS151, 600V, HF, FT, 125C	12535682-100	2.5 mm²	100 .	3.35 mm	10.05 mm	m	600 V	Yes
RADOX 125, 2.5mm2, BROWN SPOOL HS151, 600V, HF, FT, 125C	12535684-100	2.5 mm²	100 .	3.35 mm	10.05 mm	m	600 V	Yes
RADOX 125, 2.5mm2, GREY SPOOL HS151, 600V, HF, FT, 125C	12535843-100	2.5 mm²	100 .	3.35 mm	10.05 mm	m	600 V	Yes
RADOX 125, 2.5mm2, GREEN SPOOL HS151, 600V, HF, FT, 125C	12536740-100	2.5 mm²	100 .	3.35 mm	10.05 mm	m	600 V	No
RADOX 125, 2.5mm2, GREEN/YELLOW SPOOL HS151, 600V, HF, FT, 125C	12535683-100	2.5 mm²	100 .	3.35 mm	10.05 mm	m	600 V	Yes
RADOX 125, 2.5mm2, YELLOW SPOOL HS151, 600V, HF, FT, 125C	12535714-100	2.5 mm²	100 .	3.35 mm	10.05 mm	m	600 V	Yes
RADOX 125, 2.5mm2, RED SPOOL HS151, 600V, HF, FT, 125C	12535521-100	2.5 mm²	100 .	3.35 mm	10.05 mm	m	600 V	Yes
RADOX 125, 2.5mm2, BLACK SPOOL HS151, 600V, HF, FT, 125C	12534456-100	2.5 mm²	100 .	3.35 mm	10.05 mm	m	600 V	Yes
RADOX 125, 2.5mm2, WHITE SPOOL HS151, 600V, HF, FT, 125C	12535681-100	2.5 mm²	100 .	3.35 mm	10.05 mm	m	600 V	Yes
RADOX 125, 4.0mm2, BLUE SPOOL HS151, 600V, HF, FT, 125C	12536742-100	4 mm²	100 .	3.95 mm	11.85 mm	m	600 V	No
RADOX 125, 4.0mm2, BROWN SPOOL HS151, 600V, HF, FT, 125C	12536741-100	4 mm²	100 .	3.95 mm	11.85 mm	m	600 V	Yes
RADOX 125, 4.0mm2, GREY SPOOL HS151, 600V, HF, FT, 125C	12536745-100	4 mm²	100 .	3.95 mm	11.85 mm	m	600 V	Yes
RADOX 125, 4.0mm2, GREEN SPOOL HS151, 600V, HF, FT, 125C	12535912-100	4 mm²	100 .	3.95 mm	11.85 mm	m	600 V	No
RADOX 125, 4.0mm2, YELLOW SPOOL HS151, 600V, HF, FT, 125C	12536744-100	4 mm²	100 .	3.95 mm	11.85 mm	m	600 V	Yes
RADOX 125, 4.0mm2, GREEN/YELLOW SPOOL HS151, 600V, HF, FT, 125C	12528959-100	4 mm²	100 .	3.95 mm	11.85 mm	m	600 V	Yes
RADOX 125, 4.0mm2, RED SPOOL HS151, 600V, HF, FT, 125C	12536743-100	4 mm²	100 .	3.95 mm	11.85 mm	m	600 V	Yes
RADOX 125, 4.0mm2, BLACK SPOOL HS151, 600V, HF, FT, 125C	12534457-100	4 mm²	100 .	3.95 mm	11.85 mm	m	600 V	Yes
RADOX 125, 4.0mm2, WHITE SPOOL HS151, 600V, HF, FT, 125C	12535911-100	4 mm²	100 .	3.95 mm	11.85 mm	m	600 V	Yes
RADOX 125, 6.0mm2, BLUE SPOOL HS200, 600V, HF, FT, 125C	12560230-100	6 mm²	100 .	4.65 mm	13.95 mm	m	600 V	Yes
RADOX 125, 6.0mm2, BROWN SPOOL HS200, 600V, HF, FT, 125C	12560231-100	6 mm²	100 .	4.65 mm	13.95 mm	m	600 V	Yes
RADOX 125, 6.0mm2, GREY SPOOL B4, 600V, HF, FT, 125C	12586519-100	6 mm²	2500 .	4.65 mm	13.95 mm	m		Yes
RADOX 125, 6.0mm2, GREEN/YELLOW SPOOL HS200, 600V, HF, FT, 125C	12560233-100	6 mm²	100 .	4.65 mm	13.95 mm	m	600 V	Yes
RADOX 125, 6.0mm2, RED SPOOL HS200, 600V, HF, FT, 125C	12560234-100	6 mm²	100 .	4.65 mm	13.95 mm	m	600 V	Yes
RADOX 125, 6.0mm2, BLACK SPOOL HS200, 600V, HF, FT, 125C	12560235-100	6 mm²	100 .	4.65 mm	13.95 mm	m	600 V	Yes
RADOX 125, 6.0mm2, WHITE SPOOL HS200, 600V, HF, FT, 125C	12560236-100	6 mm²	100 .	4.65 mm	13.95 mm	m	600 V	Yes
RADOX 125, 10mm2, BLUE 600V, HF, FT, 125C	12560238-100	10 mm²	100 .	5.6 mm	16.8 mm	m	600 V	No
RADOX 125, 10mm2, BROWN 600V, HF, FT, 125C	12582444-100	10 mm²	100 .	5.6 mm	16.8 mm	m	600 V	Yes
RADOX 125, 10mm2, GREEN/YELLOW 600V, HF, FT, 125C	12560240-100	10 mm²	100 .	5.6 mm	16.8 mm	m	600 V	No
RADOX 125, 10mm2, RED 600V, HF, FT, 125C	12560241-100	10 mm²	2500 .	5.6 mm	16.8 mm	m	600 V	Yes
RADOX 125, 10mm2, BLACK 600V, HF, FT, 125C	12560242-100	10 mm²	100 .	5.6 mm	16.8 mm	m	600 V	No
RADOX 125, 10mm2, WHITE 600V, HF, FT, 125C	12560243-100	10 mm²	100 .	5.6 mm	16.8 mm	m	600 V	Yes
RADOX 125, 16mm2, BLUE 600V, HF, FT, 125C	12560244-100	16 mm²	100 .	6.75 mm	20.25 mm	m	600 V	Yes
RADOX 125, 16mm2, BLACK 600V, HF, FT, 125C	12560249-100	16 mm²	100 .	6.75 mm	20.25 mm	m	600 V	Yes

Total: 88

Similar Options

Approvals

Page size:

Total: 88

Product Description	Stock code	Approved according to EN 50267-2-1	Approved according to EN 50267-2-3	Approved according to EN 50268-2	Approved according to IEC 60754-1	Approved according to IEC 60754-2	Reaction-to-fire class according to EN 13501-6	Smoke development class according to EN 13501-6	Euro class flaming droplets/particles according to EN 13501-6	Euro class acidity according to EN 13501-6	Halogen free	Low smoke (according to EN 61034-2)	Low temperature resistant (according to EN 60811-504+505+506)	Oil resistant (according to EN 60811-404)	Flame retardant	Availability
RADOX 125, 0.25mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12521082-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.25mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12519497-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.25mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12518105-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.25mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12521066-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.25mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12521088-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.25mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12519498-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.25mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12521081-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.25mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12521067-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.25mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12519496-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.25mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12516141-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.25mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12516294-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.5mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12521075-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.5mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12515803-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.5mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12516086-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.5mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12516087-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.5mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12516091-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.5mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12521076-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.5mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12521074-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.5mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12516089-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.5mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12516088-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.5mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12521069-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.5mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12516080-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.75mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12530433-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.75mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12530432-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.75mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12515493-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.75mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12515492-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.75mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12530434-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.75mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12515491-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.75mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12552231-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.75mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12515490-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.75mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12530436-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.75mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12536734-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 0.75mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12535952-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 1.0mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12012060-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 1.0mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12012050-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 1.0mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12505624-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 1.0mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12536735-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	No
RADOX 125, 1.0mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12012070-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 1.0mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12012090-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 1.0mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12505622-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 1.0mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12012080-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 1.0mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12534452-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 1.0mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12505621-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 1.0mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12012040-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 1.5mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12534453-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 1.5mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12534455-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 1.5mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12534454-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 1.5mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12536738-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 1.5mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12536737-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 1.5mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12536736-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 1.5mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12538161-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 1.5mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12535703-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 1.5mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12536739-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	No
RADOX 125, 1.5mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12528958-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 1.5mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12535840-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 2.5mm2, BLUE SPOOL HS151, 600V, HF, FT, 125C	12535682-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 2.5mm2, BROWN SPOOL HS151, 600V, HF, FT, 125C	12535684-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 2.5mm2, GREY SPOOL HS151, 600V, HF, FT, 125C	12535843-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 2.5mm2, GREEN SPOOL HS151, 600V, HF, FT, 125C	12536740-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	No
RADOX 125, 2.5mm2, GREEN/YELLOW SPOOL HS151, 600V, HF, FT, 125C	12535683-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 2.5mm2, YELLOW SPOOL HS151, 600V, HF, FT, 125C	12535714-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 2.5mm2, RED SPOOL HS151, 600V, HF, FT, 125C	12535521-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 2.5mm2, BLACK SPOOL HS151, 600V, HF, FT, 125C	12534456-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 2.5mm2, WHITE SPOOL HS151, 600V, HF, FT, 125C	12535681-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 4.0mm2, BLUE SPOOL HS151, 600V, HF, FT, 125C	12536742-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	No
RADOX 125, 4.0mm2, BROWN SPOOL HS151, 600V, HF, FT, 125C	12536741-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 4.0mm2, GREY SPOOL HS151, 600V, HF, FT, 125C	12536745-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 4.0mm2, GREEN SPOOL HS151, 600V, HF, FT, 125C	12535912-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	No
RADOX 125, 4.0mm2, YELLOW SPOOL HS151, 600V, HF, FT, 125C	12536744-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 4.0mm2, GREEN/YELLOW SPOOL HS151, 600V, HF, FT, 125C	12528959-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 4.0mm2, RED SPOOL HS151, 600V, HF, FT, 125C	12536743-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 4.0mm2, BLACK SPOOL HS151, 600V, HF, FT, 125C	12534457-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 4.0mm2, WHITE SPOOL HS151, 600V, HF, FT, 125C	12535911-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 6.0mm2, BLUE SPOOL HS200, 600V, HF, FT, 125C	12560230-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 6.0mm2, BROWN SPOOL HS200, 600V, HF, FT, 125C	12560231-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 6.0mm2, GREY SPOOL B4, 600V, HF, FT, 125C	12586519-100						Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 6.0mm2, GREEN/YELLOW SPOOL HS200, 600V, HF, FT, 125C	12560233-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 6.0mm2, RED SPOOL HS200, 600V, HF, FT, 125C	12560234-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 6.0mm2, BLACK SPOOL HS200, 600V, HF, FT, 125C	12560235-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 6.0mm2, WHITE SPOOL HS200, 600V, HF, FT, 125C	12560236-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 10mm2, BLUE 600V, HF, FT, 125C	12560238-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	No
RADOX 125, 10mm2, BROWN 600V, HF, FT, 125C	12582444-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 10mm2, GREEN/YELLOW 600V, HF, FT, 125C	12560240-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	No
RADOX 125, 10mm2, RED 600V, HF, FT, 125C	12560241-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 10mm2, BLACK 600V, HF, FT, 125C	12560242-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	No
RADOX 125, 10mm2, WHITE 600V, HF, FT, 125C	12560243-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 16mm2, BLUE 600V, HF, FT, 125C	12560244-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
RADOX 125, 16mm2, BLACK 600V, HF, FT, 125C	12560249-100	Yes	Yes	Yes	Yes	Yes	Eca	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes

Total: 88

Technical Properties

Page size:

Total: 88

Product Description	Stock code	Number of cores	Material core insulation	Specification core insulation	Core identification	Protective conductor	Material outer sheath	Specification material outer sheath	Colour outer sheath	Flame retardant	Permitted cable outer temperature after assembling without vibration	Conductor material	Twisted cores	Max. conductor temperature	Screen	Protective barrier	Armouring/reinforcement	Insulation integrity	Drain wire	Nominal voltage	Halogen free	Conductor category	Single insulated/Double insulated	Colour	Material insulation	Operating temperature	Core colour	Conductor surface	Halogen free	Packaging	Min. permitted bending radius, stationary application/permanent installation	Availability
RADOX 125, 0.25mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12521082-100	1 .	Polyolefin	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Blue	Polyolefin (POE)	-40-125 °C	Blue	Tinned	Yes	Spool HS150	4.35 mm	Yes
RADOX 125, 0.25mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12519497-100	1 .	Polyolefin	Other	None	No	None	Other	Brown	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Brown	Polyolefin (POE)	-40-125 °C	Brown	Tinned	Yes	Spool HS150	4.35 mm	Yes
RADOX 125, 0.25mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12518105-100	1 .	Polyolefin	Other	None	No	None	Other	Grey	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Grey	Polyolefin (POE)	-40-125 °C	Grey	Tinned	Yes	Spool HS150	4.35 mm	Yes
RADOX 125, 0.25mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12521066-100	1 .	Polyolefin	Other	None	No	None	Other	Green	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Green	Polyolefin (POE)	-40-125 °C	Green	Tinned	Yes	Spool HS150	4.35 mm	Yes
RADOX 125, 0.25mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12521088-100	1 .	Polyolefin	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Green/yellow	Polyolefin (POE)	-40-125 °C	Green/yellow	Tinned	Yes	Spool HS150	4.35 mm	Yes
RADOX 125, 0.25mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12519498-100	1 .	Polyolefin	Other	None	No	None	Other	Yellow	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Yellow	Polyolefin (POE)	-40-125 °C	Yellow	Tinned	Yes	Spool HS150	4.35 mm	Yes
RADOX 125, 0.25mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12521081-100	1 .	Polyolefin	Other	None	No	None	Other	Orange	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Orange	Polyolefin (POE)	-40-125 °C	Orange	Tinned	Yes	Spool HS150	4.35 mm	Yes
RADOX 125, 0.25mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12521067-100	1 .	Polyolefin	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Red	Polyolefin (POE)	-40-125 °C	Red	Tinned	Yes	Spool HS150	4.35 mm	Yes
RADOX 125, 0.25mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12519496-100	1 .	Polyolefin	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Black	Polyolefin (POE)	-40-125 °C	Black	Tinned	Yes	Spool HS150	4.35 mm	Yes
RADOX 125, 0.25mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12516141-100	1 .	Polyolefin	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Purple	Polyolefin (POE)	-40-125 °C	Purple	Tinned	Yes	Spool HS150	4.35 mm	Yes
RADOX 125, 0.25mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12516294-100	1 .	Polyolefin	Other	None	No	None	Other	White	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	White	Polyolefin (POE)	-40-125 °C	White	Tinned	Yes	Spool HS150	4.35 mm	Yes
RADOX 125, 0.5mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12521075-100	1 .	Polyolefin	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Blue	Polyolefin (POE)	-40-125 °C	Blue	Tinned	Yes	Spool HS150	6 mm	Yes
RADOX 125, 0.5mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12515803-100	1 .	Polyolefin	Other	None	No	None	Other	Brown	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Brown	Polyolefin (POE)	-40-125 °C	Brown	Tinned	Yes	Spool HS150	6 mm	Yes
RADOX 125, 0.5mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12516086-100	1 .	Polyolefin	Other	None	No	None	Other	Green	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Green	Polyolefin (POE)	-40-125 °C	Green	Tinned	Yes	Spool HS150	6 mm	Yes
RADOX 125, 0.5mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12516087-100	1 .	Polyolefin	Other	None	No	None	Other	Grey	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Grey	Polyolefin (POE)	-40-125 °C	Grey	Tinned	Yes	Spool HS150	6 mm	Yes
RADOX 125, 0.5mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12516091-100	1 .	Polyolefin	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Green/yellow	Polyolefin (POE)	-40-125 °C	Green/yellow	Tinned	Yes	Spool HS150	6 mm	Yes
RADOX 125, 0.5mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12521076-100	1 .	Polyolefin	Other	None	No	None	Other	Yellow	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Yellow	Polyolefin (POE)	-40-125 °C	Yellow	Tinned	Yes	Spool HS150	6 mm	Yes
RADOX 125, 0.5mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12521074-100	1 .	Polyolefin	Other	None	No	None	Other	Orange	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Orange	Polyolefin (POE)	-40-125 °C	Orange	Tinned	Yes	Spool HS150	6 mm	Yes
RADOX 125, 0.5mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12516089-100	1 .	Polyolefin	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Red	Polyolefin (POE)	-40-125 °C	Red	Tinned	Yes	Spool HS150	6 mm	Yes
RADOX 125, 0.5mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12516088-100	1 .	Polyolefin	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Black	Polyolefin (POE)	-40-125 °C	Black	Tinned	Yes	Spool HS150	6 mm	Yes
RADOX 125, 0.5mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12521069-100	1 .	Polyolefin	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Purple	Polyolefin (POE)	-40-125 °C	Purple	Tinned	Yes	Spool HS150	6 mm	Yes
RADOX 125, 0.5mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12516080-100	1 .	Polyolefin	Other	None	No	None	Other	White	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	White	Polyolefin (POE)	-40-125 °C	White	Tinned	Yes	Spool HS150	6 mm	Yes
RADOX 125, 0.75mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12530433-100	1 .	Polyolefin	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Blue	Polyolefin (POE)	-40-125 °C	Blue	Tinned	Yes	Spool HS150	6.75 mm	Yes
RADOX 125, 0.75mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12530432-100	1 .	Polyolefin	Other	None	No	None	Other	Brown	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Brown	Polyolefin (POE)	-40-125 °C	Brown	Tinned	Yes	Spool HS150	6.75 mm	Yes
RADOX 125, 0.75mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12515493-100	1 .	Polyolefin	Other	None	No	None	Other	Grey	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Grey	Polyolefin (POE)	-40-125 °C	Grey	Tinned	Yes	Spool HS150	6.75 mm	Yes
RADOX 125, 0.75mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12515492-100	1 .	Polyolefin	Other	None	No	None	Other	Green	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Green	Polyolefin (POE)	-40-125 °C	Green	Tinned	Yes	Spool HS150	6.75 mm	Yes
RADOX 125, 0.75mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12530434-100	1 .	Polyolefin	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Green/yellow	Polyolefin (POE)	-40-125 °C	Green/yellow	Tinned	Yes	Spool HS150	6.75 mm	Yes
RADOX 125, 0.75mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12515491-100	1 .	Polyolefin	Other	None	No	None	Other	Yellow	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Yellow	Polyolefin (POE)	-40-125 °C	Yellow	Tinned	Yes	Spool HS150	6.75 mm	Yes
RADOX 125, 0.75mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12552231-100	1 .	Polyolefin	Other	None	No	None	Other	Orange	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Orange	Polyolefin (POE)	-40-125 °C	Orange	Tinned	Yes	Spool HS150	6.75 mm	Yes
RADOX 125, 0.75mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12515490-100	1 .	Polyolefin	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Red	Polyolefin (POE)	-40-125 °C	Red	Tinned	Yes	Spool HS150	6.75 mm	Yes
RADOX 125, 0.75mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12530436-100	1 .	Polyolefin	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Black	Polyolefin (POE)	-40-125 °C	Black	Tinned	Yes	Spool HS150	6.75 mm	Yes
RADOX 125, 0.75mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12536734-100	1 .	Polyolefin	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Purple	Polyolefin (POE)	-40-125 °C	Purple	Tinned	Yes	Spool HS150	6.75 mm	Yes
RADOX 125, 0.75mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12535952-100	1 .	Polyolefin	Other	None	No	None	Other	White	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	White	Polyolefin (POE)	-40-125 °C	White	Tinned	Yes	Spool HS150	6.75 mm	Yes
RADOX 125, 1.0mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12012060-100	1 .	Polyolefin	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Blue	Polyolefin (POE)	-40-125 °C	Blue	Tinned	Yes	Spool HS150	6.75 mm	Yes
RADOX 125, 1.0mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12012050-100	1 .	Polyolefin	Other	None	No	None	Other	Brown	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Brown	Polyolefin (POE)	-40-125 °C	Brown	Tinned	Yes	Spool HS150	6.75 mm	Yes
RADOX 125, 1.0mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12505624-100	1 .	Polyolefin	Other	None	No	None	Other	Grey	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Grey	Polyolefin (POE)	-40-125 °C	Grey	Tinned	Yes	Spool HS150	6.75 mm	Yes
RADOX 125, 1.0mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12536735-100	1 .	Polyolefin	Other	None	No	None	Other	Green	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Green	Polyolefin (POE)	-40-125 °C	Green	Tinned	Yes	Spool HS150	6.75 mm	No
RADOX 125, 1.0mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12012070-100	1 .	Polyolefin	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Green/yellow	Polyolefin (POE)	-40-125 °C	Green/yellow	Tinned	Yes	Spool HS150	6.75 mm	Yes
RADOX 125, 1.0mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12012090-100	1 .	Polyolefin	Other	None	No	None	Other	Yellow	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Yellow	Polyolefin (POE)	-40-125 °C	Yellow	Tinned	Yes	Spool HS150	6.75 mm	Yes
RADOX 125, 1.0mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12505622-100	1 .	Polyolefin	Other	None	No	None	Other	Orange	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Orange	Polyolefin (POE)	-40-125 °C	Orange	Tinned	Yes	Spool HS150	6.75 mm	Yes
RADOX 125, 1.0mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12012080-100	1 .	Polyolefin	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Red	Polyolefin (POE)	-40-125 °C	Red	Tinned	Yes	Spool HS150	6.75 mm	Yes
RADOX 125, 1.0mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12534452-100	1 .	Polyolefin	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Black	Polyolefin (POE)	-40-125 °C	Black	Tinned	Yes	Spool HS150	6.75 mm	Yes
RADOX 125, 1.0mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12505621-100	1 .	Polyolefin	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Purple	Polyolefin (POE)	-40-125 °C	Purple	Tinned	Yes	Spool HS150	6.75 mm	Yes
RADOX 125, 1.0mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12012040-100	1 .	Polyolefin	Other	None	No	None	Other	White	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	White	Polyolefin (POE)	-40-125 °C	White	Tinned	Yes	Spool HS150	6.75 mm	Yes
RADOX 125, 1.5mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12534453-100	1 .	Polyolefin	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Blue	Polyolefin (POE)	-40-125 °C	Blue	Tinned	Yes	Spool HS150	8.55 mm	Yes
RADOX 125, 1.5mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12534455-100	1 .	Polyolefin	Other	None	No	None	Other	Brown	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Brown	Polyolefin (POE)	-40-125 °C	Brown	Tinned	Yes	Spool HS150	8.55 mm	Yes
RADOX 125, 1.5mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12534454-100	1 .	Polyolefin	Other	None	No	None	Other	Grey	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Grey	Polyolefin (POE)	-40-125 °C	Grey	Tinned	Yes	Spool HS150	8.55 mm	Yes
RADOX 125, 1.5mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12536738-100	1 .	Polyolefin	Other	None	No	None	Other	Green	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Green	Polyolefin (POE)	-40-125 °C	Green	Tinned	Yes	Spool HS150	8.55 mm	Yes
RADOX 125, 1.5mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12536737-100	1 .	Polyolefin	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Green/yellow	Polyolefin (POE)	-40-125 °C	Green/yellow	Tinned	Yes	Spool HS150	8.55 mm	Yes
RADOX 125, 1.5mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12536736-100	1 .	Polyolefin	Other	None	No	None	Other	Yellow	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Yellow	Polyolefin (POE)	-40-125 °C	Yellow	Tinned	Yes	Spool HS150	8.55 mm	Yes
RADOX 125, 1.5mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12538161-100	1 .	Polyolefin	Other	None	No	None	Other	Orange	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Orange	Polyolefin (POE)	-40-125 °C	Orange	Tinned	Yes	Spool HS150	8.55 mm	Yes
RADOX 125, 1.5mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12535703-100	1 .	Polyolefin	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Red	Polyolefin (POE)	-40-125 °C	Red	Tinned	Yes	Spool HS150	8.55 mm	Yes
RADOX 125, 1.5mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12536739-100	1 .	Polyolefin	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Purple	Polyolefin (POE)	-40-125 °C	Purple	Tinned	Yes	Spool HS150	8.55 mm	No
RADOX 125, 1.5mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12528958-100	1 .	Polyolefin	Other	None	No	None	Other	White	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	White	Polyolefin (POE)	-40-125 °C	White	Tinned	Yes	Spool HS150	8.55 mm	Yes
RADOX 125, 1.5mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12535840-100	1 .	Polyolefin	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Black	Polyolefin (POE)	-40-125 °C	Black	Tinned	Yes	Spool HS150	8.55 mm	Yes
RADOX 125, 2.5mm2, BLUE SPOOL HS151, 600V, HF, FT, 125C	12535682-100	1 .	Polyolefin	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Blue	Polyolefin (POE)	-40-125 °C	Blue	Tinned	Yes	Spool HS151	10.05 mm	Yes
RADOX 125, 2.5mm2, BROWN SPOOL HS151, 600V, HF, FT, 125C	12535684-100	1 .	Polyolefin	Other	None	No	None	Other	Brown	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Brown	Polyolefin (POE)	-40-125 °C	Brown	Tinned	Yes	Spool HS151	10.05 mm	Yes
RADOX 125, 2.5mm2, GREY SPOOL HS151, 600V, HF, FT, 125C	12535843-100	1 .	Polyolefin	Other	None	No	None	Other	Grey	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Grey	Polyolefin (POE)	-40-125 °C	Grey	Tinned	Yes	Spool HS151	10.05 mm	Yes
RADOX 125, 2.5mm2, GREEN SPOOL HS151, 600V, HF, FT, 125C	12536740-100	1 .	Polyolefin	Other	None	No	None	Other	Green	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Green	Polyolefin (POE)	-40-125 °C	Green	Tinned	Yes	Spool HS151	10.05 mm	No
RADOX 125, 2.5mm2, GREEN/YELLOW SPOOL HS151, 600V, HF, FT, 125C	12535683-100	1 .	Polyolefin	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Green/yellow	Polyolefin (POE)	-40-125 °C	Green/yellow	Tinned	Yes	Spool HS151	10.05 mm	Yes
RADOX 125, 2.5mm2, YELLOW SPOOL HS151, 600V, HF, FT, 125C	12535714-100	1 .	Polyolefin	Other	None	No	None	Other	Yellow	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Yellow	Polyolefin (POE)	-40-125 °C	Yellow	Tinned	Yes	Spool HS151	10.05 mm	Yes
RADOX 125, 2.5mm2, RED SPOOL HS151, 600V, HF, FT, 125C	12535521-100	1 .	Polyolefin	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Red	Polyolefin (POE)	-40-125 °C	Red	Tinned	Yes	Spool HS151	10.05 mm	Yes
RADOX 125, 2.5mm2, BLACK SPOOL HS151, 600V, HF, FT, 125C	12534456-100	1 .	Polyolefin	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Black	Polyolefin (POE)	-40-125 °C	Black	Tinned	Yes	Spool HS151	10.05 mm	Yes
RADOX 125, 2.5mm2, WHITE SPOOL HS151, 600V, HF, FT, 125C	12535681-100	1 .	Polyolefin	Other	None	No	None	Other	White	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	White	Polyolefin (POE)	-40-125 °C	White	Tinned	Yes	Spool HS151	10.05 mm	Yes
RADOX 125, 4.0mm2, BLUE SPOOL HS151, 600V, HF, FT, 125C	12536742-100	1 .	Polyolefin	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Blue	Polyolefin (POE)	-40-125 °C	Blue	Tinned	Yes	Spool HS151	11.85 mm	No
RADOX 125, 4.0mm2, BROWN SPOOL HS151, 600V, HF, FT, 125C	12536741-100	1 .	Polyolefin	Other	None	No	None	Other	Brown	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Brown	Polyolefin (POE)	-40-125 °C	Brown	Tinned	Yes	Spool HS151	11.85 mm	Yes
RADOX 125, 4.0mm2, GREY SPOOL HS151, 600V, HF, FT, 125C	12536745-100	1 .	Polyolefin	Other	None	No	None	Other	Grey	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Grey	Polyolefin (POE)	-40-125 °C	Grey	Tinned	Yes	Spool HS151	11.85 mm	Yes
RADOX 125, 4.0mm2, GREEN SPOOL HS151, 600V, HF, FT, 125C	12535912-100	1 .	Polyolefin	Other	None	No	None	Other	Green	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Green	Polyolefin (POE)	-40-125 °C	Green	Tinned	Yes	Spool HS151	11.85 mm	No
RADOX 125, 4.0mm2, YELLOW SPOOL HS151, 600V, HF, FT, 125C	12536744-100	1 .	Polyolefin	Other	None	No	None	Other	Yellow	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Yellow	Polyolefin (POE)	-40-125 °C	Yellow	Tinned	Yes	Spool HS151	11.85 mm	Yes
RADOX 125, 4.0mm2, GREEN/YELLOW SPOOL HS151, 600V, HF, FT, 125C	12528959-100	1 .	Polyolefin	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Green/yellow	Polyolefin (POE)	-40-125 °C	Green/yellow	Tinned	Yes	Spool HS151	11.85 mm	Yes
RADOX 125, 4.0mm2, RED SPOOL HS151, 600V, HF, FT, 125C	12536743-100	1 .	Polyolefin	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Red	Polyolefin (POE)	-40-125 °C	Red	Tinned	Yes	Spool HS151	11.85 mm	Yes
RADOX 125, 4.0mm2, BLACK SPOOL HS151, 600V, HF, FT, 125C	12534457-100	1 .	Polyolefin	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Black	Polyolefin (POE)	-40-125 °C	Black	Tinned	Yes	Spool HS151	11.85 mm	Yes
RADOX 125, 4.0mm2, WHITE SPOOL HS151, 600V, HF, FT, 125C	12535911-100	1 .	Polyolefin	Other	None	No	None	Other	White	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	White	Polyolefin (POE)	-40-125 °C	White	Tinned	Yes	Spool HS151	11.85 mm	Yes
RADOX 125, 6.0mm2, BLUE SPOOL HS200, 600V, HF, FT, 125C	12560230-100	1 .	Polyolefin	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Blue	Polyolefin (POE)	-40-125 °C	Blue	Tinned	Yes	Spool HS200	13.95 mm	Yes
RADOX 125, 6.0mm2, BROWN SPOOL HS200, 600V, HF, FT, 125C	12560231-100	1 .	Polyolefin	Other	None	No	None	Other	Brown	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Brown	Polyolefin (POE)	-40-125 °C	Brown	Tinned	Yes	Spool HS200	13.95 mm	Yes
RADOX 125, 6.0mm2, GREY SPOOL B4, 600V, HF, FT, 125C	12586519-100	1 .	Polyolefin	Other	None	No	None	Other	Grey	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible	Single insulated	Grey			Grey	Tinned	Yes	Spool HS200	13.95 mm	Yes
RADOX 125, 6.0mm2, GREEN/YELLOW SPOOL HS200, 600V, HF, FT, 125C	12560233-100	1 .	Polyolefin	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Green/yellow	Polyolefin (POE)	-40-125 °C	Green/yellow	Tinned	Yes	Spool HS200	13.95 mm	Yes
RADOX 125, 6.0mm2, RED SPOOL HS200, 600V, HF, FT, 125C	12560234-100	1 .	Polyolefin	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Red	Polyolefin (POE)	-40-125 °C	Red	Tinned	Yes	Spool HS200	13.95 mm	Yes
RADOX 125, 6.0mm2, BLACK SPOOL HS200, 600V, HF, FT, 125C	12560235-100	1 .	Polyolefin	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Black	Polyolefin (POE)	-40-125 °C	Black	Tinned	Yes	Spool HS200	13.95 mm	Yes
RADOX 125, 6.0mm2, WHITE SPOOL HS200, 600V, HF, FT, 125C	12560236-100	1 .	Polyolefin	Other	None	No	None	Other	White	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	White	Polyolefin (POE)	-40-125 °C	White	Tinned	Yes	Spool HS200	13.95 mm	Yes
RADOX 125, 10mm2, BLUE 600V, HF, FT, 125C	12560238-100	1 .	Polyolefin	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Blue	Polyolefin (POE)	-40-125 °C	Blue	Tinned	Yes		16.8 mm	No
RADOX 125, 10mm2, BROWN 600V, HF, FT, 125C	12582444-100	1 .	Polyolefin	Other	None	No	None	Other	Brown	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Brown	Polyolefin (POE)	-40-125 °C	Brown	Tinned	Yes		16.8 mm	Yes
RADOX 125, 10mm2, GREEN/YELLOW 600V, HF, FT, 125C	12560240-100	1 .	Polyolefin	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Green/yellow	Polyolefin (POE)	-40-125 °C	Green/yellow	Tinned	Yes		16.8 mm	No
RADOX 125, 10mm2, RED 600V, HF, FT, 125C	12560241-100	1 .	Polyolefin	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Red	Polyolefin (POE)	-40-125 °C	Red	Tinned	Yes		16.8 mm	Yes
RADOX 125, 10mm2, BLACK 600V, HF, FT, 125C	12560242-100	1 .	Polyolefin	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Black	Polyolefin (POE)	-40-125 °C	Black	Tinned	Yes		16.8 mm	No
RADOX 125, 10mm2, WHITE 600V, HF, FT, 125C	12560243-100	1 .	Polyolefin	Other	None	No	None	Other	White	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	White	Polyolefin (POE)	-40-125 °C	White	Tinned	Yes		16.8 mm	Yes
RADOX 125, 16mm2, BLUE 600V, HF, FT, 125C	12560244-100	1 .	Polyolefin	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Blue	Polyolefin (POE)	-40-125 °C	Blue	Tinned	Yes		20.25 mm	Yes
RADOX 125, 16mm2, BLACK 600V, HF, FT, 125C	12560249-100	1 .	Polyolefin	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-55-145 °C	Copper	No	125 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Black	Polyolefin (POE)	-40-125 °C	Black	Tinned	Yes		20.25 mm	Yes

Total: 88

Other information

Page size:

Total: 88

Product Description	Stock code	ETIM-Class	ETIM-Release	Product Group	Search Description	Alternative SKU	Availability
RADOX 125, 0.25mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12521082-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12521082-100	Yes
RADOX 125, 0.25mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12519497-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12519497-100	Yes
RADOX 125, 0.25mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12518105-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12518105-100	Yes
RADOX 125, 0.25mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12521066-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12521066-100	Yes
RADOX 125, 0.25mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12521088-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12521088-100	Yes
RADOX 125, 0.25mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12519498-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12519498-100	Yes
RADOX 125, 0.25mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12521081-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12521081-100	Yes
RADOX 125, 0.25mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12521067-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12521067-100	Yes
RADOX 125, 0.25mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12519496-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12519496-100	Yes
RADOX 125, 0.25mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12516141-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12516141-100	Yes
RADOX 125, 0.25mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12516294-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12516294-100	Yes
RADOX 125, 0.5mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12521075-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12521075-100	Yes
RADOX 125, 0.5mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12515803-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12515803-100	Yes
RADOX 125, 0.5mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12516086-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12516086-100	Yes
RADOX 125, 0.5mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12516087-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12516087-100	Yes
RADOX 125, 0.5mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12516091-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12516091-100	Yes
RADOX 125, 0.5mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12521076-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12521076-100	Yes
RADOX 125, 0.5mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12521074-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12521074-100	Yes
RADOX 125, 0.5mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12516089-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12516089-100	Yes
RADOX 125, 0.5mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12516088-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12516088-100	Yes
RADOX 125, 0.5mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12521069-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12521069-100	Yes
RADOX 125, 0.5mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12516080-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12516080-100	Yes
RADOX 125, 0.75mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12530433-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12530433-100	Yes
RADOX 125, 0.75mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12530432-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12530432-100	Yes
RADOX 125, 0.75mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12515493-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12515493-100	Yes
RADOX 125, 0.75mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12515492-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12515492-100	Yes
RADOX 125, 0.75mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12530434-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12530434-100	Yes
RADOX 125, 0.75mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12515491-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12515491-100	Yes
RADOX 125, 0.75mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12552231-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12552231-100	Yes
RADOX 125, 0.75mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12515490-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12515490-100	Yes
RADOX 125, 0.75mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12530436-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12530436-100	Yes
RADOX 125, 0.75mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12536734-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12536734-100	Yes
RADOX 125, 0.75mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12535952-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12535952-100	Yes
RADOX 125, 1.0mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12012060-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12012060-100	Yes
RADOX 125, 1.0mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12012050-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12012050-100	Yes
RADOX 125, 1.0mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12505624-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12505624-100	Yes
RADOX 125, 1.0mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12536735-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12536735-100	No
RADOX 125, 1.0mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12012070-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12012070-100	Yes
RADOX 125, 1.0mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12012090-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12012090-100	Yes
RADOX 125, 1.0mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12505622-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12505622-100	Yes
RADOX 125, 1.0mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12012080-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12012080-100	Yes
RADOX 125, 1.0mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12534452-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12534452-100	Yes
RADOX 125, 1.0mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12505621-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12505621-100	Yes
RADOX 125, 1.0mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12012040-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12012040-100	Yes
RADOX 125, 1.5mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12534453-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12534453-100	Yes
RADOX 125, 1.5mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12534455-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12534455-100	Yes
RADOX 125, 1.5mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12534454-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12534454-100	Yes
RADOX 125, 1.5mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12536738-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12536738-100	Yes
RADOX 125, 1.5mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12536737-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12536737-100	Yes
RADOX 125, 1.5mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12536736-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12536736-100	Yes
RADOX 125, 1.5mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12538161-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12538161-100	Yes
RADOX 125, 1.5mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12535703-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12535703-100	Yes
RADOX 125, 1.5mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12536739-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12536739-100	No
RADOX 125, 1.5mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12528958-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12528958-100	Yes
RADOX 125, 1.5mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12535840-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12535840-100	Yes
RADOX 125, 2.5mm2, BLUE SPOOL HS151, 600V, HF, FT, 125C	12535682-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12535682-100	Yes
RADOX 125, 2.5mm2, BROWN SPOOL HS151, 600V, HF, FT, 125C	12535684-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12535684-100	Yes
RADOX 125, 2.5mm2, GREY SPOOL HS151, 600V, HF, FT, 125C	12535843-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12535843-100	Yes
RADOX 125, 2.5mm2, GREEN SPOOL HS151, 600V, HF, FT, 125C	12536740-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12536740-100	No
RADOX 125, 2.5mm2, GREEN/YELLOW SPOOL HS151, 600V, HF, FT, 125C	12535683-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12535683-100	Yes
RADOX 125, 2.5mm2, YELLOW SPOOL HS151, 600V, HF, FT, 125C	12535714-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12535714-100	Yes
RADOX 125, 2.5mm2, RED SPOOL HS151, 600V, HF, FT, 125C	12535521-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12535521-100	Yes
RADOX 125, 2.5mm2, BLACK SPOOL HS151, 600V, HF, FT, 125C	12534456-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12534456-100	Yes
RADOX 125, 2.5mm2, WHITE SPOOL HS151, 600V, HF, FT, 125C	12535681-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12535681-100	Yes
RADOX 125, 4.0mm2, BLUE SPOOL HS151, 600V, HF, FT, 125C	12536742-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12536742-100	No
RADOX 125, 4.0mm2, BROWN SPOOL HS151, 600V, HF, FT, 125C	12536741-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12536741-100	Yes
RADOX 125, 4.0mm2, GREY SPOOL HS151, 600V, HF, FT, 125C	12536745-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12536745-100	Yes
RADOX 125, 4.0mm2, GREEN SPOOL HS151, 600V, HF, FT, 125C	12535912-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12535912-100	No
RADOX 125, 4.0mm2, YELLOW SPOOL HS151, 600V, HF, FT, 125C	12536744-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12536744-100	Yes
RADOX 125, 4.0mm2, GREEN/YELLOW SPOOL HS151, 600V, HF, FT, 125C	12528959-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12528959-100	Yes
RADOX 125, 4.0mm2, RED SPOOL HS151, 600V, HF, FT, 125C	12536743-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12536743-100	Yes
RADOX 125, 4.0mm2, BLACK SPOOL HS151, 600V, HF, FT, 125C	12534457-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12534457-100	Yes
RADOX 125, 4.0mm2, WHITE SPOOL HS151, 600V, HF, FT, 125C	12535911-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12535911-100	Yes
RADOX 125, 6.0mm2, BLUE SPOOL HS200, 600V, HF, FT, 125C	12560230-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12560230-100	Yes
RADOX 125, 6.0mm2, BROWN SPOOL HS200, 600V, HF, FT, 125C	12560231-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12560231-100	Yes
RADOX 125, 6.0mm2, GREY SPOOL B4, 600V, HF, FT, 125C	12586519-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12586519-100	Yes
RADOX 125, 6.0mm2, GREEN/YELLOW SPOOL HS200, 600V, HF, FT, 125C	12560233-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12560233-100	Yes
RADOX 125, 6.0mm2, RED SPOOL HS200, 600V, HF, FT, 125C	12560234-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12560234-100	Yes
RADOX 125, 6.0mm2, BLACK SPOOL HS200, 600V, HF, FT, 125C	12560235-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12560235-100	Yes
RADOX 125, 6.0mm2, WHITE SPOOL HS200, 600V, HF, FT, 125C	12560236-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12560236-100	Yes
RADOX 125, 10mm2, BLUE 600V, HF, FT, 125C	12560238-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12560238-100	No
RADOX 125, 10mm2, BROWN 600V, HF, FT, 125C	12582444-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12582444-100	Yes
RADOX 125, 10mm2, GREEN/YELLOW 600V, HF, FT, 125C	12560240-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12560240-100	No
RADOX 125, 10mm2, RED 600V, HF, FT, 125C	12560241-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12560241-100	Yes
RADOX 125, 10mm2, BLACK 600V, HF, FT, 125C	12560242-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12560242-100	No
RADOX 125, 10mm2, WHITE 600V, HF, FT, 125C	12560243-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12560243-100	Yes
RADOX 125, 16mm2, BLUE 600V, HF, FT, 125C	12560244-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12560244-100	Yes
RADOX 125, 16mm2, BLACK 600V, HF, FT, 125C	12560249-100	EC003248 - Power cable < 1 kV, for permanent installation	7.0	RXL 125, Single conductor, Tinned	RXL 125	12560249-100	Yes

Total: 88

Accessories

Spare Parts

Product video

Documents

Manuals, Datasheets, Sketches & Drawings

RADOX 125_Eng

Dimensions

Page size:

Total: 88

Product Description	Stock code	Nominal cross section conductor	MOQ	Outer diameter approx.	Min. permitted bending radius, stationary application/permanent installation	Unit	Nominal voltage	Availability
RADOX 125, 0.25mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12521082-100	0.25 mm²	100 .	1.45 mm	4.35 mm	m	600 V	Yes
RADOX 125, 0.25mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12519497-100	0.25 mm²	100 .	1.45 mm	4.35 mm	m	600 V	Yes
RADOX 125, 0.25mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12518105-100	0.25 mm²	100 .	1.45 mm	4.35 mm	m	600 V	Yes
RADOX 125, 0.25mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12521066-100	0.25 mm²	100 .	1.45 mm	4.35 mm	m	600 V	Yes
RADOX 125, 0.25mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12521088-100	0.25 mm²	100 .	1.45 mm	4.35 mm	m	600 V	Yes
RADOX 125, 0.25mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12519498-100	0.25 mm²	100 .	1.45 mm	4.35 mm	m	600 V	Yes
RADOX 125, 0.25mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12521081-100	0.25 mm²	100 .	1.45 mm	4.35 mm	m	600 V	Yes
RADOX 125, 0.25mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12521067-100	0.25 mm²	100 .	1.45 mm	4.35 mm	m	600 V	Yes
RADOX 125, 0.25mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12519496-100	0.25 mm²	100 .	1.45 mm	4.35 mm	m	600 V	Yes
RADOX 125, 0.25mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12516141-100	0.25 mm²	100 .	1.45 mm	4.35 mm	m	600 V	Yes
RADOX 125, 0.25mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12516294-100	0.25 mm²	100 .	1.45 mm	4.35 mm	m	600 V	Yes
RADOX 125, 0.5mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12521075-100	0.5 mm²	100 .	2 mm	6 mm	m	600 V	Yes
RADOX 125, 0.5mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12515803-100	0.5 mm²	100 .	2 mm	6 mm	m	600 V	Yes
RADOX 125, 0.5mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12516086-100	0.5 mm²	100 .	2 mm	6 mm	m	600 V	Yes
RADOX 125, 0.5mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12516087-100	0.5 mm²	100 .	2 mm	6 mm	m	600 V	Yes
RADOX 125, 0.5mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12516091-100	0.5 mm²	100 .	2 mm	6 mm	m	600 V	Yes
RADOX 125, 0.5mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12521076-100	0.5 mm²	100 .	2 mm	6 mm	m	600 V	Yes
RADOX 125, 0.5mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12521074-100	0.5 mm²	100 .	2 mm	6 mm	m	600 V	Yes
RADOX 125, 0.5mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12516089-100	0.5 mm²	100 .	2 mm	6 mm	m	600 V	Yes
RADOX 125, 0.5mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12516088-100	0.5 mm²	100 .	2 mm	6 mm	m	600 V	Yes
RADOX 125, 0.5mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12521069-100	0.5 mm²	100 .	2 mm	6 mm	m	600 V	Yes
RADOX 125, 0.5mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12516080-100	0.5 mm²	100 .	2 mm	6 mm	m	600 V	Yes
RADOX 125, 0.75mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12530433-100	0.75 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 0.75mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12530432-100	0.75 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 0.75mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12515493-100	0.75 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 0.75mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12515492-100	0.75 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 0.75mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12530434-100	0.75 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 0.75mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12515491-100	0.75 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 0.75mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12552231-100	0.75 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 0.75mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12515490-100	0.75 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 0.75mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12530436-100	0.75 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 0.75mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12536734-100	0.75 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 0.75mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12535952-100	0.75 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 1.0mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12012060-100	1 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 1.0mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12012050-100	1 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 1.0mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12505624-100	1 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 1.0mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12536735-100	1 mm²	5000 .	2.25 mm	6.75 mm	m	600 V	No
RADOX 125, 1.0mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12012070-100	1 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 1.0mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12012090-100	1 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 1.0mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12505622-100	1 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 1.0mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12012080-100	1 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 1.0mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12534452-100	1 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 1.0mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12505621-100	1 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 1.0mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12012040-100	1 mm²	100 .	2.25 mm	6.75 mm	m	600 V	Yes
RADOX 125, 1.5mm2, BLUE SPOOL HS150, 600V, HF, FT, 125C	12534453-100	1.5 mm²	100 .	2.85 mm	8.55 mm	m	600 V	Yes
RADOX 125, 1.5mm2, BROWN SPOOL HS150, 600V, HF, FT, 125C	12534455-100	1.5 mm²	100 .	2.85 mm	8.55 mm	m	600 V	Yes
RADOX 125, 1.5mm2, GREY SPOOL HS150, 600V, HF, FT, 125C	12534454-100	1.5 mm²	100 .	2.85 mm	8.55 mm	m	600 V	Yes
RADOX 125, 1.5mm2, GREEN SPOOL HS150, 600V, HF, FT, 125C	12536738-100	1.5 mm²	100 .	2.85 mm	8.55 mm	m	600 V	Yes
RADOX 125, 1.5mm2, GREEN/YELLOW SPOOL HS150, 600V, HF, FT, 125C	12536737-100	1.5 mm²	100 .	2.85 mm	8.55 mm	m	600 V	Yes
RADOX 125, 1.5mm2, YELLOW SPOOL HS150, 600V, HF, FT, 125C	12536736-100	1.5 mm²	100 .	2.85 mm	8.55 mm	m	600 V	Yes
RADOX 125, 1.5mm2, ORANGE SPOOL HS150, 600V, HF, FT, 125C	12538161-100	1.5 mm²	100 .	2.85 mm	8.55 mm	m	600 V	Yes
RADOX 125, 1.5mm2, RED SPOOL HS150, 600V, HF, FT, 125C	12535703-100	1.5 mm²	100 .	2.85 mm	8.55 mm	m	600 V	Yes
RADOX 125, 1.5mm2, VIOLET SPOOL HS150, 600V, HF, FT, 125C	12536739-100	1.5 mm²	100 .	2.85 mm	8.55 mm	m	600 V	No
RADOX 125, 1.5mm2, WHITE SPOOL HS150, 600V, HF, FT, 125C	12528958-100	1.5 mm²	100 .	2.85 mm	8.55 mm	m	600 V	Yes
RADOX 125, 1.5mm2, BLACK SPOOL HS150, 600V, HF, FT, 125C	12535840-100	1.5 mm²	100 .	2.85 mm	8.55 mm	m	600 V	Yes
RADOX 125, 2.5mm2, BLUE SPOOL HS151, 600V, HF, FT, 125C	12535682-100	2.5 mm²	100 .	3.35 mm	10.05 mm	m	600 V	Yes
RADOX 125, 2.5mm2, BROWN SPOOL HS151, 600V, HF, FT, 125C	12535684-100	2.5 mm²	100 .	3.35 mm	10.05 mm	m	600 V	Yes
RADOX 125, 2.5mm2, GREY SPOOL HS151, 600V, HF, FT, 125C	12535843-100	2.5 mm²	100 .	3.35 mm	10.05 mm	m	600 V	Yes
RADOX 125, 2.5mm2, GREEN SPOOL HS151, 600V, HF, FT, 125C	12536740-100	2.5 mm²	100 .	3.35 mm	10.05 mm	m	600 V	No
RADOX 125, 2.5mm2, GREEN/YELLOW SPOOL HS151, 600V, HF, FT, 125C	12535683-100	2.5 mm²	100 .	3.35 mm	10.05 mm	m	600 V	Yes
RADOX 125, 2.5mm2, YELLOW SPOOL HS151, 600V, HF, FT, 125C	12535714-100	2.5 mm²	100 .	3.35 mm	10.05 mm	m	600 V	Yes
RADOX 125, 2.5mm2, RED SPOOL HS151, 600V, HF, FT, 125C	12535521-100	2.5 mm²	100 .	3.35 mm	10.05 mm	m	600 V	Yes
RADOX 125, 2.5mm2, BLACK SPOOL HS151, 600V, HF, FT, 125C	12534456-100	2.5 mm²	100 .	3.35 mm	10.05 mm	m	600 V	Yes
RADOX 125, 2.5mm2, WHITE SPOOL HS151, 600V, HF, FT, 125C	12535681-100	2.5 mm²	100 .	3.35 mm	10.05 mm	m	600 V	Yes
RADOX 125, 4.0mm2, BLUE SPOOL HS151, 600V, HF, FT, 125C	12536742-100	4 mm²	100 .	3.95 mm	11.85 mm	m	600 V	No
RADOX 125, 4.0mm2, BROWN SPOOL HS151, 600V, HF, FT, 125C	12536741-100	4 mm²	100 .	3.95 mm	11.85 mm	m	600 V	Yes
RADOX 125, 4.0mm2, GREY SPOOL HS151, 600V, HF, FT, 125C	12536745-100	4 mm²	100 .	3.95 mm	11.85 mm	m	600 V	Yes
RADOX 125, 4.0mm2, GREEN SPOOL HS151, 600V, HF, FT, 125C	12535912-100	4 mm²	100 .	3.95 mm	11.85 mm	m	600 V	No
RADOX 125, 4.0mm2, YELLOW SPOOL HS151, 600V, HF, FT, 125C	12536744-100	4 mm²	100 .	3.95 mm	11.85 mm	m	600 V	Yes
RADOX 125, 4.0mm2, GREEN/YELLOW SPOOL HS151, 600V, HF, FT, 125C	12528959-100	4 mm²	100 .	3.95 mm	11.85 mm	m	600 V	Yes
RADOX 125, 4.0mm2, RED SPOOL HS151, 600V, HF, FT, 125C	12536743-100	4 mm²	100 .	3.95 mm	11.85 mm	m	600 V	Yes
RADOX 125, 4.0mm2, BLACK SPOOL HS151, 600V, HF, FT, 125C	12534457-100	4 mm²	100 .	3.95 mm	11.85 mm	m	600 V	Yes
RADOX 125, 4.0mm2, WHITE SPOOL HS151, 600V, HF, FT, 125C	12535911-100	4 mm²	100 .	3.95 mm	11.85 mm	m	600 V	Yes
RADOX 125, 6.0mm2, BLUE SPOOL HS200, 600V, HF, FT, 125C	12560230-100	6 mm²	100 .	4.65 mm	13.95 mm	m	600 V	Yes
RADOX 125, 6.0mm2, BROWN SPOOL HS200, 600V, HF, FT, 125C	12560231-100	6 mm²	100 .	4.65 mm	13.95 mm	m	600 V	Yes
RADOX 125, 6.0mm2, GREY SPOOL B4, 600V, HF, FT, 125C	12586519-100	6 mm²	2500 .	4.65 mm	13.95 mm	m		Yes
RADOX 125, 6.0mm2, GREEN/YELLOW SPOOL HS200, 600V, HF, FT, 125C	12560233-100	6 mm²	100 .	4.65 mm	13.95 mm	m	600 V	Yes
RADOX 125, 6.0mm2, RED SPOOL HS200, 600V, HF, FT, 125C	12560234-100	6 mm²	100 .	4.65 mm	13.95 mm	m	600 V	Yes
RADOX 125, 6.0mm2, BLACK SPOOL HS200, 600V, HF, FT, 125C	12560235-100	6 mm²	100 .	4.65 mm	13.95 mm	m	600 V	Yes
RADOX 125, 6.0mm2, WHITE SPOOL HS200, 600V, HF, FT, 125C	12560236-100	6 mm²	100 .	4.65 mm	13.95 mm	m	600 V	Yes
RADOX 125, 10mm2, BLUE 600V, HF, FT, 125C	12560238-100	10 mm²	100 .	5.6 mm	16.8 mm	m	600 V	No
RADOX 125, 10mm2, BROWN 600V, HF, FT, 125C	12582444-100	10 mm²	100 .	5.6 mm	16.8 mm	m	600 V	Yes
RADOX 125, 10mm2, GREEN/YELLOW 600V, HF, FT, 125C	12560240-100	10 mm²	100 .	5.6 mm	16.8 mm	m	600 V	No
RADOX 125, 10mm2, RED 600V, HF, FT, 125C	12560241-100	10 mm²	2500 .	5.6 mm	16.8 mm	m	600 V	Yes
RADOX 125, 10mm2, BLACK 600V, HF, FT, 125C	12560242-100	10 mm²	100 .	5.6 mm	16.8 mm	m	600 V	No
RADOX 125, 10mm2, WHITE 600V, HF, FT, 125C	12560243-100	10 mm²	100 .	5.6 mm	16.8 mm	m	600 V	Yes
RADOX 125, 16mm2, BLUE 600V, HF, FT, 125C	12560244-100	16 mm²	100 .	6.75 mm	20.25 mm	m	600 V	Yes
RADOX 125, 16mm2, BLACK 600V, HF, FT, 125C	12560249-100	16 mm²	100 .	6.75 mm	20.25 mm	m	600 V	Yes
