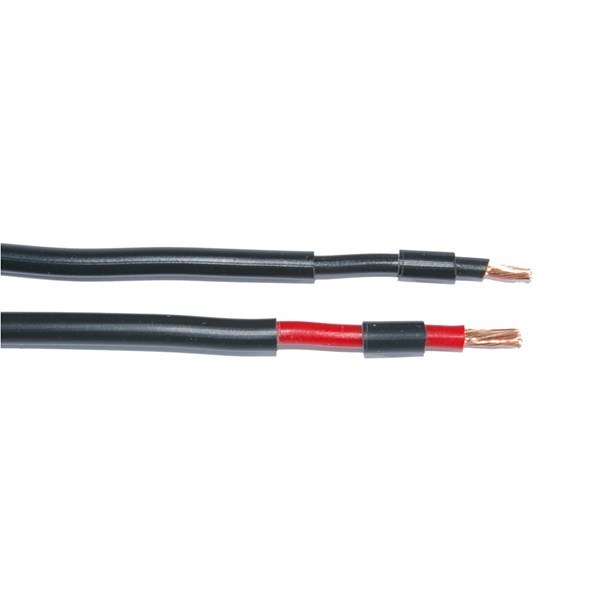

RKKB Single conductor
Round double-insulated flexible connection cable for vehicle applications that comply with ISO 6722, class A.

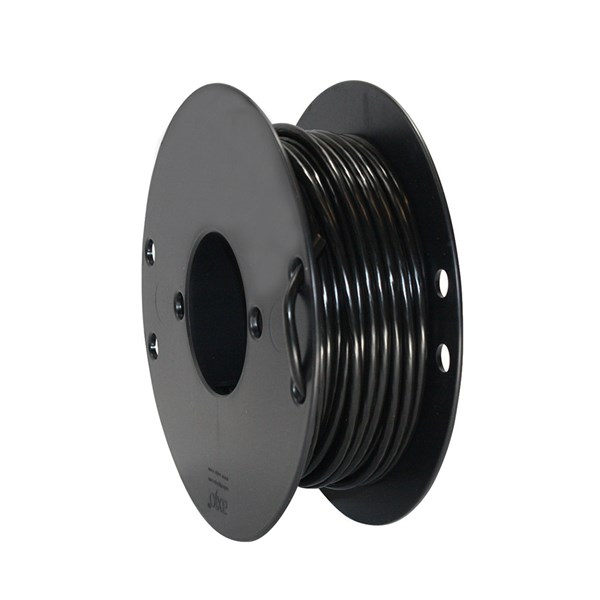

Packaging (YD x Hub x Width):
Spool B3: 160mm x 56mm x 50mm
Construction
Conductor: Glossy multi-wire copper
Conductor insulation: PVC
Conductor color scheme: black, red
Coat color: black, red
Technical properties
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 60 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Double insulated
- Colour:
- Red/black, Black/Black
- Operating temperature:
- -25-70 °C
- Core colour:
- Several
- Conductor surface:
- Bare
- Packaging:
- Reel B3
- Min. permitted bending radius, stationary application/permanent installation:
- 13.4 mm, 15 mm, 10.6 mm
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_RKKB, RKXB, RKUB, R2G4
Dimensions
- Total: 7
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Diameter conductor | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| RKKB, 1x0.75mm2, RED/BLACK SPOOL B3, 60V, PVC, 70C | 0.75 mm² | 100 . | 2.65 mm | 10.6 mm | 0.75 mm | m | 60 V |
Yes
|
|
|
| RKKB, 1x1.5mm2, BLACK/BLACK SPOOL B3, 60V, PVC, 70C | 1.5 mm² | 100 . | 3.35 mm | 13.4 mm | 1.5 mm | m | 60 V |
Yes
|
|
|
| RKKB, 1x1.5mm2, RED/BLACK SPOOL B3, 60V, PVC, 70C | 1.5 mm² | 100 . | 3.35 mm | 13.4 mm | 1.5 mm | m | 60 V |
Yes
|
|
|
| RKKB, 1x1.5mm2, RED/BLACK SPOOL B3, 60V, PVC, 70C | 1.5 mm² | 50 . | 3.35 mm | 13.4 mm | 1.5 mm | m | 60 V |
Yes
|
|
|
| RKKB, 1x2.5mm2, BLACK/BLACK SPOOL B3, 60V, PVC, 70C | 2.5 mm² | 100 . | 3.75 mm | 15 mm | 2.5 mm | m | 60 V |
Yes
|
|
|
| RKKB, 1x2.5mm2, RED/BLACK SPOOL B3, 60V, PVC, 70C | 2.5 mm² | 100 . | 3.75 mm | 15 mm | 2.5 mm | m | 60 V |
Yes
|
|
|
| RKKB, 1x2.5mm2, RED/BLACK SPOOL B3, 60V, PVC, 70C | 2.5 mm² | 25 . | 3.75 mm | 15 mm | 2.5 mm | m | 60 V |
Yes
|
|
|
- Total: 7
Similar Options
Approvals
- Total: 7
| Product Description | Reaction-to-fire class according to EN 13501-6 | Smoke development class according to EN 13501-6 | Euro class flaming droplets/particles according to EN 13501-6 | Euro class acidity according to EN 13501-6 | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant (according to EN 60811-404) | Flame retardant | Approved according to CE | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RKKB, 1x0.75mm2, RED/BLACK SPOOL B3, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 1x1.5mm2, BLACK/BLACK SPOOL B3, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 1x1.5mm2, RED/BLACK SPOOL B3, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 1x1.5mm2, RED/BLACK SPOOL B3, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 1x2.5mm2, BLACK/BLACK SPOOL B3, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 1x2.5mm2, RED/BLACK SPOOL B3, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 1x2.5mm2, RED/BLACK SPOOL B3, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
- Total: 7
Technical Properties
- Total: 7
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Single insulated/Double insulated | Colour | Operating temperature | Core colour | Conductor surface | Packaging | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RKKB, 1x0.75mm2, RED/BLACK SPOOL B3, 60V, PVC, 70C | 1 . | Polyvinyl chloride (PVC) | Other | Colour | No | None | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Red/black | -25-70 °C | Several | Bare | Reel B3 | 10.6 mm |
Yes
|
|
|
| RKKB, 1x1.5mm2, BLACK/BLACK SPOOL B3, 60V, PVC, 70C | 1 . | Polyvinyl chloride (PVC) | Other | Colour | No | None | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black/Black | -25-70 °C | Several | Bare | Reel B3 | 13.4 mm |
Yes
|
|
|
| RKKB, 1x1.5mm2, RED/BLACK SPOOL B3, 60V, PVC, 70C | 1 . | Polyvinyl chloride (PVC) | Other | Colour | No | None | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Red/black | -25-70 °C | Several | Bare | Reel B3 | 13.4 mm |
Yes
|
|
|
| RKKB, 1x1.5mm2, RED/BLACK SPOOL B3, 60V, PVC, 70C | 1 . | Polyvinyl chloride (PVC) | Other | Colour | No | None | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Red/black | -25-70 °C | Several | Bare | Reel B3 | 13.4 mm |
Yes
|
|
|
| RKKB, 1x2.5mm2, BLACK/BLACK SPOOL B3, 60V, PVC, 70C | 1 . | Polyvinyl chloride (PVC) | Other | Colour | No | None | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black/Black | -25-70 °C | Several | Bare | Reel B3 | 15 mm |
Yes
|
|
|
| RKKB, 1x2.5mm2, RED/BLACK SPOOL B3, 60V, PVC, 70C | 1 . | Polyvinyl chloride (PVC) | Other | Colour | No | None | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Red/black | -25-70 °C | Several | Bare | Reel B3 | 15 mm |
Yes
|
|
|
| RKKB, 1x2.5mm2, RED/BLACK SPOOL B3, 60V, PVC, 70C | 1 . | Polyvinyl chloride (PVC) | Other | Colour | No | None | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Red/black | -25-70 °C | Several | Bare | Reel B3 | 15 mm |
Yes
|
|
|
- Total: 7
Other information
- Total: 7
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| RKKB, 1x0.75mm2, RED/BLACK SPOOL B3, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - RKKB, Single conductor, Red copper | DUBBELISOL: SVART YTTERM,RÖD INNERM.BOBIN 100 M | 050849 |
Yes
|
|
|
| RKKB, 1x1.5mm2, BLACK/BLACK SPOOL B3, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - RKKB, Single conductor, Red copper | DUBBELISOL: SVART YTTERM,SVART INNERM.BOBIN 100 M | 050850 |
Yes
|
|
|
| RKKB, 1x1.5mm2, RED/BLACK SPOOL B3, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - RKKB, Single conductor, Red copper | DUBBELISOL: RÖD YTTERM,SVART INNERM.BOBIN 100 M | 050851 |
Yes
|
|
|
| RKKB, 1x1.5mm2, RED/BLACK SPOOL B3, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - RKKB, Single conductor, Red copper | DUBBELISOL: RÖD YTTERM,SVART INNERM.BOBIN 50 M | 050851-50 |
Yes
|
|
|
| RKKB, 1x2.5mm2, BLACK/BLACK SPOOL B3, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - RKKB, Single conductor, Red copper | DUBBELISOL: SVART YTTERM,SVART INNERM.BOBIN 100 M | 050852 |
Yes
|
|
|
| RKKB, 1x2.5mm2, RED/BLACK SPOOL B3, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - RKKB, Single conductor, Red copper | DUBBELISOL: RÖD YTTERM,SVART INNERM.BOBIN 100 M | 050853 |
Yes
|
|
|
| RKKB, 1x2.5mm2, RED/BLACK SPOOL B3, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - RKKB, Single conductor, Red copper | DUBBELISOL: RÖD YTTERM,SVART INNERM.BOBIN 25 M | 050853-25 |
Yes
|
|
|
- Total: 7
