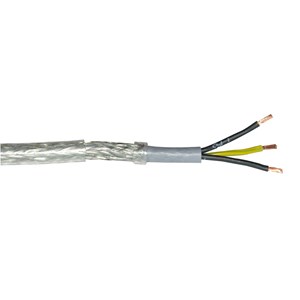

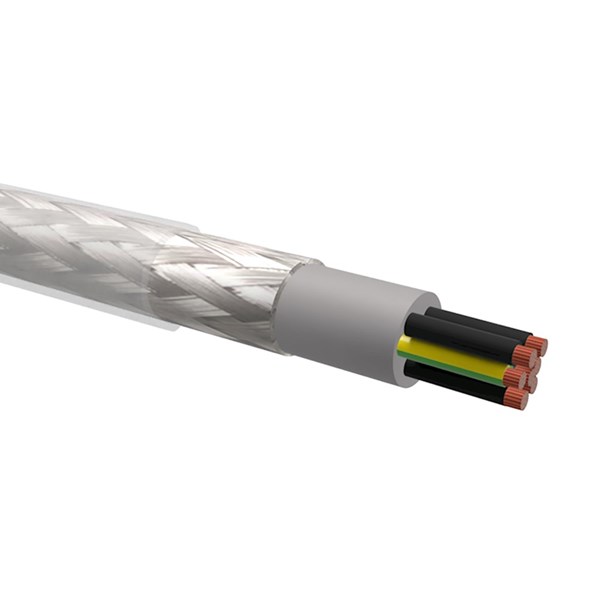

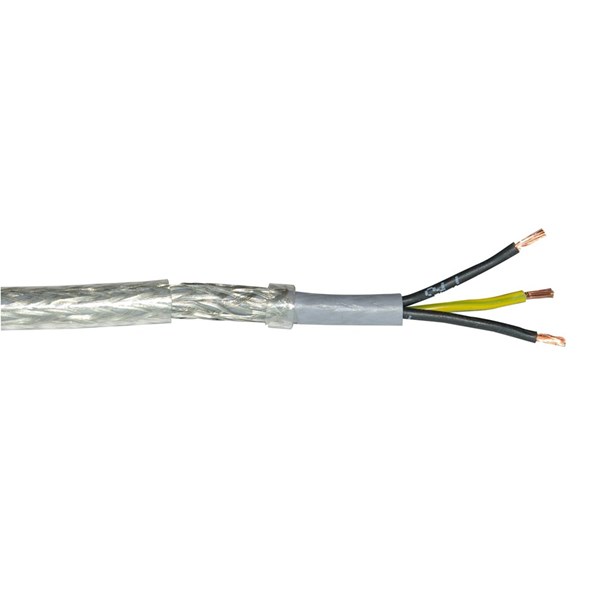

NELCOFLEX-CY (EMC) - Korta längder
Flexible oil resistant cable is resistant to the effects of chemicals and acids. The finely stranded structure in combination with PVC sheath provides a very flexible cable with a small bending radius. The cable is fitted with a screen of tinned braided copper wire, which protects against mechanical loads and in particular all shields electrical freqvencly as well inside and outside the cable (EMC Directive).
It is used as command and control cable, and in industrial machinery, in cooling and ventilation as well as in computer and signal systems.
Can be used in dry and wet areas.
Structure
Conductor: Blank stranded copper
Conductor insulation: PVC
Conductor identification: Black with white numbers mark. Green-yellow protective conductors
Inner Sheath: PVC
Screen: Tinned copper braid
Outer Sheath: PVC
Sheath Colour: Transparent
Technical data:
Rating voltage: 300/500 V
Test voltage: 3000 V
Minimum bending radius: 6 x cable diameter
Temperature range: Fixed min/max: -40ºC to +70ºC (-40ºF to +158ºF)
Moving min/max: -5ºC to +70ºC (+23ºF to +158ºF)
Radiation Best: 8 x 10 7 [/ sup] cJ / kg
Minimum bending radius: 6 x cable diameter
Oil resistance: Good
Flame resistance: IEC 332-1
Approvals: Meets Swedish and European standards asSS EN 60204
Technical properties
- Number of cores:
- 50 ., 3 ., 4 ., 5 ., 18 ., 25 ., 2 ., 7 ., 12 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Numbers
- Protective conductor:
- Yes, No
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- Yes
- Protective barrier:
- N/A
- Armouring/reinforcement:
- Braiding
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- No, No
- Conductor category:
- Class 5 = flexible
- Colour:
- Transparent
- Material insulation:
- Polyvinyl chloride (PVC)
- Operating temperature:
- -40-70 °C
- Core colour:
- Several
- Conductor surface:
- Bare, Tinned
- Min. permitted bending radius, stationary application/permanent installation:
- 92.8 mm, 31.6 mm, 33.6 mm, 36.4 mm, 58 mm, 66.4 mm, 32.8 mm, 35.6 mm, 38.4 mm, 41.2 mm, 45.2 mm, 59.2 mm, 68.4 mm, 50.4 mm, 56 mm, 62 mm, 69.6 mm, 77.2 mm, 105.6 mm
Show more
Item List
- Total: 21
- Total: 21
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 21
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Diameter conductor | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| NELCOFLEX-CY, 50G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | 0.75 mm² | 1 . | 23.2 mm | 92.8 mm | 0.75 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-CY, 3G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | 0.75 mm² | 1 . | 7.9 mm | 31.6 mm | 0.75 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-CY, 4G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | 0.75 mm² | 1 . | 8.4 mm | 33.6 mm | 0.75 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-CY, 5G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | 0.75 mm² | 1 . | 9.1 mm | 36.4 mm | 0.75 mm | m | 500 V |
No
|
|
|
| NELCOFLEX-CY, 18G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | 0.75 mm² | 1 . | 14.5 mm | 58 mm | 0.75 mm | m | 500 V |
No
|
|
|
| NELCOFLEX-CY, 25G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | 0.75 mm² | 1 . | 16.6 mm | 66.4 mm | 0.75 mm | m | 500 V |
No
|
|
|
| NELCOFLEX-CY, 2x1.0mm2, NM, TRANSPARENT UGG, 500V, PVC,70C | 1 mm² | 1 . | 7.9 mm | 31.6 mm | 1 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-CY, 3G1.0mm2, NM, TRANSPARENT 500V, PVC,70C | 1 mm² | 1 . | 8.2 mm | 32.8 mm | 1 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-CY, 3G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | 1.5 mm² | 1 . | 8.9 mm | 35.6 mm | 1.5 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-CY, 4G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | 1.5 mm² | 1 . | 9.6 mm | 38.4 mm | 1.5 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-CY, 5G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | 1.5 mm² | 1 . | 10.3 mm | 41.2 mm | 1.5 mm | m | 500 V |
No
|
|
|
| NELCOFLEX-CY, 7G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | 1.5 mm² | 100 . | 11.3 mm | 45.2 mm | 1.5 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-CY, 12G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | 1.5 mm² | 1 . | 14.8 mm | 59.2 mm | 1.5 mm | m | 500 V |
No
|
|
|
| NELCOFLEX-CY, 18G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | 1.5 mm² | 1 . | 17.1 mm | 68.4 mm | 1.5 mm | m | 500 V |
No
|
|
|
| NELCOFLEX-CY, 4G2.5mm2, NM, TRANSPARENT 500V, PVC,70C | 2.5 mm² | 1 . | 11.3 mm | 45.2 mm | 2.5 mm | m | 500 V |
No
|
|
|
| NELCOFLEX-CY, 5G2.5mm2, NM, TRANSPARENT 500V, PVC,70C | 2.5 mm² | 1 . | 12.6 mm | 50.4 mm | 2.5 mm | m | 500 V |
No
|
|
|
| NELCOFLEX-CY, 7G2.5mm2, NM, TRANSPARENT 500V, PVC,70C | 2.5 mm² | 100 . | 14 mm | 56 mm | 2.5 mm | m | 500 V |
No
|
|
|
| NELCOFLEX-CY, 4G6.0mm2, NM, TRANSPARENT 500V, PVC,70C | 6 mm² | 1 . | 15.5 mm | 62 mm | 6 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-CY, 5G6.0mm2, NM, TRANSPARENT 500V, PVC,70C | 6 mm² | 1 . | 17.4 mm | 69.6 mm | 6 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-CY, 4G10mm2, NM, TRANSPARENT 500V, PVC,70C | 10 mm² | 100 . | 19.3 mm | 77.2 mm | 10 mm | m | 500 V |
No
|
|
|
| NELCOFLEX-CY, 4G25mm2, NM, TRANSPARENT 500V, PVC,70C | 25 mm² | 1 . | 26.4 mm | 105.6 mm | 25 mm | m | 500 V |
Yes
|
|
|
- Total: 21
Similar Options
Approvals
- Total: 21
| Product Description | Approved according to SS EN 60204 | Reaction-to-fire class according to EN 13501-6 | Smoke development class according to EN 13501-6 | Euro class flaming droplets/particles according to EN 13501-6 | Euro class acidity according to EN 13501-6 | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant (according to EN 60811-404) | Flame retardant | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NELCOFLEX-CY, 50G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-CY, 3G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-CY, 4G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-CY, 5G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| NELCOFLEX-CY, 18G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| NELCOFLEX-CY, 25G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| NELCOFLEX-CY, 2x1.0mm2, NM, TRANSPARENT UGG, 500V, PVC,70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-CY, 3G1.0mm2, NM, TRANSPARENT 500V, PVC,70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-CY, 3G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-CY, 4G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-CY, 5G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| NELCOFLEX-CY, 7G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-CY, 12G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| NELCOFLEX-CY, 18G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| NELCOFLEX-CY, 4G2.5mm2, NM, TRANSPARENT 500V, PVC,70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| NELCOFLEX-CY, 5G2.5mm2, NM, TRANSPARENT 500V, PVC,70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| NELCOFLEX-CY, 7G2.5mm2, NM, TRANSPARENT 500V, PVC,70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| NELCOFLEX-CY, 4G6.0mm2, NM, TRANSPARENT 500V, PVC,70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-CY, 5G6.0mm2, NM, TRANSPARENT 500V, PVC,70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-CY, 4G10mm2, NM, TRANSPARENT 500V, PVC,70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| NELCOFLEX-CY, 4G25mm2, NM, TRANSPARENT 500V, PVC,70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
- Total: 21
Technical Properties
- Total: 21
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Colour | Material insulation | Operating temperature | Core colour | Conductor surface | Halogen free | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NELCOFLEX-CY, 50G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | 50 . | Polyvinyl chloride (PVC) | Other | Numbers | Yes | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Transparent | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare, Tinned | No | 92.8 mm |
Yes
|
|
|
| NELCOFLEX-CY, 3G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | 3 . | Polyvinyl chloride (PVC) | Other | Numbers | Yes | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Transparent | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare, Tinned | No | 31.6 mm |
Yes
|
|
|
| NELCOFLEX-CY, 4G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | 4 . | Polyvinyl chloride (PVC) | Other | Numbers | Yes | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Transparent | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare, Tinned | No | 33.6 mm |
Yes
|
|
|
| NELCOFLEX-CY, 5G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | 5 . | Polyvinyl chloride (PVC) | Other | Numbers | Yes | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Transparent | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare, Tinned | No | 36.4 mm |
No
|
|
|
| NELCOFLEX-CY, 18G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | 18 . | Polyvinyl chloride (PVC) | Other | Numbers | Yes | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Transparent | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare, Tinned | No | 58 mm |
No
|
|
|
| NELCOFLEX-CY, 25G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | 25 . | Polyvinyl chloride (PVC) | Other | Numbers | Yes | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Transparent | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare, Tinned | No | 66.4 mm |
No
|
|
|
| NELCOFLEX-CY, 2x1.0mm2, NM, TRANSPARENT UGG, 500V, PVC,70C | 2 . | Polyvinyl chloride (PVC) | Other | Numbers | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Transparent | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare, Tinned | No | 31.6 mm |
Yes
|
|
|
| NELCOFLEX-CY, 3G1.0mm2, NM, TRANSPARENT 500V, PVC,70C | 3 . | Polyvinyl chloride (PVC) | Other | Numbers | Yes | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Transparent | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare, Tinned | No | 32.8 mm |
Yes
|
|
|
| NELCOFLEX-CY, 3G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | 3 . | Polyvinyl chloride (PVC) | Other | Numbers | Yes | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Transparent | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare, Tinned | No | 35.6 mm |
Yes
|
|
|
| NELCOFLEX-CY, 4G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | 4 . | Polyvinyl chloride (PVC) | Other | Numbers | Yes | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Transparent | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare, Tinned | No | 38.4 mm |
Yes
|
|
|
| NELCOFLEX-CY, 5G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | 5 . | Polyvinyl chloride (PVC) | Other | Numbers | Yes | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Transparent | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare, Tinned | No | 41.2 mm |
No
|
|
|
| NELCOFLEX-CY, 7G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | 7 . | Polyvinyl chloride (PVC) | Other | Numbers | Yes | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Transparent | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare, Tinned | No | 45.2 mm |
Yes
|
|
|
| NELCOFLEX-CY, 12G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | 12 . | Polyvinyl chloride (PVC) | Other | Numbers | Yes | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Transparent | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare, Tinned | No | 59.2 mm |
No
|
|
|
| NELCOFLEX-CY, 18G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | 18 . | Polyvinyl chloride (PVC) | Other | Numbers | Yes | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Transparent | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare, Tinned | No | 68.4 mm |
No
|
|
|
| NELCOFLEX-CY, 4G2.5mm2, NM, TRANSPARENT 500V, PVC,70C | 4 . | Polyvinyl chloride (PVC) | Other | Numbers | Yes | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Transparent | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare, Tinned | No | 45.2 mm |
No
|
|
|
| NELCOFLEX-CY, 5G2.5mm2, NM, TRANSPARENT 500V, PVC,70C | 5 . | Polyvinyl chloride (PVC) | Other | Numbers | Yes | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Transparent | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare, Tinned | No | 50.4 mm |
No
|
|
|
| NELCOFLEX-CY, 7G2.5mm2, NM, TRANSPARENT 500V, PVC,70C | 7 . | Polyvinyl chloride (PVC) | Other | Numbers | Yes | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Transparent | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare, Tinned | No | 56 mm |
No
|
|
|
| NELCOFLEX-CY, 4G6.0mm2, NM, TRANSPARENT 500V, PVC,70C | 4 . | Polyvinyl chloride (PVC) | Other | Numbers | Yes | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Transparent | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare, Tinned | No | 62 mm |
Yes
|
|
|
| NELCOFLEX-CY, 5G6.0mm2, NM, TRANSPARENT 500V, PVC,70C | 5 . | Polyvinyl chloride (PVC) | Other | Numbers | Yes | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Transparent | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare, Tinned | No | 69.6 mm |
Yes
|
|
|
| NELCOFLEX-CY, 4G10mm2, NM, TRANSPARENT 500V, PVC,70C | 4 . | Polyvinyl chloride (PVC) | Other | Numbers | Yes | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Transparent | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare, Tinned | No | 77.2 mm |
No
|
|
|
| NELCOFLEX-CY, 4G25mm2, NM, TRANSPARENT 500V, PVC,70C | 4 . | Polyvinyl chloride (PVC) | Other | Numbers | Yes | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | Yes | N/A | Braiding | N/A | No | 500 V | No | Class 5 = flexible | Transparent | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare, Tinned | No | 105.6 mm |
Yes
|
|
|
- Total: 21
Other information
- Total: 21
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| NELCOFLEX-CY, 50G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - Nelcoflex-C, Multi conductor | ÖLFLEX 110 CY | 040669 |
Yes
|
|
|
| NELCOFLEX-CY, 3G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - Nelcoflex-C, Multi conductor | 040681 |
Yes
|
|
|
|
| NELCOFLEX-CY, 4G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - Nelcoflex-C, Multi conductor | 040682 |
Yes
|
|
|
|
| NELCOFLEX-CY, 5G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - Nelcoflex-C, Multi conductor | 040683 |
No
|
|
|
|
| NELCOFLEX-CY, 18G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - Nelcoflex-C, Multi conductor | 040689 |
No
|
|
|
|
| NELCOFLEX-CY, 25G0.75mm2, NM, TRANSPARENT 500V, PVC,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - Nelcoflex-C, Multi conductor | 040692 |
No
|
|
|
|
| NELCOFLEX-CY, 2x1.0mm2, NM, TRANSPARENT UGG, 500V, PVC,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - Nelcoflex-C, Multi conductor | ÖLFLEX 110 CY | 040710 |
Yes
|
|
|
| NELCOFLEX-CY, 3G1.0mm2, NM, TRANSPARENT 500V, PVC,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - Nelcoflex-C, Multi conductor | ÖLFLEX 110 CY | 040711 |
Yes
|
|
|
| NELCOFLEX-CY, 3G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - Nelcoflex-C, Multi conductor | 040731 |
Yes
|
|
|
|
| NELCOFLEX-CY, 4G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - Nelcoflex-C, Multi conductor | 040732 |
Yes
|
|
|
|
| NELCOFLEX-CY, 5G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - Nelcoflex-C, Multi conductor | 040733 |
No
|
|
|
|
| NELCOFLEX-CY, 7G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - Nelcoflex-C, Multi conductor | 040734 |
Yes
|
|
|
|
| NELCOFLEX-CY, 12G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - Nelcoflex-C, Multi conductor | 040737 |
No
|
|
|
|
| NELCOFLEX-CY, 18G1.5mm2, NM, TRANSPARENT 500V, PVC,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - Nelcoflex-C, Multi conductor | 040740 |
No
|
|
|
|
| NELCOFLEX-CY, 4G2.5mm2, NM, TRANSPARENT 500V, PVC,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - Nelcoflex-C, Multi conductor | 040747 |
No
|
|
|
|
| NELCOFLEX-CY, 5G2.5mm2, NM, TRANSPARENT 500V, PVC,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - Nelcoflex-C, Multi conductor | 040748 |
No
|
|
|
|
| NELCOFLEX-CY, 7G2.5mm2, NM, TRANSPARENT 500V, PVC,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - Nelcoflex-C, Multi conductor | 040749 |
No
|
|
|
|
| NELCOFLEX-CY, 4G6.0mm2, NM, TRANSPARENT 500V, PVC,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - Nelcoflex-C, Multi conductor | 040752 |
Yes
|
|
|
|
| NELCOFLEX-CY, 5G6.0mm2, NM, TRANSPARENT 500V, PVC,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - Nelcoflex-C, Multi conductor | 040753 |
Yes
|
|
|
|
| NELCOFLEX-CY, 4G10mm2, NM, TRANSPARENT 500V, PVC,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - Nelcoflex-C, Multi conductor | 040754 |
No
|
|
|
|
| NELCOFLEX-CY, 4G25mm2, NM, TRANSPARENT 500V, PVC,70C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - Nelcoflex-C, Multi conductor | ÖLFLEX 110 CY | 040755 |
Yes
|
|
|
- Total: 21
