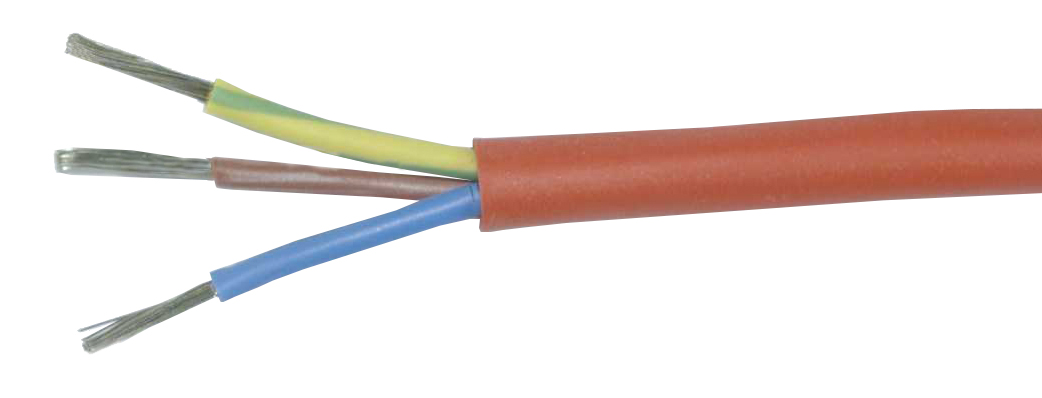

SIHF, Silikonkabel
Silikon-mantlade flerledarkablar erbjuder elingenjörer och elektriker ett fantastiskt utbud av alternativ.
Perfekt för höga eller låga temperaturer kommer dessa kablar fungera utmärkt mellan -50ºC och 180ºC.
Vid brand producerar de minimal rök och kan användas till installataion i offentliga byggnader.
Uppbyggnad
Ledare: Fintrådig ledare av förtent koppar.
Ledarisolering: Silikonbas.
Ledarisolation: Ledarna färgmärkta tvinnade i lager.
Yttermantel: Silikonbas.
Mantelfärg: Röd-Brun.
Flamhämmande.
Tekniska data:
Driftspänning: 300/500 V
Provspänning: 2000 V
Temperaturområde: -50ºC till +180ºC
Minsta böjradie:
Flexibel: 12 x kabeldiametern
Fast: 4 x kabeldiametern
Godkännanden, Flambeständighet VDE 0295.VDE 0293.VDE 0293-308IEC 60332-1-2 (F2)
Technical properties
- Number of cores:
- 4 ., 2 ., 3 ., 5 ., 7 .
- Material core insulation:
- Rubber
- Specification core insulation:
- Rubber - silicone rubber (SIR)
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Rubber
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Red
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -60-180 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 180 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- No, Yes, No
- Conductor category:
- Class 5 = flexible
- Colour:
- Brown/Red
- Material insulation:
- Silicone
- Operating temperature:
- -50-180 °C
- Core colour:
- Red, Several
- Conductor surface:
- Tinned
- Min. permitted bending radius, stationary application/permanent installation:
- 88 mm, 77.6 mm, 25.6 mm, 27.2 mm, 34 mm, 36.8 mm, 30.4 mm, 32 mm, 35.2 mm, 38.4 mm, 41.6 mm, 42.4 mm, 58.8 mm, 50.4 mm, 28 mm
Show more
Item List
- Total: 15
- Total: 15
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 15
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Diameter conductor | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| SIHF, 4G10.0mm2, BROWN/RED 500V, SILICONE, 180C | 10 mm² | 500 . | 19.4 mm | 77.6 mm | 10 mm | m | 500 V |
No
|
|
|
| SIHF, 3G0.75mm2, BROWN/RED 500V, SILICONE, 180C | 0.75 mm² | 500 . | 6.8 mm | 27.2 mm | 0.75 mm | m | 500 V |
Yes
|
|
|
| SIHF, 5G0.75mm2, BROWN/RED 500V, SILICONE, 180C | 0.75 mm² | 100 . | 8.5 mm | 34 mm | 0.75 mm | m | 500 V |
Yes
|
|
|
| SIHF, 7G0.75mm2, BROWN/RED 500V, SILICONE, 180C | 0.75 mm² | 100 . | 9.2 mm | 36.8 mm | 0.75 mm | m | 500 V |
No
|
|
|
| SIHF, 2x1.5mm2, BROWN/RED 500V, SILICONE, 180C | 1.5 mm² | 500 . | 7.6 mm | 30.4 mm | 1.5 mm | m | 500 V |
No
|
|
|
| SIHF, 3G1.5mm2, BROWN/RED 500V, SILICONE, 180C | 1.5 mm² | 500 . | 8 mm | 32 mm | 1.5 mm | m | 500 V |
Yes
|
|
|
| SIHF, 4G1.5mm2, BROWN/RED 500V, SILICONE, 180C | 1.5 mm² | 500 . | 8.8 mm | 35.2 mm | 1.5 mm | m | 500 V |
No
|
|
|
| SIHF, 5G1.5mm2, BROWN/RED 500V, SILICONE, 180C | 1.5 mm² | 100 . | 9.6 mm | 38.4 mm | 1.5 mm | m | 500 V |
No
|
|
|
| SIHF, 7G1.5mm2, BROWN/RED 500V, SILICONE, 180C | 1.5 mm² | 100 . | 10.4 mm | 41.6 mm | 1.5 mm | m | 500 V |
No
|
|
|
| SIHF, 4G2.5mm2, BROWN/RED 500V, SILICONE, 180C | 2.5 mm² | 500 . | 10.6 mm | 42.4 mm | 2.5 mm | m | 500 V |
No
|
|
|
| SIHF, 4G6.0mm2, BROWN/RED 500V, SILICONE, 180C | 6 mm² | 500 . | 14.7 mm | 58.8 mm | 6 mm | m | 500 V |
No
|
|
|
| SIHF, 4G4.0mm2, BROWN/RED 500V, SILICONE, 180C | 4 mm² | 500 . | 12.6 mm | 50.4 mm | 4 mm | m | 500 V |
No
|
|
|
| SIHF, 2x0.75mm2, BROWN/RED 500V, SILICONE, 180C | 0.75 mm² | 100 . | 6.4 mm | 25.6 mm | 0.75 mm | m | 500 V |
Yes
|
|
|
| SIHF, 4G16.0mm2, BROWN/RED 500V, SILICONE, 180C | 16 mm² | 500 . | 22 mm | 88 mm | 16 mm | m | 500 V |
No
|
|
|
| SIHF, 3G1.0mm2, BROWN/RED 500V, SILICONE, 180C | 1 mm² | 500 . | 7 mm | 28 mm | 1 mm | m | 500 V |
No
|
|
|
- Total: 15
Similar Options
Approvals
- Total: 15
| Product Description | Approved according to IEC 60332-1-2 (F2) | Approved according to VDE 0293 | Approved according to VDE 0293-308 | Approved according to VDE 0295 | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Flame retardant | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SIHF, 4G10.0mm2, BROWN/RED 500V, SILICONE, 180C | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| SIHF, 3G0.75mm2, BROWN/RED 500V, SILICONE, 180C | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| SIHF, 5G0.75mm2, BROWN/RED 500V, SILICONE, 180C | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| SIHF, 7G0.75mm2, BROWN/RED 500V, SILICONE, 180C | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| SIHF, 2x1.5mm2, BROWN/RED 500V, SILICONE, 180C | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| SIHF, 3G1.5mm2, BROWN/RED 500V, SILICONE, 180C | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| SIHF, 4G1.5mm2, BROWN/RED 500V, SILICONE, 180C | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| SIHF, 5G1.5mm2, BROWN/RED 500V, SILICONE, 180C | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| SIHF, 7G1.5mm2, BROWN/RED 500V, SILICONE, 180C | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| SIHF, 4G2.5mm2, BROWN/RED 500V, SILICONE, 180C | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| SIHF, 4G6.0mm2, BROWN/RED 500V, SILICONE, 180C | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| SIHF, 4G4.0mm2, BROWN/RED 500V, SILICONE, 180C | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| SIHF, 2x0.75mm2, BROWN/RED 500V, SILICONE, 180C | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| SIHF, 4G16.0mm2, BROWN/RED 500V, SILICONE, 180C | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| SIHF, 3G1.0mm2, BROWN/RED 500V, SILICONE, 180C | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
- Total: 15
Technical Properties
- Total: 15
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Armouring/reinforcement | Drain wire | Nominal voltage | Halogen free | Conductor category | Colour | Material insulation | Operating temperature | Core colour | Conductor surface | Halogen free | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SIHF, 4G10.0mm2, BROWN/RED 500V, SILICONE, 180C | 4 . | Rubber | Rubber - silicone rubber (SIR) | Colour | No | Rubber | Other | Red | According to IEC/EN 60332-1-2 | -60-180 °C | Copper | No | 180 °C | No | None | No | 500 V | No | Class 5 = flexible | Brown/Red | Silicone | -50-180 °C | Several | Tinned | No | 77.6 mm |
No
|
|
|
| SIHF, 3G0.75mm2, BROWN/RED 500V, SILICONE, 180C | 3 . | Rubber | Rubber - silicone rubber (SIR) | Colour | No | Rubber | Other | Red | According to IEC/EN 60332-1-2 | -60-180 °C | Copper | No | 180 °C | No | None | No | 500 V | Yes | Class 5 = flexible | Brown/Red | Silicone | -50-180 °C | Red | Tinned | No | 27.2 mm |
Yes
|
|
|
| SIHF, 5G0.75mm2, BROWN/RED 500V, SILICONE, 180C | 5 . | Rubber | Rubber - silicone rubber (SIR) | Colour | No | Rubber | Other | Red | According to IEC/EN 60332-1-2 | -60-180 °C | Copper | No | 180 °C | No | None | No | 500 V | Yes | Class 5 = flexible | Brown/Red | Silicone | -50-180 °C | Red | Tinned | No | 34 mm |
Yes
|
|
|
| SIHF, 7G0.75mm2, BROWN/RED 500V, SILICONE, 180C | 7 . | Rubber | Rubber - silicone rubber (SIR) | Colour | No | Rubber | Other | Red | According to IEC/EN 60332-1-2 | -60-180 °C | Copper | No | 180 °C | No | None | No | 500 V | Yes | Class 5 = flexible | Brown/Red | Silicone | -50-180 °C | Red | Tinned | No | 36.8 mm |
No
|
|
|
| SIHF, 2x1.5mm2, BROWN/RED 500V, SILICONE, 180C | 2 . | Rubber | Rubber - silicone rubber (SIR) | Colour | No | Rubber | Other | Red | According to IEC/EN 60332-1-2 | -60-180 °C | Copper | No | 180 °C | No | None | No | 500 V | Yes | Class 5 = flexible | Brown/Red | Silicone | -50-180 °C | Red | Tinned | No | 30.4 mm |
No
|
|
|
| SIHF, 3G1.5mm2, BROWN/RED 500V, SILICONE, 180C | 3 . | Rubber | Rubber - silicone rubber (SIR) | Colour | No | Rubber | Other | Red | According to IEC/EN 60332-1-2 | -60-180 °C | Copper | No | 180 °C | No | None | No | 500 V | Yes | Class 5 = flexible | Brown/Red | Silicone | -50-180 °C | Red | Tinned | No | 32 mm |
Yes
|
|
|
| SIHF, 4G1.5mm2, BROWN/RED 500V, SILICONE, 180C | 4 . | Rubber | Rubber - silicone rubber (SIR) | Colour | No | Rubber | Other | Red | According to IEC/EN 60332-1-2 | -60-180 °C | Copper | No | 180 °C | No | None | No | 500 V | Yes | Class 5 = flexible | Brown/Red | Silicone | -50-180 °C | Red | Tinned | No | 35.2 mm |
No
|
|
|
| SIHF, 5G1.5mm2, BROWN/RED 500V, SILICONE, 180C | 5 . | Rubber | Rubber - silicone rubber (SIR) | Colour | No | Rubber | Other | Red | According to IEC/EN 60332-1-2 | -60-180 °C | Copper | No | 180 °C | No | None | No | 500 V | Yes | Class 5 = flexible | Brown/Red | Silicone | -50-180 °C | Red | Tinned | No | 38.4 mm |
No
|
|
|
| SIHF, 7G1.5mm2, BROWN/RED 500V, SILICONE, 180C | 7 . | Rubber | Rubber - silicone rubber (SIR) | Colour | No | Rubber | Other | Red | According to IEC/EN 60332-1-2 | -60-180 °C | Copper | No | 180 °C | No | None | No | 500 V | Yes | Class 5 = flexible | Brown/Red | Silicone | -50-180 °C | Red | Tinned | No | 41.6 mm |
No
|
|
|
| SIHF, 4G2.5mm2, BROWN/RED 500V, SILICONE, 180C | 4 . | Rubber | Rubber - silicone rubber (SIR) | Colour | No | Rubber | Other | Red | According to IEC/EN 60332-1-2 | -60-180 °C | Copper | No | 180 °C | No | None | No | 500 V | Yes | Class 5 = flexible | Brown/Red | Silicone | -50-180 °C | Red | Tinned | No | 42.4 mm |
No
|
|
|
| SIHF, 4G6.0mm2, BROWN/RED 500V, SILICONE, 180C | 4 . | Rubber | Rubber - silicone rubber (SIR) | Colour | No | Rubber | Other | Red | According to IEC/EN 60332-1-2 | -60-180 °C | Copper | No | 180 °C | No | None | No | 500 V | Yes | Class 5 = flexible | Brown/Red | Silicone | -50-180 °C | Red | Tinned | No | 58.8 mm |
No
|
|
|
| SIHF, 4G4.0mm2, BROWN/RED 500V, SILICONE, 180C | 4 . | Rubber | Rubber - silicone rubber (SIR) | Colour | No | Rubber | Other | Red | According to IEC/EN 60332-1-2 | -60-180 °C | Copper | No | 180 °C | No | None | No | 500 V | Yes | Class 5 = flexible | Brown/Red | Silicone | -50-180 °C | Red | Tinned | No | 50.4 mm |
No
|
|
|
| SIHF, 2x0.75mm2, BROWN/RED 500V, SILICONE, 180C | 2 . | Rubber | Rubber - silicone rubber (SIR) | Colour | No | Rubber | Other | Red | According to IEC/EN 60332-1-2 | -60-180 °C | Copper | No | 180 °C | No | None | No | 500 V | Yes | Class 5 = flexible | Brown/Red | Silicone | -50-180 °C | Red | Tinned | No | 25.6 mm |
Yes
|
|
|
| SIHF, 4G16.0mm2, BROWN/RED 500V, SILICONE, 180C | 4 . | Rubber | Rubber - silicone rubber (SIR) | Colour | No | Rubber | Other | Red | According to IEC/EN 60332-1-2 | -60-180 °C | Copper | No | 180 °C | No | None | No | 500 V | No | Class 5 = flexible | Brown/Red | Silicone | -50-180 °C | Several | Tinned | No | 88 mm |
No
|
|
|
| SIHF, 3G1.0mm2, BROWN/RED 500V, SILICONE, 180C | 3 . | Rubber | Rubber - silicone rubber (SIR) | Colour | No | Rubber | Other | Red | According to IEC/EN 60332-1-2 | -60-180 °C | Copper | No | 180 °C | No | None | No | 500 V | Yes | Class 5 = flexible | Brown/Red | Silicone | -50-180 °C | Red | Tinned | No | 28 mm |
No
|
|
|
- Total: 15
Other information
- Total: 15
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| SIHF, 4G10.0mm2, BROWN/RED 500V, SILICONE, 180C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - SHIF | 050449 |
No
|
|
|
| SIHF, 3G0.75mm2, BROWN/RED 500V, SILICONE, 180C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - SHIF | 050501 |
Yes
|
|
|
| SIHF, 5G0.75mm2, BROWN/RED 500V, SILICONE, 180C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - SHIF | 050503 |
Yes
|
|
|
| SIHF, 7G0.75mm2, BROWN/RED 500V, SILICONE, 180C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - SHIF | 050504 |
No
|
|
|
| SIHF, 2x1.5mm2, BROWN/RED 500V, SILICONE, 180C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - SHIF | 050510 |
No
|
|
|
| SIHF, 3G1.5mm2, BROWN/RED 500V, SILICONE, 180C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - SHIF | 050511 |
Yes
|
|
|
| SIHF, 4G1.5mm2, BROWN/RED 500V, SILICONE, 180C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - SHIF | 050512 |
No
|
|
|
| SIHF, 5G1.5mm2, BROWN/RED 500V, SILICONE, 180C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - SHIF | 050513 |
No
|
|
|
| SIHF, 7G1.5mm2, BROWN/RED 500V, SILICONE, 180C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - SHIF | 050514 |
No
|
|
|
| SIHF, 4G2.5mm2, BROWN/RED 500V, SILICONE, 180C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - SHIF | 050520 |
No
|
|
|
| SIHF, 4G6.0mm2, BROWN/RED 500V, SILICONE, 180C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - SHIF | 050529 |
No
|
|
|
| SIHF, 4G4.0mm2, BROWN/RED 500V, SILICONE, 180C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - SHIF | 050531 |
No
|
|
|
| SIHF, 2x0.75mm2, BROWN/RED 500V, SILICONE, 180C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - SHIF | 050500 |
Yes
|
|
|
| SIHF, 4G16.0mm2, BROWN/RED 500V, SILICONE, 180C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - SHIF | 050448 |
No
|
|
|
| SIHF, 3G1.0mm2, BROWN/RED 500V, SILICONE, 180C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - SHIF | 050541 |
No
|
|
|
- Total: 15
