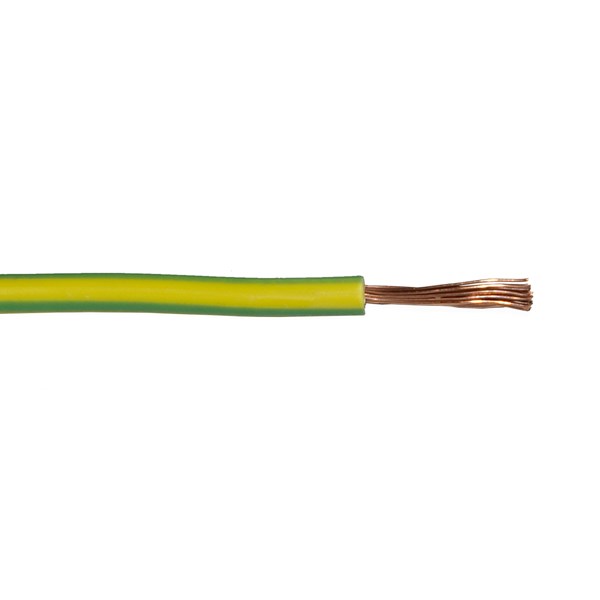

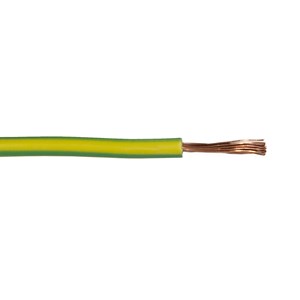

RQ (H05Z-K, H07Z-K)

Used as connectors line and installation line.

Structure
Conductors: Bare stranded copper
Conductor Insulation: Halogen free polymer blends
Core identification: The table below

Technical data:
Rated voltage:
H05Z-K 0.5-1.0 mm²: 300/500
VH07Z-K 1.5-120 mm²: 450/750 V
Test voltage:
H05Z-K 0.5-1.0 mm²: 2000
VH07Z-K 1.5-120 mm²: 2500 V
Max operating temperature +70ºC (+158ºF) H05Z-K
Max operating temperature +90ºC (+194ºF) H07Z-K
Can handle a short operating temperature of +250ºC (+482ºF)
Minimum bend radius: 12 x cable diameter

Packaging
Plastic coil: RQ 10.0-50.0 mm²
Box: RQ 0.5-6.0 mm²
Drum: 500 m 95.0 mm²

Show item list

Technical properties

Number of cores:: 1 .
Material core insulation:: Other
Specification core insulation:: Other
Core identification:: None
Protective conductor:: No
Material outer sheath:: None
Specification material outer sheath:: Other
Colour outer sheath:: Blue, Brown, Grey, Red, Black, Other
Flame retardant:: According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:: -15-90 °C
Conductor material:: Copper
Twisted cores:: No
Max. conductor temperature:: 90 °C
Screen:: No
Protective barrier:: N/A
Armouring/reinforcement:: None
Insulation integrity:: N/A
Drain wire:: No
Nominal voltage:: 600 V
Halogen free:: Yes, Yes
Conductor category:: Class 5 = flexible
Single insulated/Double insulated:: Single insulated
Colour:: Black, Brown, Green/yellow, Grey, Red, Light blue
Material insulation:: Polymen
Operating temperature:: -5-90 °C
Core colour:: Blue, Brown, Grey, Green/yellow, Red, Black
Conductor surface:: Bare
Packaging:: Carton (box), Ring
Min. permitted bending radius, stationary application/permanent installation:: 25.04 mm, 29.08 mm, 36.76 mm, 40.4 mm, 48.88 mm, 56.56 mm, 63.44 mm

Item List

Page size:

Total: 26

050431-2 HF

RQ, 70mm2, LJUSBLÅ, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050390-1 HF

RQ, 16mm2, SVART, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050395 HF

RQ, 16mm2, GRÅ, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050411-2 HF

RQ, 35mm2, LJUSBLÅ, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050430 HF

RQ, 70mm2, SVART, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050421-2 HF

RQ, 50mm2, LJUSBLÅ, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050433 HF

RQ, 70mm2, GRÖN/GUL, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050443 HF

RQ, 95mm2, GRÖN/GUL, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050380 HF

RQ, 10mm2, SVART, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050387 HF

RQ, 10mm2, RÖD, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050381-2 HF

RQ, 10mm2, LJUSBLÅ, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050383 HF

RQ, 10mm2, GRÖN/GUL, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050385 HF

RQ, 10mm2, GRÅ, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050382 HF

RQ, 10mm2, BRUN, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050397 HF

RQ, 16mm2, RÖD, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050391-2 HF

RQ, 16mm2, LJUSBLÅ, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050392 HF

RQ, 16mm2, BRUN, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050393 HF

RQ, 16mm2, GRÖN/GUL, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050400 HF

RQ, 25mm2, SVART, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050407 HF

RQ, 25mm2, RÖD, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050401-2 HF

RQ, 25mm2, LJUSBLÅ, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050403 HF

RQ, 25mm2, GRÖN/GUL, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050410 HF

RQ, 35mm2, SVART, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050413 HF

RQ, 35mm2, GRÖN/GUL, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050420 HF

RQ, 50mm2, SVART, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

050423 HF

RQ, 50mm2, GRÖN/GUL, RING, 600V, POLYMEN, HF, 90C

Availability:: Yes

Total: 26

Accessories

Spare Parts

Product video

Documents

Dimensions

Page size:

Total: 26

Product Description	Stock code	Nominal cross section conductor	MOQ	Outer diameter approx.	Min. permitted bending radius, stationary application/permanent installation	Diameter conductor	Unit	Nominal voltage	Availability
RQ, 70mm2, LIGHTBLUE COIL, 600V, POLYMEN, HF, 90C	050431-2 HF		25 .				m		Yes
RQ, 16mm2, BLACK COIL, 600V, POLYMEN, HF, 90C	050390-1 HF	16 mm²	100 .	7.27 mm	29.08 mm	16 mm	m	600 V	Yes
RQ, 16mm2, GREY COIL, 600V, POLYMEN, HF, 90C	050395 HF	16 mm²	100 .	7.27 mm	29.08 mm	16 mm	m	600 V	Yes
RQ, 35mm2, LIGHTBLUE COIL, 600V, POLYMEN, HF, 90C	050411-2 HF	35 mm²	50 .	10.1 mm	40.4 mm	35 mm	m	600 V	Yes
RQ, 70mm2, BLACK COIL, 600V, POLYMEN, HF, 90C	050430 HF	70 mm²	25 .	14.14 mm	56.56 mm	70 mm	m		Yes
RQ, 50mm2, LIGHTBLUE COIL, 600V, POLYMEN, HF, 90C	050421-2 HF	50 mm²	50 .	12.22 mm	48.88 mm	50 mm	m		Yes
RQ, 70mm2, GREEN/YELLOW COIL, 600V, POLYMEN, HF, 90C	050433 HF	70 mm²	25 .	14.14 mm	56.56 mm	70 mm	m		Yes
RQ, 95mm2, GREEN/YELLOW COIL, 600V, POLYMEN, HF, 90C	050443 HF	95 mm²	25 .	15.86 mm	63.44 mm	95 mm	m		Yes
RQ, 10mm2, BLACK COIL, 600V, POLYMEN, HF, 90C	050380 HF	10 mm²	100 .	6.26 mm	25.04 mm	10 mm	m	600 V	Yes
RQ, 10mm2, RED COIL, 600V, POLYMEN, HF, 90C	050387 HF	10 mm²	100 .	6.26 mm	25.04 mm	10 mm	m	600 V	Yes
RQ, 10mm2, LIGHTBLUE COIL, 600V, POLYMEN, HF, 90C	050381-2 HF	10 mm²	100 .	6.26 mm	25.04 mm	10 mm	m	600 V	Yes
RQ, 10mm2, GREEN/YELLOW COIL, 600V, POLYMEN, HF, 90C	050383 HF	10 mm²	100 .	6.26 mm	25.04 mm	10 mm	m	600 V	Yes
RQ, 10mm2, GREY COIL, 600V, POLYMEN, HF, 90C	050385 HF	10 mm²	100 .	6.26 mm	25.04 mm	10 mm	m	600 V	Yes
RQ, 10mm2, BROWN COIL, 600V, POLYMEN, HF, 90C	050382 HF	10 mm²	100 .	6.26 mm	25.04 mm	10 mm	m	600 V	Yes
RQ, 16mm2, RED COIL, 600V, POLYMEN, HF, 90C	050397 HF	16 mm²	100 .	7.27 mm	29.08 mm	16 mm	m	600 V	Yes
RQ, 16mm2, LIGHTBLUE COIL, 600V, POLYMEN, HF, 90C	050391-2 HF	16 mm²	100 .	7.27 mm	29.08 mm	16 mm	m	600 V	Yes
RQ, 16mm2, BROWN COIL, 600V, POLYMEN, HF, 90C	050392 HF	16 mm²	100 .	7.27 mm	29.08 mm	16 mm	m	600 V	Yes
RQ, 16mm2, GREEN/YELLOW COIL, 600V, POLYMEN, HF, 90C	050393 HF	16 mm²	100 .	7.27 mm	29.08 mm	16 mm	m	600 V	Yes
RQ, 25mm2, BLACK COIL, 600V, POLYMEN, HF, 90C	050400 HF	25 mm²	50 .	9.19 mm	36.76 mm	25 mm	m	600 V	Yes
RQ, 25mm2, RED COIL, 600V, POLYMEN, HF, 90C	050407 HF	25 mm²	50 .	9.19 mm	36.76 mm	25 mm	m	600 V	Yes
RQ, 25mm2, LIGHTBLUE COIL, 600V, POLYMEN, HF, 90C	050401-2 HF	25 mm²	50 .	9.19 mm	36.76 mm	25 mm	m	600 V	Yes
RQ, 25mm2, GREEN/YELLOW COIL, 600V, POLYMEN, HF, 90C	050403 HF	25 mm²	50 .	9.19 mm	36.76 mm	25 mm	m	600 V	Yes
RQ, 35mm2, BLACK COIL, 600V, POLYMEN, HF, 90C	050410 HF	35 mm²	50 .	10.1 mm	40.4 mm	35 mm	m	600 V	Yes
RQ, 35mm2, GREEN/YELLOW COIL, 600V, POLYMEN, HF, 90C	050413 HF	35 mm²	50 .	10.1 mm	40.4 mm	35 mm	m	600 V	Yes
RQ, 50mm2, BLACK COIL, 600V, POLYMEN, HF, 90C	050420 HF	50 mm²	50 .	12.22 mm	48.88 mm	50 mm	m	600 V	Yes
RQ, 50mm2, GREEN/YELLOW COIL, 600V, POLYMEN, HF, 90C	050423 HF	50 mm²	50 .	12.22 mm	48.88 mm	50 mm	m	600 V	Yes

Total: 26

Similar Options

Approvals

Page size:

Total: 26

Product Description	Stock code	Approved according to EN 50265-1	Approved according to IEC 60332-1	Reaction-to-fire class according to EN 13501-6	Smoke development class according to EN 13501-6	Euro class flaming droplets/particles according to EN 13501-6	Euro class acidity according to EN 13501-6	Halogen free	Low smoke (according to EN 61034-2)	Low temperature resistant (according to EN 60811-504+505+506)	Oil resistant (according to EN 60811-404)	Flame retardant	Availability
RQ, 70mm2, LIGHTBLUE COIL, 600V, POLYMEN, HF, 90C	050431-2 HF												Yes
RQ, 16mm2, BLACK COIL, 600V, POLYMEN, HF, 90C	050390-1 HF	Yes	Yes	Eca	N/A	N/A	N/A	Yes	No	No	No	According to IEC/EN 60332-1-2	Yes
RQ, 16mm2, GREY COIL, 600V, POLYMEN, HF, 90C	050395 HF	Yes	Yes	Eca	N/A	N/A	N/A	Yes	No	No	No	According to IEC/EN 60332-1-2	Yes
RQ, 35mm2, LIGHTBLUE COIL, 600V, POLYMEN, HF, 90C	050411-2 HF	Yes	Yes	Eca	N/A	N/A	N/A	Yes	No	No	No	According to IEC/EN 60332-1-2	Yes
RQ, 70mm2, BLACK COIL, 600V, POLYMEN, HF, 90C	050430 HF			Eca	N/A	N/A	N/A	Yes	No	No	No	According to IEC/EN 60332-1-2	Yes
RQ, 50mm2, LIGHTBLUE COIL, 600V, POLYMEN, HF, 90C	050421-2 HF												Yes
RQ, 70mm2, GREEN/YELLOW COIL, 600V, POLYMEN, HF, 90C	050433 HF												Yes
RQ, 95mm2, GREEN/YELLOW COIL, 600V, POLYMEN, HF, 90C	050443 HF												Yes
RQ, 10mm2, BLACK COIL, 600V, POLYMEN, HF, 90C	050380 HF	Yes	Yes	Eca	N/A	N/A	N/A	Yes	No	No	No	According to IEC/EN 60332-1-2	Yes
RQ, 10mm2, RED COIL, 600V, POLYMEN, HF, 90C	050387 HF	Yes	Yes	Eca	N/A	N/A	N/A	Yes	No	No	No	According to IEC/EN 60332-1-2	Yes
RQ, 10mm2, LIGHTBLUE COIL, 600V, POLYMEN, HF, 90C	050381-2 HF	Yes	Yes	Eca	N/A	N/A	N/A	Yes	No	No	No	According to IEC/EN 60332-1-2	Yes
RQ, 10mm2, GREEN/YELLOW COIL, 600V, POLYMEN, HF, 90C	050383 HF	Yes	Yes	Eca	N/A	N/A	N/A	Yes	No	No	No	According to IEC/EN 60332-1-2	Yes
RQ, 10mm2, GREY COIL, 600V, POLYMEN, HF, 90C	050385 HF	Yes	Yes	Eca	N/A	N/A	N/A	Yes	No	No	No	According to IEC/EN 60332-1-2	Yes
RQ, 10mm2, BROWN COIL, 600V, POLYMEN, HF, 90C	050382 HF	Yes	Yes	Eca	N/A	N/A	N/A	Yes	No	No	No	According to IEC/EN 60332-1-2	Yes
RQ, 16mm2, RED COIL, 600V, POLYMEN, HF, 90C	050397 HF	Yes	Yes	Eca	N/A	N/A	N/A	Yes	No	No	No	According to IEC/EN 60332-1-2	Yes
RQ, 16mm2, LIGHTBLUE COIL, 600V, POLYMEN, HF, 90C	050391-2 HF	Yes	Yes	Eca	N/A	N/A	N/A	Yes	No	No	No	According to IEC/EN 60332-1-2	Yes
RQ, 16mm2, BROWN COIL, 600V, POLYMEN, HF, 90C	050392 HF	Yes	Yes	Eca	N/A	N/A	N/A	Yes	No	No	No	According to IEC/EN 60332-1-2	Yes
RQ, 16mm2, GREEN/YELLOW COIL, 600V, POLYMEN, HF, 90C	050393 HF	Yes	Yes	Eca	N/A	N/A	N/A	Yes	No	No	No	According to IEC/EN 60332-1-2	Yes
RQ, 25mm2, BLACK COIL, 600V, POLYMEN, HF, 90C	050400 HF	Yes	Yes	Eca	N/A	N/A	N/A	Yes	No	No	No	According to IEC/EN 60332-1-2	Yes
RQ, 25mm2, RED COIL, 600V, POLYMEN, HF, 90C	050407 HF	Yes	Yes	Eca	N/A	N/A	N/A	Yes	No	No	No	According to IEC/EN 60332-1-2	Yes
RQ, 25mm2, LIGHTBLUE COIL, 600V, POLYMEN, HF, 90C	050401-2 HF	Yes	Yes	Eca	N/A	N/A	N/A	Yes	No	No	No	According to IEC/EN 60332-1-2	Yes
RQ, 25mm2, GREEN/YELLOW COIL, 600V, POLYMEN, HF, 90C	050403 HF	Yes	Yes	Eca	N/A	N/A	N/A	Yes	No	No	No	According to IEC/EN 60332-1-2	Yes
RQ, 35mm2, BLACK COIL, 600V, POLYMEN, HF, 90C	050410 HF	Yes	Yes	Eca	N/A	N/A	N/A	Yes	No	No	No	According to IEC/EN 60332-1-2	Yes
RQ, 35mm2, GREEN/YELLOW COIL, 600V, POLYMEN, HF, 90C	050413 HF	Yes	Yes	Eca	N/A	N/A	N/A	Yes	No	No	No	According to IEC/EN 60332-1-2	Yes
RQ, 50mm2, BLACK COIL, 600V, POLYMEN, HF, 90C	050420 HF	Yes	Yes	Eca	N/A	N/A	N/A	Yes	No	No	No	According to IEC/EN 60332-1-2	Yes
RQ, 50mm2, GREEN/YELLOW COIL, 600V, POLYMEN, HF, 90C	050423 HF	Yes	Yes	Eca	N/A	N/A	N/A	Yes	No	No	No	According to IEC/EN 60332-1-2	Yes

Total: 26

Technical Properties

Page size:

Total: 26

Product Description	Stock code	Number of cores	Material core insulation	Specification core insulation	Core identification	Protective conductor	Material outer sheath	Specification material outer sheath	Colour outer sheath	Flame retardant	Permitted cable outer temperature after assembling without vibration	Conductor material	Twisted cores	Max. conductor temperature	Screen	Protective barrier	Armouring/reinforcement	Insulation integrity	Drain wire	Nominal voltage	Halogen free	Conductor category	Single insulated/Double insulated	Colour	Material insulation	Operating temperature	Core colour	Conductor surface	Halogen free	Packaging	Min. permitted bending radius, stationary application/permanent installation	Availability
RQ, 70mm2, LIGHTBLUE COIL, 600V, POLYMEN, HF, 90C	050431-2 HF																															Yes
RQ, 16mm2, BLACK COIL, 600V, POLYMEN, HF, 90C	050390-1 HF	1 .	Other	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-15-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Black	Polymen	-5-90 °C	Black	Bare	Yes	Carton (box)	29.08 mm	Yes
RQ, 16mm2, GREY COIL, 600V, POLYMEN, HF, 90C	050395 HF	1 .	Other	Other	None	No	None	Other	Grey	According to IEC/EN 60332-1-2	-15-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Grey	Polymen	-5-90 °C	Grey	Bare	Yes	Carton (box)	29.08 mm	Yes
RQ, 35mm2, LIGHTBLUE COIL, 600V, POLYMEN, HF, 90C	050411-2 HF	1 .	Other	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-15-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Light blue	Polymen	-5-90 °C	Blue	Bare	Yes	Ring	40.4 mm	Yes
RQ, 70mm2, BLACK COIL, 600V, POLYMEN, HF, 90C	050430 HF	1 .	Other	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-15-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible	Single insulated				Black	Bare			56.56 mm	Yes
RQ, 50mm2, LIGHTBLUE COIL, 600V, POLYMEN, HF, 90C	050421-2 HF	1 .									-15-90 °C			90 °C																	48.88 mm	Yes
RQ, 70mm2, GREEN/YELLOW COIL, 600V, POLYMEN, HF, 90C	050433 HF	1 .									-15-90 °C			90 °C																	56.56 mm	Yes
RQ, 95mm2, GREEN/YELLOW COIL, 600V, POLYMEN, HF, 90C	050443 HF	1 .									-15-90 °C			90 °C																	63.44 mm	Yes
RQ, 10mm2, BLACK COIL, 600V, POLYMEN, HF, 90C	050380 HF	1 .	Other	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-15-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Black	Polymen	-5-90 °C	Black	Bare	Yes	Carton (box)	25.04 mm	Yes
RQ, 10mm2, RED COIL, 600V, POLYMEN, HF, 90C	050387 HF	1 .	Other	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-15-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Red	Polymen	-5-90 °C	Red	Bare	Yes	Carton (box)	25.04 mm	Yes
RQ, 10mm2, LIGHTBLUE COIL, 600V, POLYMEN, HF, 90C	050381-2 HF	1 .	Other	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-15-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Light blue	Polymen	-5-90 °C	Blue	Bare	Yes	Carton (box)	25.04 mm	Yes
RQ, 10mm2, GREEN/YELLOW COIL, 600V, POLYMEN, HF, 90C	050383 HF	1 .	Other	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-15-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Green/yellow	Polymen	-5-90 °C	Green/yellow	Bare	Yes	Carton (box)	25.04 mm	Yes
RQ, 10mm2, GREY COIL, 600V, POLYMEN, HF, 90C	050385 HF	1 .	Other	Other	None	No	None	Other	Grey	According to IEC/EN 60332-1-2	-15-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Grey	Polymen	-5-90 °C	Grey	Bare	Yes	Carton (box)	25.04 mm	Yes
RQ, 10mm2, BROWN COIL, 600V, POLYMEN, HF, 90C	050382 HF	1 .	Other	Other	None	No	None	Other	Brown	According to IEC/EN 60332-1-2	-15-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Brown	Polymen	-5-90 °C	Brown	Bare	Yes	Carton (box)	25.04 mm	Yes
RQ, 16mm2, RED COIL, 600V, POLYMEN, HF, 90C	050397 HF	1 .	Other	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-15-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Red	Polymen	-5-90 °C	Red	Bare	Yes	Carton (box)	29.08 mm	Yes
RQ, 16mm2, LIGHTBLUE COIL, 600V, POLYMEN, HF, 90C	050391-2 HF	1 .	Other	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-15-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Light blue	Polymen	-5-90 °C	Blue	Bare	Yes	Carton (box)	29.08 mm	Yes
RQ, 16mm2, BROWN COIL, 600V, POLYMEN, HF, 90C	050392 HF	1 .	Other	Other	None	No	None	Other	Brown	According to IEC/EN 60332-1-2	-15-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Brown	Polymen	-5-90 °C	Brown	Bare	Yes	Carton (box)	29.08 mm	Yes
RQ, 16mm2, GREEN/YELLOW COIL, 600V, POLYMEN, HF, 90C	050393 HF	1 .	Other	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-15-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Green/yellow	Polymen	-5-90 °C	Green/yellow	Bare	Yes	Carton (box)	29.08 mm	Yes
RQ, 25mm2, BLACK COIL, 600V, POLYMEN, HF, 90C	050400 HF	1 .	Other	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-15-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Black	Polymen	-5-90 °C	Black	Bare	Yes	Ring	36.76 mm	Yes
RQ, 25mm2, RED COIL, 600V, POLYMEN, HF, 90C	050407 HF	1 .	Other	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-15-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Red	Polymen	-5-90 °C	Red	Bare	Yes	Ring	36.76 mm	Yes
RQ, 25mm2, LIGHTBLUE COIL, 600V, POLYMEN, HF, 90C	050401-2 HF	1 .	Other	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-15-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Light blue	Polymen	-5-90 °C	Blue	Bare	Yes	Ring	36.76 mm	Yes
RQ, 25mm2, GREEN/YELLOW COIL, 600V, POLYMEN, HF, 90C	050403 HF	1 .	Other	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-15-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Green/yellow	Polymen	-5-90 °C	Green/yellow	Bare	Yes	Ring	36.76 mm	Yes
RQ, 35mm2, BLACK COIL, 600V, POLYMEN, HF, 90C	050410 HF	1 .	Other	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-15-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Black	Polymen	-5-90 °C	Black	Bare	Yes	Ring	40.4 mm	Yes
RQ, 35mm2, GREEN/YELLOW COIL, 600V, POLYMEN, HF, 90C	050413 HF	1 .	Other	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-15-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Green/yellow	Polymen	-5-90 °C	Green/yellow	Bare	Yes	Ring	40.4 mm	Yes
RQ, 50mm2, BLACK COIL, 600V, POLYMEN, HF, 90C	050420 HF	1 .	Other	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-15-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Black	Polymen	-5-90 °C	Black	Bare	Yes	Ring	48.88 mm	Yes
RQ, 50mm2, GREEN/YELLOW COIL, 600V, POLYMEN, HF, 90C	050423 HF	1 .	Other	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-15-90 °C	Copper	No	90 °C	No	N/A	None	N/A	No	600 V	Yes	Class 5 = flexible	Single insulated	Green/yellow	Polymen	-5-90 °C	Green/yellow	Bare	Yes	Ring	48.88 mm	Yes

Total: 26
