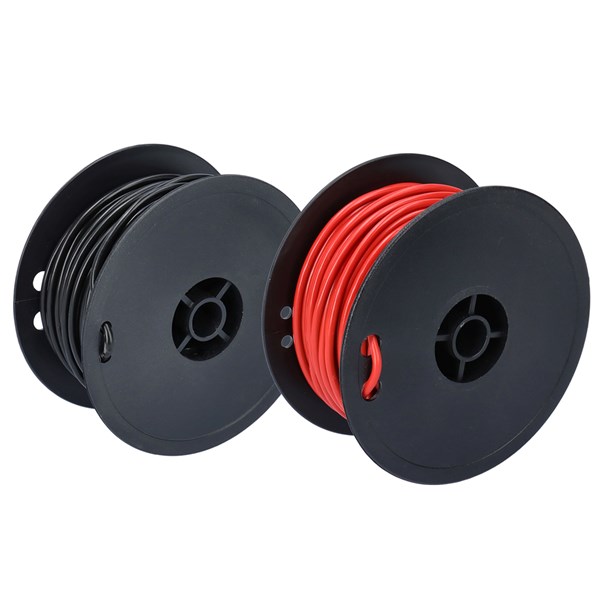

RKUB Förtent Single conductor - Spools
Connection cable for car and boat applications.
Packaging (OD x Hub x Width):
Spool B3: 160mm x 56mm x 50mm
Spool B4: 160mm x 56mm x 90mm
Structure:
Conductor: Tinned stranded copper
Conductor insulation: PVC
Core identification: According to table below
Technical data:
Rating voltage: 60V
Temperature range: -25ºC to +70ºC (-13ºF to +158ºF)
Technical properties
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Red, Black
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 60 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Single insulated
- Colour:
- Black, Red
- Operating temperature:
- -25-70 °C
- Core colour:
- Red, Black
- Conductor surface:
- Tinned
- Packaging:
- Reel B3, Reel B4
- Min. permitted bending radius, stationary application/permanent installation:
- 10 mm, 12 mm, 14 mm, 16.4 mm
Show more
Item List
- Total: 21
- Total: 21
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_RKKB, RKXB, RKUB, R2G4
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 21
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Diameter conductor | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| RKUB, 1.5mm2, BLACK SPOOL B3, 60V, PVC, FT, 70C | 1.5 mm² | 50 . | 2.5 mm | 10 mm | 1.5 mm | m | 60 V |
Yes
|
|
|
| RKUB, 1.5mm2, WHITE SPOOL B3, 60V, PVC, FT, 70C | 100 . | 2.5 mm | m |
Yes
|
|
|
||||
| RKUB, 1.5mm2, BLUE SPOOL B3, 60V, PVC, FT, 70C | 50 . | 2.5 mm | m |
Yes
|
|
|
||||
| RKUB, 1.5mm2, BROWN SPOOL B3, 60V, PVC, FT, 70C | 50 . | 2.5 mm | m |
Yes
|
|
|
||||
| RKUB, 1.5mm2, RED SPOOL B3, 60V, PVC, FT, 70C | 1.5 mm² | 50 . | 2.5 mm | 10 mm | 1.5 mm | m | 60 V |
Yes
|
|
|
| RKUB, 2.5mm2, BLACK SPOOL B3, 60V, PVC, FT, 70C | 2.5 mm² | 50 . | 3 mm | 12 mm | 2.5 mm | m | 60 V |
Yes
|
|
|
| RKUB, 2.5mm2, BLACK SPOOL B4, 60V, PVC, FT, 70C | 2.5 mm² | 100 . | 3 mm | 12 mm | 2.5 mm | m |
Yes
|
|
|
|
| RKUB, 2.5mm2, BLACK 25m/B3 SPOOL, 60V, PVC, FT, 70C | 2.5 mm² | 25 . | 3 mm | 12 mm | 2.5 mm | m |
No
|
|
|
|
| RKUB, 2.5mm2, RED SPOOL B4, 60V, PVC, FT, 70C | 2.5 mm² | 100 . | 3 mm | 12 mm | 2.5 mm | m |
Yes
|
|
|
|
| RKUB, 2.5mm2, BLUE SPOOL B3, 60V, PVC, FT, 70C | 2.5 mm² | 50 . | 3 mm | 12 mm | 2.5 mm | m |
Yes
|
|
|
|
| RKUB, 2.5mm2, BROWN SPOOL B3, 60V, PVC, FT, 70C | 2.5 mm² | 50 . | 3 mm | 12 mm | 2.5 mm | m |
No
|
|
|
|
| RKUB, 2.5mm2, WHITE SPOOL B3, 60V, PVC, FT, 70C | 2.5 mm² | 50 . | 3 mm | 12 mm | 2.5 mm | m |
Yes
|
|
|
|
| RKUB, 2.5mm2, YELLOW SPOOL B3, 60V, PVC, FT, 70C | 2.5 mm² | 50 . | 3 mm | 12 mm | 2.5 mm | m |
Yes
|
|
|
|
| RKUB, 2.5mm2, RED SPOOL B3, 60V, PVC, FT, 70C | 2.5 mm² | 50 . | 3 mm | 12 mm | 2.5 mm | m | 60 V |
Yes
|
|
|
| RKUB, 2.5mm2, GREEN SPOOL B3, 60V, PVC, FT, 70C | 2.5 mm² | 50 . | 3 mm | 12 mm | 2.5 mm | m |
No
|
|
|
|
| RKUB, 4.0mm2, BLACK SPOOL B4, 60V, PVC, FT, 70C | 4 mm² | 50 . | 3.5 mm | 14 mm | 4 mm | m | 60 V |
Yes
|
|
|
| RKUB, 4.0mm2, RED SPOOL B4, 60V, PVC, FT, 70C | 4 mm² | 50 . | 3.5 mm | 14 mm | 4 mm | m | 60 V |
Yes
|
|
|
| RKUB, 6.0mm2, BLACK SPOOL B4, 60V, PVC, FT, 70C | 6 mm² | 50 . | 4.1 mm | 16.4 mm | 6 mm | m | 60 V |
Yes
|
|
|
| RKUB, 6.0mm2, BLACK SPOOL B4, 60V, PVC, FT, 70C | 6 mm² | 100 . | 4.1 mm | 16.4 mm | 6 mm | m |
No
|
|
|
|
| RKUB, 6.0mm2, RED SPOOL B4, 60V, PVC, FT, 70C | 6 mm² | 50 . | 4.1 mm | 16.4 mm | 6 mm | m | 60 V |
Yes
|
|
|
| RKUB, 6.0mm2, RED SPOOL B4, 60V, PVC, FT, 70C | 6 mm² | 100 . | 4.1 mm | 16.4 mm | 6 mm | m |
No
|
|
|
- Total: 21
Similar Options
Approvals
- Total: 21
| Product Description | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Flame retardant | Approved according to CE | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RKUB, 1.5mm2, BLACK SPOOL B3, 60V, PVC, FT, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKUB, 1.5mm2, WHITE SPOOL B3, 60V, PVC, FT, 70C |
Yes
|
|
|
||||||||||
| RKUB, 1.5mm2, BLUE SPOOL B3, 60V, PVC, FT, 70C |
|
Yes
|
|
|
|||||||||
| RKUB, 1.5mm2, BROWN SPOOL B3, 60V, PVC, FT, 70C |
|
Yes
|
|
|
|||||||||
| RKUB, 1.5mm2, RED SPOOL B3, 60V, PVC, FT, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKUB, 2.5mm2, BLACK SPOOL B3, 60V, PVC, FT, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKUB, 2.5mm2, BLACK SPOOL B4, 60V, PVC, FT, 70C |
|
Yes
|
|
|
|||||||||
| RKUB, 2.5mm2, BLACK 25m/B3 SPOOL, 60V, PVC, FT, 70C |
No
|
|
|
||||||||||
| RKUB, 2.5mm2, RED SPOOL B4, 60V, PVC, FT, 70C |
|
Yes
|
|
|
|||||||||
| RKUB, 2.5mm2, BLUE SPOOL B3, 60V, PVC, FT, 70C |
|
Yes
|
|
|
|||||||||
| RKUB, 2.5mm2, BROWN SPOOL B3, 60V, PVC, FT, 70C |
|
No
|
|
|
|||||||||
| RKUB, 2.5mm2, WHITE SPOOL B3, 60V, PVC, FT, 70C |
|
Yes
|
|
|
|||||||||
| RKUB, 2.5mm2, YELLOW SPOOL B3, 60V, PVC, FT, 70C |
|
Yes
|
|
|
|||||||||
| RKUB, 2.5mm2, RED SPOOL B3, 60V, PVC, FT, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKUB, 2.5mm2, GREEN SPOOL B3, 60V, PVC, FT, 70C |
|
No
|
|
|
|||||||||
| RKUB, 4.0mm2, BLACK SPOOL B4, 60V, PVC, FT, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKUB, 4.0mm2, RED SPOOL B4, 60V, PVC, FT, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKUB, 6.0mm2, BLACK SPOOL B4, 60V, PVC, FT, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKUB, 6.0mm2, BLACK SPOOL B4, 60V, PVC, FT, 70C |
|
No
|
|
|
|||||||||
| RKUB, 6.0mm2, RED SPOOL B4, 60V, PVC, FT, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKUB, 6.0mm2, RED SPOOL B4, 60V, PVC, FT, 70C |
|
No
|
|
|
- Total: 21
Technical Properties
- Total: 21
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Single insulated/Double insulated | Colour | Operating temperature | Core colour | Conductor surface | Packaging | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RKUB, 1.5mm2, BLACK SPOOL B3, 60V, PVC, FT, 70C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Black | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Black | -25-70 °C | Black | Tinned | Reel B3 | 10 mm |
Yes
|
|
|
| RKUB, 1.5mm2, WHITE SPOOL B3, 60V, PVC, FT, 70C |
Yes
|
|
|
||||||||||||||||||||||||||||
| RKUB, 1.5mm2, BLUE SPOOL B3, 60V, PVC, FT, 70C |
Yes
|
|
|
||||||||||||||||||||||||||||
| RKUB, 1.5mm2, BROWN SPOOL B3, 60V, PVC, FT, 70C |
Yes
|
|
|
||||||||||||||||||||||||||||
| RKUB, 1.5mm2, RED SPOOL B3, 60V, PVC, FT, 70C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Red | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Red | -25-70 °C | Red | Tinned | Reel B3 | 10 mm |
Yes
|
|
|
| RKUB, 2.5mm2, BLACK SPOOL B3, 60V, PVC, FT, 70C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Black | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Black | -25-70 °C | Black | Tinned | Reel B3 | 12 mm |
Yes
|
|
|
| RKUB, 2.5mm2, BLACK SPOOL B4, 60V, PVC, FT, 70C | 1 . | -30-70 °C | 70 °C | 12 mm |
Yes
|
|
|
||||||||||||||||||||||||
| RKUB, 2.5mm2, BLACK 25m/B3 SPOOL, 60V, PVC, FT, 70C | 1 . | -30-70 °C | 70 °C | 12 mm |
No
|
|
|
||||||||||||||||||||||||
| RKUB, 2.5mm2, RED SPOOL B4, 60V, PVC, FT, 70C | 1 . | -30-70 °C | 70 °C | 12 mm |
Yes
|
|
|
||||||||||||||||||||||||
| RKUB, 2.5mm2, BLUE SPOOL B3, 60V, PVC, FT, 70C | 1 . | -30-70 °C | 70 °C | 12 mm |
Yes
|
|
|
||||||||||||||||||||||||
| RKUB, 2.5mm2, BROWN SPOOL B3, 60V, PVC, FT, 70C | 1 . | -30-70 °C | 70 °C | 12 mm |
No
|
|
|
||||||||||||||||||||||||
| RKUB, 2.5mm2, WHITE SPOOL B3, 60V, PVC, FT, 70C | 1 . | -30-70 °C | 70 °C | 12 mm |
Yes
|
|
|
||||||||||||||||||||||||
| RKUB, 2.5mm2, YELLOW SPOOL B3, 60V, PVC, FT, 70C | 1 . | -30-70 °C | 70 °C | 12 mm |
Yes
|
|
|
||||||||||||||||||||||||
| RKUB, 2.5mm2, RED SPOOL B3, 60V, PVC, FT, 70C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Red | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Red | -25-70 °C | Red | Tinned | Reel B3 | 12 mm |
Yes
|
|
|
| RKUB, 2.5mm2, GREEN SPOOL B3, 60V, PVC, FT, 70C | 1 . | -30-70 °C | 70 °C | 12 mm |
No
|
|
|
||||||||||||||||||||||||
| RKUB, 4.0mm2, BLACK SPOOL B4, 60V, PVC, FT, 70C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Black | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Black | -25-70 °C | Black | Tinned | Reel B4 | 14 mm |
Yes
|
|
|
| RKUB, 4.0mm2, RED SPOOL B4, 60V, PVC, FT, 70C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Red | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Red | -25-70 °C | Red | Tinned | Reel B4 | 14 mm |
Yes
|
|
|
| RKUB, 6.0mm2, BLACK SPOOL B4, 60V, PVC, FT, 70C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Black | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Black | -25-70 °C | Black | Tinned | Reel B4 | 16.4 mm |
Yes
|
|
|
| RKUB, 6.0mm2, BLACK SPOOL B4, 60V, PVC, FT, 70C | 1 . | -30-70 °C | 70 °C | 16.4 mm |
No
|
|
|
||||||||||||||||||||||||
| RKUB, 6.0mm2, RED SPOOL B4, 60V, PVC, FT, 70C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Red | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Single insulated | Red | -25-70 °C | Red | Tinned | Reel B4 | 16.4 mm |
Yes
|
|
|
| RKUB, 6.0mm2, RED SPOOL B4, 60V, PVC, FT, 70C | 1 . | -30-70 °C | 70 °C | 16.4 mm |
No
|
|
|
- Total: 21
Other information
- Total: 21
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| RKUB, 1.5mm2, BLACK SPOOL B3, 60V, PVC, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKUB, Single conductor, Tinned | 050660FT |
Yes
|
|
|
|
| RKUB, 1.5mm2, WHITE SPOOL B3, 60V, PVC, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKUB, Single conductor, Tinned | RKUB, 1.5MM2, VIT | 050664FT |
Yes
|
|
|
| RKUB, 1.5mm2, BLUE SPOOL B3, 60V, PVC, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKUB, Single conductor, Tinned | RKUB, 1.5MM2, BLÅ | 050681FT |
Yes
|
|
|
| RKUB, 1.5mm2, BROWN SPOOL B3, 60V, PVC, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKUB, Single conductor, Tinned | RKUB, 1.5MM2, BRUN | 050682FT |
Yes
|
|
|
| RKUB, 1.5mm2, RED SPOOL B3, 60V, PVC, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKUB, Single conductor, Tinned | 050687FT |
Yes
|
|
|
|
| RKUB, 2.5mm2, BLACK SPOOL B3, 60V, PVC, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKUB, Single conductor, Tinned | 050700FT |
Yes
|
|
|
|
| RKUB, 2.5mm2, BLACK SPOOL B4, 60V, PVC, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKUB, Single conductor, Tinned | RKUB, 2.5MM2, SVART | 050700-1FT |
Yes
|
|
|
| RKUB, 2.5mm2, BLACK 25m/B3 SPOOL, 60V, PVC, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKUB, Single conductor, Tinned | 050700FT-25 |
No
|
|
|
|
| RKUB, 2.5mm2, RED SPOOL B4, 60V, PVC, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKUB, Single conductor, Tinned | RKUB, 2.5MM2, RÖD | 050707-1FT |
Yes
|
|
|
| RKUB, 2.5mm2, BLUE SPOOL B3, 60V, PVC, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKUB, Single conductor, Tinned | RKUB, 2.5MM2, BLÅ | 050711FT |
Yes
|
|
|
| RKUB, 2.5mm2, BROWN SPOOL B3, 60V, PVC, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKUB, Single conductor, Tinned | RKUB, 2.5MM2, BRUN | 050712FT |
No
|
|
|
| RKUB, 2.5mm2, WHITE SPOOL B3, 60V, PVC, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKUB, Single conductor, Tinned | RKUB, 2.5MM2, VIT | 050714FT |
Yes
|
|
|
| RKUB, 2.5mm2, YELLOW SPOOL B3, 60V, PVC, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKUB, Single conductor, Tinned | RKUB, 2.5MM2, GUL | 050716FT |
Yes
|
|
|
| RKUB, 2.5mm2, RED SPOOL B3, 60V, PVC, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKUB, Single conductor, Tinned | 050717FT |
Yes
|
|
|
|
| RKUB, 2.5mm2, GREEN SPOOL B3, 60V, PVC, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKUB, Single conductor, Tinned | RKUB, 2.5MM2, GRÖN | 050718FT |
No
|
|
|
| RKUB, 4.0mm2, BLACK SPOOL B4, 60V, PVC, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKUB, Single conductor, Tinned | 050720FT |
Yes
|
|
|
|
| RKUB, 4.0mm2, RED SPOOL B4, 60V, PVC, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKUB, Single conductor, Tinned | 050727FT |
Yes
|
|
|
|
| RKUB, 6.0mm2, BLACK SPOOL B4, 60V, PVC, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKUB, Single conductor, Tinned | 050740FT |
Yes
|
|
|
|
| RKUB, 6.0mm2, BLACK SPOOL B4, 60V, PVC, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKUB, Single conductor, Tinned | RKUB, 6.0MM2, SVART | 050740-1FT |
No
|
|
|
| RKUB, 6.0mm2, RED SPOOL B4, 60V, PVC, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKUB, Single conductor, Tinned | 050747FT |
Yes
|
|
|
|
| RKUB, 6.0mm2, RED SPOOL B4, 60V, PVC, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKUB, Single conductor, Tinned | RKUB, 6.0MM2, RÖD | 050747-1FT |
No
|
|
|
- Total: 21
