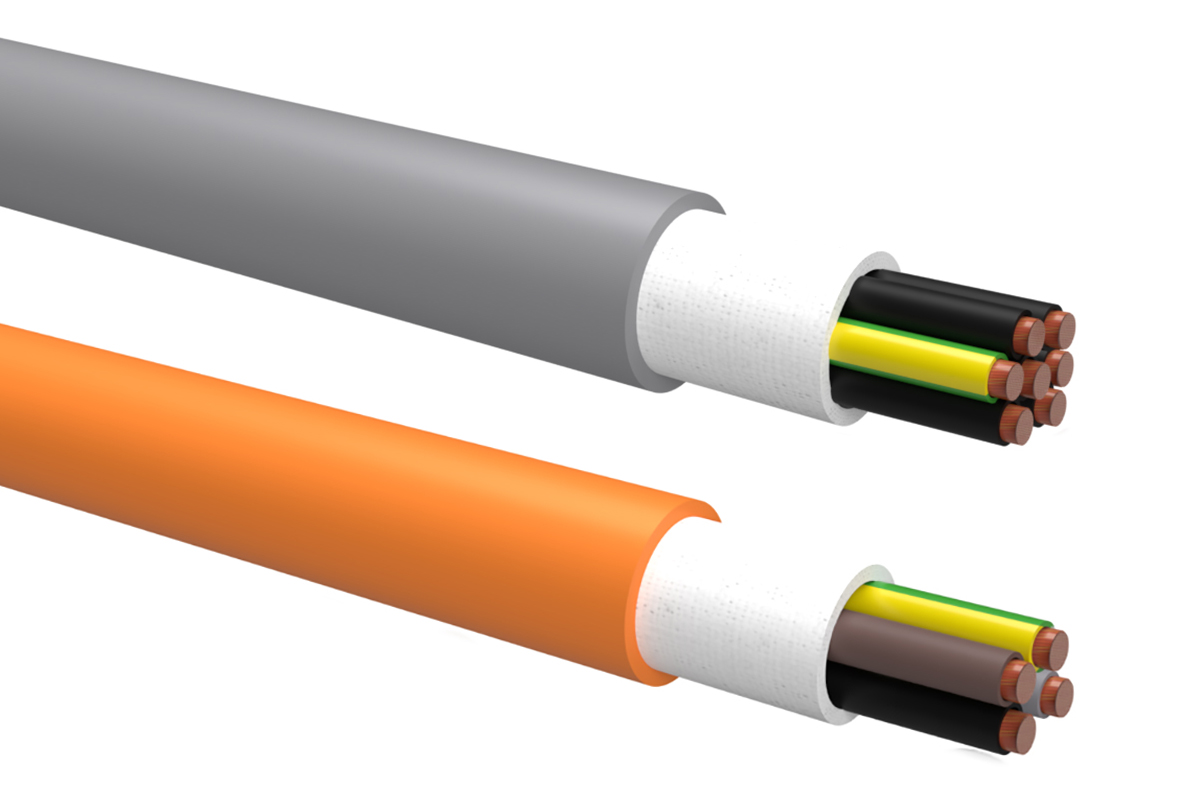

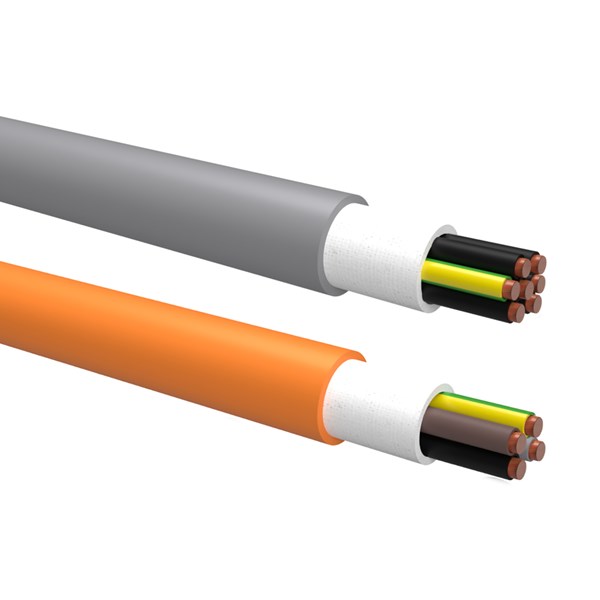

NELCOFLEX - PUR

Den fintrådiga uppbyggnaden i kombination med PUR-manteln ger en mycket elastisk kabel med liten böjradie. Ytterhöljet av polyuretan möjliggör en mycket liten kabelytterdiameter, höga mekaniska påfrestningar kan motstås. Kabeln är nötningssäker, mikrobeständig och flamsäker. Lämplig för användning i kabelkedjor och kontinuerligt rörliga maskiner samt
portalrobotar.

Uppbyggnad:
Ledare: Blank flertrådig koppar klass 6.
Ledarisolation: PP
Yttermantel: PUR, PURWIL
Mantelfärg: Grå, Orange
Ledarfärg - PUR: Svart med vit eller svart nummermärkning.
Ledarfärg - PURWIL: Färgade ledare enl. HD 308
Gröngul skyddsledare.

Teknisk data:
Driftspänning: 300/500 V
Provspänning: 3000 V
Kabelarea: 0.5mm² -70mm²
Temp. område: Fast förläggning min/max: -40ºC till +90ºC
Rörlig förläggning min/max: -40ºC till +90ºC
Minsta böjradie: 5 x kabelns diameter
Oljebeständighet: God
Flambeständighet: IEC 332-1

Godkännanden: DIN EN 60811-404
VDE 0482 del 332-2-2 resp. IEC 60332-2-2
Tillämpade standarder: liknande VDE 0250

Show item list

Technical properties

Number of cores:
5 ., 2 ., 18 ., 7 ., 25 ., 4 ., 3 .
Material core insulation:
Rubber, Polyurethane (PUR)
Specification core insulation:
Other
Core identification:
Colour, Numbers
Protective conductor:
Yes, No
Material outer sheath:
Polyurethane (PUR)
Specification material outer sheath:
Other
Colour outer sheath:
Grey, Orange
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-40-90 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
90 °C, 60 °C
Screen:
No
Armouring/reinforcement:
Braiding, None
Drain wire:
No
Nominal voltage:
500 V
Halogen free:
No, Yes
Conductor category:
Class 5 = flexible
Colour:
Orange, Grey
Material insulation:
Polyurethane (PUR)
Operating temperature:
-40-70 °C
Core colour:
Several
Conductor surface:
Bare
Min. permitted bending radius, stationary application/permanent installation:
36.5 mm, 33 mm, 59 mm, 46 mm, 64 mm, 78.5 mm, 47.5 mm, 66.5 mm, 48 mm, 83 mm, 97 mm, 27.5 mm, 33.5 mm

Show more

  • Total: 14

040770

Availability:
Yes

040780

Availability:
Yes

040805

Availability:
Yes

040812

Availability:
Yes

040817

Availability:
Yes

040820

Availability:
Yes

040824

Availability:
Yes

040829

Availability:
Yes

040831-1

Availability:
Yes

040962

Availability:
Yes

040965

Availability:
Yes

040840

Availability:
Yes

040807

Availability:
Yes

040839

Availability:
Yes
  • Total: 14
  • Total: 14
Product Description Availability
NELCOFLEX-Y, 5G0.75mm2, ORANGE GUMMILEDARE, 500V, PUR, HF, 70C
Yes
NELCOFLEX-Y, 2x1.0mm2, ORANGE UGG, GUMMILEDARE, 500V, PUR, HF, 70C
Yes
NELCOFLEX-Y, 12G0.5mm2, GREY 500V, PUR, HF, 70C
Yes
NELCOFLEX-Y, 7G0.75mm2, GREY 500V, PUR, HF, 70C
Yes
NELCOFLEX-Y, 18G0.75mm2, GREY 500V, PUR, HF, 70C
Yes
NELCOFLEX-Y, 25G0.75mm2, GREY 500V, PUR, HF, 70C
Yes
NELCOFLEX-Y, 7G1.0mm2, GREY 500V, PUR, HF, 70C
Yes
NELCOFLEX-Y, 18G1.0mm2, GREY 500V, PUR, HF, 70C
Yes
NELCOFLEX-Y, 4G1.5mm2, GREY 500V, PUR, HF, 70C
Yes
NELCOFLEX-Y, 3G0.75mm2, GREY 500V, PUR, HF, 70C
Yes
NELCOFLEX-Y, 5G0.75mm2, GREY 500V, PUR, HF, 70C
Yes
NELCOFLEX-Y, 25G1.5mm2, GREY 500V, PUR, HF, 70C
Yes
NELCOFLEX-Y, 18G0.5mm2, GREY 500V, PUR, HF, 70C
Yes
NELCOFLEX-Y, 18G1.5mm2, GREY 500V, PUR, HF, 70C
Yes
  • Total: 14
