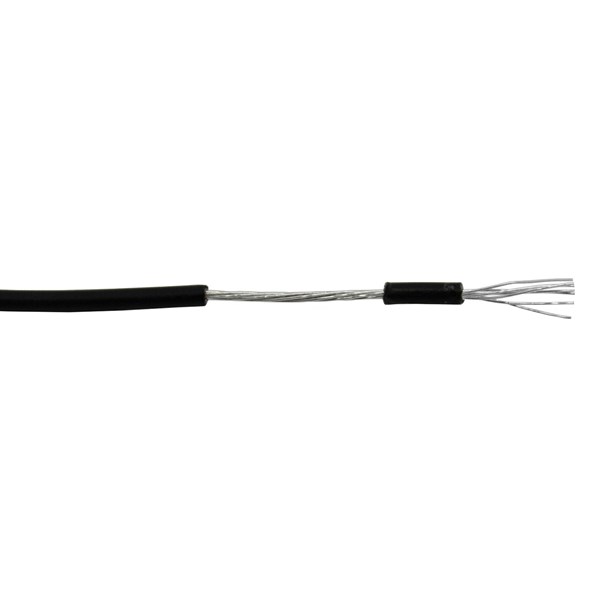

TX UL 3746

Flexibel kopplingskabel för intern kabeldragning i lampor, uppvärmningsanordningar, elektriska maskiner, styr- och apparatskåp, samt inom byggnadsindustrin.
Idealisk för installation inuti rör samt för utanpåliggande installation. Mycket goda elektriska och mekaniska egenskaper.
Brett temperaturområde samt hög tålighet mot oljor, ozon, hydrolys och mekanisk påverkan.
Kopplingstråden är svårantändlig, vid brand utvecklas minimalt med rök och inga korrosiva gaser avges.
Halogenfri.

Uppbyggnad
Ledare: Förtent flertrådig koppar enligt IEC 60228 klass 5
Ledarisolation: XHFFR
Mantelfärg: Se produktdata nedan

Tekniska data:
Driftspänning: 300 V
Temp.område: -40ºC till +105ºC

Godkännanden, flambeständighet
IEC60754-1

Show item list

Technical properties

Number of cores:: 1 .
Material core insulation:: Polyolefin
Specification core insulation:: Other
Core identification:: None
Protective conductor:: No
Material outer sheath:: None
Specification material outer sheath:: Other
Colour outer sheath:: Blue, Brown, Yellow, Grey, Green, Orange, Red, Black, White, Other
Flame retardant:: According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:: -30-105 °C
Conductor material:: Copper
Twisted cores:: No
Max. conductor temperature:: 105 °C
Screen:: No
Protective barrier:: N/A
Armouring/reinforcement:: None
Insulation integrity:: N/A
Drain wire:: No
Nominal voltage:: 300 V
Halogen free:: Yes, Yes
Conductor category:: Class 5 = flexible
Colour:: Blue, Black, Purple, Orange, Green, Brown, Yellow, Red, White, Grey
Material insulation:: XLPE
Operating temperature:: -40-105 °C
Core colour:: Blue, Brown, Yellow, Grey, Green, Purple, Orange, Red, Black, White
Conductor surface:: Tinned
Packaging:: Reel B5
Min. permitted bending radius, stationary application/permanent installation:: 6.42 mm, 5.4 mm, 4.74 mm, 4.29 mm, 4.05 mm

Item List

Page size:

Total: 48

0140200

TX UL3746, AWG 20(0.5mm2), VIOLETT, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

01402011

TX UL3746, AWG 20(0.5mm2), ORANGE, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

01402012

TX UL3746, AWG 20(0.5mm2), GRÖN, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140202

TX UL3746, AWG 20(0.5mm2), BRUN, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140207

TX UL3746, AWG 20(0.5mm2), BLÅ, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140208

TX UL3746, AWG 20(0,5mm2), RÖD, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140209

TX UL3746, AWG 20(0.5mm2), SVART, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140220

TX UL3746, AWG 22(0.34mm2), VIOLET, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

01402211

TX UL3746, AWG 22(0.34mm2), ORANGE, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140224

TX UL3746, AWG 22(0.34mm2), VIT, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140225

TX UL3746, AWG 22(0.34mm2), GRÅ , BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: No

0140226

TX UL3746, AWG 22, (0,34mm2) GUL, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140227

TX UL3746, AWG 22(0.34mm2), BLÅ, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: No

0140228

TX UL3746, AWG 22(0.34mm2), RÖD , BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140229

TX UL3746, AWG 22(0.34mm2), SVART, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

01402411

TX UL3746, AWG 24(0.22-0.25mm2), ORANGE, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: No

01402412

TX UL3746, AWG 24(0.22-0.25mm2), GRÖN, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: No

0140249

TX UL3746, AWG 24(0.22-0.25mm2), SVART, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: No

0140262

TX UL3746, AWG 26(0.14-0.15mm2), BRUN, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140264

TX UL3746, AWG 26(0.14-0.15mm2), VIT, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140265

TX UL3746, AWG 26(0.14-0.15mm2), GRÅ, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

01402012-1000

TX UL3746, AWG 20(0.5mm2), GRÖN, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140202-1000

TX UL3746, AWG 20(0.5mm2), BRUN, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140204-1000

TX UL3746, AWG 20(0.5mm2), VIT, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140205-1000

TX UL3746, AWG 20(0.5mm2), GRÅ, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: No

0140207-1000

TX UL3746, AWG 20(0.5mm2), BLÅ, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140208-1000

TX UL3746, AWG 20(0.5mm2), RÖD, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140209-1000

TX UL3746, AWG 20(0.5mm2), SVART, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140220-1000

TX UL3746, AWG 22(0.34mm2), VIOLET, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

01402211-1000

TX UL3746, AWG 22(0.34mm2), ORANGE, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

01402212-1000

TX UL3746, AWG 22(0.34mm2), GRÖN, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140222-1000

TX UL3746, AWG 22(0.34mm2), BRUN, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140224-1000

TX UL3746, AWG 22(0.34mm2), VIT, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140225-1000

TX UL3746, AWG 22(0.34mm2), GRÅ , BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140226-1000

TX UL3746, AWG 22(0.34mm2), GUL, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140227-1000

TX UL3746, AWG 22(0.34mm2), BLÅ, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: No

0140228-1000

TX UL3746, AWG 22(0.34mm2), RÖD , BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140229-1000

TX UL3746, AWG 22(0.34mm2), SVART , BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140244-1000

TX UL3746, AWG 24(0.22-0.25mm2), VIT, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140249-1000

TX UL3746, AWG 24(0.22-0.25mm2), SVART, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140264-1000

TX UL3746, AWG 26(0.14-0.15mm2), VIT, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140269-1000

TX UL3746, AWG 26(0.14-0.15mm2), SVART, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140182

TX UL3746, AWG 18(1.0mm2), BRUN, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: No

0140187

TX UL3746, AWG 18(1.0mm2), BLÅ, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140189

TX UL3746, AWG 18(1.0mm2), SVART, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140206

TX UL3746, AWG 20(0.5mm2), GUL, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140246

TX UL3746, AWG 24(0.22-0.25mm2), GUL, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: Yes

0140248

TX UL3746, AWG 24(0.22-0.25mm2), RÖD, BOBIN B5, 300V, XLPE, HF, FT, 105C

Availability:: No

Total: 48

Accessories

Spare Parts

Product video

Documents

Manuals, Datasheets, Sketches & Drawings

Conflict Minerals Reporting Template Version 6.31_Approved

Dimensions

Page size:

Total: 48

Product Description	Stock code	Nominal cross section conductor	MOQ	Outer diameter approx.	Min. permitted bending radius, stationary application/permanent installation	Diameter conductor	Unit	AWG size	Nominal voltage	Availability
TX UL3746, AWG 20(0.5mm2), VIOLET SPOOL B5, 300V, XLPE, HF, FT, 105C	0140200	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20	300 V	Yes
TX UL3746, AWG 20(0.5mm2), ORANGE SPOOL B5, 300V, XLPE, HF, FT, 105C	01402011	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20	300 V	Yes
TX UL3746, AWG 20(0.5mm2), GREEN SPOOL B5, 300V, XLPE, HF, FT, 105C	01402012	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20	300 V	Yes
TX UL3746, AWG 20(0.5mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140202	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20	300 V	Yes
TX UL3746, AWG 20(0.5mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140207	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20	300 V	Yes
TX UL3746, AWG 20(0,5mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140208	5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20	300 V	Yes
TX UL3746, AWG 20(0.5mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140209	0.5176 mm²	1000 .				m	20		Yes
TX UL3746, AWG 22(0.34mm2), VIOLET, BOBIN B5, 300V, XLPE, HF, FT, 105C	0140220	0.3255 mm²	1000 .				m		300 V	Yes
TX UL3746, AWG 22(0.34mm2), ORANGE SPOOL B5, 300V, XLPE, HF, FT, 105C	01402211	0.3255 mm²	1000 .				m			Yes
TX UL3746, AWG 22(0.34mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140224	0.3255 mm²	1000 .				m	22		Yes
TX UL3746, AWG 22(0.34mm2), GREY SPOOL B5, 300V, XLPE, HF, FT, 105C	0140225	0.3255 mm²	1000 .				m	22		No
TX UL3746, AWG 22(0.34mm2), YELLOW SPOOL B5, 300V, XLPE, HF, FT, 105C	0140226	0.3255 mm²	1000 .				m	22		Yes
TX UL3746, AWG 22(0.34mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140227	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22	300 V	No
TX UL3746, AWG 22(0.34mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140228	0.34 mm²	1 .	1.58 mm	4.74 mm	0.34 mm	m	22	300 V	Yes
TX UL3746, AWG 22(0.34mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140229	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22	300 V	Yes
TX UL3746, AWG 24(0.22-0.25mm2), ORANGE SPOOL B5, 300V, XLPE, HF, FT, 105C	01402411	0.25 mm²	1000 .	1.43 mm	4.29 mm	0.25 mm	m	24	300 V	No
TX UL3746, AWG 24(0.22-0.25mm2), GREEN SPOOL B5, 300V, XLPE, HF, FT, 105C	01402412	0.25 mm²	1000 .	1.43 mm	4.29 mm	0.25 mm	m	24	300 V	No
TX UL3746, AWG 24(0.22-0.25mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140249	0.25 mm²	1 .	1.43 mm	4.29 mm	0.25 mm	m	24	300 V	No
TX UL3746, AWG 26(0.14-0.15mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140262	0.15 mm²	1000 .	1.35 mm	4.05 mm	0.15 mm	m	26	300 V	Yes
TX UL3746, AWG 26(0.14-0.15mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140264	0.1288 mm²	1000 .				m	26		Yes
TX UL3746, AWG 26(0.14-0.15mm2), GREY SPOOL B5, 300V, XLPE, HF, FT, 105C	0140265	0.15 mm²	1000 .	1.35 mm	4.05 mm	0.15 mm	m	26	300 V	Yes
TX UL3746, AWG 20(0.5mm2), GREEN SPOOL B5, 300V, XLPE, HF, FT, 105C	01402012-1000	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20		Yes
TX UL3746, AWG 20(0.5mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140202-1000	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20		Yes
TX UL3746, AWG 20(0.5mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140204-1000	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20		Yes
TX UL3746, AWG 20(0.5mm2), GREY SPOOL B5, 300V, XLPE, HF, FT, 105C	0140205-1000	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20		No
TX UL3746, AWG 20(0.5mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140207-1000	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20		Yes
TX UL3746, AWG 20(0.5mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140208-1000	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20		Yes
TX UL3746, AWG 20(0.5mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140209-1000	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20		Yes
TX UL3746, AWG 22(0.34mm2), VIOLET SPOOL B5, 300V, XLPE, HF, FT, 105C	0140220-1000	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22		Yes
TX UL3746, AWG 22(0.34mm2), ORANGE SPOOL B5, 300V, XLPE, HF, FT, 105C	01402211-1000	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22		Yes
TX UL3746, AWG 22(0.34mm2), GREEN SPOOL B5, 300V, XLPE, HF, FT, 105C	01402212-1000	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22		Yes
TX UL3746, AWG 22(0.34mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140222-1000	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22		Yes
TX UL3746, AWG 22(0.34mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140224-1000	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22		Yes
TX UL3746, AWG 22(0.34mm2), GREY SPOOL B5, 300V, XLPE, HF, FT, 105C	0140225-1000	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22		Yes
TX UL3746, AWG 22(0.34mm2), YELLOW SPOOL B5, 300V, XLPE, HF, FT, 105C	0140226-1000	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22		Yes
TX UL3746, AWG 22(0.34mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140227-1000	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22		No
TX UL3746, AWG 22(0.34mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140228-1000	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22		Yes
TX UL3746, AWG 22(0.34mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140229-1000	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22		Yes
TX UL3746, AWG 24(0.22-0.25mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140244-1000	0.25 mm²	1000 .	1.43 mm	4.29 mm	0.25 mm	m	24		Yes
TX UL3746, AWG 24(0.22-0.25mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140249-1000	0.25 mm²	1000 .	1.43 mm	4.29 mm	0.25 mm	m	24		Yes
TX UL3746, AWG 26(0.14-0.15mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140264-1000	0.15 mm²	1000 .	1.35 mm	4.05 mm	0.15 mm	m	26		Yes
TX UL3746, AWG 26(0.14-0.15mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140269-1000	0.15 mm²	1000 .	1.35 mm	4.05 mm	0.15 mm	m	26		Yes
TX UL3746, AWG 18(1.0mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140182	1 mm²	1000 .	2.14 mm	6.42 mm	1 mm	m	18		No
TX UL3746, AWG 18(1.0mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140187	1 mm²	1000 .	2.14 mm	6.42 mm	1 mm	m	18	300 V	Yes
TX UL3746, AWG 18(1.0mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140189	1 mm²	1000 .	2.14 mm	6.42 mm	1 mm	m	18	300 V	Yes
TX UL3746, AWG 20(0.5mm2), YELLOW SPOOL B5, 300V, XLPE, HF, FT, 105C	0140206	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20	300 V	Yes
TX UL3746, AWG 24(0.22-0.25mm2), YELLOW SPOOL B5, 300V, XLPE, HF, FT, 105C	0140246	0.25 mm²	1000 .	1.43 mm	4.29 mm	0.25 mm	m	24	300 V	Yes
TX UL3746, AWG 24(0.22-0.25mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140248	0.25 mm²	1000 .	1.43 mm	4.29 mm	0.25 mm	m	24	300 V	No

Total: 48

Similar Options

Approvals

Page size:

Total: 48

Product Description	Stock code	Reaction-to-fire class according to EN 13501-6	Smoke development class according to EN 13501-6	Euro class flaming droplets/particles according to EN 13501-6	Euro class acidity according to EN 13501-6	Halogen free	Low smoke (according to EN 61034-2)	Low temperature resistant (according to EN 60811-504+505+506)	Oil resistant (according to EN 60811-404)	Flame retardant	Availability
TX UL3746, AWG 20(0.5mm2), VIOLET SPOOL B5, 300V, XLPE, HF, FT, 105C	0140200	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 20(0.5mm2), ORANGE SPOOL B5, 300V, XLPE, HF, FT, 105C	01402011	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 20(0.5mm2), GREEN SPOOL B5, 300V, XLPE, HF, FT, 105C	01402012	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 20(0.5mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140202	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 20(0.5mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140207	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 20(0,5mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140208	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 20(0.5mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140209	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 22(0.34mm2), VIOLET, BOBIN B5, 300V, XLPE, HF, FT, 105C	0140220										Yes
TX UL3746, AWG 22(0.34mm2), ORANGE SPOOL B5, 300V, XLPE, HF, FT, 105C	01402211										Yes
TX UL3746, AWG 22(0.34mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140224	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 22(0.34mm2), GREY SPOOL B5, 300V, XLPE, HF, FT, 105C	0140225	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	No
TX UL3746, AWG 22(0.34mm2), YELLOW SPOOL B5, 300V, XLPE, HF, FT, 105C	0140226	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 22(0.34mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140227	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	No
TX UL3746, AWG 22(0.34mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140228	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 22(0.34mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140229	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 24(0.22-0.25mm2), ORANGE SPOOL B5, 300V, XLPE, HF, FT, 105C	01402411	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	No
TX UL3746, AWG 24(0.22-0.25mm2), GREEN SPOOL B5, 300V, XLPE, HF, FT, 105C	01402412	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	No
TX UL3746, AWG 24(0.22-0.25mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140249	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	No
TX UL3746, AWG 26(0.14-0.15mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140262	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 26(0.14-0.15mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140264	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 26(0.14-0.15mm2), GREY SPOOL B5, 300V, XLPE, HF, FT, 105C	0140265	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 20(0.5mm2), GREEN SPOOL B5, 300V, XLPE, HF, FT, 105C	01402012-1000	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 20(0.5mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140202-1000	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 20(0.5mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140204-1000	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 20(0.5mm2), GREY SPOOL B5, 300V, XLPE, HF, FT, 105C	0140205-1000	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	No
TX UL3746, AWG 20(0.5mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140207-1000	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 20(0.5mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140208-1000	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 20(0.5mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140209-1000	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 22(0.34mm2), VIOLET SPOOL B5, 300V, XLPE, HF, FT, 105C	0140220-1000	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 22(0.34mm2), ORANGE SPOOL B5, 300V, XLPE, HF, FT, 105C	01402211-1000	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 22(0.34mm2), GREEN SPOOL B5, 300V, XLPE, HF, FT, 105C	01402212-1000	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 22(0.34mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140222-1000	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 22(0.34mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140224-1000	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 22(0.34mm2), GREY SPOOL B5, 300V, XLPE, HF, FT, 105C	0140225-1000	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 22(0.34mm2), YELLOW SPOOL B5, 300V, XLPE, HF, FT, 105C	0140226-1000	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 22(0.34mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140227-1000	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	No
TX UL3746, AWG 22(0.34mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140228-1000	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 22(0.34mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140229-1000	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 24(0.22-0.25mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140244-1000	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 24(0.22-0.25mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140249-1000	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 26(0.14-0.15mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140264-1000	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 26(0.14-0.15mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140269-1000	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 18(1.0mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140182	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	No
TX UL3746, AWG 18(1.0mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140187	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 18(1.0mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140189	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 20(0.5mm2), YELLOW SPOOL B5, 300V, XLPE, HF, FT, 105C	0140206	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 24(0.22-0.25mm2), YELLOW SPOOL B5, 300V, XLPE, HF, FT, 105C	0140246	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	Yes
TX UL3746, AWG 24(0.22-0.25mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140248	N/A	N/A	N/A	N/A	Yes	Yes	No	No	According to IEC/EN 60332-1-2	No

Total: 48

Technical Properties

Page size:

Total: 48

Product Description	Stock code	Number of cores	Material core insulation	Specification core insulation	Core identification	Protective conductor	Material outer sheath	Specification material outer sheath	Colour outer sheath	Flame retardant	Permitted cable outer temperature after assembling without vibration	Conductor material	Twisted cores	Max. conductor temperature	Screen	Protective barrier	Armouring/reinforcement	Insulation integrity	Drain wire	Nominal voltage	Halogen free	Conductor category	Colour	Material insulation	Operating temperature	Core colour	Conductor surface	Halogen free	Packaging	Min. permitted bending radius, stationary application/permanent installation	Availability
TX UL3746, AWG 20(0.5mm2), VIOLET SPOOL B5, 300V, XLPE, HF, FT, 105C	0140200	1 .	Polyolefin	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No	300 V	Yes	Class 5 = flexible	Purple	XLPE	-40-105 °C	Purple	Tinned	Yes	Reel B5	5.4 mm	Yes
TX UL3746, AWG 20(0.5mm2), ORANGE SPOOL B5, 300V, XLPE, HF, FT, 105C	01402011	1 .	Polyolefin	Other	None	No	None	Other	Orange	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No	300 V	Yes	Class 5 = flexible	Orange	XLPE	-40-105 °C	Orange	Tinned	Yes	Reel B5	5.4 mm	Yes
TX UL3746, AWG 20(0.5mm2), GREEN SPOOL B5, 300V, XLPE, HF, FT, 105C	01402012	1 .	Polyolefin	Other	None	No	None	Other	Green	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No	300 V	Yes	Class 5 = flexible	Green	XLPE	-40-105 °C	Green	Tinned	Yes	Reel B5	5.4 mm	Yes
TX UL3746, AWG 20(0.5mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140202	1 .	Polyolefin	Other	None	No	None	Other	Brown	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No	300 V	Yes	Class 5 = flexible	Brown	XLPE	-40-105 °C	Brown	Tinned	Yes	Reel B5	5.4 mm	Yes
TX UL3746, AWG 20(0.5mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140207	1 .	Polyolefin	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No	300 V	Yes	Class 5 = flexible	Blue	XLPE	-40-105 °C	Blue	Tinned	Yes	Reel B5	5.4 mm	Yes
TX UL3746, AWG 20(0,5mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140208	1 .	Polyolefin	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No	300 V	Yes	Class 5 = flexible	Red	XLPE	-40-105 °C	Red	Tinned	Yes	Reel B5	5.4 mm	Yes
TX UL3746, AWG 20(0.5mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140209		Polyolefin	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2		Copper	No		No	N/A	None	N/A	No		Yes	Class 5 = flexible	Black	XLPE	-40-105 °C	Black	Tinned	Yes	Reel B5		Yes
TX UL3746, AWG 22(0.34mm2), VIOLET, BOBIN B5, 300V, XLPE, HF, FT, 105C	0140220																			300 V			Purple	XLPE	-40-105 °C		Tinned	Yes	Reel B5		Yes
TX UL3746, AWG 22(0.34mm2), ORANGE SPOOL B5, 300V, XLPE, HF, FT, 105C	01402211																						Orange	XLPE	-40-105 °C		Tinned	Yes	Reel B5		Yes
TX UL3746, AWG 22(0.34mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140224		Polyolefin	Other	None	No	None	Other	White	According to IEC/EN 60332-1-2		Copper	No		No	N/A	None	N/A	No		Yes	Class 5 = flexible	White	XLPE	-40-105 °C	White	Tinned	Yes	Reel B5		Yes
TX UL3746, AWG 22(0.34mm2), GREY SPOOL B5, 300V, XLPE, HF, FT, 105C	0140225		Polyolefin	Other	None	No	None	Other	Grey	According to IEC/EN 60332-1-2		Copper	No		No	N/A	None	N/A	No		Yes	Class 5 = flexible	Grey	XLPE	-40-105 °C	Grey	Tinned	Yes	Reel B5		No
TX UL3746, AWG 22(0.34mm2), YELLOW SPOOL B5, 300V, XLPE, HF, FT, 105C	0140226		Polyolefin	Other	None	No	None	Other	Yellow	According to IEC/EN 60332-1-2		Copper	No		No	N/A	None	N/A	No		Yes	Class 5 = flexible	Yellow	XLPE	-40-105 °C	Yellow	Tinned	Yes	Reel B5		Yes
TX UL3746, AWG 22(0.34mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140227	1 .	Polyolefin	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No	300 V	Yes	Class 5 = flexible	Blue	XLPE	-40-105 °C	Blue	Tinned	Yes	Reel B5	4.74 mm	No
TX UL3746, AWG 22(0.34mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140228	1 .	Polyolefin	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No	300 V	Yes	Class 5 = flexible	Red	XLPE	-40-105 °C	Red	Tinned	Yes	Reel B5	4.74 mm	Yes
TX UL3746, AWG 22(0.34mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140229	1 .	Polyolefin	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No	300 V	Yes	Class 5 = flexible	Black	XLPE	-40-105 °C	Black	Tinned	Yes	Reel B5	4.74 mm	Yes
TX UL3746, AWG 24(0.22-0.25mm2), ORANGE SPOOL B5, 300V, XLPE, HF, FT, 105C	01402411	1 .	Polyolefin	Other	None	No	None	Other	Orange	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No	300 V	Yes	Class 5 = flexible	Orange	XLPE	-40-105 °C	Orange	Tinned	Yes	Reel B5	4.29 mm	No
TX UL3746, AWG 24(0.22-0.25mm2), GREEN SPOOL B5, 300V, XLPE, HF, FT, 105C	01402412	1 .	Polyolefin	Other	None	No	None	Other	Green	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No	300 V	Yes	Class 5 = flexible	Green	XLPE	-40-105 °C	Green	Tinned	Yes	Reel B5	4.29 mm	No
TX UL3746, AWG 24(0.22-0.25mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140249	1 .	Polyolefin	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No	300 V	Yes	Class 5 = flexible	Black	XLPE	-40-105 °C	Black	Tinned	Yes	Reel B5	4.29 mm	No
TX UL3746, AWG 26(0.14-0.15mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140262	1 .	Polyolefin	Other	None	No	None	Other	Brown	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No	300 V	Yes	Class 5 = flexible	Brown	XLPE	-40-105 °C	Brown	Tinned	Yes	Reel B5	4.05 mm	Yes
TX UL3746, AWG 26(0.14-0.15mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140264		Polyolefin	Other	None	No	None	Other	White	According to IEC/EN 60332-1-2		Copper	No		No	N/A	None	N/A	No		Yes	Class 5 = flexible	White	XLPE	-40-105 °C	White	Tinned	Yes	Reel B5		Yes
TX UL3746, AWG 26(0.14-0.15mm2), GREY SPOOL B5, 300V, XLPE, HF, FT, 105C	0140265	1 .	Polyolefin	Other	None	No	None	Other	Grey	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No	300 V	Yes	Class 5 = flexible	Grey	XLPE	-40-105 °C	Grey	Tinned	Yes	Reel B5	4.05 mm	Yes
TX UL3746, AWG 20(0.5mm2), GREEN SPOOL B5, 300V, XLPE, HF, FT, 105C	01402012-1000	1 .	Polyolefin	Other	None	No	None	Other	Green	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible				Green	Tinned			5.4 mm	Yes
TX UL3746, AWG 20(0.5mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140202-1000	1 .	Polyolefin	Other	None	No	None	Other	Brown	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible				Brown	Tinned			5.4 mm	Yes
TX UL3746, AWG 20(0.5mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140204-1000	1 .	Polyolefin	Other	None	No	None	Other	White	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible				White	Tinned			5.4 mm	Yes
TX UL3746, AWG 20(0.5mm2), GREY SPOOL B5, 300V, XLPE, HF, FT, 105C	0140205-1000	1 .	Polyolefin	Other	None	No	None	Other	Grey	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible				Grey	Tinned			5.4 mm	No
TX UL3746, AWG 20(0.5mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140207-1000	1 .	Polyolefin	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible				Blue	Tinned			5.4 mm	Yes
TX UL3746, AWG 20(0.5mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140208-1000	1 .	Polyolefin	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible				Red	Tinned			5.4 mm	Yes
TX UL3746, AWG 20(0.5mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140209-1000	1 .	Polyolefin	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible				Black	Tinned			5.4 mm	Yes
TX UL3746, AWG 22(0.34mm2), VIOLET SPOOL B5, 300V, XLPE, HF, FT, 105C	0140220-1000	1 .	Polyolefin	Other	None	No	None	Other	Other	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible				Purple	Tinned			4.74 mm	Yes
TX UL3746, AWG 22(0.34mm2), ORANGE SPOOL B5, 300V, XLPE, HF, FT, 105C	01402211-1000	1 .	Polyolefin	Other	None	No	None	Other	Orange	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible				Orange	Tinned			4.74 mm	Yes
TX UL3746, AWG 22(0.34mm2), GREEN SPOOL B5, 300V, XLPE, HF, FT, 105C	01402212-1000	1 .	Polyolefin	Other	None	No	None	Other	Green	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible				Green	Tinned			4.74 mm	Yes
TX UL3746, AWG 22(0.34mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140222-1000	1 .	Polyolefin	Other	None	No	None	Other	Brown	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible				Brown	Tinned			4.74 mm	Yes
TX UL3746, AWG 22(0.34mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140224-1000	1 .	Polyolefin	Other	None	No	None	Other	White	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible				White	Tinned			4.74 mm	Yes
TX UL3746, AWG 22(0.34mm2), GREY SPOOL B5, 300V, XLPE, HF, FT, 105C	0140225-1000	1 .	Polyolefin	Other	None	No	None	Other	Grey	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible				Grey	Tinned			4.74 mm	Yes
TX UL3746, AWG 22(0.34mm2), YELLOW SPOOL B5, 300V, XLPE, HF, FT, 105C	0140226-1000	1 .	Polyolefin	Other	None	No	None	Other	Yellow	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible				Yellow	Tinned			4.74 mm	Yes
TX UL3746, AWG 22(0.34mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140227-1000	1 .	Polyolefin	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible				Blue	Tinned			4.74 mm	No
TX UL3746, AWG 22(0.34mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140228-1000	1 .	Polyolefin	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible				Red	Tinned			4.74 mm	Yes
TX UL3746, AWG 22(0.34mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140229-1000	1 .	Polyolefin	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible				Black	Tinned			4.74 mm	Yes
TX UL3746, AWG 24(0.22-0.25mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140244-1000	1 .	Polyolefin	Other	None	No	None	Other	White	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible				White	Tinned			4.29 mm	Yes
TX UL3746, AWG 24(0.22-0.25mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140249-1000	1 .	Polyolefin	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible				Black	Tinned			4.29 mm	Yes
TX UL3746, AWG 26(0.14-0.15mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140264-1000	1 .	Polyolefin	Other	None	No	None	Other	White	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible				White	Tinned			4.05 mm	Yes
TX UL3746, AWG 26(0.14-0.15mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140269-1000	1 .	Polyolefin	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible				Black	Tinned			4.05 mm	Yes
TX UL3746, AWG 18(1.0mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140182	1 .	Polyolefin	Other	None	No	None	Other	Brown	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No		Yes	Class 5 = flexible				Brown	Tinned			6.42 mm	No
TX UL3746, AWG 18(1.0mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140187	1 .	Polyolefin	Other	None	No	None	Other	Blue	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No	300 V	Yes	Class 5 = flexible	Blue	XLPE	-40-105 °C	Blue	Tinned	Yes	Reel B5	6.42 mm	Yes
TX UL3746, AWG 18(1.0mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140189	1 .	Polyolefin	Other	None	No	None	Other	Black	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No	300 V	Yes	Class 5 = flexible	Black	XLPE	-40-105 °C	Black	Tinned	Yes	Reel B5	6.42 mm	Yes
TX UL3746, AWG 20(0.5mm2), YELLOW SPOOL B5, 300V, XLPE, HF, FT, 105C	0140206	1 .	Polyolefin	Other	None	No	None	Other	Yellow	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No	300 V	Yes	Class 5 = flexible	Yellow	XLPE	-40-105 °C	Yellow	Tinned	Yes	Reel B5	5.4 mm	Yes
TX UL3746, AWG 24(0.22-0.25mm2), YELLOW SPOOL B5, 300V, XLPE, HF, FT, 105C	0140246	1 .	Polyolefin	Other	None	No	None	Other	Yellow	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No	300 V	Yes	Class 5 = flexible	Yellow	XLPE	-40-105 °C	Yellow	Tinned	Yes	Reel B5	4.29 mm	Yes
TX UL3746, AWG 24(0.22-0.25mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140248	1 .	Polyolefin	Other	None	No	None	Other	Red	According to IEC/EN 60332-1-2	-30-105 °C	Copper	No	105 °C	No	N/A	None	N/A	No	300 V	Yes	Class 5 = flexible	Red	XLPE	-40-105 °C	Red	Tinned	Yes	Reel B5	4.29 mm	No

Total: 48

Other information

Page size:

Total: 48

Product Description	Stock code	ETIM-Class	ETIM-Release	Product Group	Search Description	Alternative SKU	Availability
TX UL3746, AWG 20(0.5mm2), VIOLET SPOOL B5, 300V, XLPE, HF, FT, 105C	0140200	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 20(0.5MM2), VIOLETT	0140200	Yes
TX UL3746, AWG 20(0.5mm2), ORANGE SPOOL B5, 300V, XLPE, HF, FT, 105C	01402011	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 20(0.5MM2), ORANGE	01402011	Yes
TX UL3746, AWG 20(0.5mm2), GREEN SPOOL B5, 300V, XLPE, HF, FT, 105C	01402012	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 20(0.5MM2), GRÖN	01402012	Yes
TX UL3746, AWG 20(0.5mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140202	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 20(0.5MM2), BRUN	0140202	Yes
TX UL3746, AWG 20(0.5mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140207	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 20(0.5MM2), BLÅ	0140207	Yes
TX UL3746, AWG 20(0,5mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140208	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 20(0,5MM2), RÖD	0140208	Yes
TX UL3746, AWG 20(0.5mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140209	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 20(0.5MM2), SVART	0140209	Yes
TX UL3746, AWG 22(0.34mm2), VIOLET, BOBIN B5, 300V, XLPE, HF, FT, 105C	0140220	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 22,(0,34MM2) VIOLET TFL10103/07	0140220	Yes
TX UL3746, AWG 22(0.34mm2), ORANGE SPOOL B5, 300V, XLPE, HF, FT, 105C	01402211	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 22(0.34MM2), ORANGE	01402211	Yes
TX UL3746, AWG 22(0.34mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140224	EC003248 - Power cable < 1 kV, for permanent installation		Cable - TX UL3746	TX UL3746, AWG 22(0.34MM2), VIT	0140224	Yes
TX UL3746, AWG 22(0.34mm2), GREY SPOOL B5, 300V, XLPE, HF, FT, 105C	0140225	EC003248 - Power cable < 1 kV, for permanent installation		Cable - TX UL3746	TX UL3746, AWG 22(0.34MM2), GRÅ	0140225	No
TX UL3746, AWG 22(0.34mm2), YELLOW SPOOL B5, 300V, XLPE, HF, FT, 105C	0140226	EC003248 - Power cable < 1 kV, for permanent installation		Cable - TX UL3746	TX UL3746, AWG 22, (0,34MM2) GUL	0140226	Yes
TX UL3746, AWG 22(0.34mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140227	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 22(0.34MM2), BLÅ	0140227	No
TX UL3746, AWG 22(0.34mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140228	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 22(0.34MM2), RÖD	0140228	Yes
TX UL3746, AWG 22(0.34mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140229	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 22(0.34MM2), SVART	0140229	Yes
TX UL3746, AWG 24(0.22-0.25mm2), ORANGE SPOOL B5, 300V, XLPE, HF, FT, 105C	01402411	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 24(0.22-0.25MM2), ORANGE	01402411	No
TX UL3746, AWG 24(0.22-0.25mm2), GREEN SPOOL B5, 300V, XLPE, HF, FT, 105C	01402412	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 24(0.22-0.25MM2), GRÖN	01402412	No
TX UL3746, AWG 24(0.22-0.25mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140249	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 24(0.22-0.25MM2), SVART	0140249	No
TX UL3746, AWG 26(0.14-0.15mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140262	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 26(0.14-0.15MM2), BRUN	0140262	Yes
TX UL3746, AWG 26(0.14-0.15mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140264	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 26(0.14-0.15MM2), VIT	0140264	Yes
TX UL3746, AWG 26(0.14-0.15mm2), GREY SPOOL B5, 300V, XLPE, HF, FT, 105C	0140265	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 26(0.14-0.15MM2), GRÅ	0140265	Yes
TX UL3746, AWG 20(0.5mm2), GREEN SPOOL B5, 300V, XLPE, HF, FT, 105C	01402012-1000	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 20(0.5MM2), GRÖN	01402012-1000	Yes
TX UL3746, AWG 20(0.5mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140202-1000	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 20(0.5MM2), BRUN	0140202-1000	Yes
TX UL3746, AWG 20(0.5mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140204-1000	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 20(0.5MM2), VIT	0140204-1000	Yes
TX UL3746, AWG 20(0.5mm2), GREY SPOOL B5, 300V, XLPE, HF, FT, 105C	0140205-1000	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 20(0.5MM2), GRÅ	0140205-1000	No
TX UL3746, AWG 20(0.5mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140207-1000	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 20(0.5MM2), BLÅ	0140207-1000	Yes
TX UL3746, AWG 20(0.5mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140208-1000	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 20(0.5MM2), RÖD	0140208-1000	Yes
TX UL3746, AWG 20(0.5mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140209-1000	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 20(0.5MM2), SVART	0140209-1000	Yes
TX UL3746, AWG 22(0.34mm2), VIOLET SPOOL B5, 300V, XLPE, HF, FT, 105C	0140220-1000	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 22,(0,34MM2) VIOLET TFL10103/07	0140220-1000	Yes
TX UL3746, AWG 22(0.34mm2), ORANGE SPOOL B5, 300V, XLPE, HF, FT, 105C	01402211-1000	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 22(0.34MM2), ORANGE	01402211-1000	Yes
TX UL3746, AWG 22(0.34mm2), GREEN SPOOL B5, 300V, XLPE, HF, FT, 105C	01402212-1000	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 22(0.34MM2), GRÖN	01402212-1000	Yes
TX UL3746, AWG 22(0.34mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140222-1000	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 22(0.34MM2), BRUN	0140222-1000	Yes
TX UL3746, AWG 22(0.34mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140224-1000	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 22(0.34MM2), VIT	0140224-1000	Yes
TX UL3746, AWG 22(0.34mm2), GREY SPOOL B5, 300V, XLPE, HF, FT, 105C	0140225-1000	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 22(0.34MM2), GRÅ	0140225-1000	Yes
TX UL3746, AWG 22(0.34mm2), YELLOW SPOOL B5, 300V, XLPE, HF, FT, 105C	0140226-1000	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 22(0.34MM2), GUL	0140226-1000	Yes
TX UL3746, AWG 22(0.34mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140227-1000	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 22(0.34MM2), BLÅ	0140227-1000	No
TX UL3746, AWG 22(0.34mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140228-1000	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 22(0.34MM2), RÖD	0140228-1000	Yes
TX UL3746, AWG 22(0.34mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140229-1000	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 22(0.34MM2), SVART	0140229-1000	Yes
TX UL3746, AWG 24(0.22-0.25mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140244-1000	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 24(0.22-0.25MM2), VIT	0140244-1000	Yes
TX UL3746, AWG 24(0.22-0.25mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140249-1000	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 24(0.22-0.25MM2), SVART	0140249-1000	Yes
TX UL3746, AWG 26(0.14-0.15mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140264-1000	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 26(0.14-0.15MM2), VIT	0140264-1000	Yes
TX UL3746, AWG 26(0.14-0.15mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140269-1000	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 26(0.14-0.15MM2), SVART	0140269-1000	Yes
TX UL3746, AWG 18(1.0mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140182	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 18(1.0MM2), BRUN	0140182	No
TX UL3746, AWG 18(1.0mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140187	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 18(1.0MM2), BLÅ	0140187	Yes
TX UL3746, AWG 18(1.0mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140189	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 18(1.0MM2), SVART	0140189	Yes
TX UL3746, AWG 20(0.5mm2), YELLOW SPOOL B5, 300V, XLPE, HF, FT, 105C	0140206	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 20(0.5MM2), GUL	0140206	Yes
TX UL3746, AWG 24(0.22-0.25mm2), YELLOW SPOOL B5, 300V, XLPE, HF, FT, 105C	0140246	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 24(0.22-0.25MM2), GUL	0140246	Yes
TX UL3746, AWG 24(0.22-0.25mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140248	EC003248 - Power cable < 1 kV, for permanent installation	7.0	Cable - TX UL3746	TX UL3746, AWG 24,(0,22-0,25MM2) RÖD TFL10102/02	0140248	No

Total: 48

Accessories

Spare Parts

Product video

Documents

Manuals, Datasheets, Sketches & Drawings

Conflict Minerals Reporting Template Version 6.31_Approved

Dimensions

Page size:

Total: 48

Product Description	Stock code	Nominal cross section conductor	MOQ	Outer diameter approx.	Min. permitted bending radius, stationary application/permanent installation	Diameter conductor	Unit	AWG size	Nominal voltage	Availability
TX UL3746, AWG 20(0.5mm2), VIOLET SPOOL B5, 300V, XLPE, HF, FT, 105C	0140200	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20	300 V	Yes
TX UL3746, AWG 20(0.5mm2), ORANGE SPOOL B5, 300V, XLPE, HF, FT, 105C	01402011	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20	300 V	Yes
TX UL3746, AWG 20(0.5mm2), GREEN SPOOL B5, 300V, XLPE, HF, FT, 105C	01402012	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20	300 V	Yes
TX UL3746, AWG 20(0.5mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140202	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20	300 V	Yes
TX UL3746, AWG 20(0.5mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140207	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20	300 V	Yes
TX UL3746, AWG 20(0,5mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140208	5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20	300 V	Yes
TX UL3746, AWG 20(0.5mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140209	0.5176 mm²	1000 .				m	20		Yes
TX UL3746, AWG 22(0.34mm2), VIOLET, BOBIN B5, 300V, XLPE, HF, FT, 105C	0140220	0.3255 mm²	1000 .				m		300 V	Yes
TX UL3746, AWG 22(0.34mm2), ORANGE SPOOL B5, 300V, XLPE, HF, FT, 105C	01402211	0.3255 mm²	1000 .				m			Yes
TX UL3746, AWG 22(0.34mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140224	0.3255 mm²	1000 .				m	22		Yes
TX UL3746, AWG 22(0.34mm2), GREY SPOOL B5, 300V, XLPE, HF, FT, 105C	0140225	0.3255 mm²	1000 .				m	22		No
TX UL3746, AWG 22(0.34mm2), YELLOW SPOOL B5, 300V, XLPE, HF, FT, 105C	0140226	0.3255 mm²	1000 .				m	22		Yes
TX UL3746, AWG 22(0.34mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140227	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22	300 V	No
TX UL3746, AWG 22(0.34mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140228	0.34 mm²	1 .	1.58 mm	4.74 mm	0.34 mm	m	22	300 V	Yes
TX UL3746, AWG 22(0.34mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140229	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22	300 V	Yes
TX UL3746, AWG 24(0.22-0.25mm2), ORANGE SPOOL B5, 300V, XLPE, HF, FT, 105C	01402411	0.25 mm²	1000 .	1.43 mm	4.29 mm	0.25 mm	m	24	300 V	No
TX UL3746, AWG 24(0.22-0.25mm2), GREEN SPOOL B5, 300V, XLPE, HF, FT, 105C	01402412	0.25 mm²	1000 .	1.43 mm	4.29 mm	0.25 mm	m	24	300 V	No
TX UL3746, AWG 24(0.22-0.25mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140249	0.25 mm²	1 .	1.43 mm	4.29 mm	0.25 mm	m	24	300 V	No
TX UL3746, AWG 26(0.14-0.15mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140262	0.15 mm²	1000 .	1.35 mm	4.05 mm	0.15 mm	m	26	300 V	Yes
TX UL3746, AWG 26(0.14-0.15mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140264	0.1288 mm²	1000 .				m	26		Yes
TX UL3746, AWG 26(0.14-0.15mm2), GREY SPOOL B5, 300V, XLPE, HF, FT, 105C	0140265	0.15 mm²	1000 .	1.35 mm	4.05 mm	0.15 mm	m	26	300 V	Yes
TX UL3746, AWG 20(0.5mm2), GREEN SPOOL B5, 300V, XLPE, HF, FT, 105C	01402012-1000	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20		Yes
TX UL3746, AWG 20(0.5mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140202-1000	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20		Yes
TX UL3746, AWG 20(0.5mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140204-1000	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20		Yes
TX UL3746, AWG 20(0.5mm2), GREY SPOOL B5, 300V, XLPE, HF, FT, 105C	0140205-1000	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20		No
TX UL3746, AWG 20(0.5mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140207-1000	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20		Yes
TX UL3746, AWG 20(0.5mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140208-1000	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20		Yes
TX UL3746, AWG 20(0.5mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140209-1000	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20		Yes
TX UL3746, AWG 22(0.34mm2), VIOLET SPOOL B5, 300V, XLPE, HF, FT, 105C	0140220-1000	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22		Yes
TX UL3746, AWG 22(0.34mm2), ORANGE SPOOL B5, 300V, XLPE, HF, FT, 105C	01402211-1000	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22		Yes
TX UL3746, AWG 22(0.34mm2), GREEN SPOOL B5, 300V, XLPE, HF, FT, 105C	01402212-1000	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22		Yes
TX UL3746, AWG 22(0.34mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140222-1000	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22		Yes
TX UL3746, AWG 22(0.34mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140224-1000	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22		Yes
TX UL3746, AWG 22(0.34mm2), GREY SPOOL B5, 300V, XLPE, HF, FT, 105C	0140225-1000	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22		Yes
TX UL3746, AWG 22(0.34mm2), YELLOW SPOOL B5, 300V, XLPE, HF, FT, 105C	0140226-1000	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22		Yes
TX UL3746, AWG 22(0.34mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140227-1000	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22		No
TX UL3746, AWG 22(0.34mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140228-1000	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22		Yes
TX UL3746, AWG 22(0.34mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140229-1000	0.34 mm²	1000 .	1.58 mm	4.74 mm	0.34 mm	m	22		Yes
TX UL3746, AWG 24(0.22-0.25mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140244-1000	0.25 mm²	1000 .	1.43 mm	4.29 mm	0.25 mm	m	24		Yes
TX UL3746, AWG 24(0.22-0.25mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140249-1000	0.25 mm²	1000 .	1.43 mm	4.29 mm	0.25 mm	m	24		Yes
TX UL3746, AWG 26(0.14-0.15mm2), WHITE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140264-1000	0.15 mm²	1000 .	1.35 mm	4.05 mm	0.15 mm	m	26		Yes
TX UL3746, AWG 26(0.14-0.15mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140269-1000	0.15 mm²	1000 .	1.35 mm	4.05 mm	0.15 mm	m	26		Yes
TX UL3746, AWG 18(1.0mm2), BROWN SPOOL B5, 300V, XLPE, HF, FT, 105C	0140182	1 mm²	1000 .	2.14 mm	6.42 mm	1 mm	m	18		No
TX UL3746, AWG 18(1.0mm2), BLUE SPOOL B5, 300V, XLPE, HF, FT, 105C	0140187	1 mm²	1000 .	2.14 mm	6.42 mm	1 mm	m	18	300 V	Yes
TX UL3746, AWG 18(1.0mm2), BLACK SPOOL B5, 300V, XLPE, HF, FT, 105C	0140189	1 mm²	1000 .	2.14 mm	6.42 mm	1 mm	m	18	300 V	Yes
TX UL3746, AWG 20(0.5mm2), YELLOW SPOOL B5, 300V, XLPE, HF, FT, 105C	0140206	0.5 mm²	1000 .	1.8 mm	5.4 mm	0.5 mm	m	20	300 V	Yes
TX UL3746, AWG 24(0.22-0.25mm2), YELLOW SPOOL B5, 300V, XLPE, HF, FT, 105C	0140246	0.25 mm²	1000 .	1.43 mm	4.29 mm	0.25 mm	m	24	300 V	Yes
TX UL3746, AWG 24(0.22-0.25mm2), RED SPOOL B5, 300V, XLPE, HF, FT, 105C	0140248	0.25 mm²	1000 .	1.43 mm	4.29 mm	0.25 mm	m	24	300 V	No
