RQ (H05Z-K, H07Z-K) - Drum
Used as connectors line and installation line.
Structure
Conductors: Bare stranded copper
Conductor Insulation: Halogen free polymer blends
Core identification: The table below
Technical data:
Rated voltage:
H05Z-K 0.5-1.0 mm²: 300/500
VH07Z-K 1.5-120 mm²: 450/750 V
Test voltage:
H05Z-K 0.5-1.0 mm²: 2000
VH07Z-K 1.5-120 mm²: 2500 V
Max operating temperature +70ºC (+158ºF) H05Z-K
Max operating temperature +90ºC (+194ºF) H07Z-K
Can handle a short operating temperature of +250ºC (+482ºF)
Minimum bend radius: 12 x cable diameter
Packaging
Drum: 500 m 95.0 mm²
Technical properties
- Number of cores:
- 1 .
- Material core insulation:
- Other
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Black
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -15-90 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 90 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- Yes, Yes
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Single insulated
- Colour:
- Black
- Material insulation:
- Polymen
- Operating temperature:
- -5-90 °C
- Core colour:
- Black
- Conductor surface:
- Bare
- Packaging:
- Drum
- Min. permitted bending radius, stationary application/permanent installation:
- 63.44 mm, 36.76 mm
Show more
Item List
- Total: 3
- Total: 3
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 3
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Diameter conductor | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|

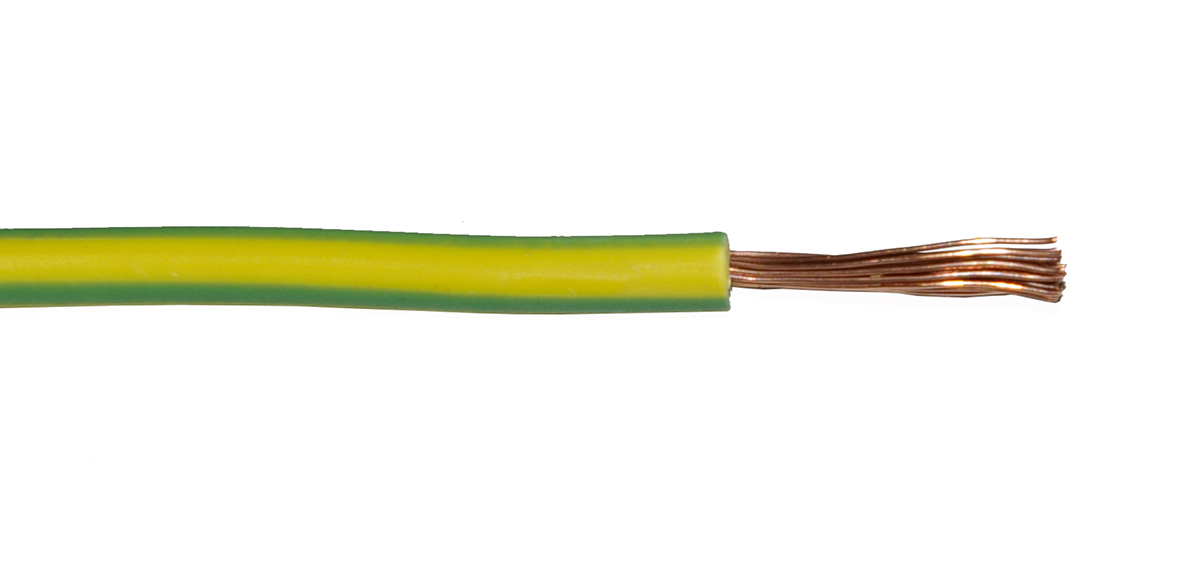

| RQ, 25mm2, GREEN/YELLOW DRUM, 600V, POLYMEN, HF, 90C | 25 mm² | 500 . | 9.19 mm | 36.76 mm | 25 mm | m |
No
|
|
|
|
| RQ, 95mm2, BLACK COIL, 600V, POLYMEN, HF, 90C | 95 mm² | 25 . | 15.86 mm | 63.44 mm | 95 mm | m |
Yes
|
|
|
|
| RQ, 95mm2, BLACK DRUM, 600V, POLYMEN, HF, 90C | 95 mm² | 500 . | 15.86 mm | 63.44 mm | 95 mm | m | 600 V |
No
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | Approved according to EN 50265-1 | Approved according to IEC 60332-1 | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Flame retardant | Approved according to CE | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RQ, 25mm2, GREEN/YELLOW DRUM, 600V, POLYMEN, HF, 90C |
|
No
|
|
|
|||||||||||
| RQ, 95mm2, BLACK COIL, 600V, POLYMEN, HF, 90C | Eca | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
||
| RQ, 95mm2, BLACK DRUM, 600V, POLYMEN, HF, 90C | Yes | Yes | Eca | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Single insulated/Double insulated | Colour | Material insulation | Operating temperature | Core colour | Conductor surface | Halogen free | Packaging | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RQ, 25mm2, GREEN/YELLOW DRUM, 600V, POLYMEN, HF, 90C | 1 . | -15-90 °C | 90 °C | 36.76 mm |
No
|
|
|
||||||||||||||||||||||||||
| RQ, 95mm2, BLACK COIL, 600V, POLYMEN, HF, 90C | 1 . | Other | Other | None | No | None | Other | Black | According to IEC/EN 60332-1-2 | -15-90 °C | Copper | No | 90 °C | No | N/A | None | N/A | No | Yes | Class 5 = flexible | Single insulated | Black | Bare | 63.44 mm |
Yes
|
|
|
||||||
| RQ, 95mm2, BLACK DRUM, 600V, POLYMEN, HF, 90C | 1 . | Other | Other | None | No | None | Other | Black | According to IEC/EN 60332-1-2 | -15-90 °C | Copper | No | 90 °C | No | N/A | None | N/A | No | 600 V | Yes | Class 5 = flexible | Single insulated | Black | Polymen | -5-90 °C | Black | Bare | Yes | Drum | 63.44 mm |
No
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| RQ, 25mm2, GREEN/YELLOW DRUM, 600V, POLYMEN, HF, 90C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RQ (H05Z-K, H07Z-K) Red copper | RQ, 25MM2, GRÖN/GUL | 050403-5HF |
No
|
|
|
| RQ, 95mm2, BLACK COIL, 600V, POLYMEN, HF, 90C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RQ (H05Z-K, H07Z-K) Red copper | RQ, 95MM2, SVART | 050440HF |
Yes
|
|
|
| RQ, 95mm2, BLACK DRUM, 600V, POLYMEN, HF, 90C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RQ (H05Z-K, H07Z-K) Red copper | RQ,95MM2,SVART | 050440-5HF |
No
|
|
|
- Total: 3
