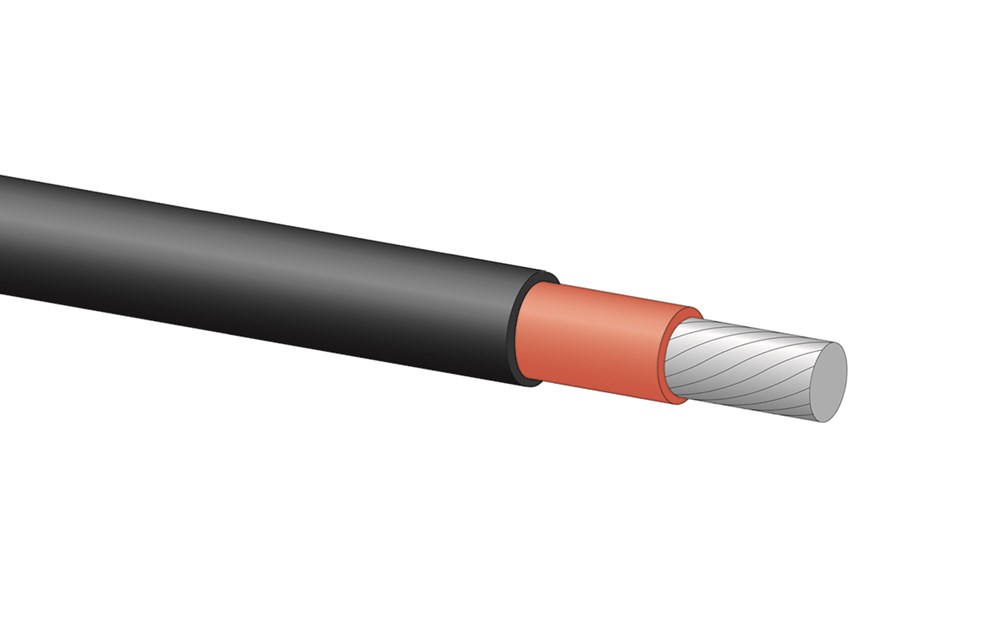

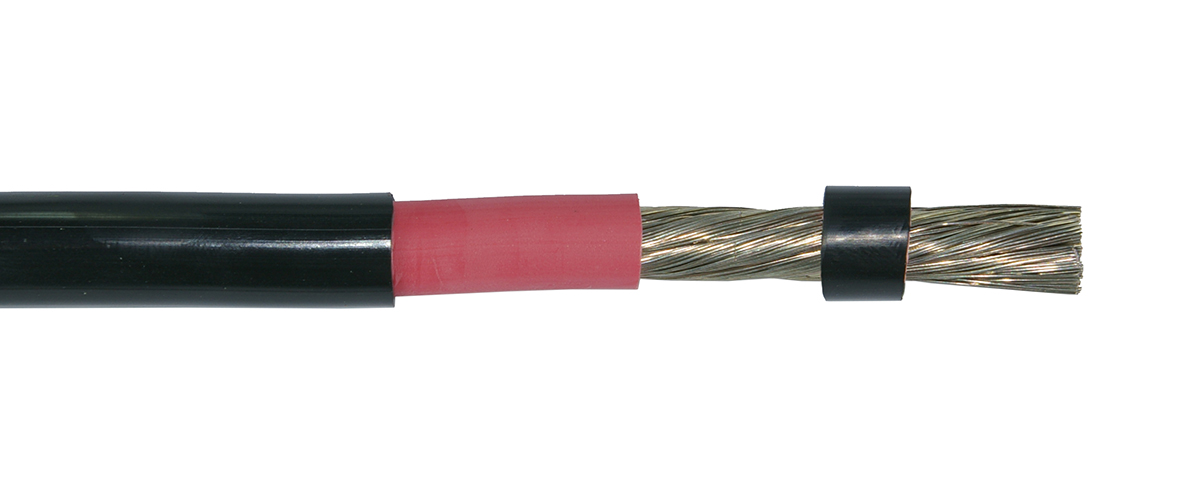

RADOX 9 GKW-AX 3600/6000 V - Single conductor
Halogenfri dubbelisolerad kopplingskabel för fast förläggning i tågapplikationer både inom- och utomhus.
Lämplig i styr- och apparatskåp, konverterare och kontrollpaneler. Tålig mot hög mekanisk belastning, olja och bränsle.
Uppbyggnad:
Ledare: Förtent flertrådig koppar enligt IEC 60228 klass 5
Ledarisolation innermantel: RADOX GKW K (polyolefin-copolymer)
Ledarisolation yttermantel: RADOX GKW S (polyolefin-copolymer)
Mantelfärg: Svart
Tekniska data:
Driftspänning: 3.6/6.0 kV AC, 4.5/9.0 kV DC
Provspänning: 12 kV (50 Hz, 15 min)
Temp. område: -40ºC till +120ºC
Minsta böjradie: 3 x kabelns diameter (se datablad)
Godkännanden, flambeständighet:
BS 6853
DIN 5510
NF F16-101
BS 4066-3,
BS 6583
BS 6853 kat. D
BS 6853 kat. B
DIN EN 50265-2-1
DIN EN 50266-2-4
DIN EN 50266-2-5
DIN EN 50268-2
NF C32-070 TEST 2
NF X10-702-2
NF X70-100 IEC 60332-1,
EN 50265-2-1 IEC 60332-3-24,
EN 50266-2-4 IEC 60754-1,
EN 50267-2-1 IEC 60754-2,
EN 50267-2-3 IEC 61034-2,
EN 50268-2
Technical properties
- Number of cores:
- 1 .
- Colour outer sheath:
- Black
- Nominal voltage:
- 3600 V
- Single insulated/Double insulated:
- Double insulated
- Colour:
- Black
- Material insulation:
- Polyolefin (POE)
- Operating temperature:
- -40-120 °C
- Conductor surface:
- Bare
- Halogen free:
- Yes
- Packaging:
- Spool HS400, Spool HS401
Show more
Item List
- Total: 11
- Total: 11
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
RADOX 9GKW-AX M_Eng
Dimensions
- Total: 11
- Total: 11
Similar Options
Approvals
- Total: 11
| Product Description | Approved according to BS 4066-3 | Approved according to BS 6583 | Approved according to BS 6853 | Approved according to BS 6853 kat. B | Approved according to BS 6853 kat. D | Approved according to DIN 5510 | Approved according to DIN EN 50265-2-1 | Approved according to DIN EN 50266-2-4 | Approved according to DIN EN 50266-2-5 | Approved according to DIN EN 50268-2 | Approved according to EN 50267-2-1 | Approved according to EN 50267-2-3 | Approved according to EN 50268-2 | Approved according to IEC 60332-1 | Approved according to IEC 60332-3-24 | Approved according to IEC 60754-1 | Approved according to IEC 60754-2 | Approved according to NF C32-070 TEST 2 | Approved according to NF F16-101 | Approved according to NF X10-702-2 | Approved according to NF X70-100 | Low smoke (according to EN 61034-2) | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RADOX 9GKW-AX M, DOUBLE INSULATED, 1.5mm2, BLACK SPOOL HS400, 3600V, HF, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX 9GKW-AX M, DOUBLE INSULATED, 2.5mm2, BLACK SPOOL HS401, 3600V, HF, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX 9GKW-AX M, DOUBLE INSULATED, 4.0mm2, BLACK SPOOL HS401, 3600V, HF, 120C |
No
|
|
|
||||||||||||||||||||||
| RADOX 9GKW-AX M, DOUBLE INSULATED, 6.0mm2, BLACK 3600V, HF, 120C |
No
|
|
|
||||||||||||||||||||||
| RADOX 9GKW-AX M, DOUBLE INSULATED, 10.0mm2, BLACK 3600V, HF, 120C |
No
|
|
|
||||||||||||||||||||||
| RADOX 9GKW-AX M, DOUBLE INSULATED, 16.0mm2, BLACK 3600V, HF, 120C |
No
|
|
|
||||||||||||||||||||||
| RADOX 9GKW-AX M, DOUBLE INSULATED, 25mm2, BLACK 3600V, HF, 120C |
No
|
|
|
||||||||||||||||||||||
| RADOX 9GKW-AX M, DOUBLE INSULATED, 35mm2, BLACK 3600V, HF, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX 9GKW-AX M, DOUBLE INSULATED, 50mm2, BLACK 3600V, HF, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX 9GKW-AX M, DOUBLE INSULATED, 70mm2, BLACK 3600V, HF, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX 9GKW-AX M, DOUBLE INSULATED, 95mm2, BLACK 3600V, HF, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
- Total: 11
Technical Properties
- Total: 11
| Product Description | Number of cores | Colour outer sheath | Nominal voltage | Single insulated/Double insulated | Colour | Material insulation | Operating temperature | Conductor surface | Halogen free | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RADOX 9GKW-AX M, DOUBLE INSULATED, 1.5mm2, BLACK SPOOL HS400, 3600V, HF, 120C | 1 . | Black | 3600 V | Double insulated | Black | Polyolefin (POE) | -40-120 °C | Bare | Yes | Spool HS400 |
No
|
|
|
| RADOX 9GKW-AX M, DOUBLE INSULATED, 2.5mm2, BLACK SPOOL HS401, 3600V, HF, 120C | 1 . | Black | 3600 V | Double insulated | Black | Polyolefin (POE) | -40-120 °C | Bare | Yes | Spool HS401 |
No
|
|
|
| RADOX 9GKW-AX M, DOUBLE INSULATED, 4.0mm2, BLACK SPOOL HS401, 3600V, HF, 120C | 1 . | Black | Double insulated | Black | Yes | Spool HS401 |
No
|
|
|
||||
| RADOX 9GKW-AX M, DOUBLE INSULATED, 6.0mm2, BLACK 3600V, HF, 120C | 1 . | Black | Double insulated | Black | Yes |
No
|
|
|
|||||
| RADOX 9GKW-AX M, DOUBLE INSULATED, 10.0mm2, BLACK 3600V, HF, 120C | Black | Double insulated | Black | Yes |
No
|
|
|
||||||
| RADOX 9GKW-AX M, DOUBLE INSULATED, 16.0mm2, BLACK 3600V, HF, 120C | Black | Black | Yes |
No
|
|
|
|||||||
| RADOX 9GKW-AX M, DOUBLE INSULATED, 25mm2, BLACK 3600V, HF, 120C | 1 . | Black | Double insulated | Black | Yes |
No
|
|
|
|||||
| RADOX 9GKW-AX M, DOUBLE INSULATED, 35mm2, BLACK 3600V, HF, 120C | 1 . | Black | 3600 V | Double insulated | Black | Polyolefin (POE) | -40-120 °C | Bare | Yes |
No
|
|
|
|
| RADOX 9GKW-AX M, DOUBLE INSULATED, 50mm2, BLACK 3600V, HF, 120C | 1 . | Black | 3600 V | Double insulated | Black | Polyolefin (POE) | -40-120 °C | Bare | Yes |
No
|
|
|
|
| RADOX 9GKW-AX M, DOUBLE INSULATED, 70mm2, BLACK 3600V, HF, 120C | 1 . | Black | 3600 V | Double insulated | Black | Polyolefin (POE) | -40-120 °C | Bare | Yes |
No
|
|
|
|
| RADOX 9GKW-AX M, DOUBLE INSULATED, 95mm2, BLACK 3600V, HF, 120C | 1 . | Black | 3600 V | Double insulated | Black | Polyolefin (POE) | -40-120 °C | Bare | Yes |
No
|
|
|
- Total: 11
Other information
- Total: 11
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| RADOX 9GKW-AX M, DOUBLE INSULATED, 1.5mm2, BLACK SPOOL HS400, 3600V, HF, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 7.0 |
|
Cable - Radox 9GKW-AX M Single conductor | 9GKW-AX | 12537829-500 |
No
|
|
|
| RADOX 9GKW-AX M, DOUBLE INSULATED, 2.5mm2, BLACK SPOOL HS401, 3600V, HF, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 7.0 |
|
Cable - Radox 9GKW-AX M Single conductor | 9GKW-AX | 12537830-500 |
No
|
|
|
| RADOX 9GKW-AX M, DOUBLE INSULATED, 4.0mm2, BLACK SPOOL HS401, 3600V, HF, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 7.0 |
|
Cable - Radox 9GKW-AX M Single conductor | 9GKW-AX | 12537831 |
No
|
|
|
| RADOX 9GKW-AX M, DOUBLE INSULATED, 6.0mm2, BLACK 3600V, HF, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 7.0 |
|
Cable - Radox 9GKW-AX M Single conductor | 9GKW-AX | 12537832 |
No
|
|
|
| RADOX 9GKW-AX M, DOUBLE INSULATED, 10.0mm2, BLACK 3600V, HF, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 7.0 |
|
Cable - Radox 9GKW-AX M Single conductor | 9GKW-AX | 12545520 |
No
|
|
|
| RADOX 9GKW-AX M, DOUBLE INSULATED, 16.0mm2, BLACK 3600V, HF, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 7.0 |
|
Cable - Radox 9GKW-AX M Single conductor | 9GKW-AX | 12544525 |
No
|
|
|
| RADOX 9GKW-AX M, DOUBLE INSULATED, 25mm2, BLACK 3600V, HF, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 7.0 |
|
Cable - Radox 9GKW-AX M Single conductor | 9GKW-AX | 12547257 |
No
|
|
|
| RADOX 9GKW-AX M, DOUBLE INSULATED, 35mm2, BLACK 3600V, HF, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 7.0 |
|
Cable - Radox 9GKW-AX M Single conductor | 9GKW-AX | 12547260-50 |
No
|
|
|
| RADOX 9GKW-AX M, DOUBLE INSULATED, 50mm2, BLACK 3600V, HF, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 7.0 |
|
Cable - Radox 9GKW-AX M Single conductor | 9GKW-AX | 12545521-500 |
No
|
|
|
| RADOX 9GKW-AX M, DOUBLE INSULATED, 70mm2, BLACK 3600V, HF, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 7.0 |
|
Cable - Radox 9GKW-AX M Single conductor | 9GKW-AX | 12547262 |
No
|
|
|
| RADOX 9GKW-AX M, DOUBLE INSULATED, 95mm2, BLACK 3600V, HF, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 7.0 |
|
Cable - Radox 9GKW-AX M Single conductor | 9GKW-AX | 12547264 |
No
|
|
|
- Total: 11
