RADOX GKW-LW/S EMC
Halogenfri skärmad styrkabel för skyddad fast förläggning i tågapplikationer.
Kabeln har väldigt liten ytterdiameter och används i trånga utrymmen. Användningsområden är styr- och apparatskåp, kontrollpaneler, signalkretsar och inre styrkabel i övrig tågutrustning. Skärmflätan av förtent koppar skärmar den inre strömkretsen mot omgivningen samt ger ett extra mekaniskt skydd. Tålig mot hög mekanisk belastning, olja och bränsle.

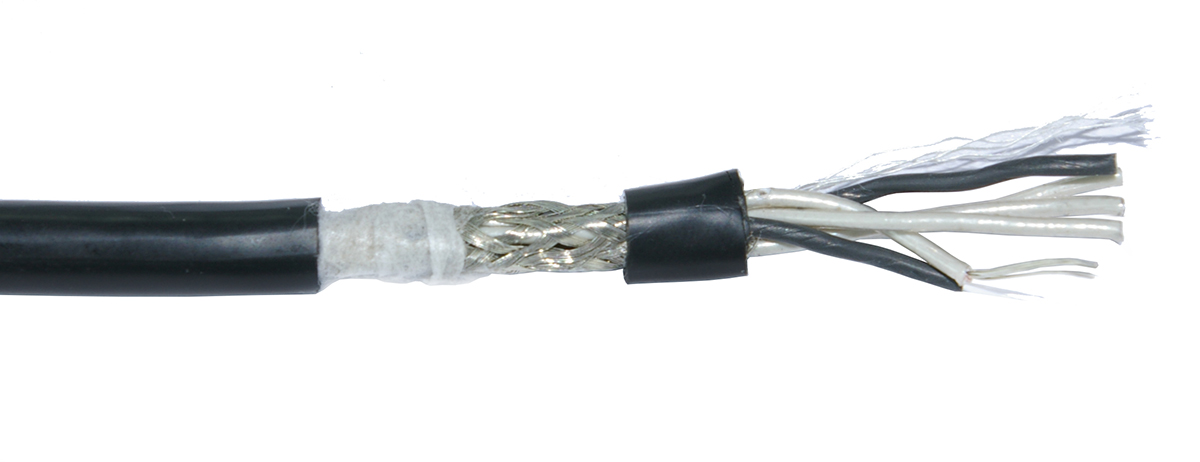

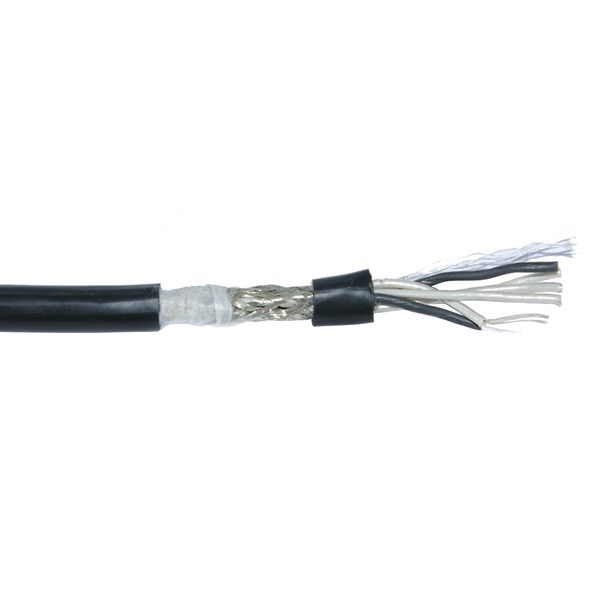

Uppbyggnad
Ledare: Förtent flertrådig koppar enligt IEC 60228 klass 5
Ledarisolation innermantel: RADOX GKW P/ GKW HP (polyolefin-copolymer)
Ledarfärg: Vita, numrerade
Skärm: Förtent kopparfläta.
Täckningsgrad c:a 85%. Transparant plastfolie
Ledarisolation yttermantel: RADOX GKW S (polyolefin-copolymer)
Mantelfärg: Svart
Tekniska data:
Driftspänning: 600/1000 V AC, 750/1500 V DC
Provspänning: 3500 V (50 Hz, 5 min)
Temp. område: -40ºC till +120ºC
Minsta böjradie: 3 x kabelns diameter (se datablad)
Godkännanden, flambeständighet
BS 6853 DIN 5510
NF F16-101
BS 4066-3
BS 6583
BS 6853 kat. D
BS 6853 kat. B
DIN EN 50265-2-1
DIN EN 50266-2-4
DIN EN 50266-2-5
DIN EN 50268-2
NF C32-070 TEST 2
NF X10-702-2
NF X70-100
IEC 60332-1
EN 50265-2-1 IEC 60332-3-24
EN 50266-2-4 IEC 60754-1
EN 50267-2-1 IEC 60754-2
EN 50267-2-3 IEC 61034-2
EN 50268-2
Technical properties
- Number of cores:
- 2 ., 3 ., 4 ., 5 ., 6 ., 10 ., 12 ., 16 ., 20 ., 7 ., 8 ., 9 .
- Colour outer sheath:
- Black
- Nominal voltage:
- 1500 V
- Colour:
- Black
- Material insulation:
- Polyolefin (POE)
- Operating temperature:
- -40-120 °C
- Conductor surface:
- Tinned
- Halogen free:
- Yes
Show more
Item List
- Total: 38
- Total: 38
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 38
- Total: 38
Similar Options
Approvals
- Total: 38
| Product Description | Approved according to BS 4066-3 | Approved according to BS 6853 kat. B | Approved according to BS 6853 kat. D | Approved according to DIN 5510 | Approved according to DIN EN 50265-2-1 | Approved according to DIN EN 50266-2-4 | Approved according to DIN EN 50266-2-5 | Approved according to DIN EN 50268-2 | Approved according to EN 50267-2-1 | Approved according to EN 50267-2-3 | Approved according to EN 50268-2 | Approved according to IEC 60332-1 | Approved according to IEC 60332-3-24 | Approved according to IEC 60754-1 | Approved according to IEC 60754-2 | Approved according to NF C32-070 TEST 2 | Approved according to NF F16-101 | Approved according to NF X10-702-2 | Approved according to NF X70-100 | Low smoke (according to EN 61034-2) | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RADOX GKW-LW/S, 2x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 4x1.5mm2, BLACK EMC, 1500V, HF, FT, 120C |
No
|
|
|
||||||||||||||||||||
| RADOX GKW-LW/S, 6x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C |
No
|
|
|
||||||||||||||||||||
| RADOX GKW-LW/S, 2x1.5mm2, BLACK EMC, 1500V, HF, FT, 120C |
No
|
|
|
||||||||||||||||||||
| RADOX GKW-LW/S, 3x1.5mm2, BLACK EMC, 1500V, HF, FT, 120C |
No
|
|
|
||||||||||||||||||||
| RADOX GKW-LW/S, 2x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 2x1.0mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 2x2.5mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 2x2x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 2x2x1.0mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 3x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 3x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 3x1.0mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 3x2x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 3x4x1.0mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 4x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Yes
|
|
|
| RADOX GKW-LW/S, 4x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Yes
|
|
|
| RADOX GKW-LW/S, 4x2x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 4x2x1.0mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 4G1.5mm2, BLACK 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 5x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Yes
|
|
|
| RADOX GKW-LW/S, 5x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 5X1.0mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 5x1.5mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 6x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Yes
|
|
|
| RADOX GKW-LW/S, 7x1.0mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 8x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 8x2x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 9X0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 9x1.5mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 10x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 10x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 10x2x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Yes
|
|
|
| RADOX GKW-LW/S, 12x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 12x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 16x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 16x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
No
|
|
|
| RADOX GKW-LW/S, 25x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C |
No
|
|
|
- Total: 38
Technical Properties
- Total: 38
| Product Description | Number of cores | Colour outer sheath | Nominal voltage | Colour | Material insulation | Operating temperature | Conductor surface | Halogen free | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| RADOX GKW-LW/S, 2x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | 2 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 4x1.5mm2, BLACK EMC, 1500V, HF, FT, 120C |
No
|
|
|
||||||||
| RADOX GKW-LW/S, 6x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C |
No
|
|
|
||||||||
| RADOX GKW-LW/S, 2x1.5mm2, BLACK EMC, 1500V, HF, FT, 120C |
No
|
|
|
||||||||
| RADOX GKW-LW/S, 3x1.5mm2, BLACK EMC, 1500V, HF, FT, 120C |
No
|
|
|
||||||||
| RADOX GKW-LW/S, 2x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | 2 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 2x1.0mm2, BLACK EMC, 1500V, HF, FT, 120C | 2 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 2x2.5mm2, BLACK EMC, 1500V, HF, FT, 120C | 2 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 2x2x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | 4 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 2x2x1.0mm2, BLACK EMC, 1500V, HF, FT, 120C | 4 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 3x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | 3 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 3x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | 3 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 3x1.0mm2, BLACK EMC, 1500V, HF, FT, 120C | 3 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 3x2x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | 6 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 3x4x1.0mm2, BLACK EMC, 1500V, HF, FT, 120C | 3 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 4x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | 4 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
Yes
|
|
|
| RADOX GKW-LW/S, 4x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | 4 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
Yes
|
|
|
| RADOX GKW-LW/S, 4x2x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | 4 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 4x2x1.0mm2, BLACK EMC, 1500V, HF, FT, 120C | 4 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 4G1.5mm2, BLACK 1500V, HF, FT, 120C | 4 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 5x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | 5 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
Yes
|
|
|
| RADOX GKW-LW/S, 5x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | 5 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 5X1.0mm2, BLACK EMC, 1500V, HF, FT, 120C | 5 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 5x1.5mm2, BLACK EMC, 1500V, HF, FT, 120C | 5 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 6x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | 6 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
Yes
|
|
|
| RADOX GKW-LW/S, 7x1.0mm2, BLACK EMC, 1500V, HF, FT, 120C | 7 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 8x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | 8 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 8x2x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | 16 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 9X0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | 9 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 9x1.5mm2, BLACK EMC, 1500V, HF, FT, 120C | 9 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 10x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | 10 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 10x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | 10 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 10x2x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | 20 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
Yes
|
|
|
| RADOX GKW-LW/S, 12x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | 12 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 12x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | 12 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 16x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | 16 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 16x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | 16 . | Black | 1500 V | Black | Polyolefin (POE) | -40-120 °C | Tinned | Yes |
No
|
|
|
| RADOX GKW-LW/S, 25x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | Black | Black | Yes |
No
|
|
|
- Total: 38
Other information
- Total: 38
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| RADOX GKW-LW/S, 2x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12555592-500 |
No
|
|
|
| RADOX GKW-LW/S, 4x1.5mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 | Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12555890 |
No
|
|
|
|
| RADOX GKW-LW/S, 6x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 | Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12556638 |
No
|
|
|
|
| RADOX GKW-LW/S, 2x1.5mm2, BLACK EMC, 1500V, HF, FT, 120C | Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12555888 |
No
|
|
|
|||
| RADOX GKW-LW/S, 3x1.5mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 | Cable - GKW-LW/S EMC Multi conductor | RADOX GKW-LW/S, 3X1.5 MM2, SVART | 12555889 |
No
|
|
|
|
| RADOX GKW-LW/S, 2x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12556629 |
No
|
|
|
| RADOX GKW-LW/S, 2x1.0mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12555875 |
No
|
|
|
| RADOX GKW-LW/S, 2x2.5mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12557233 |
No
|
|
|
| RADOX GKW-LW/S, 2x2x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12555604 |
No
|
|
|
| RADOX GKW-LW/S, 2x2x1.0mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12558112 |
No
|
|
|
| RADOX GKW-LW/S, 3x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12555593 |
No
|
|
|
| RADOX GKW-LW/S, 3x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12556636 |
No
|
|
|
| RADOX GKW-LW/S, 3x1.0mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12555688 |
No
|
|
|
| RADOX GKW-LW/S, 3x2x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12561834 |
No
|
|
|
| RADOX GKW-LW/S, 3x4x1.0mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12555887 |
No
|
|
|
| RADOX GKW-LW/S, 4x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12555594-100 |
Yes
|
|
|
| RADOX GKW-LW/S, 4x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12556630 |
Yes
|
|
|
| RADOX GKW-LW/S, 4x2x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12555605-100 |
No
|
|
|
| RADOX GKW-LW/S, 4x2x1.0mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12555886 |
No
|
|
|
| RADOX GKW-LW/S, 4G1.5mm2, BLACK 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12562759 |
No
|
|
|
| RADOX GKW-LW/S, 5x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12555595-100 |
Yes
|
|
|
| RADOX GKW-LW/S, 5x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12556637 |
No
|
|
|
| RADOX GKW-LW/S, 5X1.0mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12555878 |
No
|
|
|
| RADOX GKW-LW/S, 5x1.5mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12555891 |
No
|
|
|
| RADOX GKW-LW/S, 6x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12555596 |
Yes
|
|
|
| RADOX GKW-LW/S, 7x1.0mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12555880-100 |
No
|
|
|
| RADOX GKW-LW/S, 8x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12556631 |
No
|
|
|
| RADOX GKW-LW/S, 8x2x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12555930 |
No
|
|
|
| RADOX GKW-LW/S, 9X0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003250 - Power cable < 1 kV, for moving application | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12558109 |
No
|
|
|
| RADOX GKW-LW/S, 9x1.5mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12558115 |
No
|
|
|
| RADOX GKW-LW/S, 10x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12555597-500 |
No
|
|
|
| RADOX GKW-LW/S, 10x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12556640-500 |
No
|
|
|
| RADOX GKW-LW/S, 10x2x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12555606-500 |
Yes
|
|
|
| RADOX GKW-LW/S, 12x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12555598 |
No
|
|
|
| RADOX GKW-LW/S, 12x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12556632-500 |
No
|
|
|
| RADOX GKW-LW/S, 16x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12555600-500 |
No
|
|
|
| RADOX GKW-LW/S, 16x0.75mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12556419 |
No
|
|
|
| RADOX GKW-LW/S, 25x0.5mm2, BLACK EMC, 1500V, HF, FT, 120C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - GKW-LW/S EMC Multi conductor | GKW-LW/S | 12555602 |
No
|
|
|
- Total: 38
Back to top
Do you need help finding the right product or other advice contact us.
