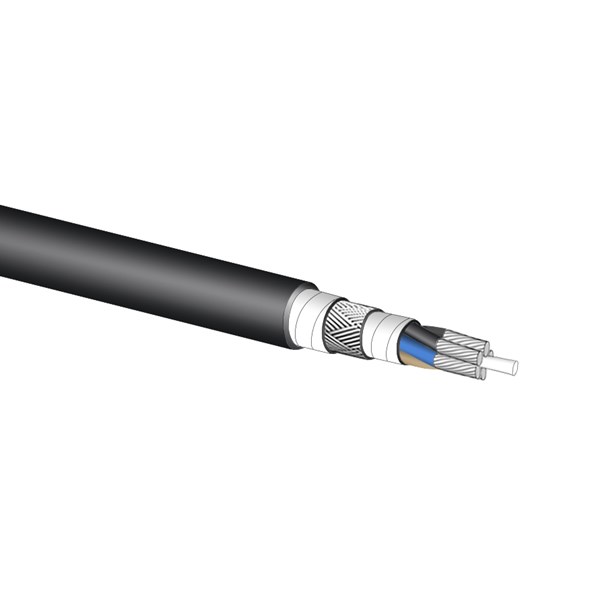

RADOX 3 GKW/S EMC
Halogenfri styrkabel för skyddad fast förläggning i tågapplikationer. Kabeln har väldigt liten ytterdiameter och används i trånga utrymmen.
Användningsområden är styr- och apparatskåp, kontrollpaneler, signalkretsar och inre styrkabel i övrig tågutrustning. Tålig mot hög mekanisk belastning, olja och bränsle.
Technical properties
- Number of cores:
- 8 ., 3 ., 4 .
- Material core insulation:
- Polyolefin
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No, Yes
- Material outer sheath:
- Polyolefin
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Black, Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -40-120 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 120 °C
- Screen:
- No, Yes
- Protective barrier:
- N/A
- Armouring/reinforcement:
- Braiding, None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- Yes, Yes
- Conductor category:
- Class 5 = flexible
- Colour:
- Black
- Material insulation:
- Polyolefin (POE)
- Operating temperature:
- -40-120 °C
- Core colour:
- Several
- Conductor surface:
- Tinned
- Min. permitted bending radius, stationary application/permanent installation:
- 48.6 mm, 78 mm, 177.84 mm, 240.24 mm, 199.68 mm, 162.24 mm
Show more
Item List
- Total: 10
- Total: 10
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Dimensions
- Total: 10
- Total: 10
Similar Options
Approvals
- Total: 10
Product Description | Approved according to BS 4066-3 | Approved according to BS 6853 kat. B | Approved according to BS 6853 kat. D | Approved according to DIN 5510 | Approved according to DIN EN 50265-2-1 | Approved according to DIN EN 50266-2-4 | Approved according to DIN EN 50266-2-5 | Approved according to DIN EN 50268-2 | Approved according to EN 50267-2-1 | Approved according to EN 50267-2-3 | Approved according to EN 50268-2 | Approved according to IEC 60332-1 | Approved according to IEC 60332-3-24 | Approved according to IEC 60754-1 | Approved according to IEC 60754-2 | Approved according to NF C32-070 TEST 2 | Approved according to NF F16-101 | Approved according to NF X10-702-2 | Approved according to NF X70-100 | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Flame retardant | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RADOX 3GKW/S, 3x0.75mm2, BLACK EMC, 600V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
RADOX 3GKW/S, 2x1.0mm2, BLACK EMC, 600V, HF, FT, 120C | According to IEC/EN 60332-1-2 |
No
|
|
|
|||||||||||||||||||||||||||
RADOX 3GKW, 8x2.5mm2, BLACK EMC, 600V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
RADOX 3GKW/S, 3X4mm2, BLACK EMC, 600V, HF, FT, 120C |
No
|
|
|
||||||||||||||||||||||||||||
RADOX 3GKW/S, 3g4.0mm2, SVART, EMC, 600V, HF, FT, 120C |
No
|
|
|
||||||||||||||||||||||||||||
RADOX 3GKW/S, 4x6.0mm2, BLACK EMC, 600V, HF, FT, 120C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
|||||||||||||||||||
RADOX 3GKW/S, 3x10mm2, BLACK EMC, 600V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
RADOX 3GKW/S, 4G10mm2, BLACK EMC, 600V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
RADOX 3GKW/S, 4x16mm2, BLACK EMC, 600V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
RADOX 3GKW/S, 3x25mm2, SVART, EMC, 600V, HF, FT, 120C |
No
|
|
|
- Total: 10
Technical Properties
- Total: 10
Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Colour | Material insulation | Operating temperature | Core colour | Conductor surface | Halogen free | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RADOX 3GKW/S, 3x0.75mm2, BLACK EMC, 600V, HF, FT, 120C | 3 . | Polyolefin | Other | Colour | No | Polyolefin | Other | Other | According to IEC/EN 60332-1-2 | -40-120 °C | Copper | No | 120 °C | Yes | N/A | Braiding | N/A | No | 600 V | Yes | Class 5 = flexible | Black | Polyolefin (POE) | -40-120 °C | Several | Tinned | Yes | 78 mm |
No
|
|
|
RADOX 3GKW/S, 2x1.0mm2, BLACK EMC, 600V, HF, FT, 120C | Polyolefin | Colour | Black | According to IEC/EN 60332-1-2 | No | Black | Yes |
No
|
|
|
|||||||||||||||||||||
RADOX 3GKW, 8x2.5mm2, BLACK EMC, 600V, HF, FT, 120C | 8 . | Polyolefin | Other | Colour | No | Polyolefin | Other | Other | According to IEC/EN 60332-1-2 | -40-120 °C | Copper | No | 120 °C | No | N/A | None | N/A | No | 600 V | Yes | Class 5 = flexible | Black | Polyolefin (POE) | -40-120 °C | Several | Tinned | Yes | 48.6 mm |
No
|
|
|
RADOX 3GKW/S, 3X4mm2, BLACK EMC, 600V, HF, FT, 120C |
No
|
|
|
||||||||||||||||||||||||||||
RADOX 3GKW/S, 3g4.0mm2, SVART, EMC, 600V, HF, FT, 120C |
No
|
|
|
||||||||||||||||||||||||||||
RADOX 3GKW/S, 4x6.0mm2, BLACK EMC, 600V, HF, FT, 120C | 4 . | Polyolefin | Other | Colour | No | Polyolefin | Other | Other | According to IEC/EN 60332-1-2 | -40-120 °C | Copper | No | 120 °C | Yes | N/A | Braiding | N/A | No | Yes | Class 5 = flexible | Black | Several | Tinned | Yes | 162.24 mm |
No
|
|
|
|||
RADOX 3GKW/S, 3x10mm2, BLACK EMC, 600V, HF, FT, 120C | 3 . | Polyolefin | Other | Colour | No | Polyolefin | Other | Other | According to IEC/EN 60332-1-2 | -40-120 °C | Copper | No | 120 °C | Yes | N/A | Braiding | N/A | No | 600 V | Yes | Class 5 = flexible | Black | Polyolefin (POE) | -40-120 °C | Several | Tinned | Yes | 177.84 mm |
No
|
|
|
RADOX 3GKW/S, 4G10mm2, BLACK EMC, 600V, HF, FT, 120C | 4 . | Polyolefin | Other | Colour | Yes | Polyolefin | Other | Other | According to IEC/EN 60332-1-2 | -40-120 °C | Copper | No | 120 °C | Yes | N/A | Braiding | N/A | No | 600 V | Yes | Class 5 = flexible | Black | Polyolefin (POE) | -40-120 °C | Several | Tinned | Yes | 199.68 mm |
No
|
|
|
RADOX 3GKW/S, 4x16mm2, BLACK EMC, 600V, HF, FT, 120C | 4 . | Polyolefin | Other | Colour | No | Polyolefin | Other | Other | According to IEC/EN 60332-1-2 | -40-120 °C | Copper | No | 120 °C | Yes | N/A | Braiding | N/A | No | 600 V | Yes | Class 5 = flexible | Black | Polyolefin (POE) | -40-120 °C | Several | Tinned | Yes | 240.24 mm |
No
|
|
|
RADOX 3GKW/S, 3x25mm2, SVART, EMC, 600V, HF, FT, 120C |
No
|
|
|
- Total: 10
Other information
- Total: 10
Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
---|---|---|---|---|---|---|---|---|---|
RADOX 3GKW/S, 3x0.75mm2, BLACK EMC, 600V, HF, FT, 120C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox 3GKW Multi conductor | 3GKW | 12561229 |
No
|
|
|
RADOX 3GKW/S, 2x1.0mm2, BLACK EMC, 600V, HF, FT, 120C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox 3GKW Multi conductor | 3GKW | 12559722 |
No
|
|
|
RADOX 3GKW, 8x2.5mm2, BLACK EMC, 600V, HF, FT, 120C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox 3GKW Multi conductor | 3GKW | 12559847 |
No
|
|
|
RADOX 3GKW/S, 3X4mm2, BLACK EMC, 600V, HF, FT, 120C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox 3GKW Multi conductor | 3GKW | 12559743 |
No
|
|
|
RADOX 3GKW/S, 3g4.0mm2, SVART, EMC, 600V, HF, FT, 120C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox 3GKW Multi conductor | 3GKW | 12565291 |
No
|
|
|
RADOX 3GKW/S, 4x6.0mm2, BLACK EMC, 600V, HF, FT, 120C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox 3GKW Multi conductor | 3GKW | 12559745 |
No
|
|
|
RADOX 3GKW/S, 3x10mm2, BLACK EMC, 600V, HF, FT, 120C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox 3GKW Multi conductor | 3GKW | 12559746 |
No
|
|
|
RADOX 3GKW/S, 4G10mm2, BLACK EMC, 600V, HF, FT, 120C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox 3GKW Multi conductor | 3GKW | 12560389 |
No
|
|
|
RADOX 3GKW/S, 4x16mm2, BLACK EMC, 600V, HF, FT, 120C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox 3GKW Multi conductor | 3GKW | 12559850 |
No
|
|
|
RADOX 3GKW/S, 3x25mm2, SVART, EMC, 600V, HF, FT, 120C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox 3GKW Multi conductor | 3GKW | 12560047 |
No
|
|
|
- Total: 10
