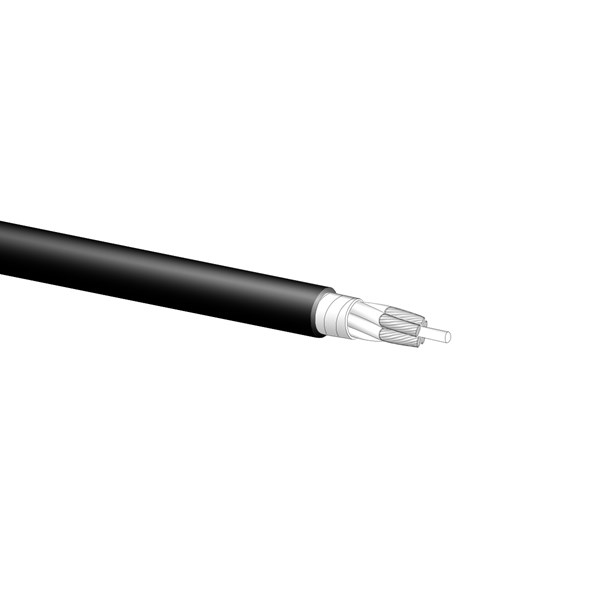

EN-Cable, multi conductor

Halogenfria, elektronstråle-tvärlänkade kablar med förbättrat beteende vid brand, lätt att skala, lödkolvbeständig och flexibel. Uppfyll kraven EN 50264-3-2

Kablarna är avsedda för permanent installation i rälsfordon eller för applikationer där en begränsad växelvis böjspänning uppstår under drift. Riktlinjer för val och installation beskrivs i standarderna EN 50355 och EN 50343.
RADOX EN 50264- 3- 2 ,EN 50306-4600V MM Flerledarkablar med reducerade väggmått
Nominell spänning: 600 / 1000 V AC
Risknivå: MM (extra låg temperatur, extra olja och extra bränslebeständig)

Show item list

Technical properties

Number of cores:
3 ., 2 .
Material core insulation:
Polyolefin
Specification core insulation:
Other
Core identification:
Colour
Protective conductor:
No
Material outer sheath:
Polyolefin
Specification material outer sheath:
Other
Colour outer sheath:
Other
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-40-125 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
125 °C
Screen:
No
Protective barrier:
N/A
Armouring/reinforcement:
None
Insulation integrity:
N/A
Drain wire:
No
Halogen free:
Yes, Yes
Conductor category:
Class 5 = flexible
Colour:
Black
Core colour:
Several
Conductor surface:
Tinned
Min. permitted bending radius, stationary application/permanent installation:
26.7 mm, 24.9 mm

Show more

  • Total: 4

12586179

Availability:
No

85002921

Availability:
No

12586209

Availability:
No

12586180

Availability:
No
  • Total: 4

Manuals, Datasheets, Sketches & Drawings

  • Total: 4
Product Description Availability
RADOX EN 50264-3-2, 2x2.5mm2, BLACK 600V, HF, FT, 125C
No
RADOX EN 50264-3-2 5G16mm2, S, EMC, 600V, HF, FT, 125C
No
RADOX EN 50264-3-2, 3x50+1G25mm2, BLACK 600V, HF, FT, 125C
No
RADOX EN 50264-3-2, 3x2.5mm2, BLACK 600V, HF, FT, 125C
No
  • Total: 4
  • Total: 4
Product Description Availability
RADOX EN 50264-3-2, 2x2.5mm2, BLACK 600V, HF, FT, 125C
No
RADOX EN 50264-3-2 5G16mm2, S, EMC, 600V, HF, FT, 125C
No
RADOX EN 50264-3-2, 3x50+1G25mm2, BLACK 600V, HF, FT, 125C
No
RADOX EN 50264-3-2, 3x2.5mm2, BLACK 600V, HF, FT, 125C
No
  • Total: 4
  • Total: 4
Product Description Availability
RADOX EN 50264-3-2, 2x2.5mm2, BLACK 600V, HF, FT, 125C
No
RADOX EN 50264-3-2 5G16mm2, S, EMC, 600V, HF, FT, 125C
No
RADOX EN 50264-3-2, 3x50+1G25mm2, BLACK 600V, HF, FT, 125C
No
RADOX EN 50264-3-2, 3x2.5mm2, BLACK 600V, HF, FT, 125C
No
  • Total: 4
  • Total: 4
Product Description Availability
RADOX EN 50264-3-2, 2x2.5mm2, BLACK 600V, HF, FT, 125C
No
RADOX EN 50264-3-2 5G16mm2, S, EMC, 600V, HF, FT, 125C
No
RADOX EN 50264-3-2, 3x50+1G25mm2, BLACK 600V, HF, FT, 125C
No
RADOX EN 50264-3-2, 3x2.5mm2, BLACK 600V, HF, FT, 125C
No
  • Total: 4
